kz 900

I'v got a Kawasaki 76 kz900 with dyna coils. I'm looking for the wiring diagram for the coils and the eletronic ignition.

I believe your bike came with ignition points, unless the previous owner upgraded the ignition system. I suppose you could install the Kawasaki electronic ignition, but you'd need the pickup (pulsing coils),IC Igniter & related wiring along with the magnetic plates & mechanical ignition advancer.

iv got all that. iv got a green a brown and a white/red.the green a bround are hooked to te coils when i hook the w/r to the green or the brown the coil works

classicwingclub.org/frankspage/pdf/DynaS.PDF



Click on the one with a pdf file. roy

fc5729 wrote: iv got all that....

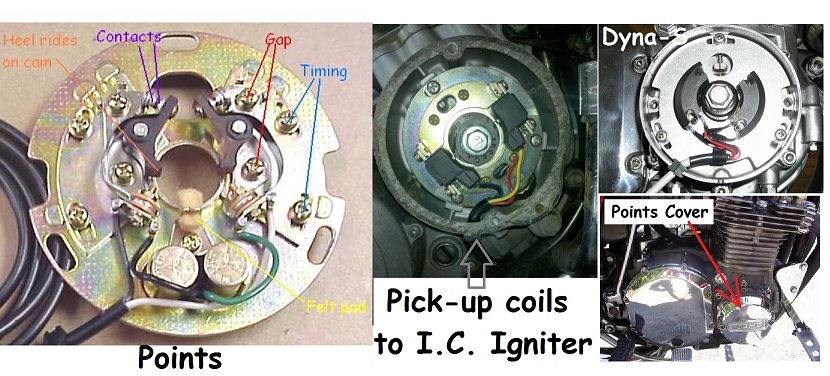

Which ignition is under the points cover, (a)points OR (b)Dyna-S OR (c)Kawasaki electronic?



Good Fortune!
