wiring issues
- RoycePHC1
- Topic Author
- Offline
- User
Less
More
12 Jun 2011 06:33 #456799
by RoycePHC1
I am having trouble trying to wire my 1980 kz750g twin
please take a look at the wiring diagram i drew up.
It is true that all gauges and turn signals have been removed. All I have is what is shown.
The lights are working but I am not sure about charging system and ignition system
Also the keyed ignition has been replaced by a 30amp toggle switch.
If you have any suggestions why the engine wont kick let me know
wiring issues was created by RoycePHC1
Attachment wiringdigram.jpg not found
I am having trouble trying to wire my 1980 kz750g twin
please take a look at the wiring diagram i drew up.
It is true that all gauges and turn signals have been removed. All I have is what is shown.
The lights are working but I am not sure about charging system and ignition system
Also the keyed ignition has been replaced by a 30amp toggle switch.
If you have any suggestions why the engine wont kick let me know
Attachments:
Please Log in or Create an account to join the conversation.
- Old Man Rock
- Offline
- User
Less
More
- Posts: 6224
- Thank you received: 225
12 Jun 2011 08:52 - 12 Jun 2011 09:12 #456803
by Old Man Rock
1976 KZ900-A4
MTC 1075cc.
Camshafts: Kawi GPZ-1100 .375 lift
Head: P&P via Larry Cavanaugh
ZX636 suspension
MIKUNI, RS-34'S...
Kerker 4-1, 1.5" comp baffle.
Dyna-S E.I.
Earls 10 row Oil Cooler
Acewell 2802 Series Speedo/Tach
Innovate LC1 Wideband 02 AFR meter
Phoenix, Az
Replied by Old Man Rock on topic wiring issues

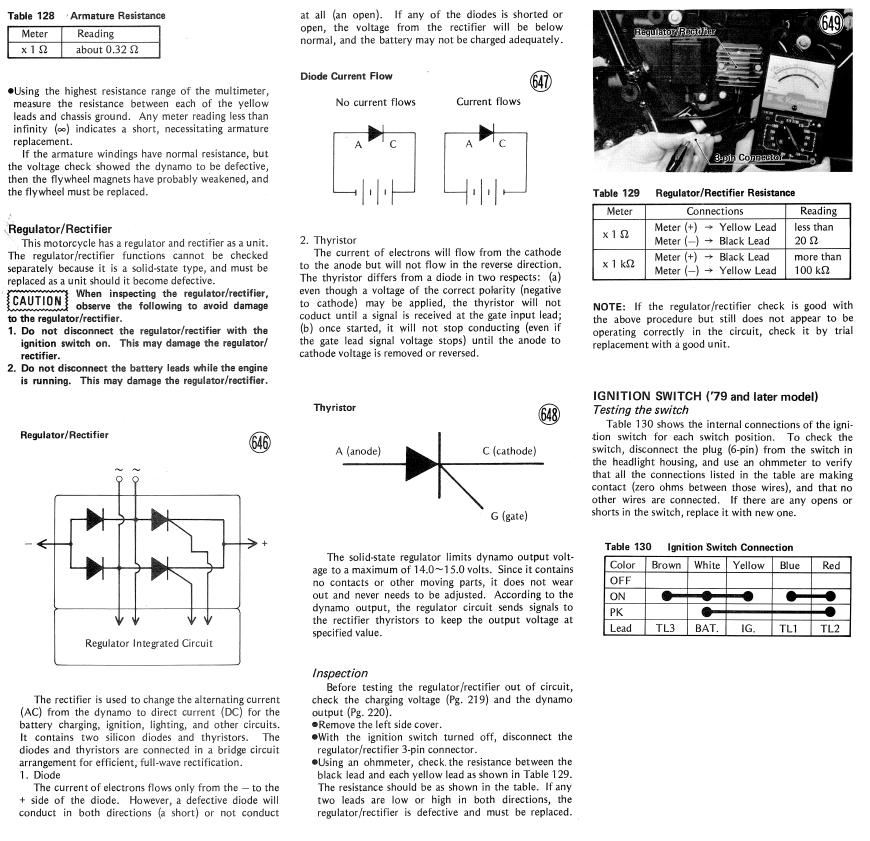

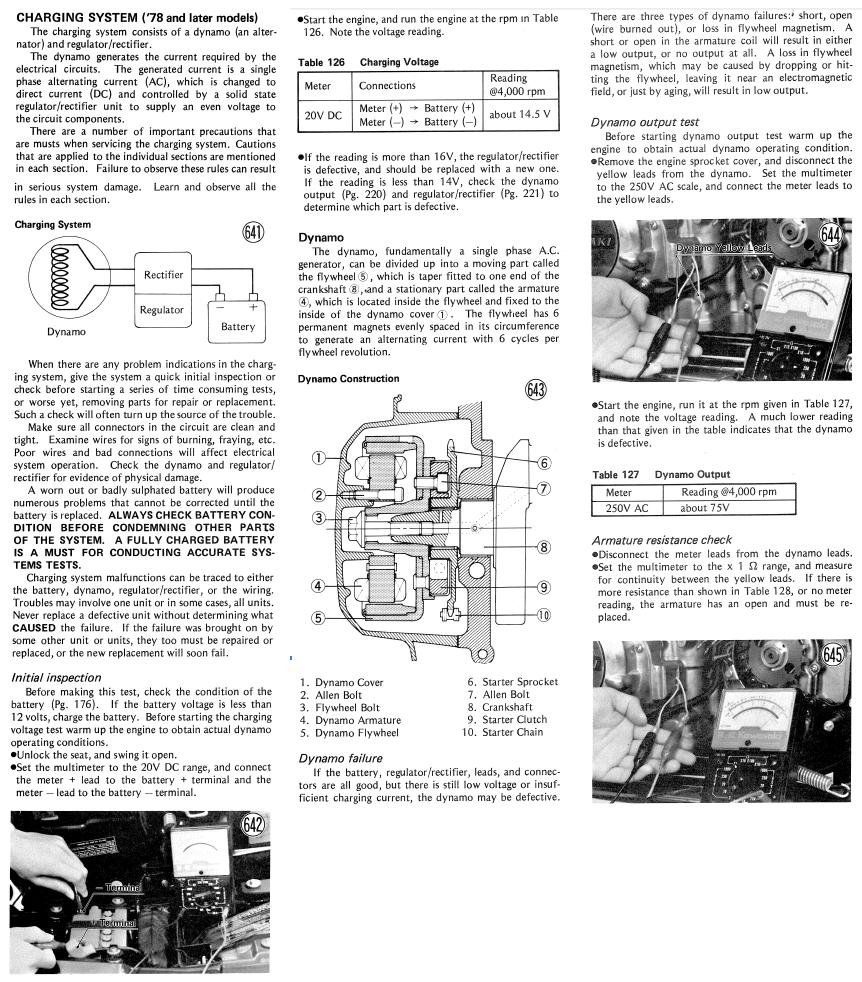

Not sure of your model but this is the closest I have for the twins... Maybe close enough to give some insight....
1976-179 KZ750 B series manual download 180Meg....
KZ750 B- Series OEM Manual;
Insure your engine has a good ground connection, should be the same potential as Battery (-)...
Using a voltmeter, Battery (-) to coil Red/Yellow when switched on should = Battery Vdc ~ 12Vdc plus. What's the condition of your coil, points and condenser?
1979 KZ750-B4 model....
Just in case you need....
OMR
1976-179 KZ750 B series manual download 180Meg....
KZ750 B- Series OEM Manual;
Insure your engine has a good ground connection, should be the same potential as Battery (-)...
Using a voltmeter, Battery (-) to coil Red/Yellow when switched on should = Battery Vdc ~ 12Vdc plus. What's the condition of your coil, points and condenser?
1979 KZ750-B4 model....
Just in case you need....
OMR
1976 KZ900-A4
MTC 1075cc.
Camshafts: Kawi GPZ-1100 .375 lift
Head: P&P via Larry Cavanaugh
ZX636 suspension
MIKUNI, RS-34'S...
Kerker 4-1, 1.5" comp baffle.
Dyna-S E.I.
Earls 10 row Oil Cooler
Acewell 2802 Series Speedo/Tach
Innovate LC1 Wideband 02 AFR meter
Phoenix, Az
Last edit: 12 Jun 2011 09:12 by Old Man Rock.
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
12 Jun 2011 09:45 #456813
by Patton

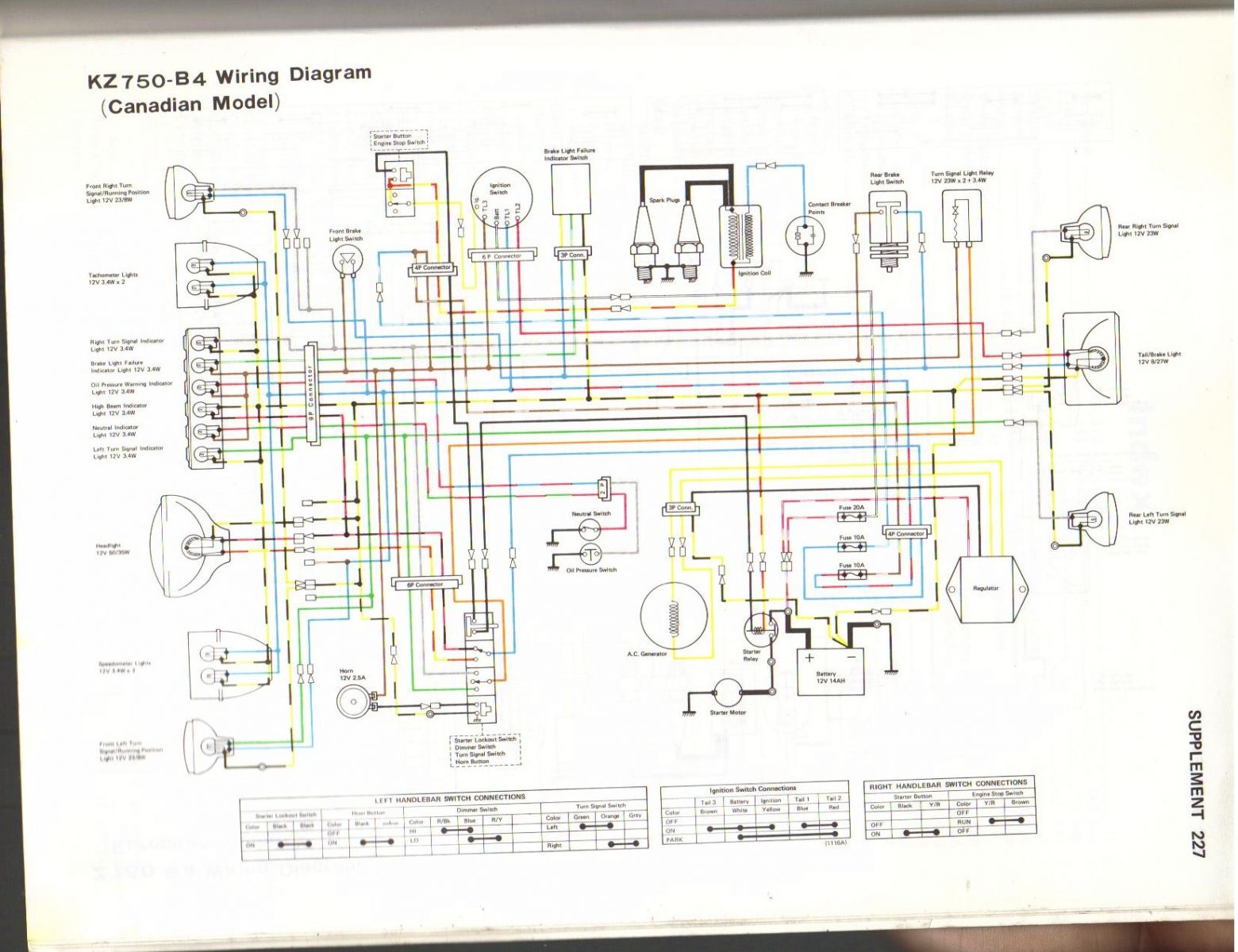

Wiring diagram found in the FILEBASE:
