1980 LTD650 Fuse Box
- Mellvis
- Topic Author
- Offline
- User
Please Log in or Create an account to join the conversation.
- Motor Head
- Offline
- User
- FIX UP YOUR BIKE RIGHT AND CHEAP
- Posts: 5138
- Thank you received: 391
The main fuse supplies power to the ignition switch from the battery. Check it on both sides as they fail from heat. Power should return to the Fuse Box after switch is turned to run, but it must be getting there first. Probably a White wire heading from the Main fuse to the Ignition switch.
1982 KZ1000LTD K2 Vance & Hines 4-1 ACCEL COILS Added Vetter fairing & Bags. FOX Racing rear Shocks, Braced Swing-arm, Fork Brace, Progressive Fork Springs RT Gold Emulators, APE Valve Springs, 1166 Big Bore kit, RS34's, GPZ cams.
1980 KZ550LTD C1 Stock SOLD Miss it
1979 MAZDA RX7 in the works, 13B...
Please Log in or Create an account to join the conversation.
- Mellvis
- Topic Author
- Offline
- User
- Posts: 250
- Thank you received: 3
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
To be precise, each fuse should have 12v on each end of the fuse. If it only has 12v on one end, that means the fuse is blown.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- MFolks
- Offline
- User
- Posts: 6650
- Thank you received: 540
1. The older Kawasaki’s use a glass tubed fuse with the designation of AGX 1” long. Most good auto parts stores can get them for you. They are ¼” in diameter.
2. The more common AGC is 1 ¼” long and may not fit the smaller fuse clips. Again, ¼” in diameter.
3. To clean and polish the fuse clips, I use a cotton swab(Q- Tip) and some Brasso metal cleaner or Turtle Wax Chrome Polish. I suppose any good metal polish would work.
4. These fuses can fail internally but look good, only by removing them from the clip and electrically continuity checking with either a self powered test light, or a multimeter set on OHMS can they be determined to be in good shape.
5. A physical inspection of the metal end caps for tightness will tell you if the fuse is serviceable.
6. Most modern motorcycles are now using the automobile “Blade” style fuse with the designation of ATC or ATO.
7. The reduced sized “Mini” Blade style fuse holder uses the ATM size of fuses.
8. If the fuse and fuse holder overheat, it could soften or anneal the grip of the clip, it might require squeezing the clip to restore the tightness.
9. A list of where to purchase “Blade” style fuses and holders:
www.waytekwire.com order.waytekwire.com/productdetail2/M50/...20%20%20%208%20FUSE/
www.rallylights.com www.rallylights.com/detail.aspx?ID=765
www.delcity.net/store/6!way-fuse-blocks/p_10822.a_1
10. A source for the glass tubed AGX fuses:
www.boatownerswarehouse.com/browse.cfm/2,4986.html
1982 GPZ1100 B2
General Dynamics/Convair 1983-1993
GLCM BGM-109 Tomahawk, AGM-129A Advanced Cruise Missile (ACM)
Please Log in or Create an account to join the conversation.
- Mellvis
- Topic Author
- Offline
- User
- Posts: 250
- Thank you received: 3
1. Replace main fuse - fuse blows as soon as battery is connected, even with the key in the "OFF" position.
2. Head light works high and low beam. No tail light, gauge lights, no front running lights.
3. Turn signals all work, brake light works from rear foot brake and front brake, tail light works in "PARK" position on the ignition.
4. I get a less than one volt reading on the frame of the bike (about 0.015) UNLESS I unplug the RIGHT handle bar switch from the main harness.
5. Replacing the right handle bar switch changes nothing!
6.No broken/frayed/shorted wires evident on the right handle bar switch (even with the plastic covered peeled away from the individual wires).
7. As stated before, no power to the "HEAD" or "TAIL" fuse in the fuse box.
8. Might end up trading it for a keg of Bud Light!
Please Log in or Create an account to join the conversation.
- Mellvis
- Topic Author
- Offline
- User
- Posts: 250
- Thank you received: 3
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
Mellvis wrote: ...Replace main fuse - fuse blows as soon as battery is connected, even with the key in the "OFF" position....
Perhaps a short in the wire or connector between the 20 amp fuse and the ignition switch, or a short inside the ignition switch itself.

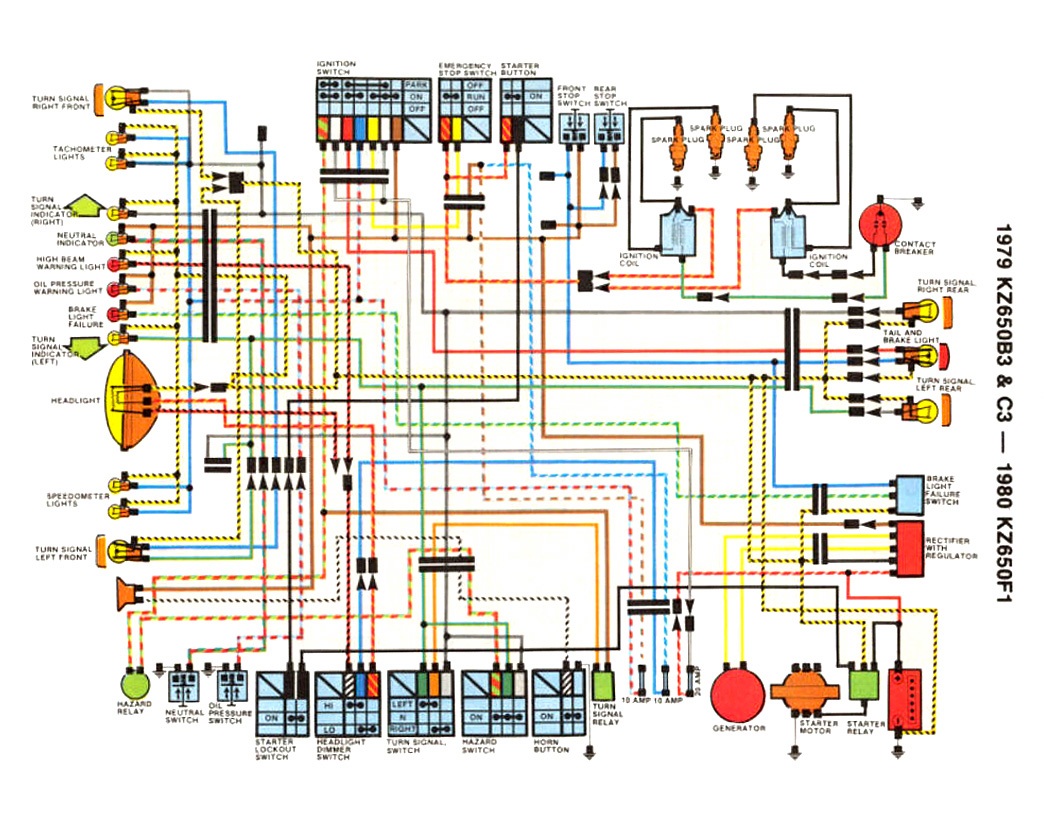

Here's the wiring diagram from FILEBASE.
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
- Posts: 15344
- Thank you received: 2829
I'm betting you have a short circuit. I would leave the battery disconnected and begin testing at the main fuse by checking for continuity between the main fuse and ground. If you find continuity that confirms a short between the hot (positive) fused wire and ground, so you will need to trace that hot wire to see where it is contacting something it shouldn't. For example, the insulation may be worn through under the tank or where the wires go into the headlight shell, etc. If you remove the fuse and test of the main fuse clips, you can tell which direction to begin your search. Once you determine the direction, you should be able to isolate the area of the short by unplugging bullet connectors (one at a time) and testing the wires for continuity to ground. I would isolate and repair this problem before considering the other symptoms you describe.
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- Mellvis
- Topic Author
- Offline
- User
- Posts: 250
- Thank you received: 3
So, I thought I would try a hot wire from the fuse box to the tail light. Got to fumbling around and got power at the tail light fuse. Who knew fuses could get corrosion and not make connection? Now I have a tail light. Could that have caused enough resistance to pull too much amperage through the main fuse and call it to pop?
Please Log in or Create an account to join the conversation.
- MFolks
- Offline
- User
- Posts: 6650
- Thank you received: 540
The high beam will come on at reduced voltage so not to blind on coming drivers.I believe it will also turn on a light on the instrument panel indicating headlight problems.
I suspect your ignition switch has either burned electrical contacts or they are starting to wear out & it's time to replace the switch. Try www.z1enterprises.com for a new switch.
1982 GPZ1100 B2
General Dynamics/Convair 1983-1993
GLCM BGM-109 Tomahawk, AGM-129A Advanced Cruise Missile (ACM)
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
Corrosion, if it's just the right amount, can cause the fuse holder to get hot, which can heat up the fuse and melt the fuse from heat instead of current. This usually takes time, though.
If it was blowing instantly, there would probably be a short somewhere, as Ed said. A shorted rectifier can cause that, but the short won't usually go away if it's in the rectifier.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
