COLORS OF THE WIRES - IGNITION COILS
- Hawk111
- Topic Author
- Offline
- User

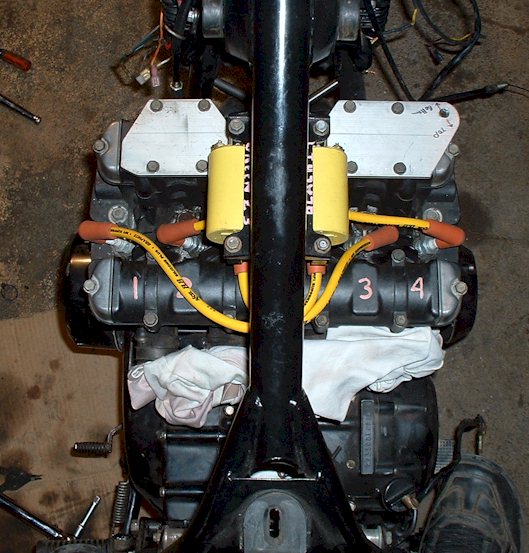

I need to know...let's say you are sitting on the bike and looking down. On the left is 1 and 4,
on the right is 2 and 3
what colored wires go where???
left coil (from on top) then right coil
ok, the ign coils have "2" plug ins on the top and "1" nut washer type on the back of the coils
I have 6 wires:
1. green
2. yel/red
3. Black
4. Brown
5. an extra black
6. and a black and yellow
Where do they go? hmmm...
Please Log in or Create an account to join the conversation.
- Hawk111
- Topic Author
- Offline
- User
- Posts: 41
- Thank you received: 0
1 and 4. Just for clarification to whomever reads this.
Also, I would like a colored wiring diagram if anyone could be so generous to upload
a pic to the blog.
Please Log in or Create an account to join the conversation.
- martin_csr
- Offline
- User
- Posts: 8068
- Thank you received: 1656
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
The next spark plug is #2.
The next spark plug is #3.
The last spark plug on the right (rear brake pedal) side is #4.

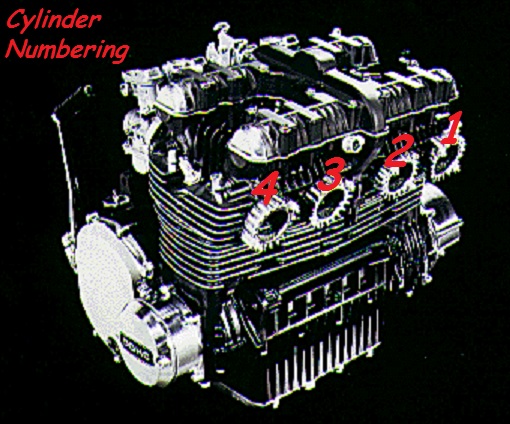

These are the cylinder numbers used for reference. 1-2-3-4 counting from the left.
These cylinder numbers are NOT the "firing" order, which is for example 1-2-4-3 on the large fours.
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
Black goes to the right coil for cylinders 1 and 4.
Green goes to the left coil for cylinders 2 and 3.
Left and right are swapped on the bigger bikes 900/1000/1100.
1981 KZ550 D1 gpz.
