I cant get my ignition timing to the "F" mark?????
- Patton
- Offline
- KZr Legend
Less
More
16 Apr 2011 22:59 #445037
by Patton

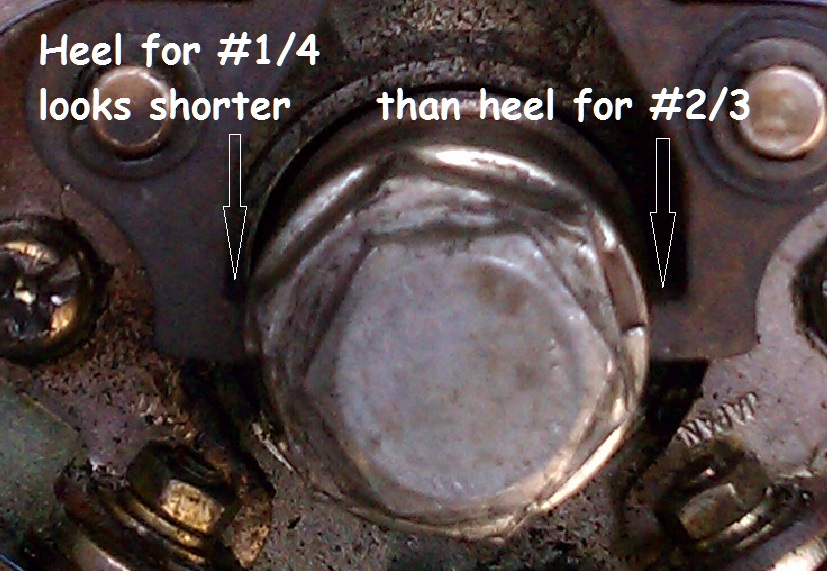

Here's the pic for reference (see below).
If the heel on #1/4 is shorter for whatever reason, it's a likely suspect.
Because opening of the points will be delayed.
It's the moment of opening that causes the ignition coil to fire.
Good Fortune!
1973 Z1
KZ900 LTD
Replied by Patton on topic I cant get my ignition timing to the "F" mark?????
Patton wrote: From the pics, it looks like the heel is broken off or worn down on the left set of points.
The heel on the right set of points looks okay....
Here's the pic for reference (see below).
If the heel on #1/4 is shorter for whatever reason, it's a likely suspect.
Because opening of the points will be delayed.
It's the moment of opening that causes the ignition coil to fire.
Good Fortune!
1973 Z1
KZ900 LTD
