Accel rev limiter
- Kawiman80
- Topic Author
- Offline
- User
- On my 2nd KZ1000
Less
More
23 Mar 2011 14:38 - 23 Mar 2011 14:43 #439937
by Kawiman80
1980 kz1000g 1105 34mm Mikuni flat slides Kerker exhaust custom paint stock ignition(Dyna 2000 soon) Accel coils and wires stock cams w/ heavy springs for more rpm. My 2nd 1000.
Accel rev limiter was created by Kawiman80

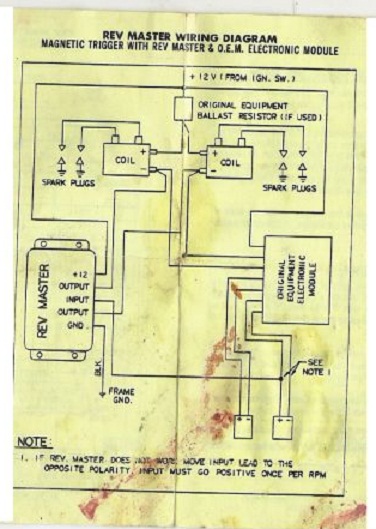

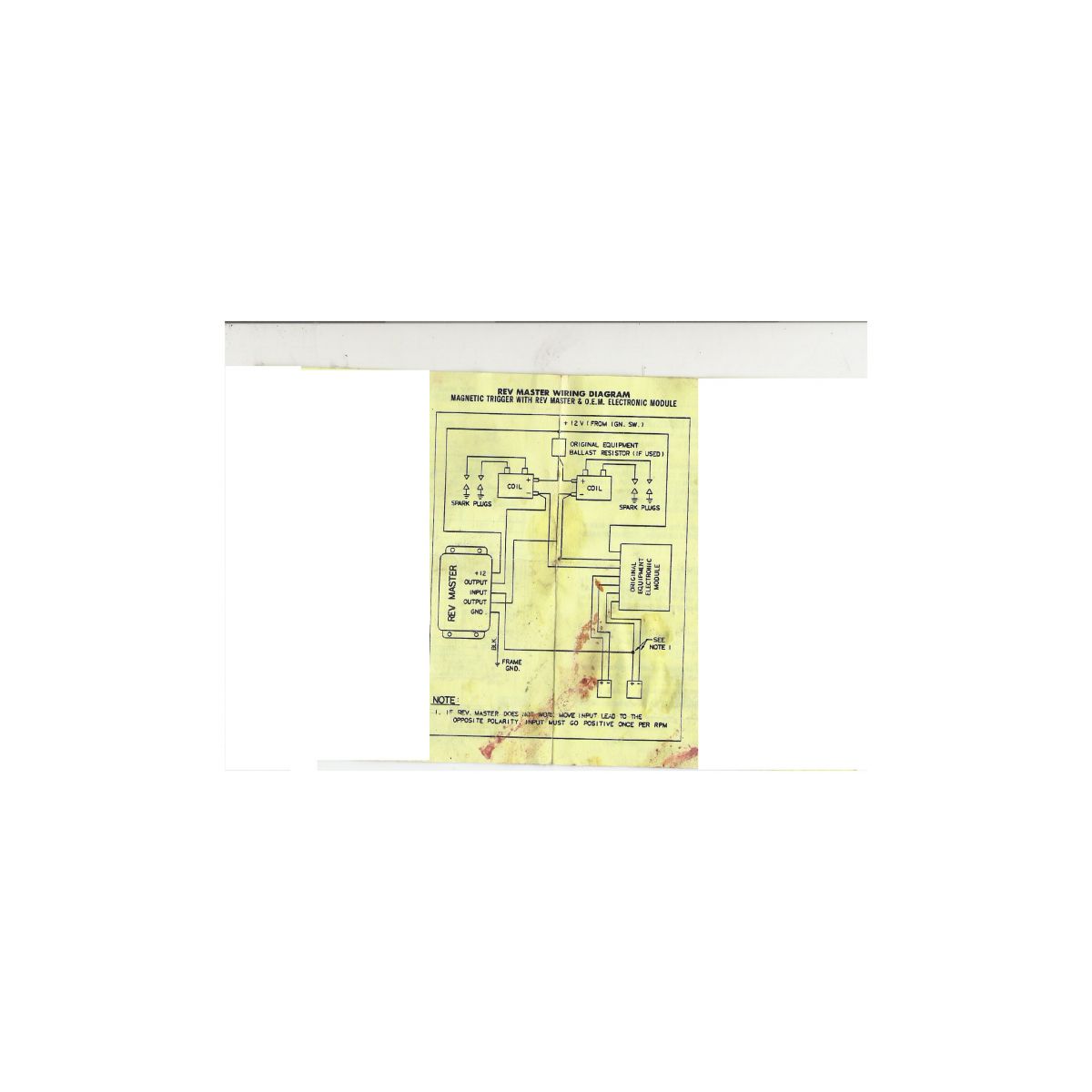

[Hey guys,
Haven't been on in a while. Workin to much!! Like 50+ hrs a week and have not had time to work on the bike until recently.
But I do have a problem, I bought an Accel rev limiter from a member on here(brand new)and I'mm havin trouble with the wiring.
According to the diagram,it does not matter what side to hook the leads to the Accel coils. They are not +or- specific. Nor can I figure out the which wire to hook up the signal lead to the ignition. By the way it is still the stock ignition execept for the Accel coils and wires. It was that way when I bought it. Lets see if I can load the wiring diagram.
Please,any kind of help would be great and thanks in advance.
My bike is a 1980 Kz1000G,if that helps. All of the maods were done to it when I bought it.
Thanks,
Mike
Haven't been on in a while. Workin to much!! Like 50+ hrs a week and have not had time to work on the bike until recently.
But I do have a problem, I bought an Accel rev limiter from a member on here(brand new)and I'mm havin trouble with the wiring.
According to the diagram,it does not matter what side to hook the leads to the Accel coils. They are not +or- specific. Nor can I figure out the which wire to hook up the signal lead to the ignition. By the way it is still the stock ignition execept for the Accel coils and wires. It was that way when I bought it. Lets see if I can load the wiring diagram.
Please,any kind of help would be great and thanks in advance.
My bike is a 1980 Kz1000G,if that helps. All of the maods were done to it when I bought it.
Thanks,
Mike
1980 kz1000g 1105 34mm Mikuni flat slides Kerker exhaust custom paint stock ignition(Dyna 2000 soon) Accel coils and wires stock cams w/ heavy springs for more rpm. My 2nd 1000.
Last edit: 23 Mar 2011 14:43 by Kawiman80. Reason: wiring diagram didn't load 1st time
