Fuel injection Trouble shooting assistance
- diego092409
- Topic Author
- Offline
- User
- Posts: 110
- Thanks: 4
Re: Fuel injection Trouble shooting assistance
05 Nov 2021 05:39
Thanks for the lead on the substitute fuel injectors. May go that route. I will check that they are getting signals when I have it apart; however, the injectors are still in the shower head position fogging out the neighborhood when I start the bike up and need pulled. Thanks for all the great information. one of these days I will get her running...
1982 KZ1100 B2 - 'Old Red'
kzrider.com/forum/11-projects/601185-gpz-1100-resto-mod-old-red
2015 BMW K1600GT
2017 KTM 690 Enduro R
2018 Kymco Spade (wife's)
2015 BMW K1600GT
2017 KTM 690 Enduro R
2018 Kymco Spade (wife's)
Please Log in or Create an account to join the conversation.
- Highway Magician
- Offline
- User
- Posts: 79
- Thanks: 33
Re: Fuel injection Trouble shooting assistance
05 Nov 2021 20:04

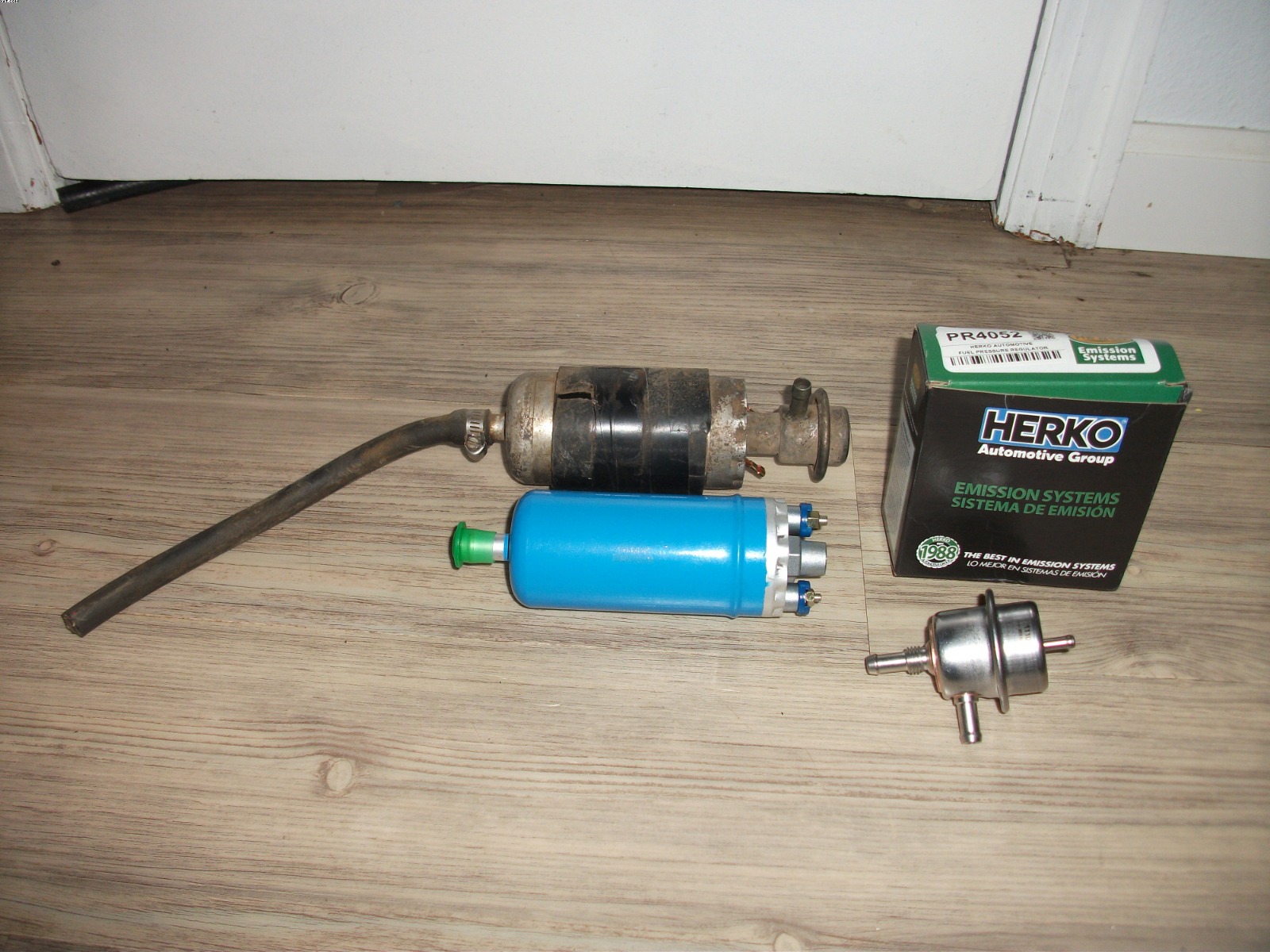

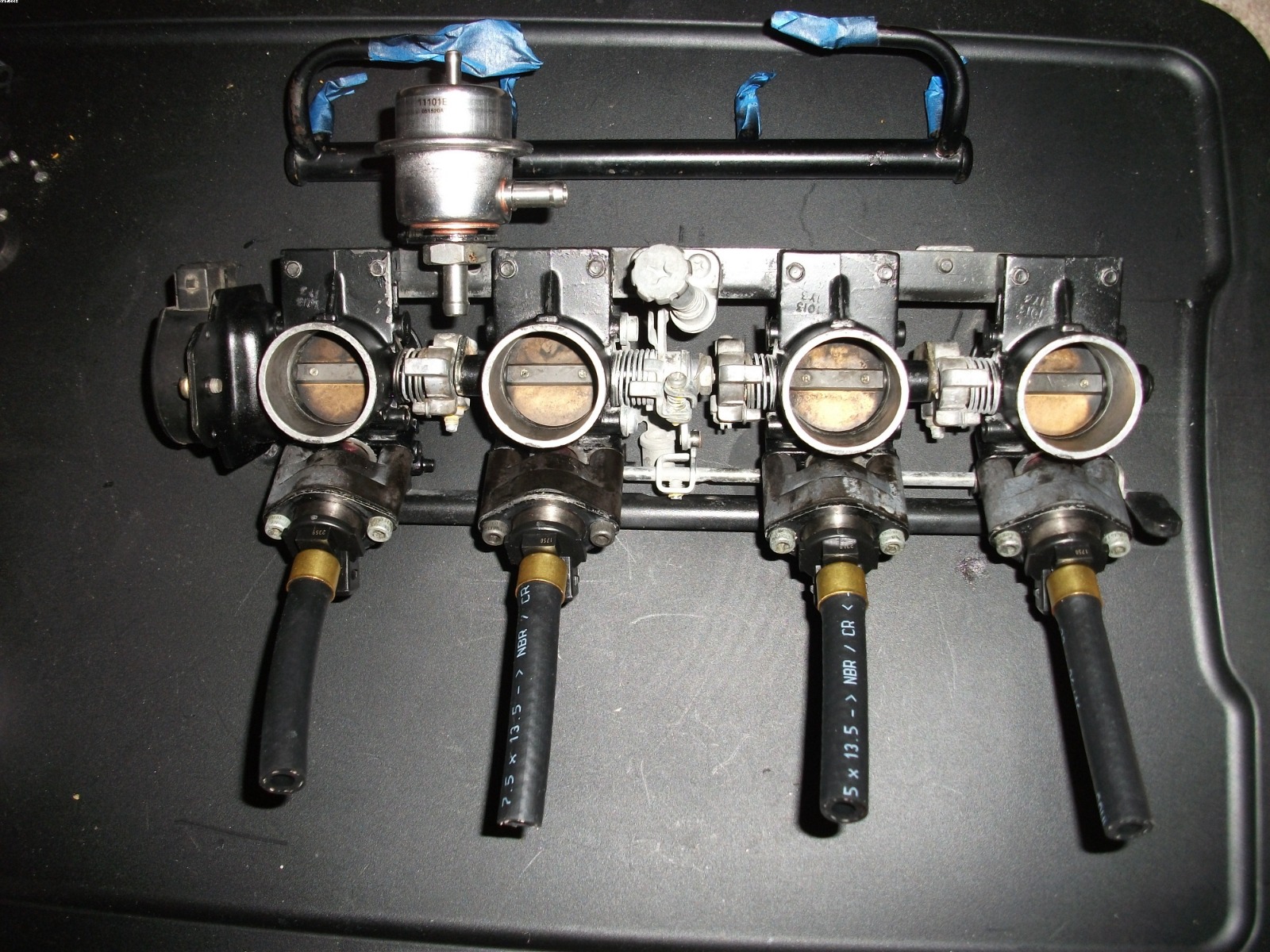

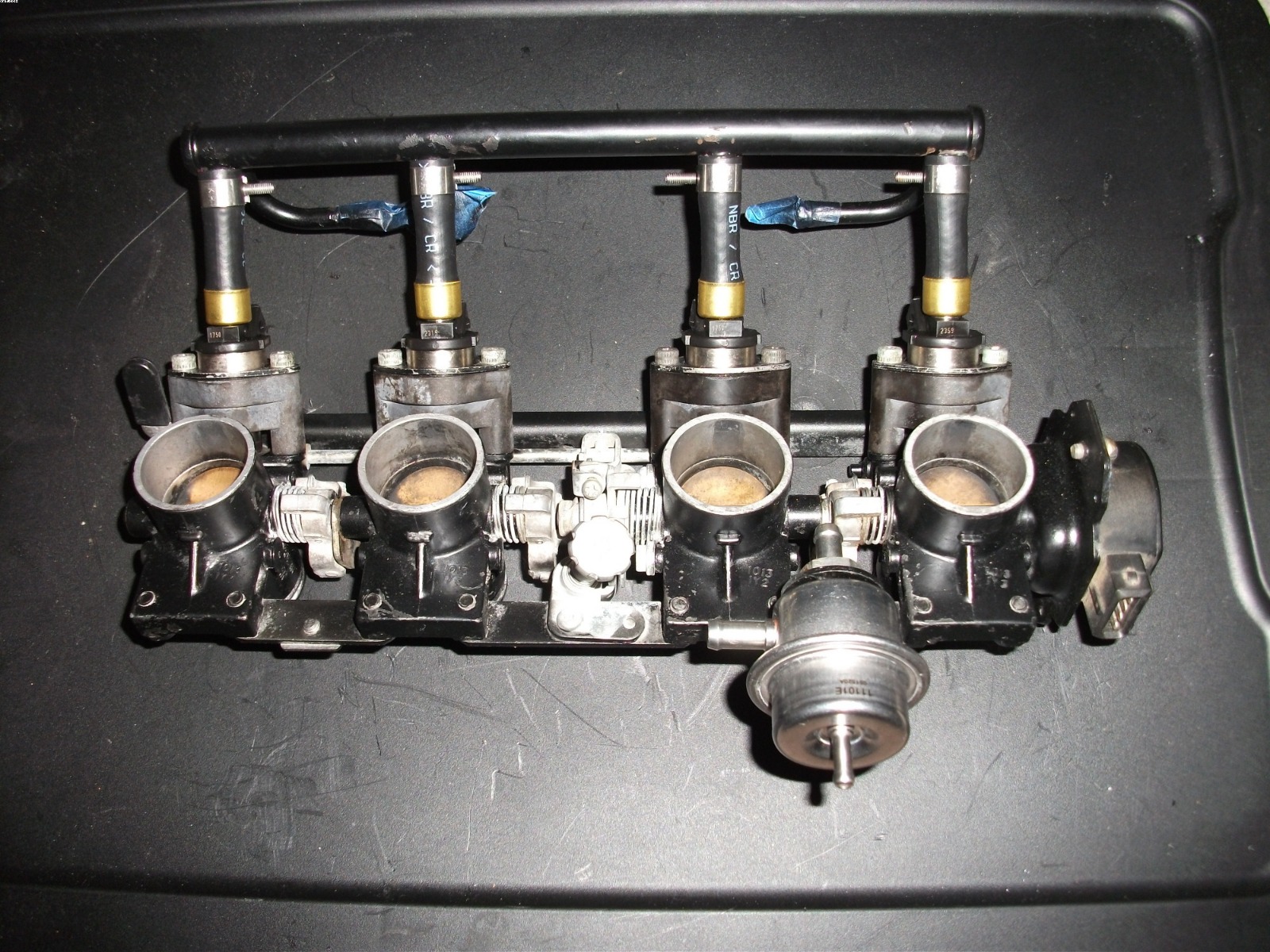

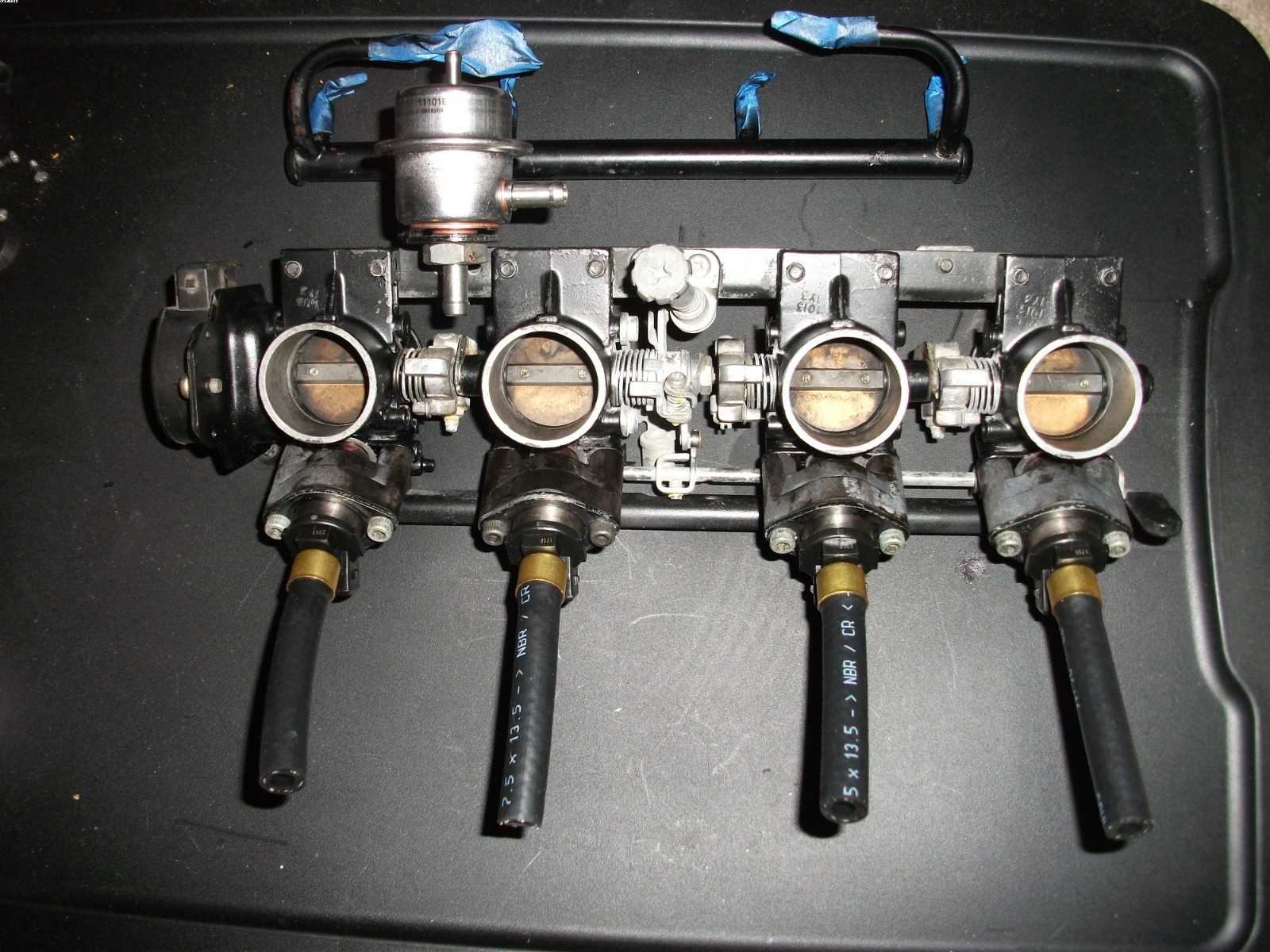

No problem. Take a look at the pics. The injectors I used are Carquest #57519, made by Borg-Warner. They are $56.99 and
online discount coupons are available (20-25% off).
online discount coupons are available (20-25% off).
Motorcycle builder since 1973. Master Tech. Current bike: 1982 GPZ1100B2.
The following user(s) said Thank You: diego092409
Please Log in or Create an account to join the conversation.
- diego092409
- Topic Author
- Offline
- User
- Posts: 110
- Thanks: 4
Re: Fuel injection Trouble shooting assistance
01 May 2022 16:09
I swapped out the two suspect injectors. Have all of the cylinders running now. Having issue with the engine running right without it wanting to rev sky high or stumbling.
I think I have idling working by adjusting the throttle position sensor but when I open the throttle, it stumbles and send white smoke out tail pipe.
I have an adjustable regulator on it with vacuum port and a pressure gauge. The gauge reads the appropriate psi at idle but when I open the throttle the needle dips.
I have a 660 ohm resistor on the air temp sensor and the air temp resistance is correct as well as the engine block temp is correct.
Am I just seeing residue from the bike sitting dormant for so long and having new piston rings installed?
I think I have idling working by adjusting the throttle position sensor but when I open the throttle, it stumbles and send white smoke out tail pipe.
I have an adjustable regulator on it with vacuum port and a pressure gauge. The gauge reads the appropriate psi at idle but when I open the throttle the needle dips.
I have a 660 ohm resistor on the air temp sensor and the air temp resistance is correct as well as the engine block temp is correct.
Am I just seeing residue from the bike sitting dormant for so long and having new piston rings installed?
1982 KZ1100 B2 - 'Old Red'
kzrider.com/forum/11-projects/601185-gpz-1100-resto-mod-old-red
2015 BMW K1600GT
2017 KTM 690 Enduro R
2018 Kymco Spade (wife's)
2015 BMW K1600GT
2017 KTM 690 Enduro R
2018 Kymco Spade (wife's)
Please Log in or Create an account to join the conversation.
