KZ650SR D1 - AIr Screw Location On Carbs
- Clive1978
- Topic Author
- Offline
- User
can only see the fuel screw to each ? , anyone know were the air screw is 1978 bike
KS650SR D1A
Please Log in or Create an account to join the conversation.
- Nessism
- Away
- Sustaining Member
- Posts: 7526
- Thank you received: 2838
The PILOT air screws are on the side of the carbs, visible from the front.
I strongly suggest getting a factory Kawasaki manual for your bike. There are free downloads available on the internet. www.zedrider.co.uk/service--owners-manuals.html
Also, find a parts fishe where you can look for parts info such as on Partzilla. www.partzilla.com/catalog/kawasaki/motor...-d1/carburetor-parts
Please Log in or Create an account to join the conversation.
- RonKZ650
- Offline
- User
- Posts: 3703
- Thank you received: 240
321,000 miles on KZ's that I can remember. Not going to see any more.
Please Log in or Create an account to join the conversation.
- Clive1978
- Topic Author
- Offline
- User
- Posts: 13
- Thank you received: 0
that was my thinking , all the ports on the carbs are solid , only the fuel screw on the bottom are exposed , need to measure the throats now they are back from the cleaners could be VM22SS
Thanks for your input on this matter the Tech Manuals are pants on this issue
KS650SR D1A
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
- Clive1978
- Topic Author
- Offline
- User
- Posts: 13
- Thank you received: 0
KS650SR D1A
Please Log in or Create an account to join the conversation.
- Clive1978
- Topic Author
- Offline
- User
- Posts: 13
- Thank you received: 0
remember this bike is 40 years old and i have owned it 4 months !
and yes i do have the Clymer manual for it ! all the documents say 22mm so why is the dim 24.4mm , different carbs at some point in its life ?
KS650SR D1A
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
- Posts: 15344
- Thank you received: 2829
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- Clive1978
- Topic Author
- Offline
- User
- Posts: 13
- Thank you received: 0
so what about these then , the orifice is at 14.00hrs (2 o'clock) the other one is blank for sure , i will look again tonight and photo them correctly
KS650SR D1A
Please Log in or Create an account to join the conversation.
- Nessism
- Away
- Sustaining Member
- Posts: 7526
- Thank you received: 2838
Clive1978 wrote: Hi 650ed,
so what about these then , the orifice is at 14.00hrs (2 o'clock) the other one is blank for sure , i will look again tonight and photo them correctly

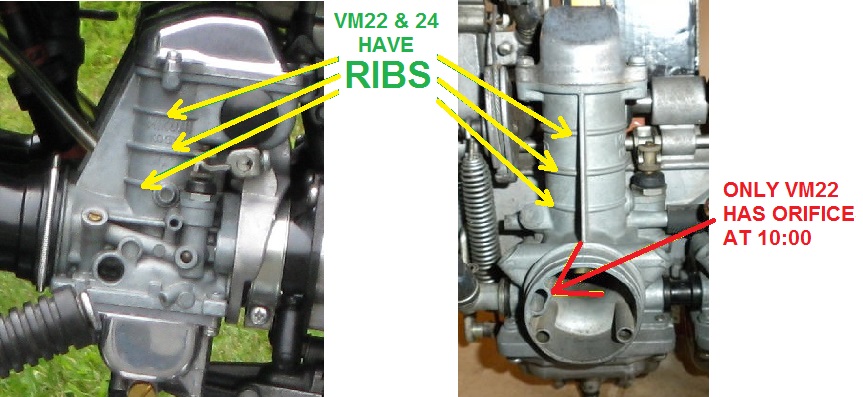

It seems Ed has provided the info you need..." If they have the orifice at the 10:00 position they are VM22; if not they are VM24. " That clearly suggests you have the 22's.
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
I can't explain why the engine throat diameter would measure 24.4 mm unless maybe it's the larger outer diameter instead of the inner diameter where the measurement is supposed to be taken. Or perhaps the carbs at hand are some other ribbed 24mm carbs with bottom located mixture screw (if such carbs exist).
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- Clive1978
- Topic Author
- Offline
- User
- Posts: 13
- Thank you received: 0
KS650SR D1A
Please Log in or Create an account to join the conversation.
