650csr H2 Fuel/Carb line routing??
- Patton
- Offline
- KZr Legend
Less
More
13 May 2016 10:34 #726172
by Patton
1973 Z1
KZ900 LTD
Replied by Patton on topic 650csr H2 Fuel/Carb line routing??
It's perfectly okay to simply remove and toss all the clean-air system components, because the engine performs just as well without the clean air system, and the clean air system components and hoses with their sundry additional connections provide additional possible sources for air leaks.
Good Fortune!
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- KevinK121
- Topic Author
- Offline
- User
Less
More
- Posts: 28
- Thank you received: 0
13 May 2016 10:50 #726180
by KevinK121
Replied by KevinK121 on topic 650csr H2 Fuel/Carb line routing??
Ah I see. That would make things easier. What about the vacuum on the petcock?
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
Less
More
- Posts: 15344
- Thank you received: 2829
13 May 2016 11:31 #726192
by 650ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Replied by 650ed on topic 650csr H2 Fuel/Carb line routing??
If you have a vacuum operated petcock you need a vacuum line from it to a carb (normally carb #2). Otherwise you will need to always run it with the petcock in the "Prime" position. Another option is to replace the vacuum petcock with a manual one; then you wouldn't need to hook up the vacuum line. Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
13 May 2016 21:23 - 13 May 2016 21:45 #726306
by Patton

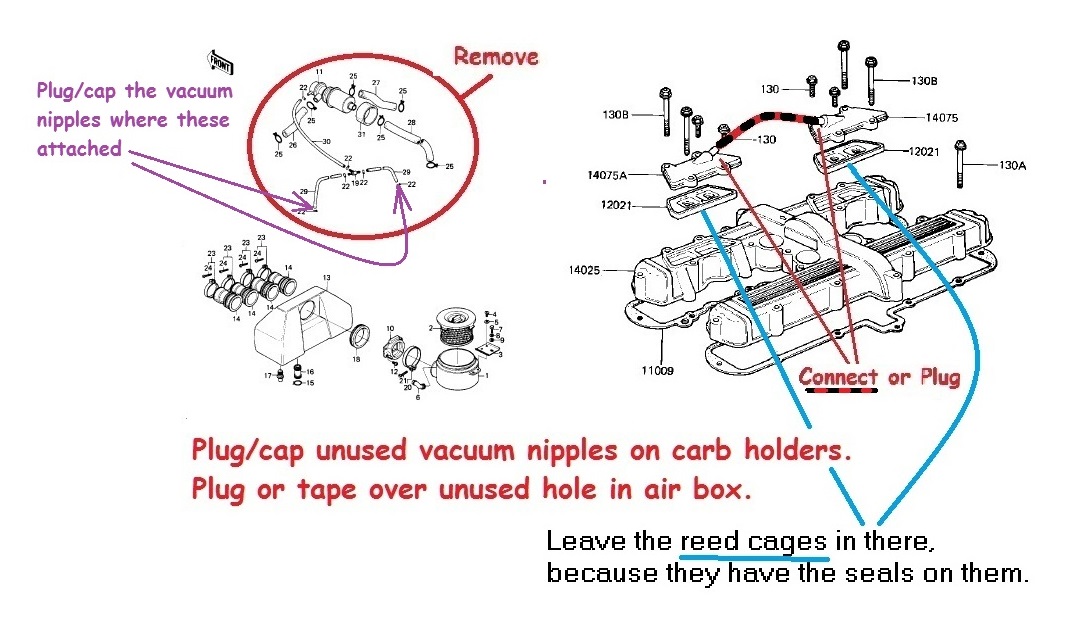

May attach the tube from petcock's vacuum nipple to any vacuum nipple on the carbs or to a vacuum nipple on one of the carb holders.
Be sure not to confuse a vent nipple with a vacuum nipple, as the carbs' vent nipples are supposed to exit to open air.
Each carb float bowl is vented, Usually, two float bowls are vented through a single vent nipple which vents both float bowls. Hence, all four float bowls are vented by just the two vent nipples.
Any unused vacuum nipple must be capped/plugged so as to prevent an unused open vacuum nipple from producing an undesirable air leak.
When working properly, the vacuum operated petcock will always allow fuel flow in PRIme position, but not allow fuel flow in ON or REServe positions unless receiving a vacuum (which vacuum is furnished via the carb on a running engine).
Good Fortune!
1973 Z1
KZ900 LTD
Replied by Patton on topic 650csr H2 Fuel/Carb line routing??
KevinK121 wrote: Ah I see. That would make things easier. What about the vacuum on the petcock?
May attach the tube from petcock's vacuum nipple to any vacuum nipple on the carbs or to a vacuum nipple on one of the carb holders.
Be sure not to confuse a vent nipple with a vacuum nipple, as the carbs' vent nipples are supposed to exit to open air.
Each carb float bowl is vented, Usually, two float bowls are vented through a single vent nipple which vents both float bowls. Hence, all four float bowls are vented by just the two vent nipples.
Any unused vacuum nipple must be capped/plugged so as to prevent an unused open vacuum nipple from producing an undesirable air leak.
When working properly, the vacuum operated petcock will always allow fuel flow in PRIme position, but not allow fuel flow in ON or REServe positions unless receiving a vacuum (which vacuum is furnished via the carb on a running engine).
Good Fortune!
1973 Z1
KZ900 LTD
Last edit: 13 May 2016 21:45 by Patton.
