KZ650 Carb Synch and MORE...
- Dumont
- Topic Author
- Offline
- User
After the bike is warmed up it will idle but it does not sound quite right and will not idle down under 1300ish without stumbling. If I turn the air screws "IN" the idle increases... the other issue is it bogs hard about 5-6000 RPM. Reading the plugs was not much help for me as the base of the plugs are sooty black but the ground electrode is bright white :S
The bike came as I have found with stock exhaust, Chinese Pods, Martek 440 Electronic Ignition and Andrews coils.
I have a "Clymer," manual and followed their maintenance routine including a compression check (the specs are out in the garage but they were good), properly adjusted the valves (had to replace 3 of the shims) and have an assortment of pilot and main jets to play with. I did an initial cleaning and set the mechanical Synch. Now I am to the point of doing the "Fine Synch".
When I hook up the gauges to the manifold boots I only get about 6 vacuum inches. 1 was at 8 and I adjusted it down to meet the others. The Specs say 18 to 24 cmHG or basically you have a vacuum leak or need to clean the carbs.
I have done the spray around the boots and listen for change and get none. Since they are all in Synch but out of spec together is this a difference in "Vacuum Inches" and "cmHG"? I tried to Google a conversion but could not come up with one.

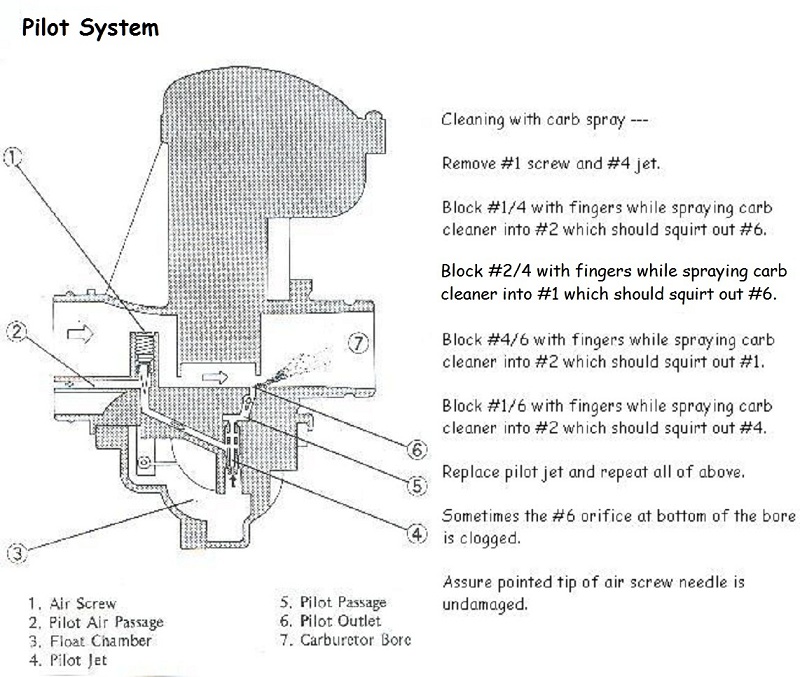

I have attached a couple pics, I suspect these are not the stock carbs as they dont have the "ribs". Could someone identify these and more importantly can someone like Patton (hint, hint) post an illustration of the ports so I know where to spray carb spray and where it should come out when I clean them again?
I intend to check the fuel level but these carbs dont have the "side" ports on the bottom of the bowls, just a large "cup". I am going to pick up a spare one and drill and tap a nipple onto it if I can find one but I suspect I need to figure out what the carbs are first to find an extra one to modify.
Plan of attack: Clean carbs again using hopefully supplied illustration, Set fuel level in each carb, Check what clip/needles are currently set to, check what pilot and main jets are currently installed so I can supply this additional information.
Sorry for the LONG post but I thought I would give as much info as possible up front.
Thanks in advance for your time, suggestions and help!!
Scott
Pretend the needles are pointing at 6 :silly:
78 KZ650(Project)
09 Monster 1100s
07 Monster S2R1000 sold
97 Daytona T595 sold
95 KX250 sold
82 GPz 550 sold
87 Ninja ZX10r sold
79 KZ650csr sold
82 CR250 sold
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
Depending on the state of the motor, idle speed, etc., you will typically see 6 to 12 inches of vacuum. 6 is on the lower end, but I wouldn't worry about it.
To convert inches to cm, take the inch reading and multiply by 2.54.
Your 6 inch measurement is 15.24 cm.
8 inches would be 20.32 cm.
To go the other way, divide the cm reading by 2.54, which gives inches.
Here are some notes about manometers:
home.comcast.net/~loudgpz/GPZweb/Manomet.../ManometerNotes.html
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- OnkelB
- Offline
- User
- Posts: 1011
- Thank you received: 80
As for the vacuum, 6 inches of mercury = 15.23 cmHg so that sounds about right - converter can be found here.
Also if you look at your gauges and compare the outer scale (inches) to the inner (mm) you'll see that a reading of 6 inches puts you close to 150 mm which is the same as 15 cm.
Btw, I couldn't tell from your post so pardon me if you already know, but vacuum synch should be done with the engine fully warmed up.
Edit: Dang Lou, you a Ninja??
77 KZ 650 B1, 82 GPz 1100 B2.
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
Good eye on the carbs.
Do 29 Smoothbores fit on a 650?
Maybe some Suzuki carbs fit from that era?
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- Dumont
- Topic Author
- Offline
- User
- Posts: 26
- Thank you received: 2
Now back tot the task at hand, thank you guys for the info. I susupected it had something to do with the scale of the gauges. I borrowed them and had no previous experience but given the couple of conversions you guys came up with it looks like I am in the ballpark vacuum wise!
thanks for the links guys, I will give all 3 of them a good read. I really appreciate the info! And yes OnkelB I read somewhere to be sure to have the bike fully warm when doing the fine Synch so that is what I had done. Thanks for the additional reminder though. When I get the carbs back apart again i will take some more pics in hopes of identifying them.
Scott
78 KZ650(Project)
09 Monster 1100s
07 Monster S2R1000 sold
97 Daytona T595 sold
95 KX250 sold
82 GPz 550 sold
87 Ninja ZX10r sold
79 KZ650csr sold
82 CR250 sold
Please Log in or Create an account to join the conversation.
- Dumont
- Topic Author
- Offline
- User
- Posts: 26
- Thank you received: 2
Vacuum lines, I have cyl. 1 and 4 intake boot line going to the Air Injector system. Number 2 intake boot line goes to the petcock vacuum. Number 3 is plugged. On the Carbs themselves only Numbers 2 and 4 have vacuum nipples. These lines are currently just hanging down (like where overflow lines would go) But I dont think these are overflow as I can feel very slight vacuum. Any idea where these SHOULD be going? Should I plug them, or plug them together? Or just leave hanging?
Thanks Again!!
78 KZ650(Project)
09 Monster 1100s
07 Monster S2R1000 sold
97 Daytona T595 sold
95 KX250 sold
82 GPz 550 sold
87 Ninja ZX10r sold
79 KZ650csr sold
82 CR250 sold
Please Log in or Create an account to join the conversation.
- Dumont
- Topic Author
- Offline
- User
- Posts: 26
- Thank you received: 2

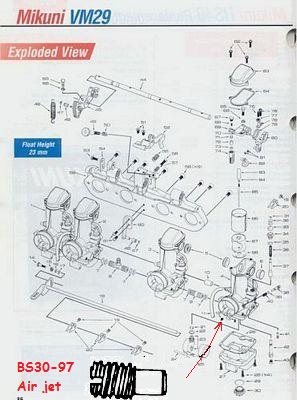

3 Phillips heads on the cover and The float bowl went back to using the 17mm drain plug directly under the main jet and none of the VM29's have an overflow pipe fitted in the float bowl.
That is me all the way! They cary the Fuel level gauge tool and the nylon choke rod pull I am missing. going to put those on order ASAP.
they also had this handy chart I can use as a sort of guide:
29mm smoothbores KZ650
Main Jet 105
Air Jet 0.9
Needle Jet O-4
Jet Needle 5DL31-3
Throttle valve (slide) 1.5mm cutaway
Pilot Jet 15
Air Screw setting 1 1/2 turns out
78 KZ650(Project)
09 Monster 1100s
07 Monster S2R1000 sold
97 Daytona T595 sold
95 KX250 sold
82 GPz 550 sold
87 Ninja ZX10r sold
79 KZ650csr sold
82 CR250 sold
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098

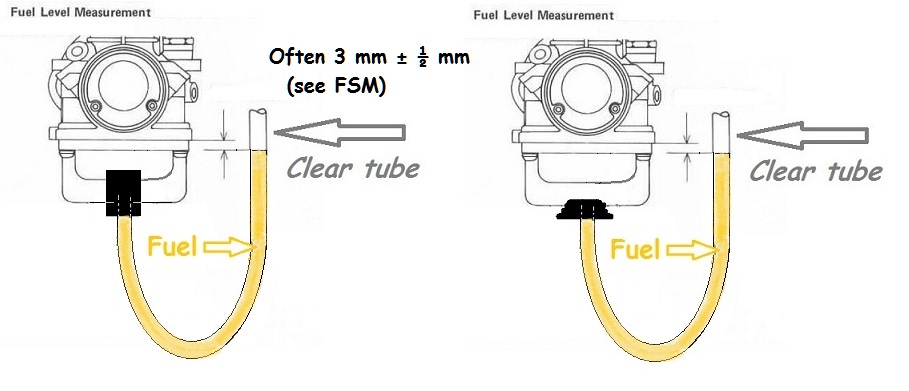

Slight fuel leakage at the joint won't invalidate the test.
I use a cone shaped rubber grommet held against --- partially inside -- the drain hole and have no leakage during the test.
Don't forget to clean the small pilot air jet, which should be removable..
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- Dumont
- Topic Author
- Offline
- User
- Posts: 26
- Thank you received: 2
After re-cleaning the carbs and noting what jets and needle clip position I also did the float height check. I moved on to doing a successful Fine synch again.
I am at a point now where it idles well after changing out to smaller pilot jets and adjusting the air screws a bit.
I then moved onto the needle. I have actually moved the clips UP 2 positions, 1 position at a time and recheck. They are now in a good position as the plugs look good for idle to off-idle and it runs well in this range.
Next up, it bogs hard from half throttle up, although sometimes it comes to life in different areas/RPM's. I am going to start doing plug chops and figure out where I am with the Main jets. I thought all along it was running lean but so far the things I have changed were because it was actually too Rich.
Scott
78 KZ650(Project)
09 Monster 1100s
07 Monster S2R1000 sold
97 Daytona T595 sold
95 KX250 sold
82 GPz 550 sold
87 Ninja ZX10r sold
79 KZ650csr sold
82 CR250 sold
Please Log in or Create an account to join the conversation.
- nitsua93
- Offline
- User
- I brake things.
- Posts: 49
- Thank you received: 1
Dumont wrote: Just an update on my Carb tuning process. I prolly have 10 - 12 hours into carb tuning alone, good news I am getting GOOD at pulling the carbs LOL!
After re-cleaning the carbs and noting what jets and needle clip position I also did the float height check. I moved on to doing a successful Fine synch again.
I am at a point now where it idles well after changing out to smaller pilot jets and adjusting the air screws a bit.
I then moved onto the needle. I have actually moved the clips UP 2 positions, 1 position at a time and recheck. They are now in a good position as the plugs look good for idle to off-idle and it runs well in this range.
Next up, it bogs hard from half throttle up, although sometimes it comes to life in different areas/RPM's. I am going to start doing plug chops and figure out where I am with the Main jets. I thought all along it was running lean but so far the things I have changed were because it was actually too Rich.
Scott
I had bogging issues just as you describe. It would bog out at full throttle and be choppy as RPMs rose towards 5-6K. It ended up that my Dyna ignition plate went bad. I suspect this was because the previous owner used the stock coils. I replaced the Dyna plate and the coils with 3 OHM Dynas, this fixed that problem... almost $300 later.
I can't leave this blank.
Please Log in or Create an account to join the conversation.
- Dumont
- Topic Author
- Offline
- User
- Posts: 26
- Thank you received: 2
I ended up moving the needle up 1/2 more of a slot (moved it up to the top and then added a washer/shim) and picked up a pair of 105 and a pair of 107.5 main jets a sit was still Rich at the top. It was really confusing because everywhere else it was so LEAN. I got to thinking about these cheap chinese pods on this thing. I pulled them off and went for a quick trip and VOILA, the thing runs great everywhere now. So the PODS were actually restricting airflow. I was talking with my Uncle about this and he suggested "You should use velocity stacks with screens, and stay out of the dirt". So after much searching I found a set and ordered them this morning.
We''ll see in about a week how this all turns out...
78 KZ650(Project)
09 Monster 1100s
07 Monster S2R1000 sold
97 Daytona T595 sold
95 KX250 sold
82 GPz 550 sold
87 Ninja ZX10r sold
79 KZ650csr sold
82 CR250 sold
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
- Posts: 15344
- Thank you received: 2829
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
