85 ZX750 and it's carbs was created by fearnow
Just discovered KZR - Looks fantastic!

My GPz is being a bear to get to idle, but I'm getting close. I think that the PO m ay have routed some of the venting incorrectly or disposed of some of the tubing from the carbs altogether. Can someone advise as to the proper disposition of the tubes coming off the T-fittings that connect carbs !&2 and 3&4? The fiche shows them going up to nothing (open to atmo?) and the PO had the two Ts connected to one another (but not open to atmo).

thanks for any advice at all!

ZX750A3// AR80A1

Please Log in or Create an account to join the conversation.

More
20 Nov 2011 05:21 #489309 by Patton
Replied by Patton on topic 85 ZX750 and it's carbs
Hello, fearnow, and WELCOME to KZr! :cheer:

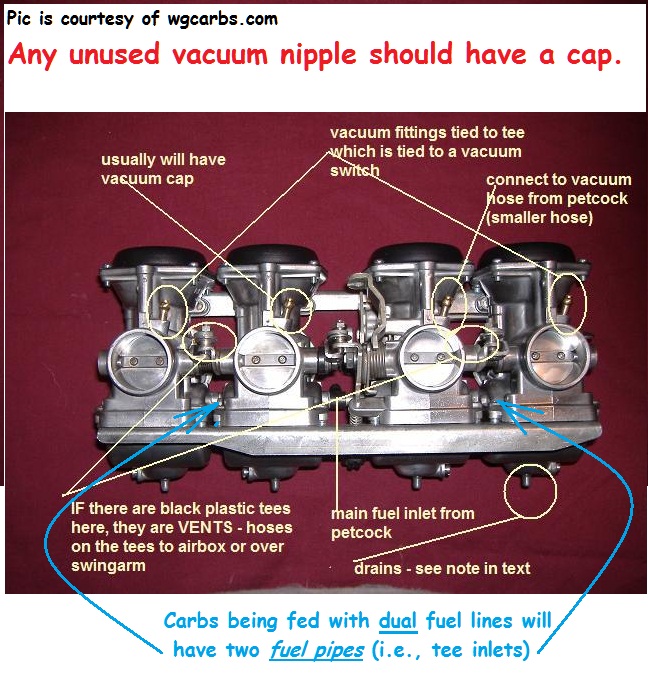

This pic should help with the hose routing.



Good Fortune! :)

1973 Z1
KZ900 LTD
Attachments:
The following user(s) said Thank You: fearnow

Please Log in or Create an account to join the conversation.

  • Motor Head
  • Offline
  • User
  • FIX UP YOUR BIKE RIGHT AND CHEAP
More
20 Nov 2011 11:56 #489325 by Motor Head
Replied by Motor Head on topic 85 ZX750 and it's carbs
That bike will have a Charcoal Canister from the Factory, to absorb the Gas Vapors and then re-circulate and burn them. You can go into Kawasaki.com here: www.kawasakiepc.com/SystemSearch_Frames....843&CFTOKEN=70024183
This will have the links to your bikes parts diagrams. Maybe looking at the Carbs and Canister parts will help you. Basicall you need the small hose nipples at the engine side of the carbs, either hooked up or plugged. The #2 carbs Vacuum nipple would go to the Petcock vacuum daiphragm. #1 & #4 would TEE together, then the off of the TEE a hose would go to the Vacuum Switching Valve for the fresh air injection, thats at the Valve cover. It has a Valve up near the center of the valve cover and a large host to each set of reed valves.
The canister would be hooked up to the float bowl vents, these are up high on the rear of the carbs, near the airbox connections. There is probably a hose chart for this system under your seat, on on the side cover.

1982 KZ1000LTD K2 Vance & Hines 4-1 ACCEL COILS Added Vetter fairing & Bags. FOX Racing rear Shocks, Braced Swing-arm, Fork Brace, Progressive Fork Springs RT Gold Emulators, APE Valve Springs, 1166 Big Bore kit, RS34's, GPZ cams.
1980 KZ550LTD C1 Stock SOLD Miss it
1979 MAZDA RX7 in the works, 13B...

Please Log in or Create an account to join the conversation.

More
20 Nov 2011 12:13 #489327 by Patton
Replied by Patton on topic 85 ZX750 and it's carbs
Lots of good info on kawasaki.com, including parts diagrams, part numbers, models sharing same part, availability, etc.

If needed, here's a link for help with navigating the kawasaki.com site and finding information.

Click > kzrider.com/index.php?option=com_kunena&...w&catid=13&id=376734

Good Fortune! :)

1973 Z1
KZ900 LTD
The following user(s) said Thank You: fearnow

Please Log in or Create an account to join the conversation.

More
20 Nov 2011 12:31 - 20 Nov 2011 12:36 #489331 by Patton
Replied by Patton on topic 85 ZX750 and it's carbs
If not already done, would consider tossing all the anti-pollution paraphernalia, and plugging the resulting unused holes.

Attachment airinjectepavalvecover.jpg not found

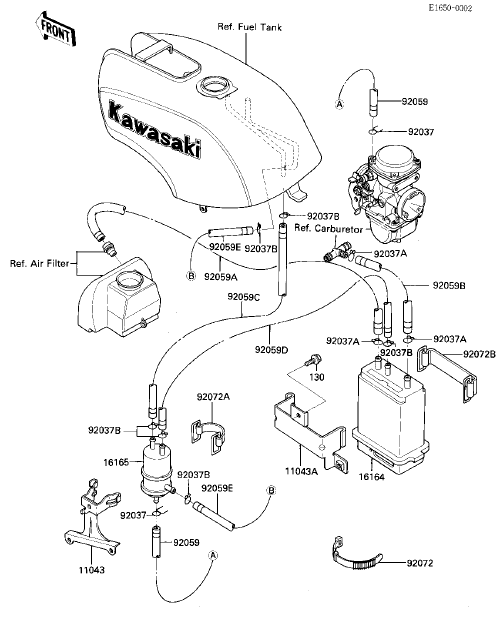

Here's the cannister, separator, etc. as shown on the parts diagram:



The carbs need fuel line and bowl venting and filtered air intake.

Remember to allow float bowl venting to open air.

Good Fortune! :)

1973 Z1
KZ900 LTD
Attachments:
Last edit: 20 Nov 2011 12:36 by Patton.
The following user(s) said Thank You: fearnow

Please Log in or Create an account to join the conversation.

  • fearnow
  • Topic Author
  • Offline
  • User
  • Just this guy, you know?
More
20 Nov 2011 22:23 #489395 by fearnow
Replied by fearnow on topic 85 ZX750 and it's carbs
Mine has the crossover from the head reed valves back to teh airbox but none of the other charcoal stuff.

BUT YOU GUYS ROCK. I am on my way on this beast, finally... THANKS!

Patton wrote: If not already done, would consider tossing all the anti-pollution paraphernalia, and plugging the resulting unused holes.

Attachment airinjectepavalvecover.jpg not found



Here's the cannister, separator, etc. as shown on the parts diagram:



The carbs need fuel line and bowl venting and filtered air intake.

Remember to allow float bowl venting to open air.

Good Fortune! :)


ZX750A3// AR80A1

Please Log in or Create an account to join the conversation.

  • fearnow
  • Topic Author
  • Offline
  • User
  • Just this guy, you know?
More
21 Nov 2011 15:21 #489496 by fearnow
Replied by fearnow on topic 85 ZX750 and it's carbs
Does anyone know if the 82 GPz750 carbs would work on the '85? the set that a gent has for sale locally are from an '82 (KZ750R1) and I note some pilot-jet stuff that looks different (a plug) but the dimensions otherwise seem the same.

I opened the tubes to atmo last night and tried to get it started: no joy. It had worked briefly at first but I didn't have enough time on my second dedicated attempt to get it warm enough to idle so I could balance the carbs.

(vent)I am getting pretty tired of the process of taking these carbs off, and I have a sense that I'm going to F something up that will be costly to replace. Buying stuff that the PO had monkeyed with is a pain. (/vent) :sick:

ZX750A3// AR80A1

Please Log in or Create an account to join the conversation.

More
21 Nov 2011 19:31 - 21 Nov 2011 19:31 #489534 by Patton
Replied by Patton on topic 85 ZX750 and it's carbs

fearnow wrote: Does anyone know if the 82 GPz750 carbs would work on the '85?....

Here's some info from wired george that may prove helpful.

www.wgcarbs.com/index.php?option=com_con...view&id=27&Itemid=27

Good Fortune! :)

1973 Z1
KZ900 LTD
Last edit: 21 Nov 2011 19:31 by Patton.

Please Log in or Create an account to join the conversation.

  • fearnow
  • Topic Author
  • Offline
  • User
  • Just this guy, you know?
More
21 Nov 2011 22:48 #489598 by fearnow
Replied by fearnow on topic 85 ZX750 and it's carbs
Ah...that is rather more about the KZ750 _twin_, where the Gypzee is a four... :huh:

ZX750A3// AR80A1

Please Log in or Create an account to join the conversation.

More
21 Nov 2011 23:55 #489619 by Patton
Replied by Patton on topic 85 ZX750 and it's carbs
Oops :blush:

Might be wrong, but thinking both '82 and '85 GPZ750 use BS34 carbs.

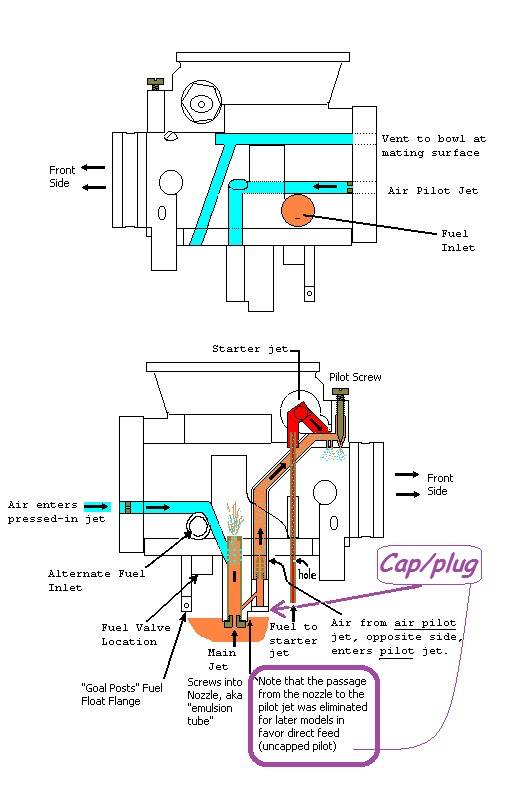

My understanding is the earlier BS34 has a plug under the pilot jet, and the later BS34 doesn't have the plug.

Could check parts info at kawasaki.com for differences in jet sizes.



Good Fortune! :)

1973 Z1
KZ900 LTD
Attachments:

Please Log in or Create an account to join the conversation.

  • fearnow
  • Topic Author
  • Offline
  • User
  • Just this guy, you know?
More
22 Nov 2011 01:00 #489636 by fearnow
Replied by fearnow on topic 85 ZX750 and it's carbs
so it looks like mechanically the 1982 GPz carbs would be the same, and should go right on.

Do I do that (Grab the local 82 set) and see if I have a truly cursed set as they are on the bike?

:( :unsure:

ZX750A3// AR80A1

Please Log in or Create an account to join the conversation.

More
22 Nov 2011 09:09 - 22 Nov 2011 09:10 #489669 by Patton
Replied by Patton on topic 85 ZX750 and it's carbs
Is it known what's wrong with the existing carbs?

For example, if a diaphragm is bad, the other set may be equally faulty.

Some info about CV carbs, tuning, repair, rebuilding, etc.:

www.thegsresources.com/gs_carbrebuild.htm

www.drpiston.com/Cvcarbs.html

www.factorypro.com/tech_tuning_procedure...igh_rpm_engines.html

www.mtsac.edu/~cliff/storage/gs/Mikuni_B...Rebuild_Tutorial.pdf

Good Fortune! :)
