How to read dwell meter

  • ckahleer
  • ckahleer's Avatar Topic Author
  • Offline
  • User
  • Posts: 441
  • Thanks: 142

How to read dwell meter

14 Jun 2021 09:03
#850186
I have an old analog Sun dwell/tachometer, probably from the 70's.
It has a range for 4/8 cyl and 6 cyl.. Am I correct to assume I can put it in the 4/8 range and multiply the reading by 4?
When adjust points doing it this way, point gap with feeler gage is slightly smaller than service manual specs of 3 - 4mm. I get about 2.7mm
94 KE100
82 KZ305
85 VF1100c

Please Log in or Create an account to join the conversation.

  • gd4now
  • gd4now's Avatar
  • Offline
  • User
  • Denco where did you go?
  • Posts: 1421
  • Thanks: 468

Re: How to read dwell meter

14 Jun 2021 10:05
#850188
I am not sure this will be of help to you, but it has been discussed  see  forums.sohc4.net/index.php?topic=61607.0

I am sure others will chime in on this topic.
1977 KZ650 B1
Pods and Denco header


OLD KAW OWNERS SMILE ALOT

Please Log in or Create an account to join the conversation.

  • Warren3200gt
  • Warren3200gt's Avatar
  • Offline
  • User
  • Posts: 1516
  • Thanks: 721

Re: How to read dwell meter

14 Jun 2021 10:07
#850189
Yes, you are correct in your assumption to multiply your readings.

Z1000J2 somewhat modified!

Please Log in or Create an account to join the conversation.

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4837
  • Thanks: 1851

Re: How to read dwell meter

14 Jun 2021 10:48 - 14 Jun 2021 10:49
#850191

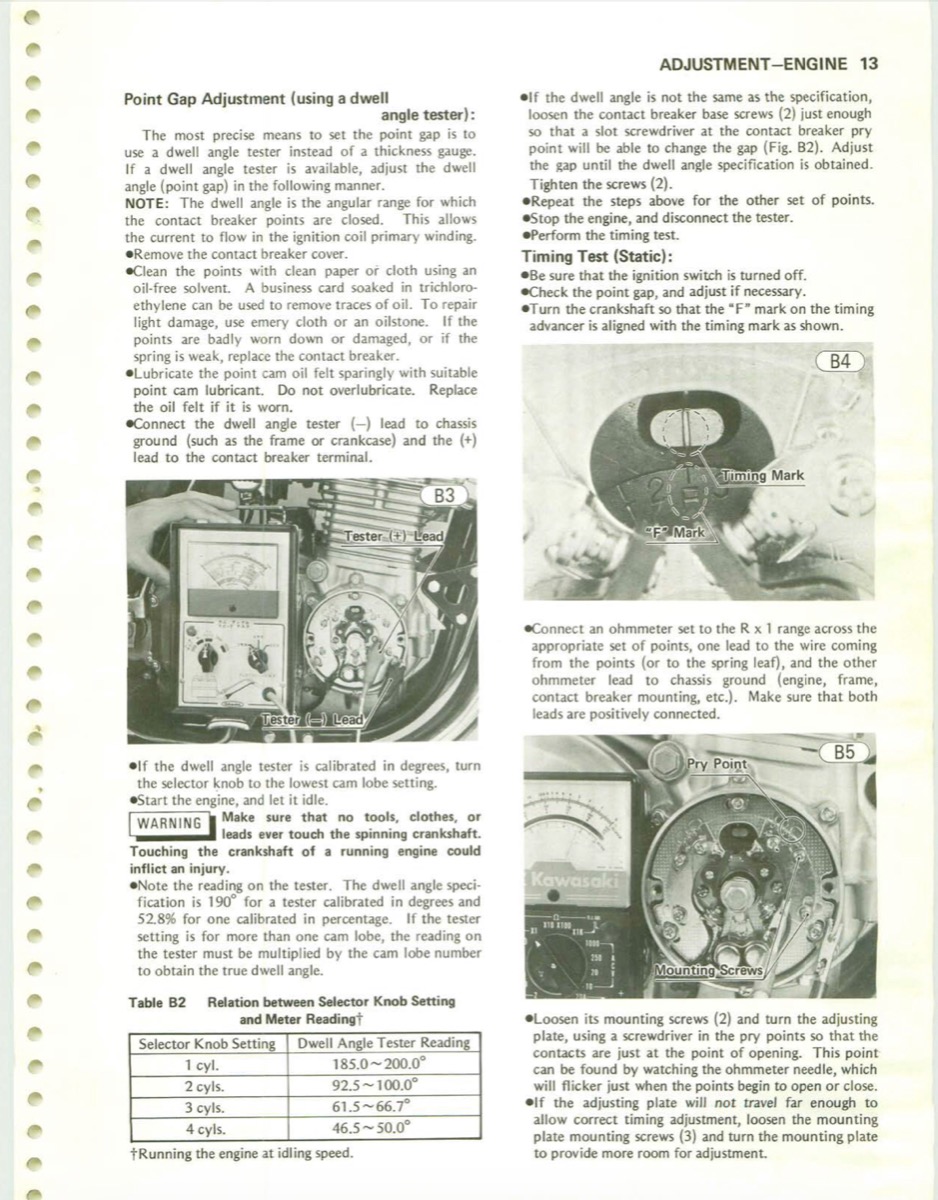

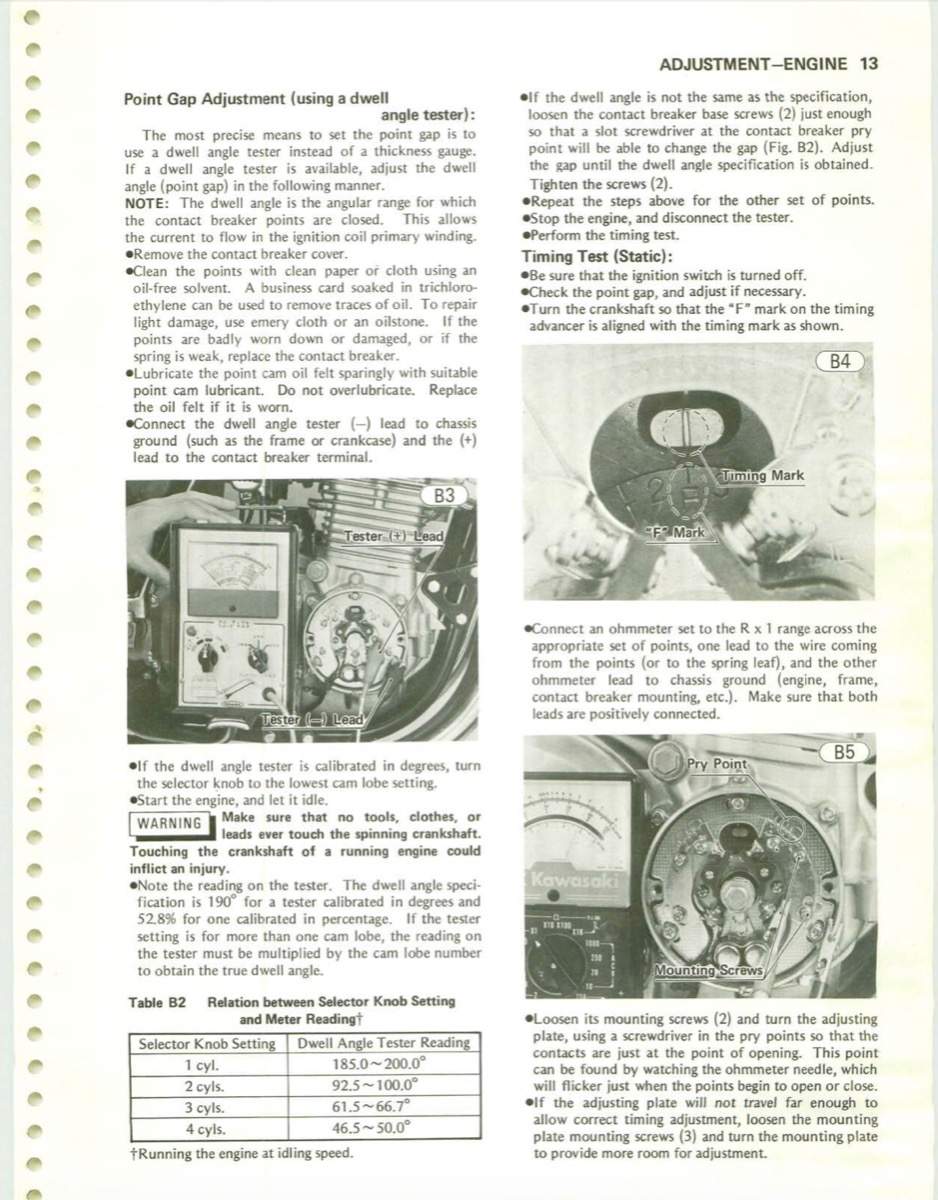

Does this help.


1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Last edit: 14 Jun 2021 10:49 by Mikaw.

Please Log in or Create an account to join the conversation.

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • KZr Legend
  • Posts: 10864
  • Thanks: 1615

Re: How to read dwell meter

14 Jun 2021 23:32
#850212
You multiply the 8cyl dwell reading by 8 to get the Kz's dwell reading in crank degrees..

here are a couple links to the same answer with more detail..

www.kzrider.com/forum/2-engine/611996-ig...ting-question#816016

www.kzrider.com/forum/21-tools/599346-ti...meter-options#686524

Please Log in or Create an account to join the conversation.

  • slmjim+Z1BEBE
  • slmjim+Z1BEBE's Avatar
  • Offline
  • User
  • Enjoy Life! IT HAS AN EXPIRATION DATE!
  • Posts: 1266
  • Thanks: 768

Re: How to read dwell meter

15 Jun 2021 05:26
#850216
ckahleer post=850186I have an old analog Sun dwell/tachometer, probably from the 70's.
It has a range for 4/8 cyl and 6 cyl.. Am I correct to assume I can put it in the 4/8 range and multiply the reading by 4?
When adjust points doing it this way, point gap with feeler gage is slightly smaller than service manual specs of 3 - 4mm. I get about 2.7mm
The short answer is, we use 23 ~ 23.5 deg. with the dwell meter on the 8 cyl. setting.  We confirmed this many years ago after researching the question on the interwebs by very carefully setting new points with a gap gauge, then checking with a dwell meter.

Unless the points are brand new, there is usually a little material transfer between the contact surfaces due to arcing.  A pit on one contact that has lost material to the other contact, creating a high spot.  Which contact loses material depends on the +/- mismatch of condenser value, which is virtually never a perfect match.  That high spot will create an error when using a physical gap gauge, resulting in a larger gap than specified.

Good Ridin'
slmjim & Z1BEBE
A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.

1973 ('72 builds) Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A

www.kawasaki-z-classik.com
An enthusiast's forum focused exclusively
on all things Z1, Z2 and KZ900.

Please Log in or Create an account to join the conversation.
