TOPIC: Front Fork Diassembly Tool/Adapter

Front Fork Diassembly Tool/Adapter 01 Jun 2020 12:11 #827079

  • Rick H.
  • Rick H.'s Avatar Topic Author
  • Away
  • Member
  • Member
  • Posts: 539
  • Thank you received: 105
Steve452: Can you see the top of the damper on your bike? Does it kind of look like a squared off cap head? If so then you no doubt have need of the tool I had a friend make up for me. Since making up the tool I received no replies that anyone was interested in one so it kind of died on the vine. Also, the guy that made them has changed jobs and he is now in a "white collar" position. If you are interested I can get in touch with him and see if there is any possibility of him making one for you, but I don't know how quick you need it. The OEM tool number is 57001-176 and almost impossible to find. Let me know.....

Rick H.
Rick H.

1977 Kawasaki KZ-1000A1

Please Log in or Create an account to join the conversation.

Front Fork Diassembly Tool/Adapter 01 Jun 2020 19:13 #827103

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1210
  • Thank you received: 251
Steve452,

Rick H and I collaborated on getting the tool made. We each had one made as a test. Ricks friend made his as repayment for past transactions between Rick and himself, so no cost or value was ever determined. I had a local machine shop make one for me. The cost was $150.00. I was kinda backdoored on cost. I was estimated about $75 and was called to pick it up. Then at pickup I was presented with the cost. Bottom line Ricks contact is no longer available, and mine is to costly. But there’s hope, I recently tripped across a guy with a machine shop basically in his garage at home. If you would like and we are all here to help each other, I can take my prototype to him and ask what his cost would be to duplicate it. Assuming that because all dimensions are already set. The duplicate cost should be less then my cost.

Pleas advise.
1976 KZ 900 A4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

Last edit: by Mikaw.

Front Fork Diassembly Tool/Adapter 11 Jun 2020 02:55 #827842

  • u.k. Dave
  • u.k. Dave's Avatar
  • Offline
  • Member
  • Member
  • Posts: 3
  • Thank you received: 0

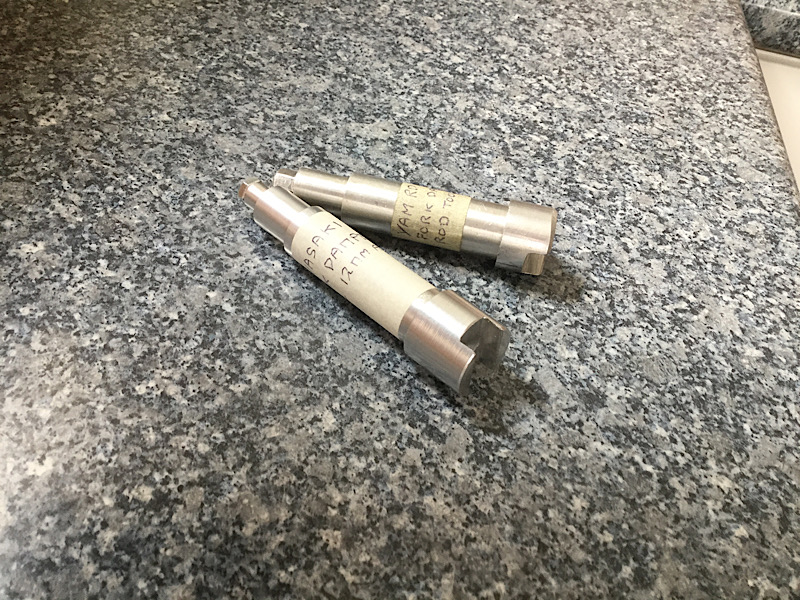

You can make a tool very simply with a piece if round aluminium bar and a lathe or a file if you have time! Instead of making a closed socket an open socket with two flats is all thats needed, drill and tap a bolt into the end and secure with locklite so you can grab it with your extension bars and ratchet. Here is a pic of two I have 15 mm af for yamaha rd350 and 12mm af for kawasaki z1 / kz900.
