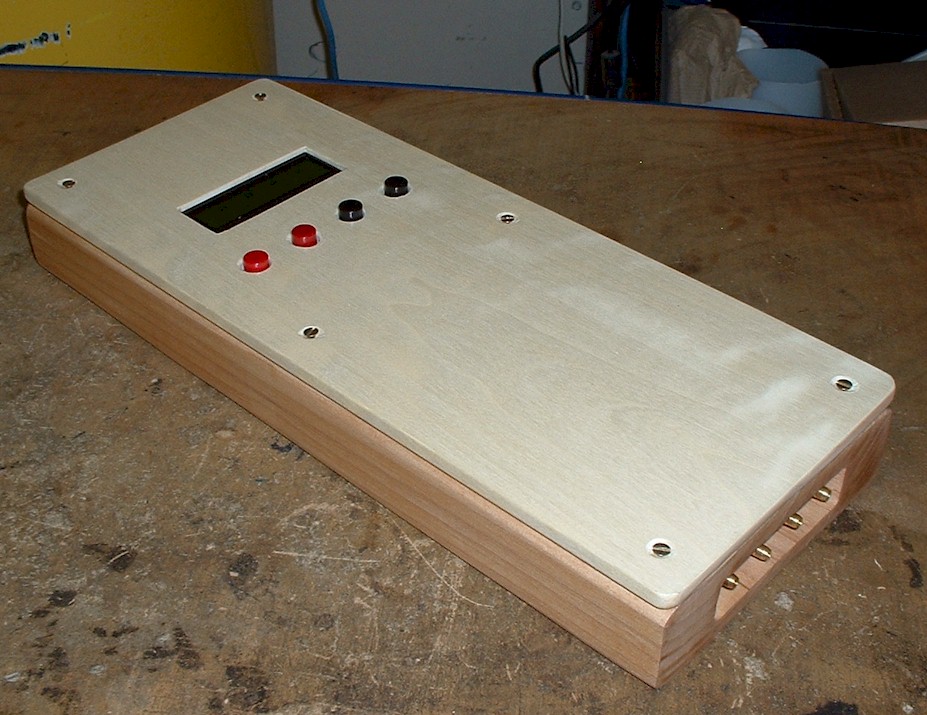

Latest: Home Made Digital Carb Synch Manometer 30 Jan 2013 07:29 #569922

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615


Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

Latest 30 Jan 2013 08:11 #569924

  • Mcdroid
  • Mcdroid's Avatar
  • Offline
  • User
  • Gone Kwackers
  • Posts: 6567
  • Thank you received: 300
Kinda looks like what ATT U-verse dropped off at my place... :blink:
Michael
Alvin, Texas

1982 GPz750
1977 KZ1000A
1978 KZ1000A
1982 GPz1100
1975 Z2A

Please Log in or Create an account to join the conversation.

Latest 30 Jan 2013 16:12 #569972

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615
Heh.

Any other guesses? The four ports at the bottom should be a giveaway.

Please Log in or Create an account to join the conversation.

Latest 30 Jan 2013 16:22 #569973

  • StreetfighterKz
  • StreetfighterKz's Avatar
  • Offline
  • User
  • Posts: 1510
  • Thank you received: 117
Carb sync...

Later, Doug
1978 z1000 Streetfighter
1976 z900 Stripfighter (work in progress)
1983 Gpz750 Resto-Mod
1989 Vmax
The following user(s) said Thank You: wireman

Please Log in or Create an account to join the conversation.

Latest 05 Feb 2013 15:36 #570898

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615
Sorry the details are coming slowly... been dealing with weather etc.

Here's one video to show how it compares to a mercury manometer. All eight readings (of the two manometers) are connected to one cylinder so they can all be compared against each other.

You may need to watch it full screen to see the numbers and the columns.



I'll post more details as I can.

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

Latest: Home Made Digital Carb Synch Manometer 05 Feb 2013 17:36 #570909

  • floivanus
  • floivanus's Avatar
  • Offline
  • User
  • Posts: 1055
  • Thank you received: 116
So whats in there lou, a couple map sensors and a digital voltmeter or something?
my bikes; 80kz1000(project), 77 gl1000, 74 h2 (project)
Past; 78 kz1000, 83 kz550
Andrew

Please Log in or Create an account to join the conversation.

Latest: Home Made Digital Carb Synch Manometer 05 Feb 2013 18:50 #570918

  • loudhvx
  • loudhvx's Avatar Topic Author
  • Offline
  • KZr Legend
  • Posts: 10868
  • Thank you received: 1615
Yes, four raw transducers, plus differential amplifiers and the core is a microcontroller. The parts cost about $100, but I didn't really find good deals anywhere. The rubber tubing, alone, was over $20.

Please Log in or Create an account to join the conversation.

Latest: Home Made Digital Carb Synch Manometer 05 Feb 2013 18:57 #570920

  • moneypit
  • moneypit's Avatar
  • Offline
  • User
  • Posts: 390
  • Thank you received: 35
I WANT ONE!!! :woohoo:
2-76 kz900
St Paul MN

Please Log in or Create an account to join the conversation.

Latest: Home Made Digital Carb Synch Manometer 05 Feb 2013 19:07 #570921

  • Kidkawie
  • Kidkawie's Avatar
  • Offline
  • User
  • I bleed premix
  • Posts: 1919
  • Thank you received: 245
That's sweet! Nice job!
1975 Z1 900
1994 KX250 Supermoto
2004 KX125

Please Log in or Create an account to join the conversation.

Latest: Home Made Digital Carb Synch Manometer 05 Feb 2013 21:15 #570945

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • Posts: 15344
  • Thank you received: 2828
You convinced me! That is really nice! I'll be looking for you to demonstrate it on the TV program "Shark Tank." Maybe you can start put it into production; I believe it would sell. Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Please Log in or Create an account to join the conversation.

Latest: Home Made Digital Carb Synch Manometer 05 Feb 2013 23:27 #570980

  • Motor Head
  • Motor Head's Avatar
  • Offline
  • User
  • FIX UP YOUR BIKE RIGHT AND CHEAP
  • Posts: 5138
  • Thank you received: 391
Oh ya, Way Cool. Love it. How Much? When can Everybody get one? :)
1982 KZ1000LTD K2 Vance & Hines 4-1 ACCEL COILS Added Vetter fairing & Bags. FOX Racing rear Shocks, Braced Swing-arm, Fork Brace, Progressive Fork Springs RT Gold Emulators, APE Valve Springs, 1166 Big Bore kit, RS34's, GPZ cams.
1980 KZ550LTD C1 Stock SOLD Miss it
1979 MAZDA RX7 in the works, 13B...

Please Log in or Create an account to join the conversation.

Latest: Home Made Digital Carb Synch Manometer 05 Feb 2013 23:47 #570984

  • elfmagic17
  • elfmagic17's Avatar
  • Offline
  • User
  • Posts: 337
  • Thank you received: 24
Ya if you could put up a Scamatic that would be awsome!!
Kenny Hicks
74 Honda CB550
75 Honda CB360 (runs and rides good but not a show bike)
77 KZ650B1 (Runs Great, but needs painted and a little work.)

Please Log in or Create an account to join the conversation.
