Timing
Yesterday 10:47 - Yesterday 12:49
Okay I got the timing mark on the crank and the correct spot I got the timing marks for intake and exhaust cams in the correct spots but the cam chain doesn't line up with the picture

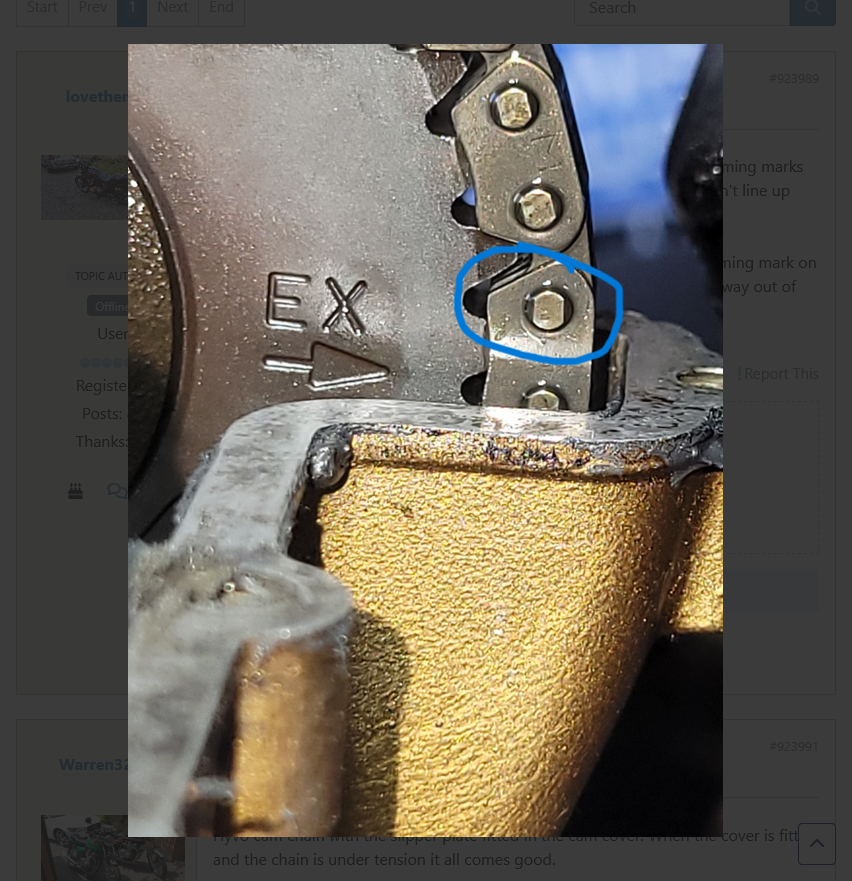

it's off by here but the timing mark is correct on the bottom crank the timing mark on the intake and exhaust are correct if I go either way one tooth they'll be way out of line tell me what I need to do or if that's with intolerance
it's off by here but the timing mark is correct on the bottom crank the timing mark on the intake and exhaust are correct if I go either way one tooth they'll be way out of line tell me what I need to do or if that's with intolerance
Last edit: Yesterday 12:49 by lovethemkzs.
Please Log in or Create an account to join the conversation.
- Warren3200gt
-
- Offline
- User
-

Registered
- Posts: 1741
- Thanks: 923
Re: Timing
Yesterday 11:50 - Yesterday 12:11
Hyvo cam chain with the slipper plate fitted in the cam cover. When the cover is fitted and the chain is under tension it all comes good.
Last edit: Yesterday 12:11 by Warren3200gt.
Please Log in or Create an account to join the conversation.
- lovethemkzs
-
Topic Author
- Offline
- User
-

Registered
- Posts: 80
- Thanks: 17
Re: Timing
Yesterday 12:21 - Yesterday 12:22
So your opinion everything looks good I can put it back together hope I don't want to offend you if i wait for a couple more responses LOL thank you
Last edit: Yesterday 12:22 by lovethemkzs.
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Away
- Moderator
-

Registered
- Posts: 6308
- Thanks: 3993
Re: Timing
Yesterday 12:28
If the pin count on the chain is correct and the tensioner is backed off you are good to go
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
Please Log in or Create an account to join the conversation.
- lovethemkzs
-
Topic Author
- Offline
- User
-

Registered
- Posts: 80
- Thanks: 17
Re: Timing
Yesterday 12:51
The pin count is my concern if you look I added the picture of the book illustration and the pin count doesn't start where it shows in the book it's like a half a link off on the exhaust side where I would start to count
Please Log in or Create an account to join the conversation.
- Warren3200gt
-
- Offline
- User
-

Registered
- Posts: 1741
- Thanks: 923
Re: Timing
Yesterday 13:09 - Yesterday 13:10
It only looks half a link off because the chain isnt seated on the sprocket completely until the cam cover is fitted.
if your starting your count on the pin above the mark and the count is correct, all good.
if your starting your count on the pin above the mark and the count is correct, all good.
Last edit: Yesterday 13:10 by Warren3200gt.
Please Log in or Create an account to join the conversation.
- lovethemkzs
-
Topic Author
- Offline
- User
-

Registered
- Posts: 80
- Thanks: 17
Re: Timing
Yesterday 13:24

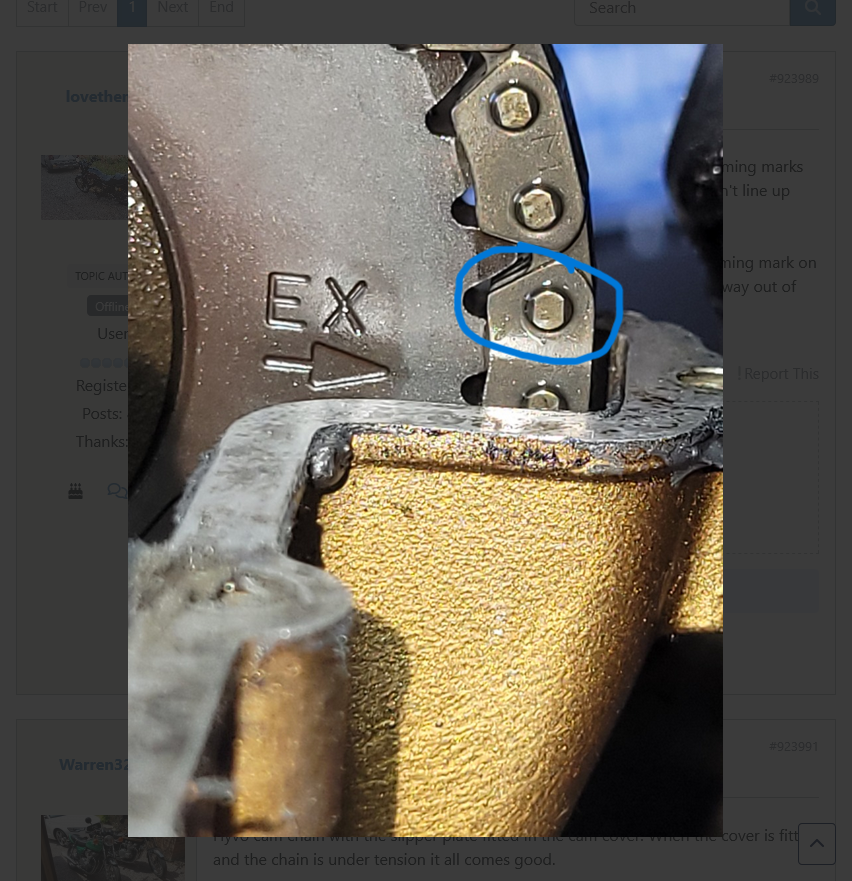

Yes but the illustration shows it pointing to the top pin of the link my picture shows it pointing to the bottom pin of the link looks like I am off one tooth
Please Log in or Create an account to join the conversation.
- Warren3200gt
-
- Offline
- User
-

Registered
- Posts: 1741
- Thanks: 923
Re: Timing
Yesterday 13:44 - Yesterday 13:48
Thats becuase when it was first assembled the chain was placed around the crankshaft one pin further around (tdc mark). Where the link plates sit is totally irrelevant, the pins are the bit that count.
if the whole chain was moved one pin forward on the crank, exhuast and inlet your pic would match the diagram.
or if the chain was moved one lpin on the crank, inlet and exhuast the diagram would match your picture.
pins matter, link plates are not relevant.
if the whole chain was moved one pin forward on the crank, exhuast and inlet your pic would match the diagram.
or if the chain was moved one lpin on the crank, inlet and exhuast the diagram would match your picture.
pins matter, link plates are not relevant.
Last edit: Yesterday 13:48 by Warren3200gt.
The following user(s) said Thank You: sf4t7, Wookie58
