cam/ignition timing

01 Apr 2026 14:42
#922693

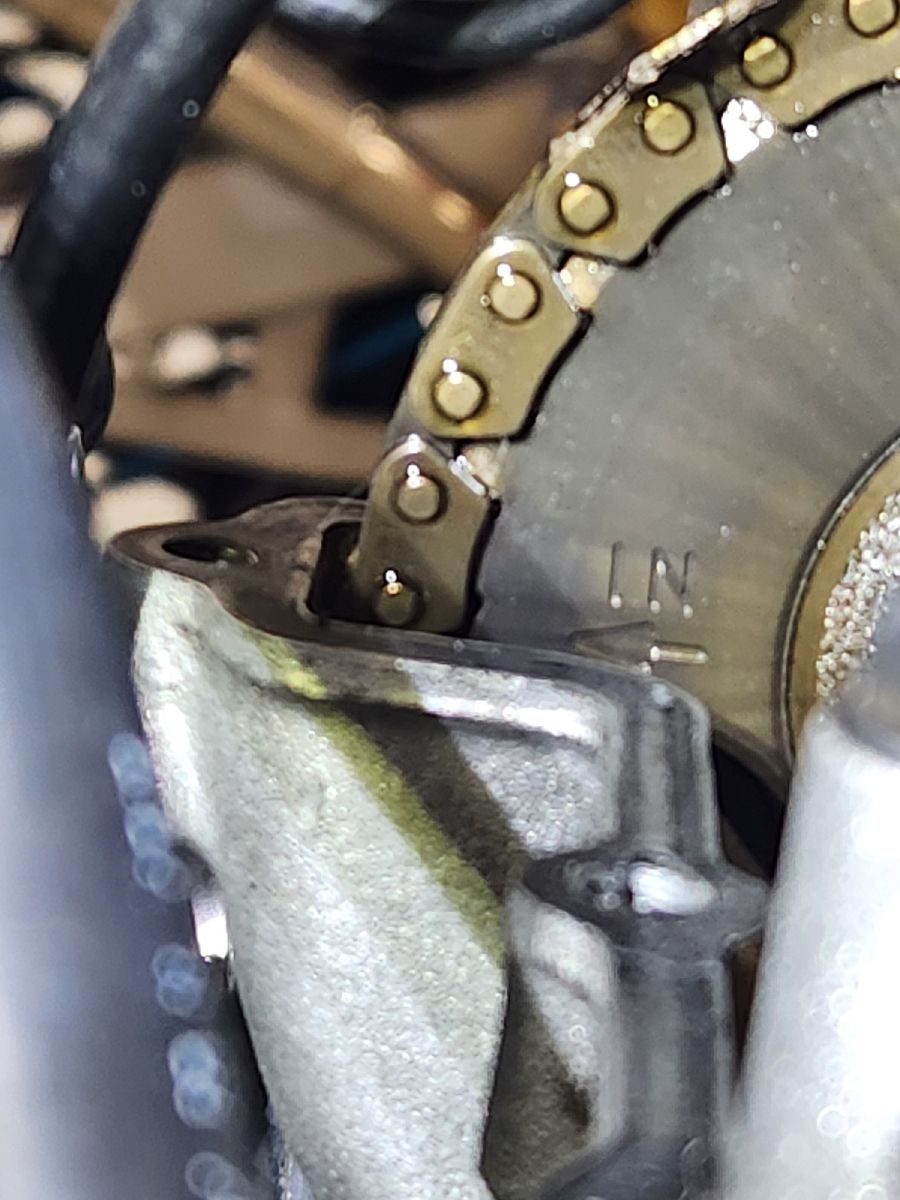

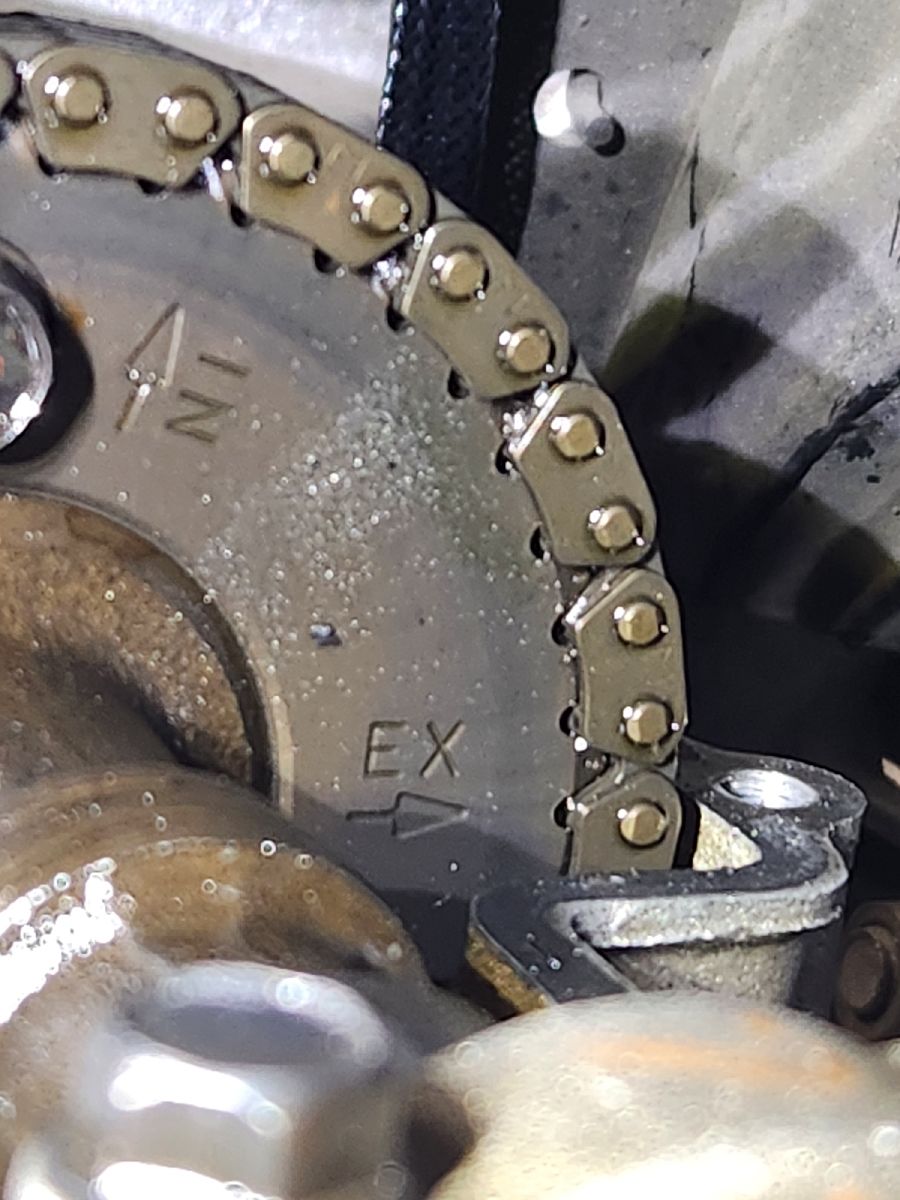

The valves are finally adjusted.  The photos in the manual aren't very good.  Does this look right?

Please Log in or Create an account to join the conversation.

  • rickysnicker
  • rickysnicker's Avatar Topic Author
  • Away
  • User
  • User
    Registered
  • Posts: 48
  • Thanks: 18

Re: cam/ignition timing

01 Apr 2026 14:43 - 01 Apr 2026 14:55
#922694

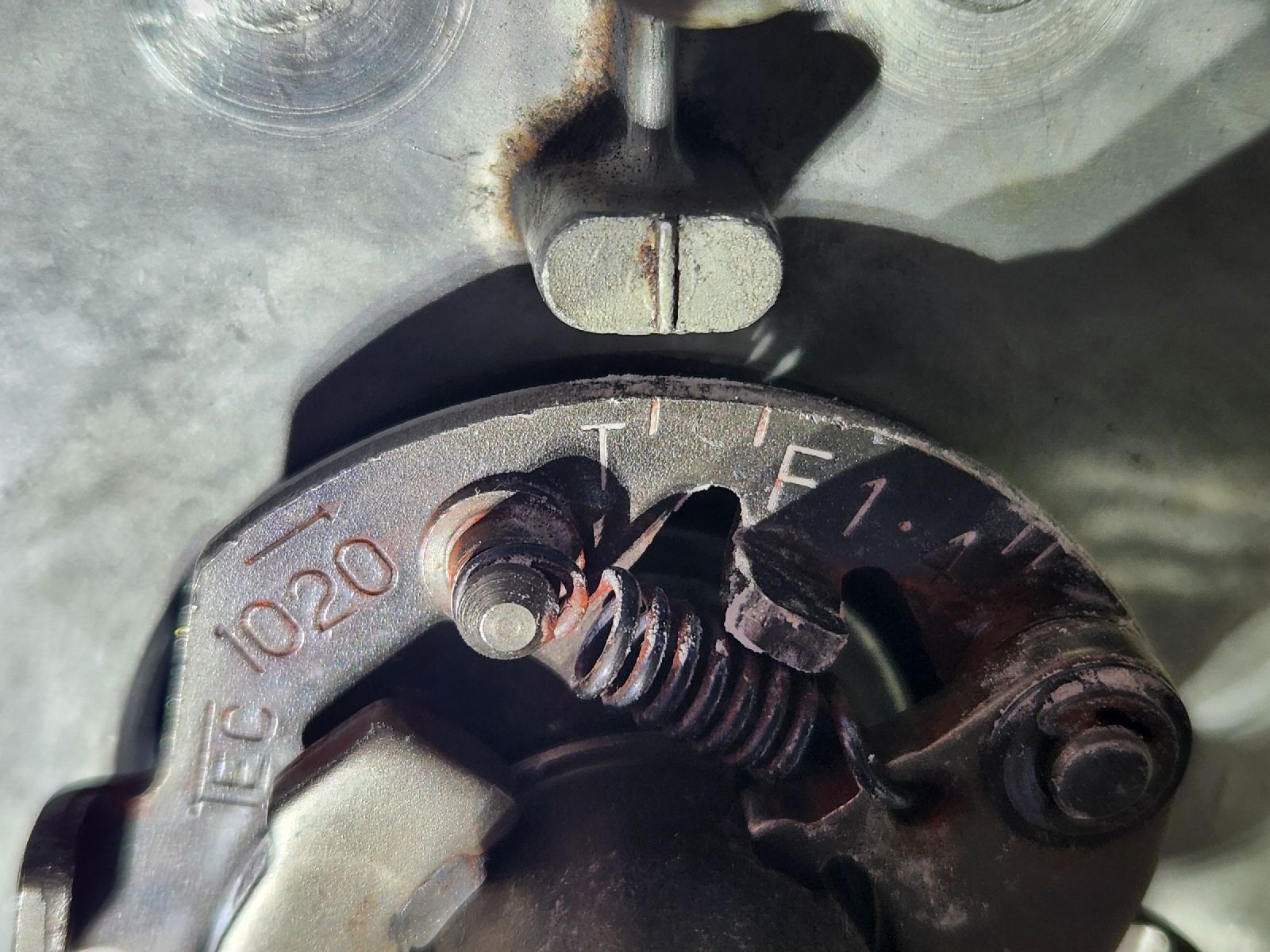

  Ignition photo.
Last edit: 01 Apr 2026 14:55 by rickysnicker.

Please Log in or Create an account to join the conversation.

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Moderator
    Registered
  • Posts: 6134
  • Thanks: 3879

Re: cam/ignition timing

01 Apr 2026 15:19
#922696
Is the “pin count” correct between the sprockets (remember to fit the cam cover before the tensioner)
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
The following user(s) said Thank You: Warren3200gt, rickysnicker

Please Log in or Create an account to join the conversation.

  • rickysnicker
  • rickysnicker's Avatar Topic Author
  • Away
  • User
  • User
    Registered
  • Posts: 48
  • Thanks: 18

Re: cam/ignition timing

02 Apr 2026 06:32
#922704
Sorry Wookie, please explain pin count.

Please Log in or Create an account to join the conversation.

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 3253
  • Thanks: 1952

Re: cam/ignition timing

02 Apr 2026 06:41
#922706
rickysnicker wrote:
Sorry Wookie, please explain pin count.
It's the number of chain link pins between the in and ex timing mark arrows.
On the 998cc/1089cc J type engines it is 44.
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
www.kzrider.com/forum/23-for-sale/611992...lide-mikunis?start=1






The following user(s) said Thank You: Wookie58, rickysnicker

Please Log in or Create an account to join the conversation.

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Moderator
    Registered
  • Posts: 6134
  • Thanks: 3879

Re: cam/ignition timing

02 Apr 2026 07:25
#922707
Just to add to Zeds answer, the reason for this is the guide in the cam cover. If the count is wrong when the cam cover is fitted it will allow the cam to move out of position and therefore the timing would no longer be correct but you wouldn't see the cam move as the cover would be on !!
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
The following user(s) said Thank You: rickysnicker

Please Log in or Create an account to join the conversation.

  • rickysnicker
  • rickysnicker's Avatar Topic Author
  • Away
  • User
  • User
    Registered
  • Posts: 48
  • Thanks: 18

Re: cam/ignition timing

02 Apr 2026 16:18
#922717
I have the 22 plates and 44 pins.  The only concern is that the chain plate on the intake side is just below the VC mounting surface and the exhaust side is just above  the mounting surface.  Is that a concern or issue?  Thank you both very much!

Please Log in or Create an account to join the conversation.

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Moderator
    Registered
  • Posts: 6134
  • Thanks: 3879

Re: cam/ignition timing

02 Apr 2026 16:51
#922720
Do pins 1&44 line up with the arrows on the sprockets ?
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca

Please Log in or Create an account to join the conversation.

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 3253
  • Thanks: 1952

Re: cam/ignition timing

Yesterday 22:34 - Yesterday 22:36
#922725
rickysnicker wrote:
I have the 22 plates and 44 pins.  The only concern is that the chain plate on the intake side is just below the VC mounting surface and the exhaust side is just above  the mounting surface.  Is that a concern or issue?  Thank you both very much!
It's normal and shouldn't be an issue, they very rarely line up exactly with the gasket surface.
This is due to manufacturing tolerances, deck height or chain wear etc.
As long as you aren't a full pin out there's nothing much you can do unless you want to get very accurate with the cam timing and fit slotted sprockets.

AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
www.kzrider.com/forum/23-for-sale/611992...lide-mikunis?start=1






Last edit: Yesterday 22:36 by zed1015.
The following user(s) said Thank You: Wookie58, rickysnicker

Please Log in or Create an account to join the conversation.

  • rickysnicker
  • rickysnicker's Avatar Topic Author
  • Away
  • User
  • User
    Registered
  • Posts: 48
  • Thanks: 18

Re: cam/ignition timing

Yesterday 06:01
#922727
Wookie, my best answer is to please take a look at the photos I posted.  That is not meant as being snarky or anything!  I just don't want to make a word salad response in a trying to explain.

Please Log in or Create an account to join the conversation.

  • rickysnicker
  • rickysnicker's Avatar Topic Author
  • Away
  • User
  • User
    Registered
  • Posts: 48
  • Thanks: 18

Re: cam/ignition timing

Yesterday 06:03 - Yesterday 06:04
#922728
No, I don't want to get that involved.  Do the pins line up as you say they should, in the photos I posted?
zed1015 wrote:
rickysnicker wrote:
I have the 22 plates and 44 pins.  The only concern is that the chain plate on the intake side is just below the VC mounting surface and the exhaust side is just above  the mounting surface.  Is that a concern or issue?  Thank you both very much!
It's normal and shouldn't be an issue, they very rarely line up exactly with the gasket surface.
This is due to manufacturing tolerances, deck height or chain wear etc.
As long as you aren't a full pin out there's nothing much you can do unless you want to get very accurate with the cam timing and fit slotted sprockets.




Last edit: Yesterday 06:04 by rickysnicker.

Please Log in or Create an account to join the conversation.

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 3253
  • Thanks: 1952

Re: cam/ignition timing

Yesterday 07:43
#922733
rickysnicker wrote:
No, I don't want to get that involved.  Do the pins line up as you say they should, in the photos I posted?
Yes!
