Valve cover removal
- Davey b
-
Topic Author
- Online
- User
-
Registered
- Posts: 76
- Thanks: 0
Valve cover removal
Yesterday 13:26
Hi all, I know it's been done a lot and I have a clymer manual. Just wanted to be clear before I start a valve check. My 81 csr 1000 has the automatic tensioner, the manual says to remove the tension cap, and spring before removing the valve cover. Is that right because I'll need to turn the crank to check all the clearances. I presumed I'd leave it in place and just remove it before replacing the valve cover ?
1981 kawasaki kz1000 m1 csr
Please Log in or Create an account to join the conversation.
- Nessism
-
- Offline
- Sustaining Member
-
Registered
- Posts: 7834
- Thanks: 3211
Re: Valve cover removal
Today 17:40Your understanding of the tensioner is same as mine. I don't think you need to remove the tensioner cap/spring/wedge until you put the cover back on.Hi all, I know it's been done a lot and I have a clymer manual. Just wanted to be clear before I start a valve check. My 81 csr 1000 has the automatic tensioner, the manual says to remove the tension cap, and spring before removing the valve cover. Is that right because I'll need to turn the crank to check all the clearances. I presumed I'd leave it in place and just remove it before replacing the valve cover ?
Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0
www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know
1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0
www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know
1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Please Log in or Create an account to join the conversation.
- krazee1
-
- Offline
- User
-
Registered
- Posts: 363
- Thanks: 206
Re: Valve cover removal
Today 18:32 - Today 07:04
I would recommend removing the spark plugs so that the engine turns over easily, and applying pressure on the slack in the chain between the cams as you turn the engine.
Mike
Mike
Former M.E. at Kawasaki Motors Manufacturing, Lincoln, NE
1966 W1 (the Z1 of 1966-50H.P. and 100mph!)
1974 Z1
1978 KZ1000 LTD
1976 KZ900B pile O parts
1980 KZ750E
1980 Honda XL250S (I know, wrong flavor!)
1966 W1 (the Z1 of 1966-50H.P. and 100mph!)
1974 Z1
1978 KZ1000 LTD
1976 KZ900B pile O parts
1980 KZ750E
1980 Honda XL250S (I know, wrong flavor!)
Last edit: Today 07:04 by krazee1.
Please Log in or Create an account to join the conversation.
- Davey b
-
Topic Author
- Online
- User
-
Registered
- Posts: 76
- Thanks: 0
Re: Valve cover removal
Today 23:56
Thanks guys, taking the plugs out makes sense. I still don't see the point in removing the cap/spring/wedge until the valve cover is replaced ?? Unless I'm missing something obvious ( which is quite possible 🤔) obviously you have to remove it before putting the valve cover back on so as not to overtightened the chain, but before ?? Dave.
1981 kawasaki kz1000 m1 csr
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Away
- Moderator
-
Registered
- Posts: 5379
- Thanks: 3298
Re: Valve cover removal
Today 00:52If the chain is putting tension on the cover as you remove it there is greater risk of damaging threads as you remove the cover securing boltsThanks guys, taking the plugs out makes sense. I still don't see the point in removing the cap/spring/wedge until the valve cover is replaced ?? Unless I'm missing something obvious ( which is quite possible 🤔) obviously you have to remove it before putting the valve cover back on so as not to overtightened the chain, but before ?? Dave.
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
Please Log in or Create an account to join the conversation.
- Davey b
-
Topic Author
- Online
- User
-
Registered
- Posts: 76
- Thanks: 0
Re: Valve cover removal
Today 04:54
Fair point Wookie. So should I remove cap,spring, wedge before I remove the cover, then leave them off until all the valve work is done and only then put wedge, spring cap back on ?
1981 kawasaki kz1000 m1 csr
Please Log in or Create an account to join the conversation.
- H1Vindicator
-
- Offline
- User
-
Registered
- Posts: 769
- Thanks: 120
Re: Valve cover removal
Today 06:10
the Kawasaki FSM is probably in the filebase here. 1981-83 models.
Please Log in or Create an account to join the conversation.
- Nessism
-
- Offline
- Sustaining Member
-
Registered
- Posts: 7834
- Thanks: 3211
Re: Valve cover removal
Today 06:27
The engine should not be turned over unless the tensioner is working. The cams may jump time, and bad things can happen if valves hit pistons.
And I can't find anything in the factory manual saying to remove the tensioner before removing the valve cover.
And I can't find anything in the factory manual saying to remove the tensioner before removing the valve cover.
Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0
www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know
1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0
www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know
1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Please Log in or Create an account to join the conversation.
- Davey b
-
Topic Author
- Online
- User
-
Registered
- Posts: 76
- Thanks: 0
Re: Valve cover removal
Today 08:13

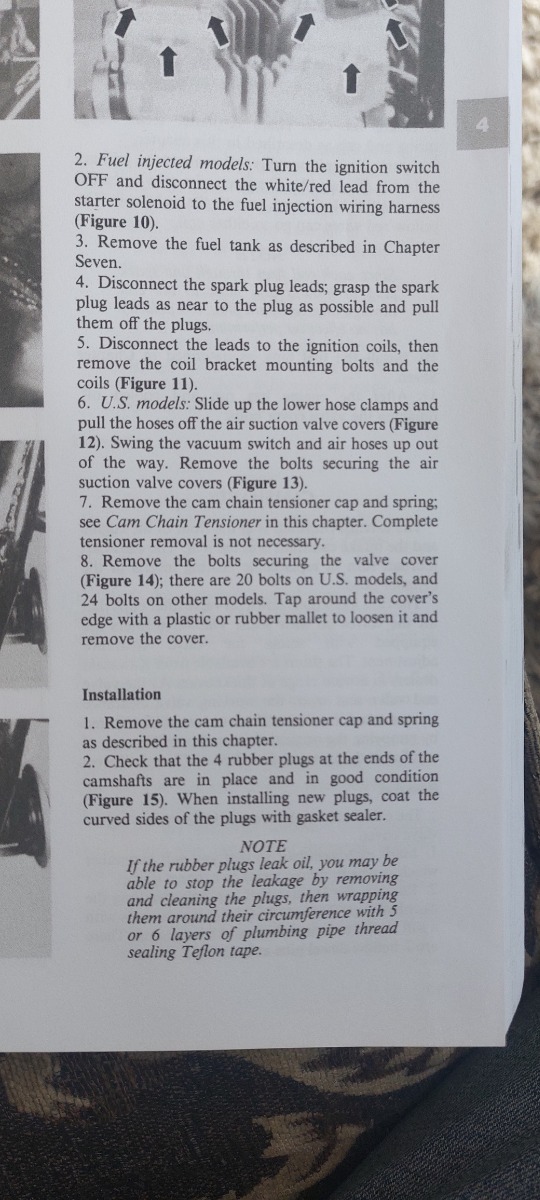

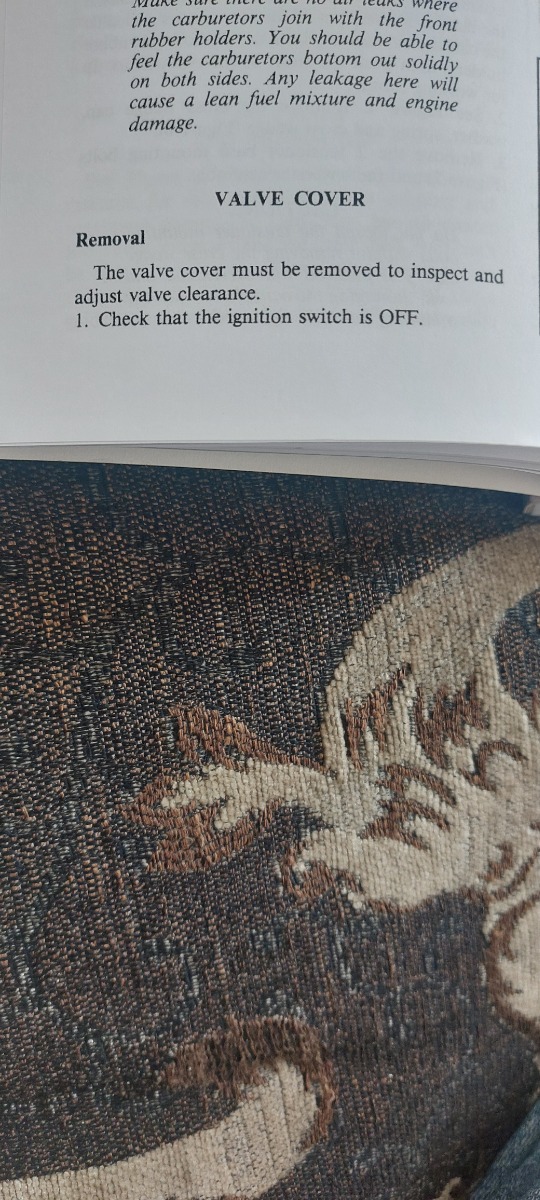

That was kinda my thoughts, maybe my Clymer manual is different from the FSM. I'll try to source one from somewhere. Thanks for input guys ..
1981 kawasaki kz1000 m1 csr
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Away
- Moderator
-
Registered
- Posts: 5379
- Thanks: 3298
Re: Valve cover removal
Today 09:10
FSM is available in the file base here on the site ref the below link
kzrider.com/filebase-alias?task=download.send&id=1195&catid=20&m=0
kzrider.com/filebase-alias?task=download.send&id=1195&catid=20&m=0
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
Please Log in or Create an account to join the conversation.
- Davey b
-
Topic Author
- Online
- User
-
Registered
- Posts: 76
- Thanks: 0
Please Log in or Create an account to join the conversation.
