ZX550 oil filter parts orientation

  • HZ-237
  • HZ-237's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 22
  • Thanks: 8

ZX550 oil filter parts orientation

18 Aug 2025 17:32
#916212
Tried a search, and it wasn’t helpful. Changed the oil in my 85 GPZ550, and I typically put everything back as it came out. The order from bottom to top is the cover, then a metal cup, flat washer, filter slides down into the cup then a spring.
I was told by someone it should be the cover, filter, flat washer, spring, then the cup upside-down over the filter.
What is the correct way to place these parts?

thanks!

Please Log in or Create an account to join the conversation.

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • Posts: 7833
  • Thanks: 3211
The following user(s) said Thank You: StreetfighterKz, HZ-237

Please Log in or Create an account to join the conversation.

  • HZ-237
  • HZ-237's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 22
  • Thanks: 8

Re: ZX550 oil filter parts orientation

18 Aug 2025 19:44
#916218
Oh shoot. Looks like the spring and washer on the completely wrong side. Well, I have two rides on that oil so I better change it anyway. 😆

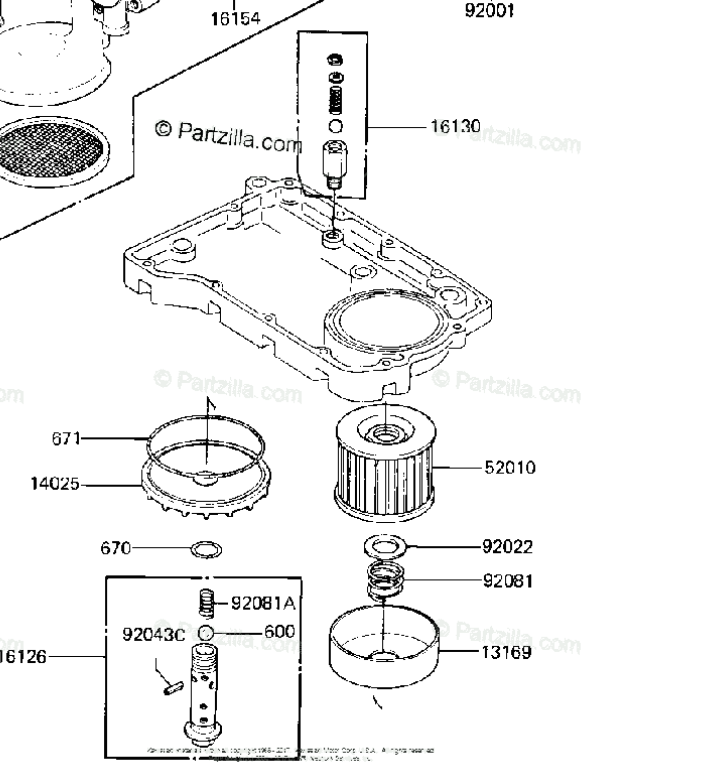

thank you so much for the diagram!!!!
