Z1000J Output Shaft Collar

05 May 2025 23:15
#912157

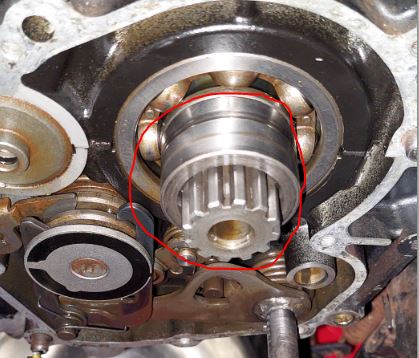

I removed the Transmission Cover housing today to replace the Clutch push rod, Gear change shaft and Output shaft oil seals and found that the collar is jammed tight on the output shaft (I can't even remove it off the shaft), I assumed the output shaft would spin inside the collar and not rotate with it (which means it's always spinning on the oil seal)
Is this right?
1981 Kawasaki Z1000J1
1983 Yamaha RZ350
1986 Yamaha TZR2501KT
1995 Yamaha TZR250SPR Sugo
2022 Husqvarna TE250i

Please Log in or Create an account to join the conversation.

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 4845
  • Thanks: 2931

Re: Z1000J Output Shaft Collar

06 May 2025 00:02 - 06 May 2025 00:42
#912158
Don't know for sure (I haven't got that far yet) but I would expect it to be tight otherwise oil would leak between the shaft and the collar. This type of seal is designed to be used on a rotating shaft so it's intended for the collar to spin in the seal

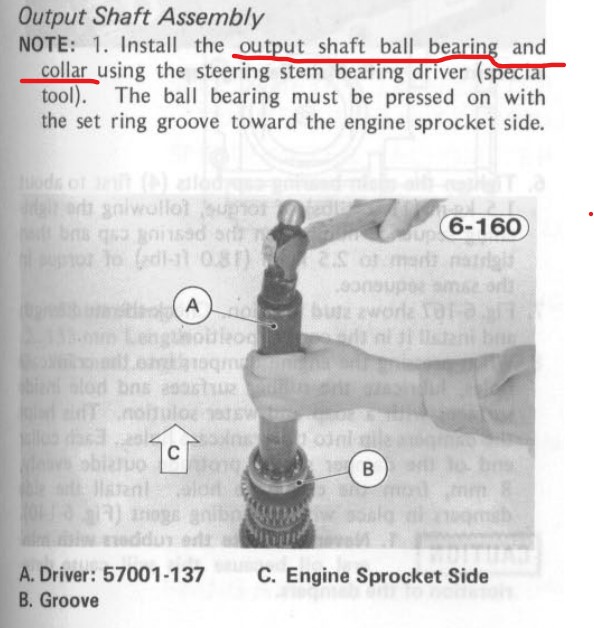

EDIT: Here is the answer from the FSM :)

Last edit: 06 May 2025 00:42 by Wookie58.
The following user(s) said Thank You: Glenn_22

Please Log in or Create an account to join the conversation.

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 3129
  • Thanks: 1736

Re: Z1000J Output Shaft Collar

06 May 2025 00:59
#912159

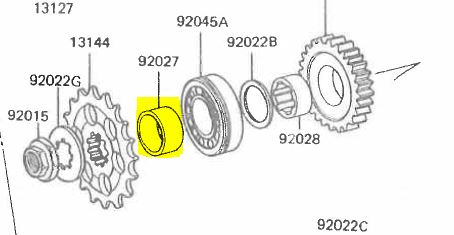

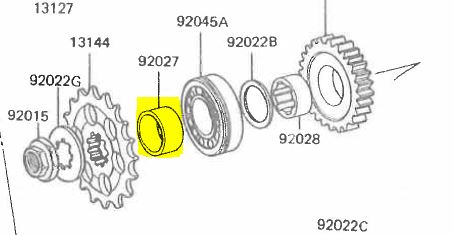

That collar is a close sliding fit on the shaft and can be tight to remove after its been on a while due to it getting gummed up with oil etc.
It is designed to rotate within the seal and is trapped in positon between the bearing and sprocket once the sprocket nut is tightened.

AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
www.kzrider.com/23-for-sale/611992-air-c...lide-mikunis?start=0





The following user(s) said Thank You: Wookie58, Glenn_22

Please Log in or Create an account to join the conversation.

  • daveo
  • daveo's Avatar
  • Offline
  • Premium Member
  • Posts: 2908
  • Thanks: 740

Re: Z1000J Output Shaft Collar

06 May 2025 08:32 - 06 May 2025 14:03
#912170

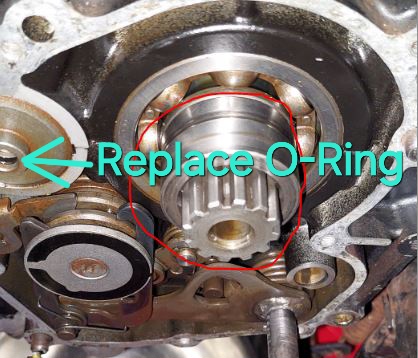

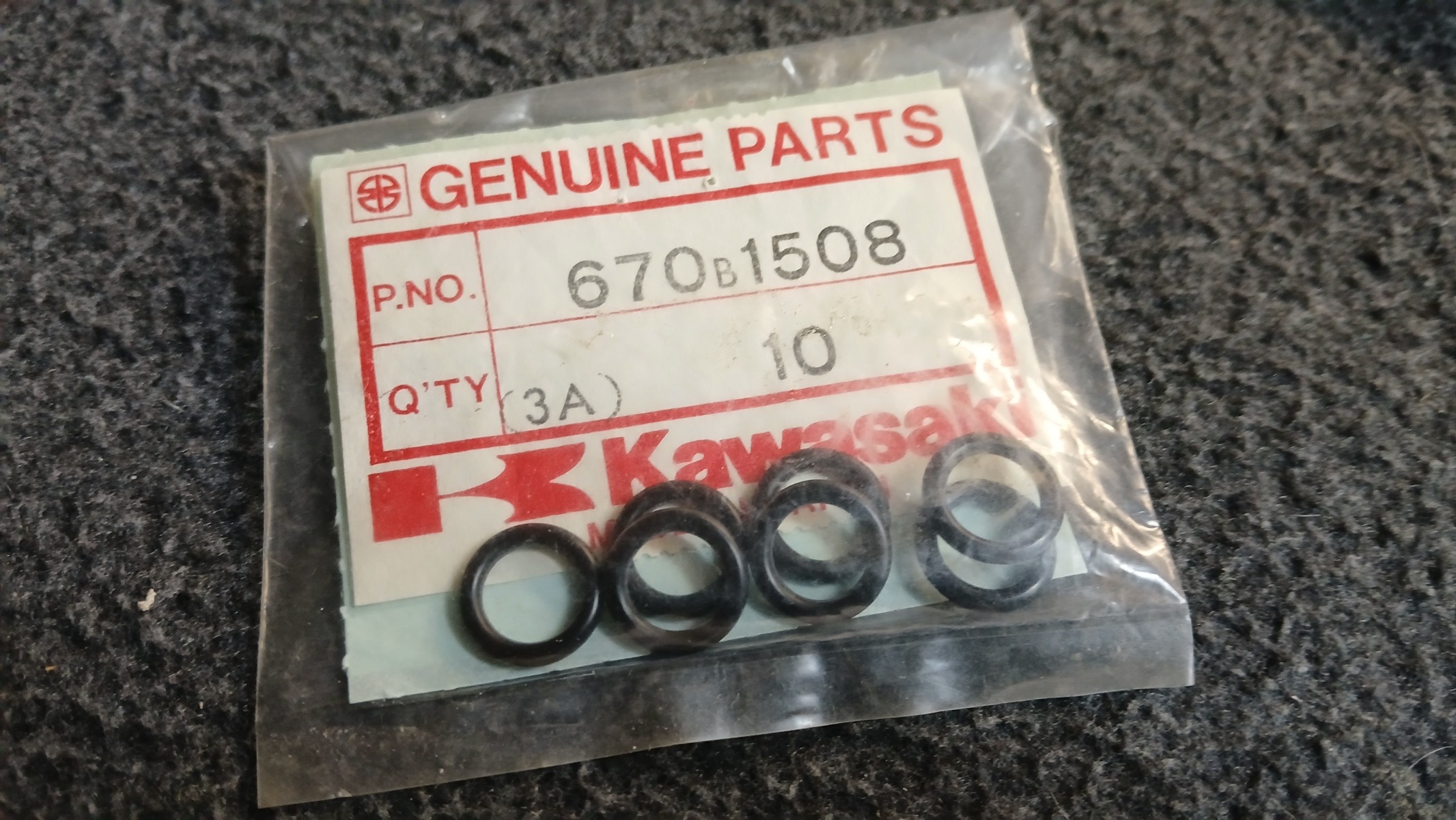

While you're in there:






1982 KZ1100-A2

Last edit: 06 May 2025 14:03 by daveo.
The following user(s) said Thank You: Glenn_22

Please Log in or Create an account to join the conversation.

  • Glenn_22
  • Glenn_22's Avatar Topic Author
  • Offline
  • User
  • Posts: 30
  • Thanks: 11

Re: Z1000J Output Shaft Collar

06 May 2025 15:22
#912183
Thanks guys that's answered my question.
Wish I had of spotted that oil seal before I placed my last bulk parts order...Doh
