Oil in #4

More
14 Jul 2024 15:02 - 14 Jul 2024 15:02 #902116 by OkieZ1000
Replied by OkieZ1000 on topic Oil in #4
Here's where I'm not sure about the lack of markings on the top ring.

The "N" ring came frome the "wiper" (2nd ring from the top) and is .045 in thickness.

The compression (top) ring doesn't have any marking on it and is .038 thick.

The piston grooves won't take the "N" ring in the top groove.

The top ring has a slightly raised outside edge that was installed facing down (as are the other 3 cylinders)
Last edit: 14 Jul 2024 15:02 by OkieZ1000. Reason: Typo
The following user(s) said Thank You: Rolf1976_KZ900

Please Log in or Create an account to join the conversation.

More
14 Jul 2024 15:27 #902117 by Rolf1976_KZ900
Replied by Rolf1976_KZ900 on topic Oil in #4
okay then i might be wrong but it looks like in the picture that the ring with the N mark is the comp ring.I will go to bed now it is bedtime here in Norway now
The following user(s) said Thank You: OkieZ1000

Please Log in or Create an account to join the conversation.

More
14 Jul 2024 17:01 #902119 by Wookie58
Replied by Wookie58 on topic Oil in #4
Could you hear any escaping air during the leakage test ? (Oil filler hole etc) is there any sign of leakage on the gaskets from the oil passages around the outer studs ?

Please Log in or Create an account to join the conversation.

More
14 Jul 2024 19:17 #902124 by OkieZ1000
Replied by OkieZ1000 on topic Oil in #4
In the leakdown, you can hear the air from the crank case vent.

I did replace all the seals between the jug and the head (dang those things were expensive)......
The following user(s) said Thank You: Wookie58

Please Log in or Create an account to join the conversation.

More
14 Jul 2024 23:13 #902128 by F64
Replied by F64 on topic Oil in #4
This also gives you the opportunity to have the cylinder plateau honed if you want.
www.enginebuildermag.com/2023/01/honing-the-ls/

81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY

Please Log in or Create an account to join the conversation.

  • howardhb
  • Offline
  • Sustaining Member
  • God, I trust
More
14 Jul 2024 23:41 - 14 Jul 2024 23:45 #902129 by howardhb
Replied by howardhb on topic Oil in #4
When in doubt, consult the manual!
(the "N" mark denotes the second compressin ring)

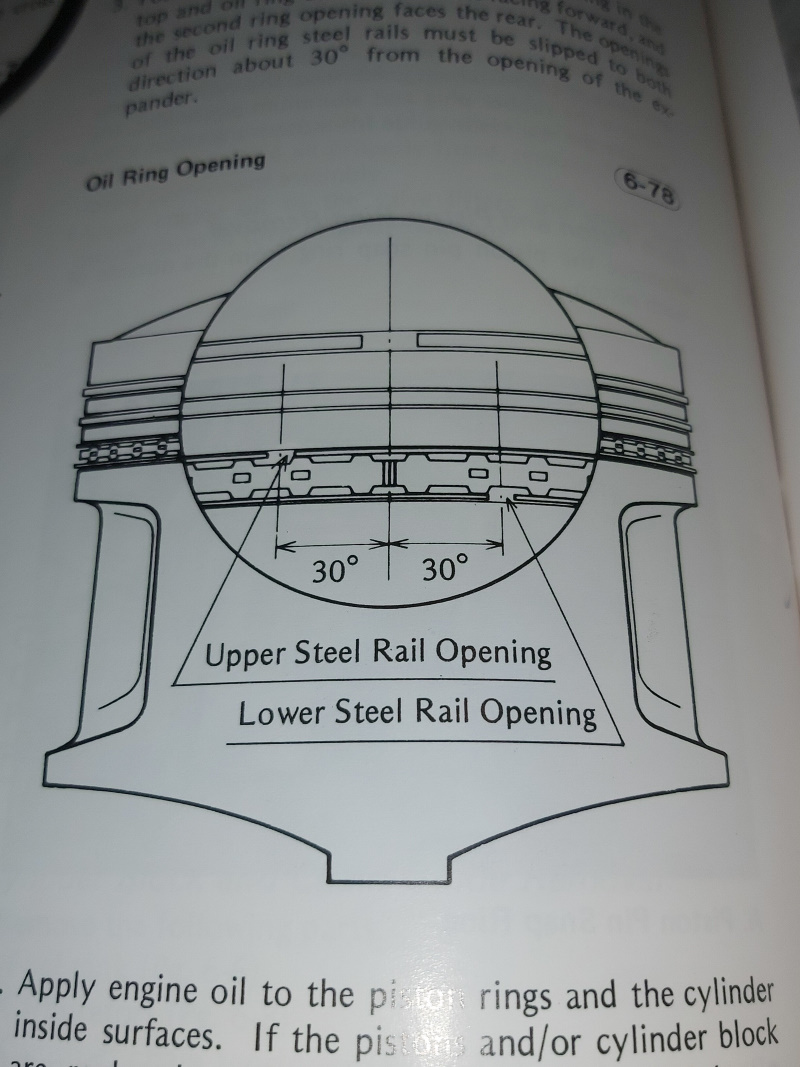

Oil control rings, install like this:


For the "expander" (wavy part) of the oil controll rings, make sure that the ends "butt" together and do not "overlapp".


H.

'81 GPz 550 D1
'81 GPz 1100 B1 ELR "Tribute" www.kzrider.com/our-forum/11-projects/61...-elr-tribute?start=0
'82 Yamaha YB100 Fizzie
'79 Suzuki GT200 X5 TWO STROKE TWIN - SMOKER!
Last edit: 14 Jul 2024 23:45 by howardhb.
The following user(s) said Thank You: Scirocco, OkieZ1000, Wookie58, Rolf1976_KZ900

Please Log in or Create an account to join the conversation.

More
15 Jul 2024 00:52 #902130 by Rolf1976_KZ900
Replied by Rolf1976_KZ900 on topic Oil in #4

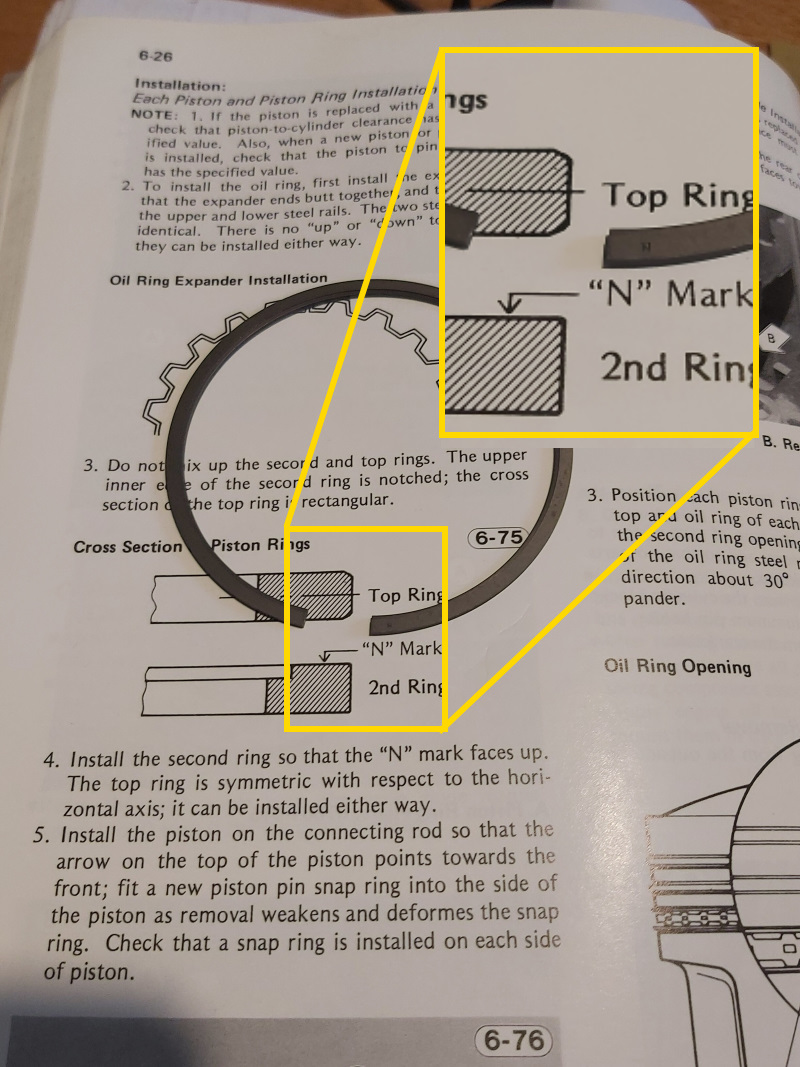

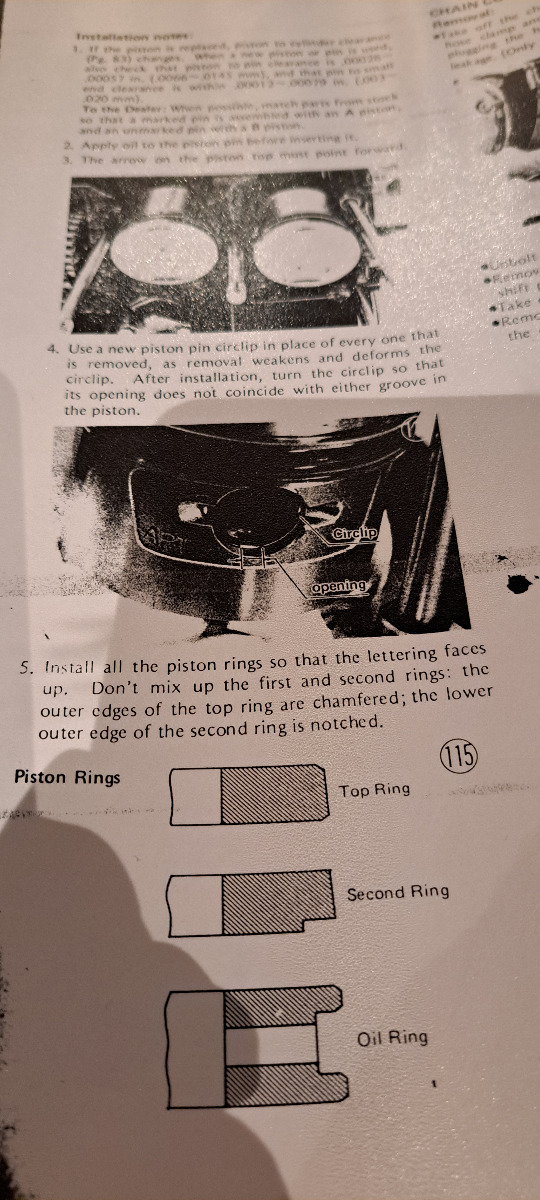

I was thinking that your engine was a 900 my mistake.Anyway the 900 has a grove/ridge on the second scraper ring and it is possible to install them in the wrong ringland. Here are pick from 900 manual.
The following user(s) said Thank You: howardhb

Please Log in or Create an account to join the conversation.

More
15 Jul 2024 01:40 - 15 Jul 2024 01:44 #902131 by Rolf1976_KZ900
Replied by Rolf1976_KZ900 on topic Oil in #4
Just to add If the second ring is placed upsidedown i will push oil upward instead down to crankcase.The  ring has a chamfer / angled edge to keep it sharp as the ring wears into cylinder wall. If the ring is worn the chamfer /angle will be gone and the edge of ring gets 90 degree straight .If you placed the old rings into the bore again and also did not deglase the bore it is very big chance that it will be a oilburner.Thing you should do is measure the bore for taper and out of round and piston to wall clearance. If you are lucky you can just deglase the bore with a ballhone or / stones put new rings on and ride.If you dont have a boredial gauge you can buy a set of new rings and put them in the bore and check that endgap is in spec or at least close to spec.The piston to wall clearance can also be measured by using feelergauges not 100% acurate but it works.I did check that when i rebuildt the kz900 engine.I also used a boredial gauge but for fun checked if the feelerblade method is usable and it is ,for piston to wall clearance but not for measuring out of round or taper
Last edit: 15 Jul 2024 01:44 by Rolf1976_KZ900.
The following user(s) said Thank You: OkieZ1000

Please Log in or Create an account to join the conversation.

  • hardrockminer
  • Offline
  • Sustaining Member
More
15 Jul 2024 03:38 #902132 by hardrockminer
Replied by hardrockminer on topic Oil in #4
There should be holes in the bottom ring groove to allow oil to flow back to the sump through the inside of the piston.  Are the holes all clean?

I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
The following user(s) said Thank You: howardhb

Please Log in or Create an account to join the conversation.

More
15 Jul 2024 07:32 #902141 by OkieZ1000
Replied by OkieZ1000 on topic Oil in #4
That's a good question,  I'll check that and compare to the good cylinders.

Please Log in or Create an account to join the conversation.

More
15 Jul 2024 09:20 #902145 by asphalt900
Replied by asphalt900 on topic Oil in #4
From a glance , liner looks pretty shiny. You're over thinking and second guessing yourself, just hone and purchase a fresh "sharp edged" new set of rings. They are an abundant supply out there, NPR, OEM, etc. Might as while buy a set of 4 after all the time you've wasted assembling/disassembling.
The following user(s) said Thank You: sf4t7, OkieZ1000, Wookie58

Please Log in or Create an account to join the conversation.

More
15 Jul 2024 12:22 #902159 by OkieZ1000
Replied by OkieZ1000 on topic Oil in #4
I do think a hone/ring sounds like a fairly inexpensive plan.

Since I don't have many miles on the rebuild, should I spring for a new head gasket or can I just reuse?

I also wonder what might have happened in it's previous life to have such a low mile bike in this condition?

Please Log in or Create an account to join the conversation.
