Re: KZ440 Ignition issues
21 Dec 2023 13:10I will do you a diagram in the morning, what you have at the moment will never workJust making sure you 100% know my situation and set up right now.

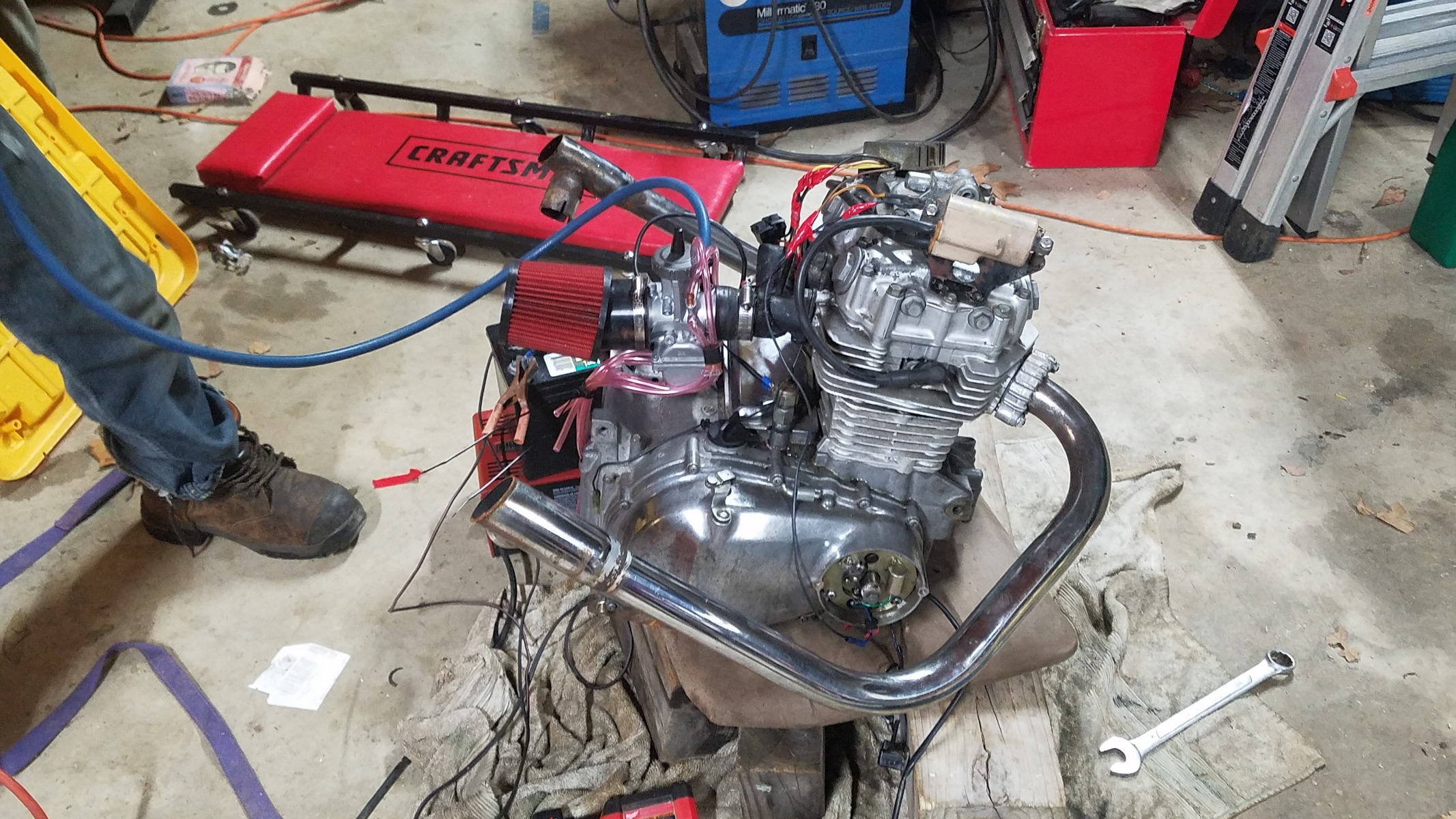

I don't even have an ignition switch or starter relay on it right now, I just turn it over with a big cable. Is this how it's supposed to be wired as simple as possible? Can you spot anything that would eliminate spark? I mean seriously, I don't even have a loom, or fuses yet. Low oil pressure is not hooked up to anything. The color brown on the rectifier is the only one that was different from the wiring diagram I was using, so I ignored it and hooked it up in the orientation it was on the diagram regardless of color. See the picture
Please Log in or Create an account to join the conversation.
- WokkaBuggyBuilder
-
Topic Author
- Offline
- User
- ^I'm building a KZ440 powered buggy^
- Posts: 19
- Thanks: 2
- Wookie58
-
- Offline
- Moderator
- Posts: 4892
- Thanks: 2963
Re: KZ440 Ignition issues
22 Dec 2023 01:57

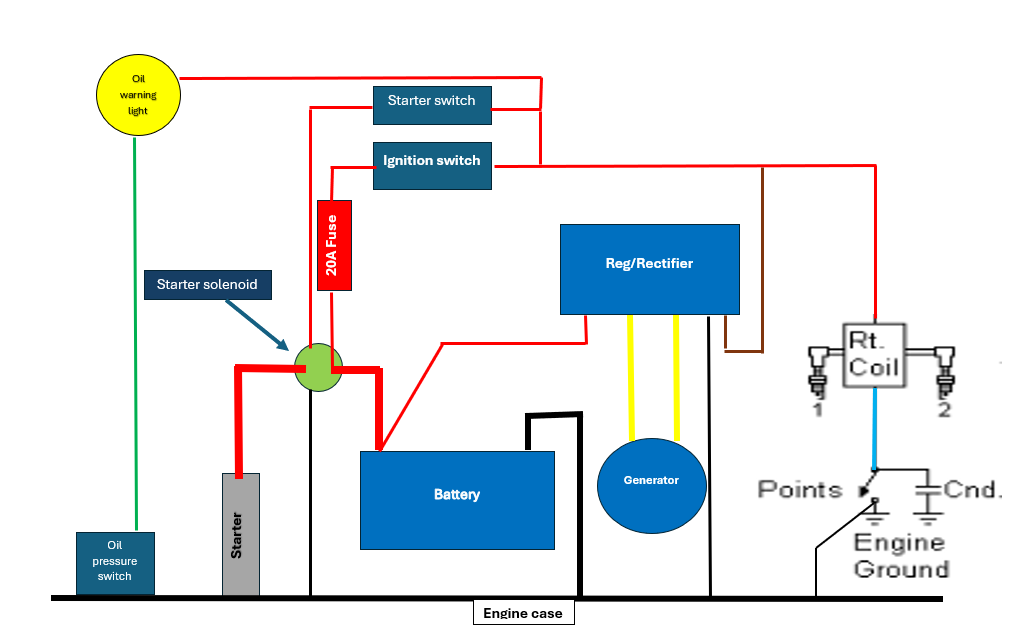

OK so here is a basic diagram that should do all you want, also I have included a switch panel that will cover "Ign, Start & oil warning"
Please Log in or Create an account to join the conversation.
- WokkaBuggyBuilder
-
Topic Author
- Offline
- User
- ^I'm building a KZ440 powered buggy^
- Posts: 19
- Thanks: 2
Re: KZ440 Ignition issues
22 Dec 2023 09:12
Well right off the bat I can see what I've done wrong... Thanks a bunch for that I'll try it out today!
It'll be fine...?
Please Log in or Create an account to join the conversation.
- WokkaBuggyBuilder
-
Topic Author
- Offline
- User
- ^I'm building a KZ440 powered buggy^
- Posts: 19
- Thanks: 2
Re: KZ440 Ignition issues
22 Dec 2023 15:22
She SPARKS! IT FIRES! It's perfect man, thanks a ton. I thought I might of wasted 5 big ones on a motor I couldn't fix!
It'll be fine...?
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Offline
- Moderator
- Posts: 4892
- Thanks: 2963
Re: KZ440 Ignition issues
22 Dec 2023 15:33Ladies and gentlemen "we have a winner"She SPARKS! IT FIRES! It's perfect man, thanks a ton. I thought I might of wasted 5 big ones on a motor I couldn't fix!
Please Log in or Create an account to join the conversation.
- WokkaBuggyBuilder
-
Topic Author
- Offline
- User
- ^I'm building a KZ440 powered buggy^
- Posts: 19
- Thanks: 2
Re: KZ440 Ignition issues
22 Dec 2023 19:26 - 24 Dec 2023 03:29
She's a runner! I've even tuned it already. Sounds like a beast man
It'll be fine...?
Last edit: 24 Dec 2023 03:29 by Wookie58.
