TOPIC:

KZ650 Top end O-rings 20 Mar 2023 16:07 #881837

  • sflesch94
  • sflesch94's Avatar Topic Author
  • Offline
  • User
  • Posts: 36
  • Thank you received: 2
Hi there,

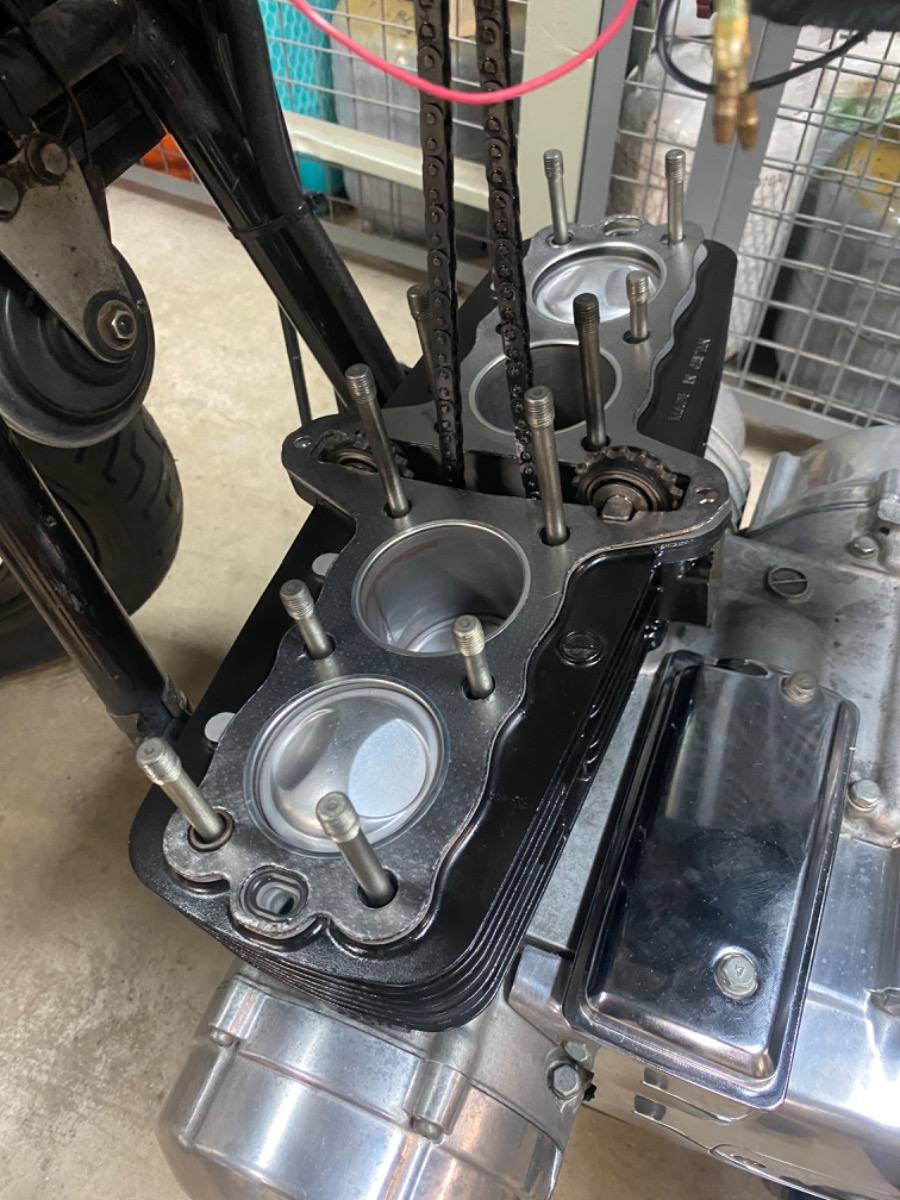

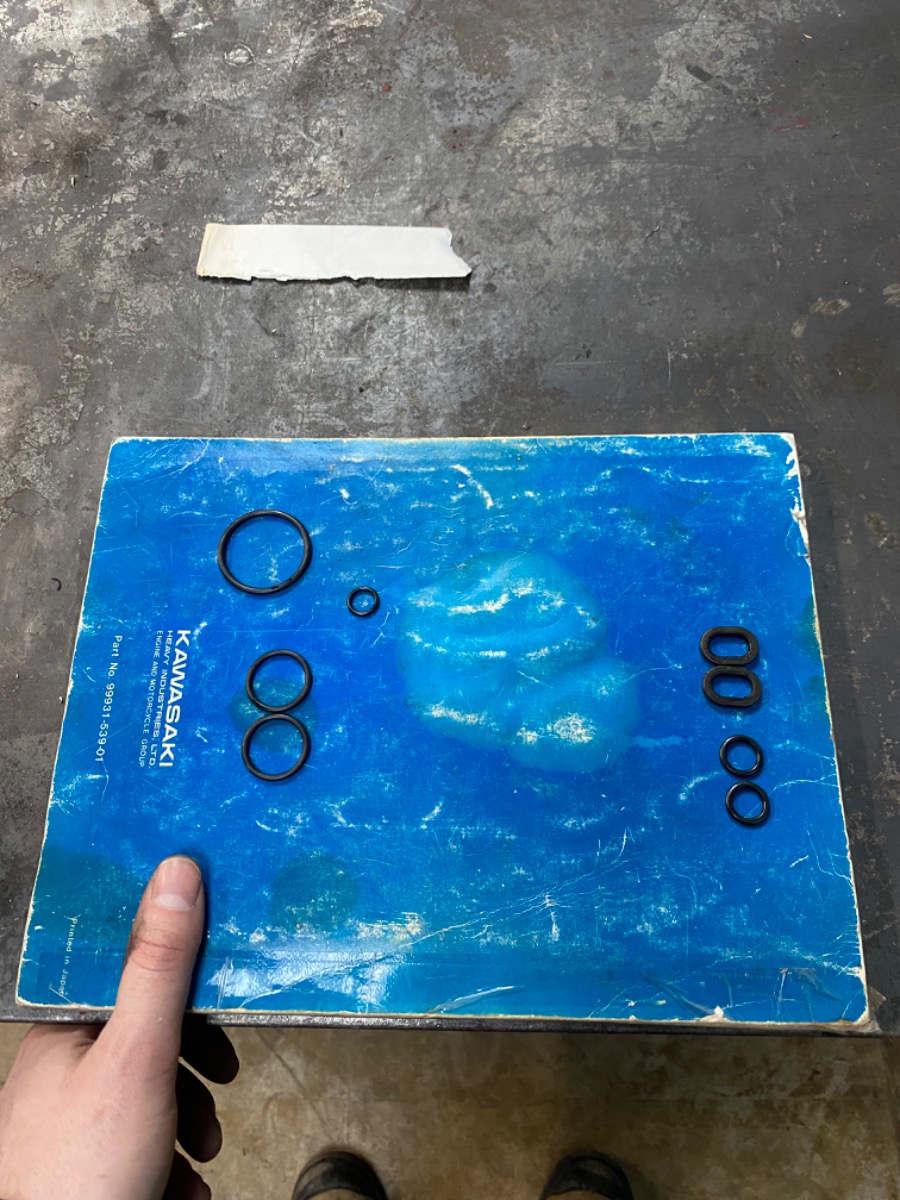

I am piecing together a kz650 which top end was stripped. I got it all together using the service manual, then found a bag of used orings with the parts I got for the bike. This makes me nervous I missed them. I know I put the two oval and two round o rings on the right in for the oil passages through the cylinders and head. The other o-rings I have no idea where they may be for and I can’t find a list or anything in the manual. Does anyone know where these may be from?
Attachments:

Please Log in or Create an account to join the conversation.

KZ650 Top end O-rings 20 Mar 2023 16:14 #881839

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2908
  • Thank you received: 1008
Looks like you got the ones on the ends of the top case, just before the cylinders go on.  The ovalish ones go on top of the cylinders on each end.  I can't tell where the other ones go.


I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

KZ650 Top end O-rings 21 Mar 2023 11:10 #881865

  • Warren3200gt
  • Warren3200gt's Avatar
  • Offline
  • User
  • Posts: 1435
  • Thank you received: 648

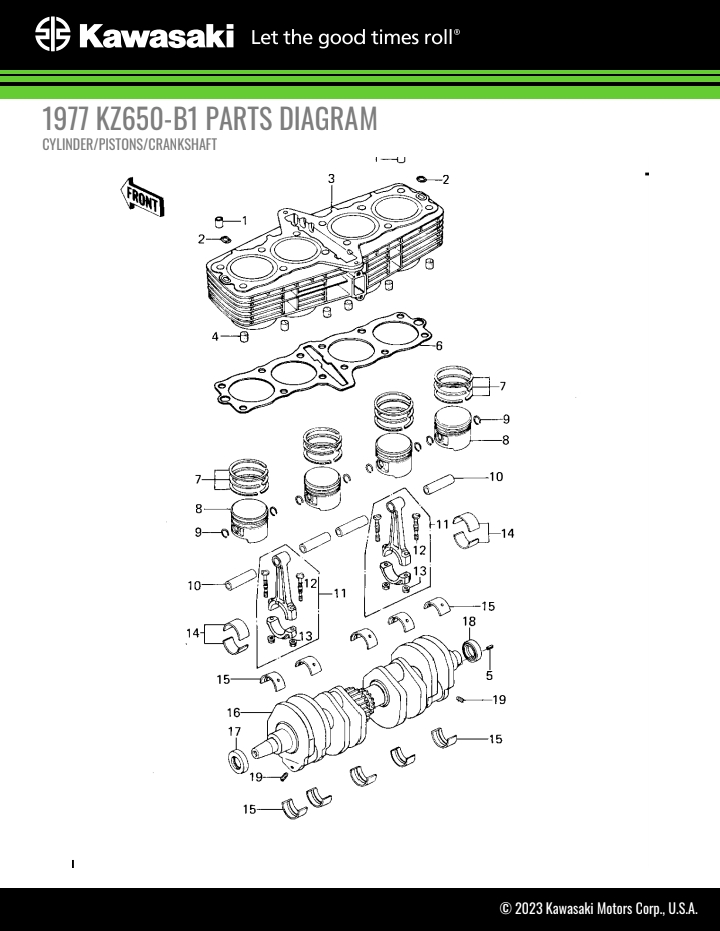

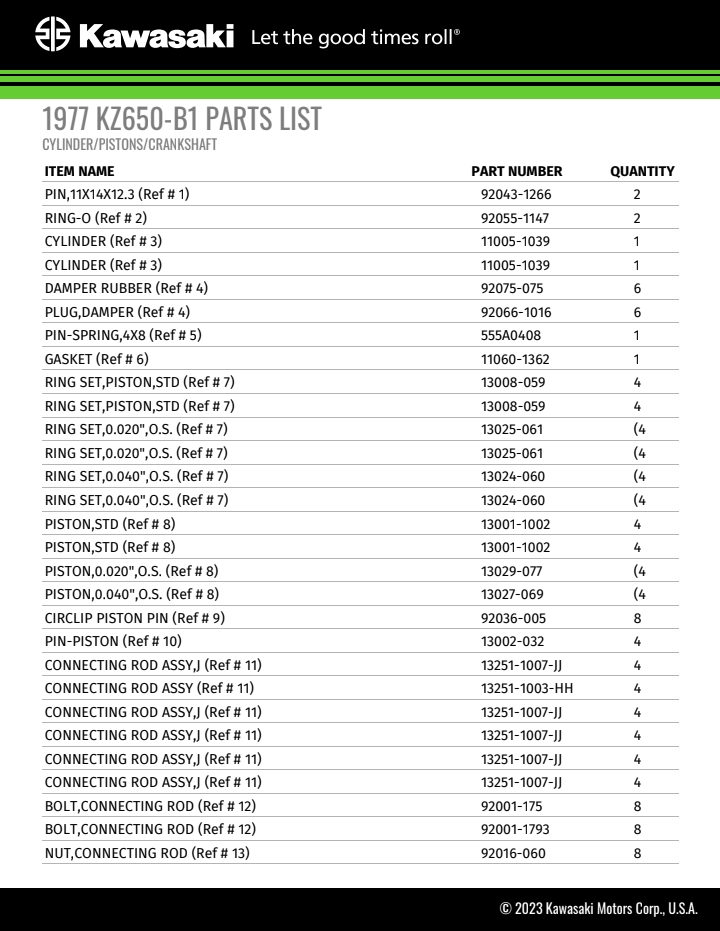

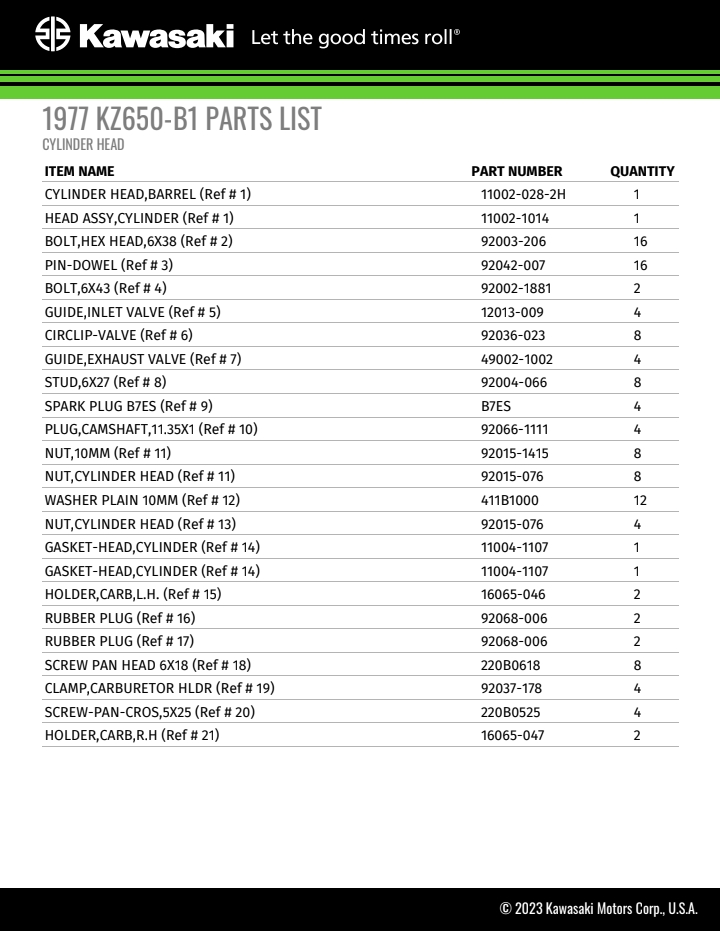

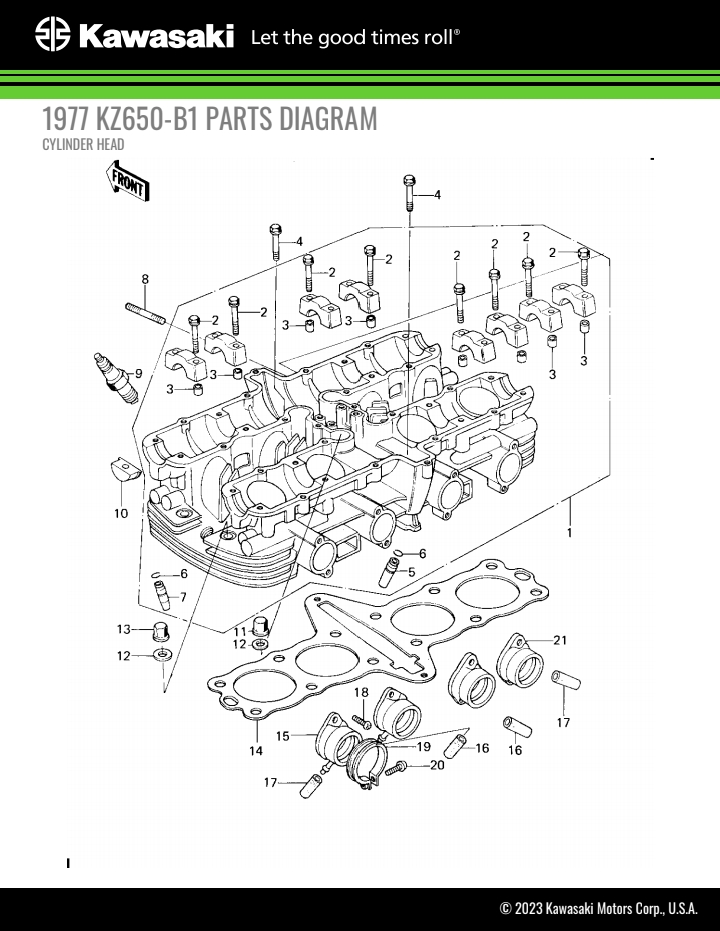

Z1000J2 somewhat modified!

Attachments:
The following user(s) said Thank You: Mikaw, sflesch94

Please Log in or Create an account to join the conversation.

Last edit: by Warren3200gt.

KZ650 Top end O-rings 21 Mar 2023 14:27 #881868

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4879
  • Thank you received: 1843

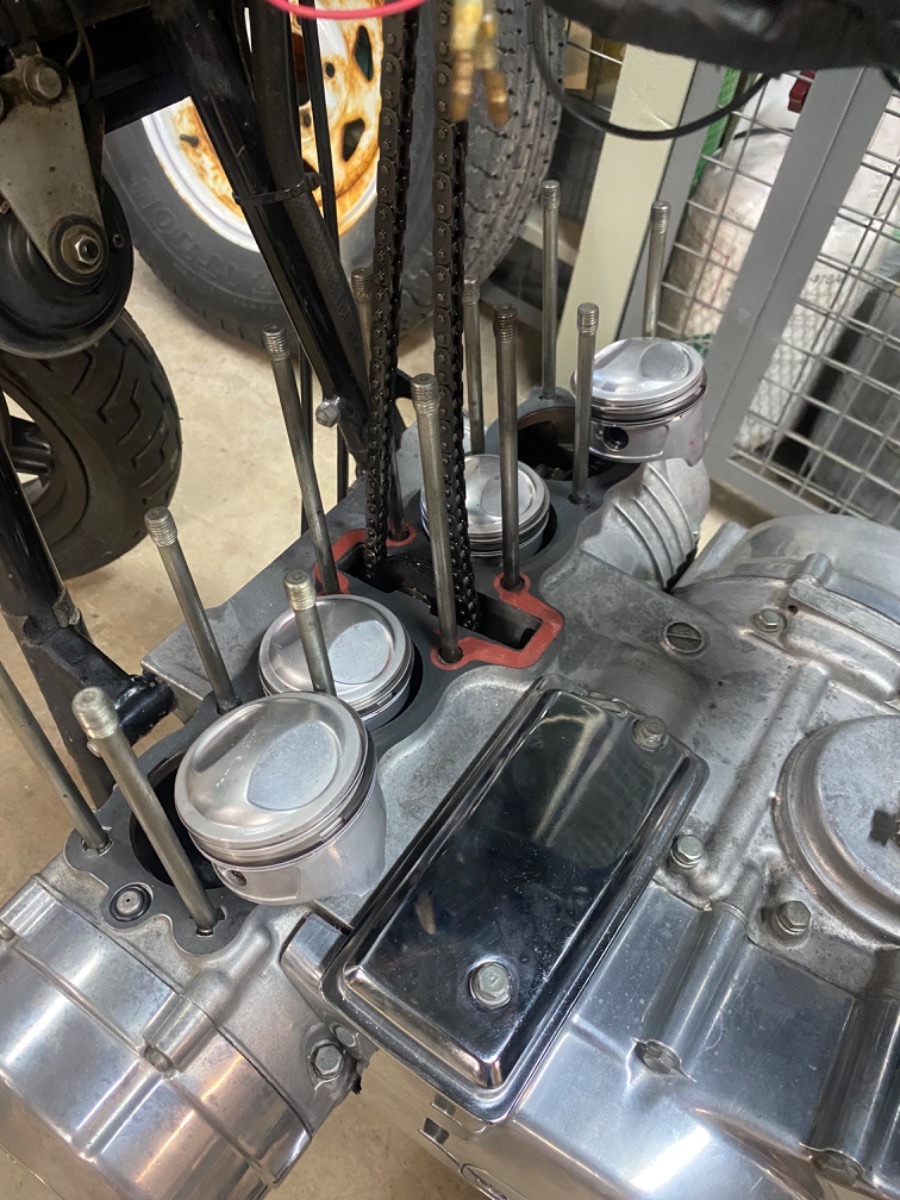

Can’t help with the ORings. I’m concerned about the cam chain gears. The rear has the axle upside down with the rubber damper blocks underneath it. Also what is the washer I see next to the gear. No washer need to be there.


1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:
The following user(s) said Thank You: Warren3200gt, sflesch94

Please Log in or Create an account to join the conversation.

KZ650 Top end O-rings 21 Mar 2023 14:44 #881869

  • sflesch94
  • sflesch94's Avatar Topic Author
  • Offline
  • User
  • Posts: 36
  • Thank you received: 2

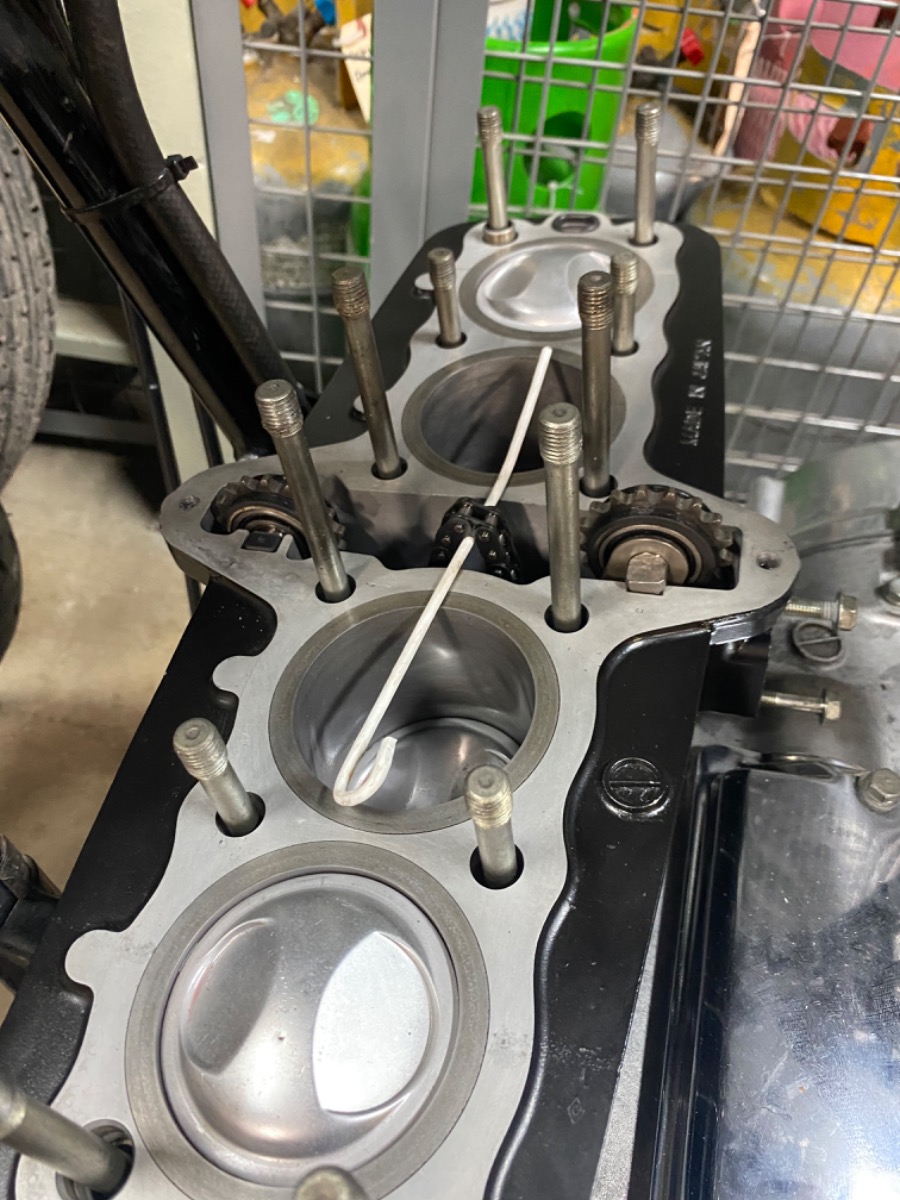

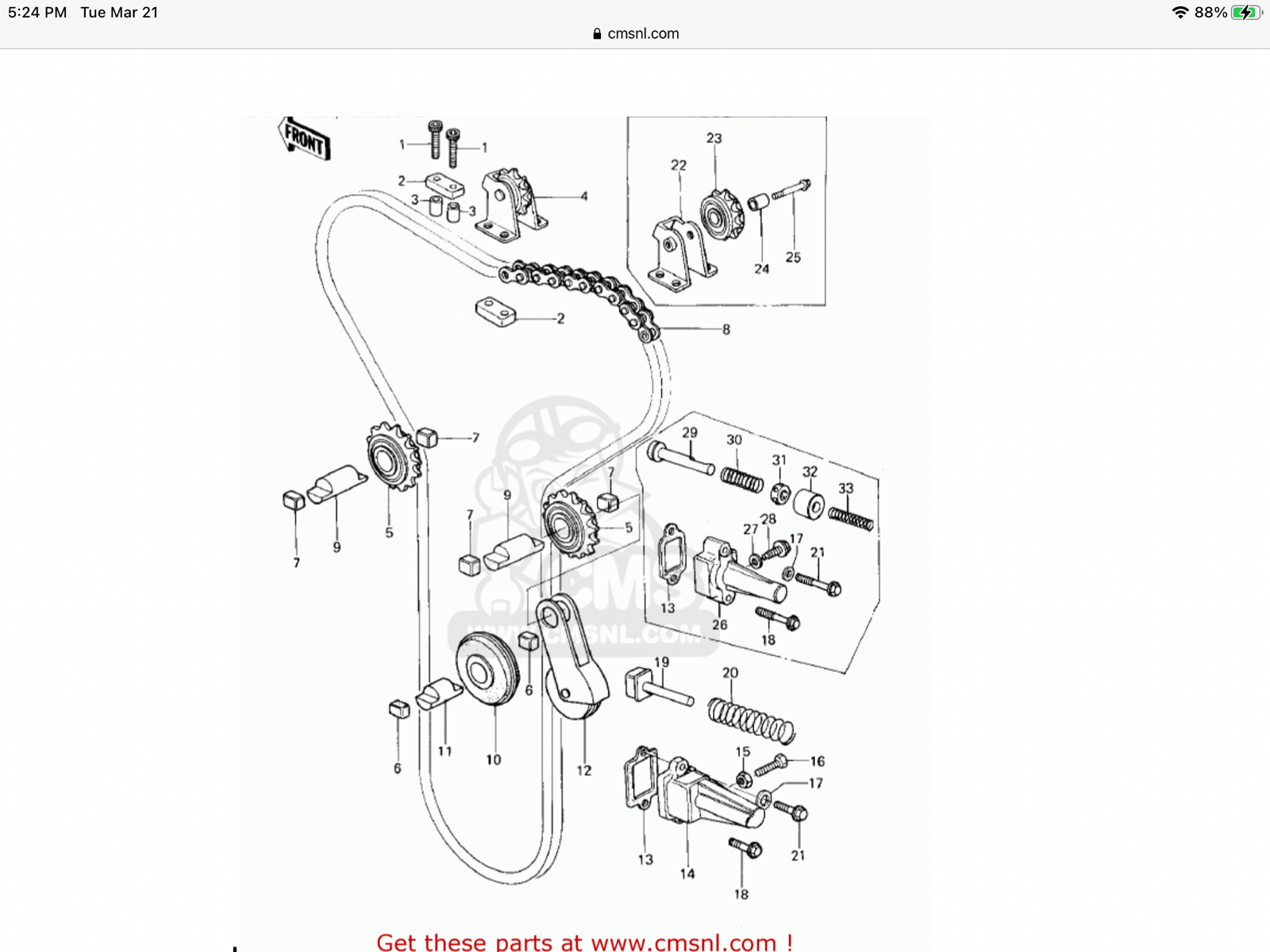

Hey Mikaw. Appreciate any help. I had the cam gears with the curved shaft side down and the isolation blocks on the top side for both. The front blocks are under the gasket and the rear blocks I stuck to the bottom side of the head with a dab of glue before installing the head. Is this not correct? Also is the washer you are talking about possibly the swinging roller (12) for the chain tensioner which hinges on the rear gear shaft? Thanks!
Attachments:

Please Log in or Create an account to join the conversation.

KZ650 Top end O-rings 21 Mar 2023 14:45 #881870

  • Warren3200gt
  • Warren3200gt's Avatar
  • Offline
  • User
  • Posts: 1435
  • Thank you received: 648
Mikaw, zoom in on op picture. The rubbers are not fitted yet. You can see the flats they sit on.

Z1000J2 somewhat modified!

Please Log in or Create an account to join the conversation.

KZ650 Top end O-rings 21 Mar 2023 14:48 #881871

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4879
  • Thank you received: 1843
Your good. And yes I see the yellow chromate color on the “swing” gear. That’s the tension adjuster. In the first photo it looked like a silver washer.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: sflesch94

Please Log in or Create an account to join the conversation.

KZ650 Top end O-rings 21 Mar 2023 14:50 #881872

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4879
  • Thank you received: 1843

Mikaw, zoom in on op picture. The rubbers are not fitted yet. You can see the flats they sit on.
Yes, I do. Thank you.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: Warren3200gt

Please Log in or Create an account to join the conversation.

KZ650 Top end O-rings 21 Mar 2023 16:18 #881873

  • sflesch94
  • sflesch94's Avatar Topic Author
  • Offline
  • User
  • Posts: 36
  • Thank you received: 2

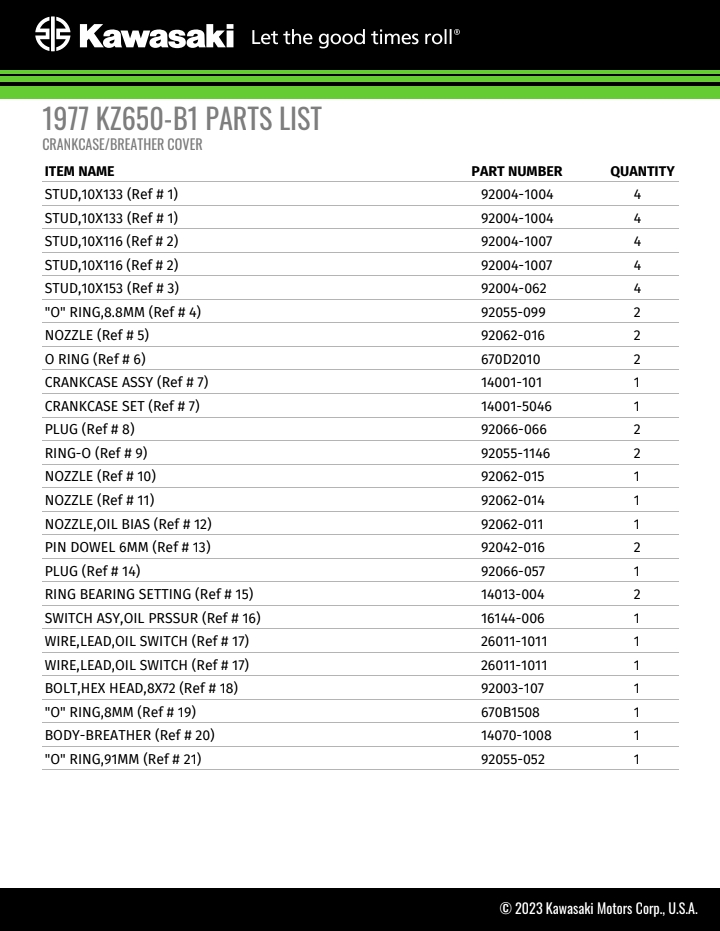

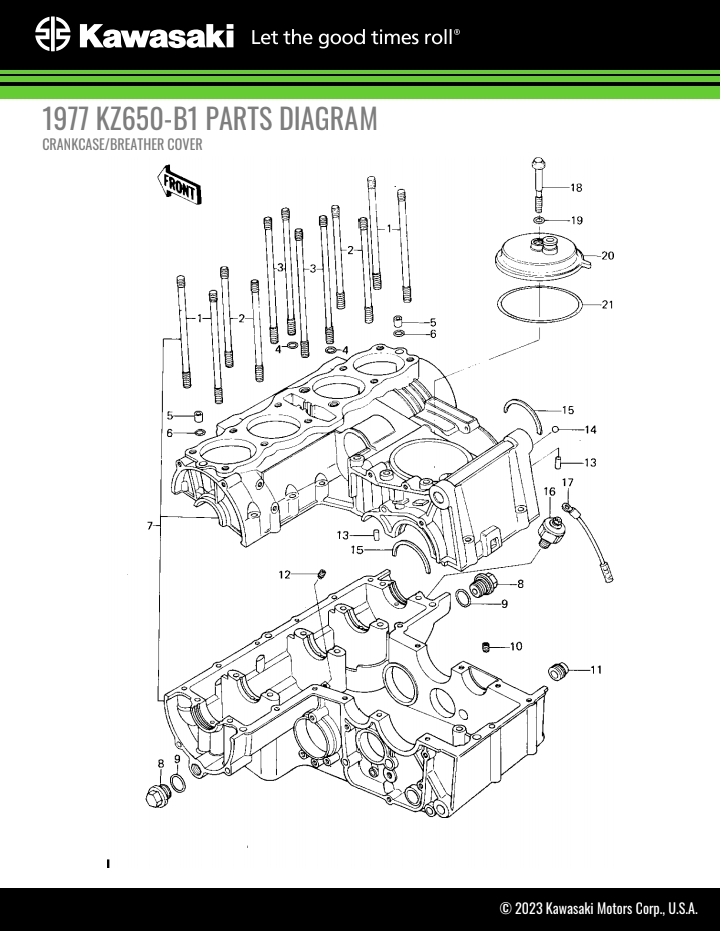

Hey Warren, only o-rings I can see that I don’t remember putting in are the qty(2) of #4 on the crankcase. Are these supposed to be over the right-Center studs? Big concern if these were missed?
The following user(s) said Thank You: Warren3200gt

Please Log in or Create an account to join the conversation.

KZ650 Top end O-rings 21 Mar 2023 20:06 #881879

  • RonKZ650
  • RonKZ650's Avatar
  • Offline
  • User
  • Posts: 3696
  • Thank you received: 236
Orings on the studs or lack of doesn't matter. Oring between the cylinder and case on each side matters, as well as the oval ones between the cylinder and cylinder head. That's it for Oring problems on the block/cylinder/head, but there are 50 more Orings throughout the engine that all go bad and leak. I like the 650, and probably have ridden 650s more than most, but what an annoying design using all the rubber Orings that harden and leak. The Z1/KZ1000 doesn't leak, or at least far less commonly. 650s leak if ridden much. The heat hardens the Orings and leaks will be a regular thing that will be annoying as I said already.
321,000 miles on KZ's that I can remember. Not going to see any more.
The following user(s) said Thank You: sflesch94

Please Log in or Create an account to join the conversation.

KZ650 Top end O-rings 21 Mar 2023 23:51 #881880

  • Warren3200gt
  • Warren3200gt's Avatar
  • Offline
  • User
  • Posts: 1435
  • Thank you received: 648

Hey Warren, only o-rings I can see that I don’t remember putting in are the qty(2) of #4 on the crankcase. Are these supposed to be over the right-Center studs? Big concern if these were missed?
Not the end of the world to have missed those two. They fit on the right central pair of studs. The stud threads in the case on those two are open and go all the way through to the crankshaft chamber. The rest are blind.
The thinking was that the o rings would stop oil seeping up those two studs and leaking out. I've never known a 650 to leak there.
Ron Kz650, the only place I've seen leaks on 650s is from seals not o rings except the rev counter drive.
Very occasionally the leak from the clutch pushrod and front sprocket seals but that's not surprising with all the grease and rubbish from the chain that accumulates and collects in there.

Z1000J2 somewhat modified!

The following user(s) said Thank You: sflesch94

Please Log in or Create an account to join the conversation.

Last edit: by Warren3200gt.
