KZ750E correct shift fork installation positon on shift drum? 05 Aug 2022 10:37 #871724

  • Scirocco
  • Scirocco's Avatar Topic Author
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3526
  • Thank you received: 1603
A member in a german cafe racer forum ask me for help about the correct shift fork position on the shift drum.

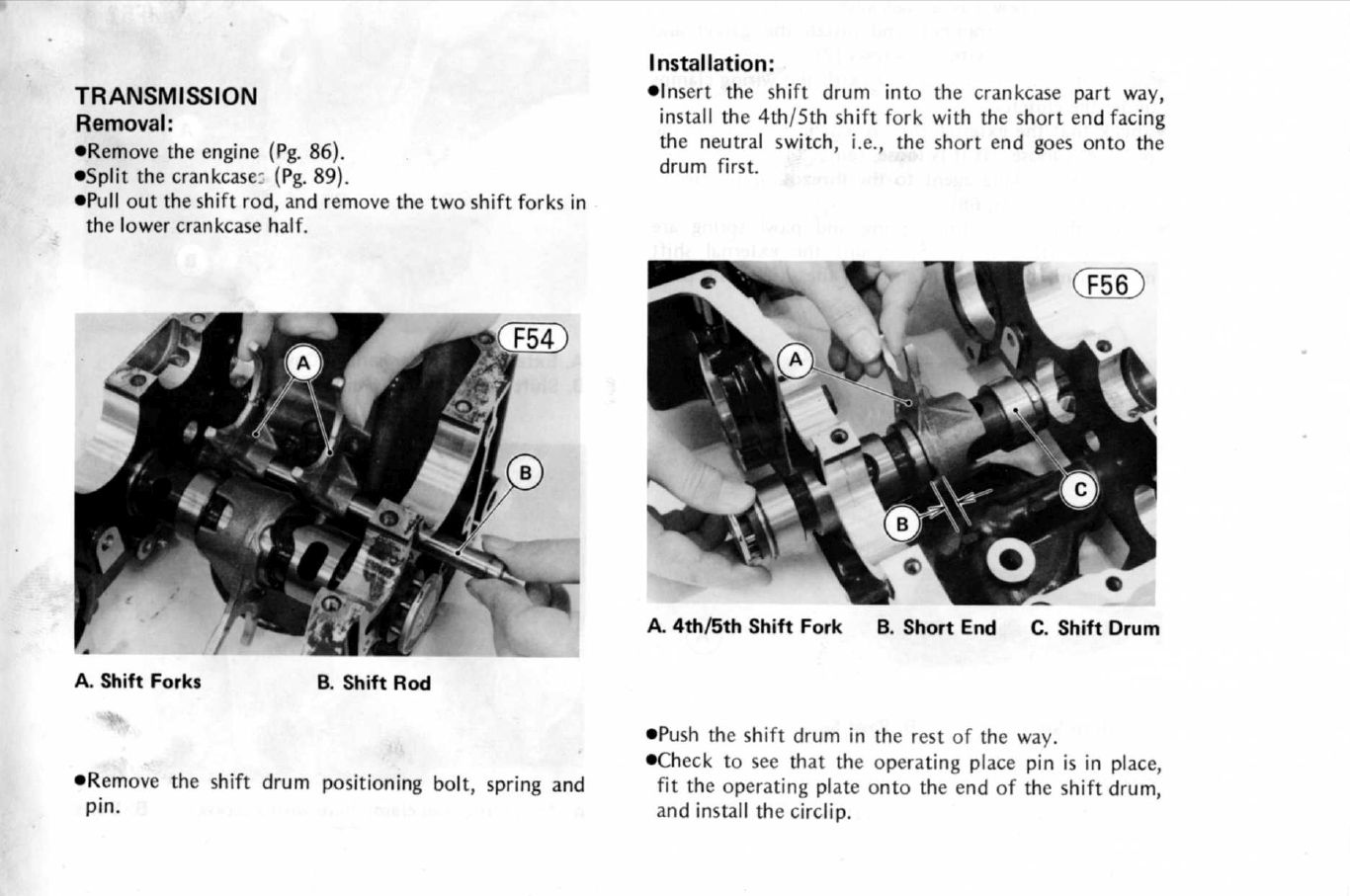

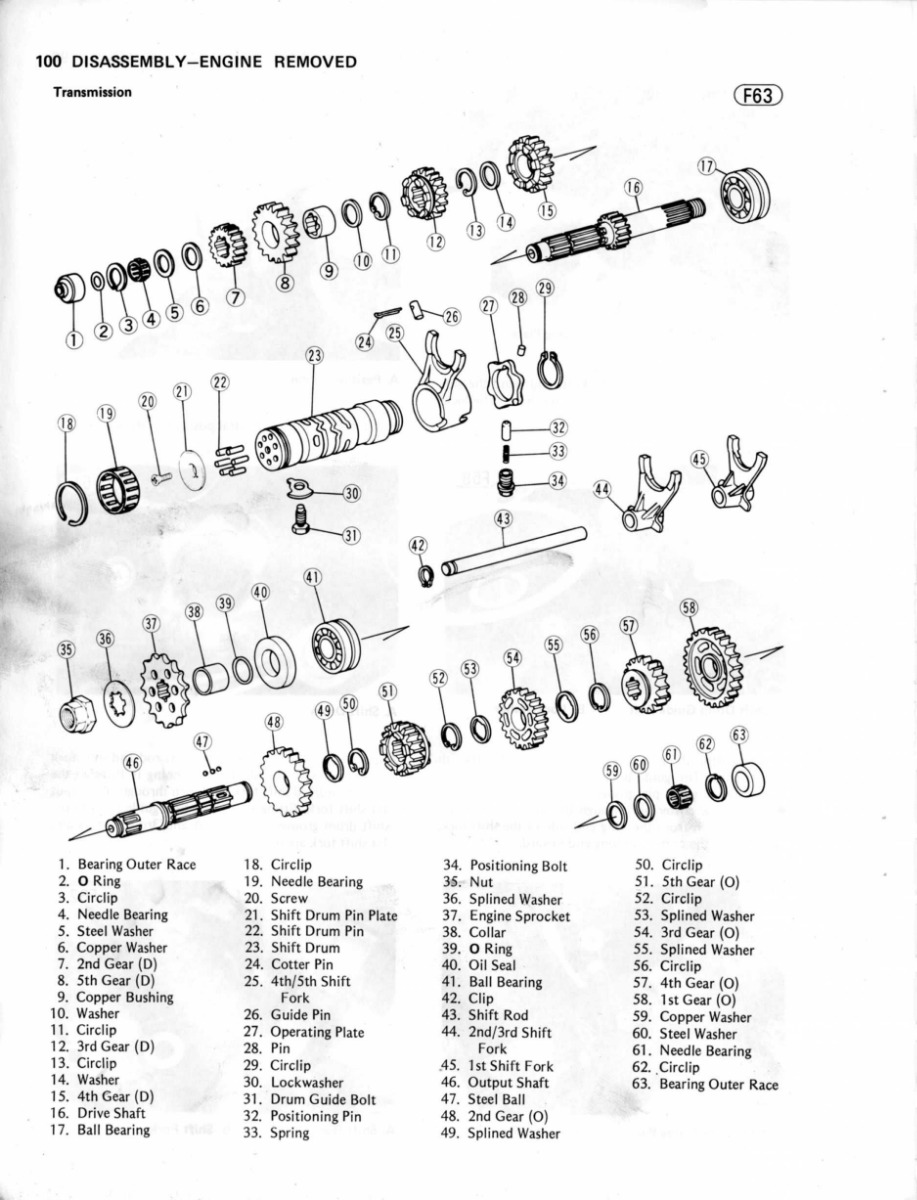

The KZ 750 service manual (750turbo.com) shows contradictory representations of the fork position.
So what is correct position?

EDIT: It´s a 5 speed transmission!

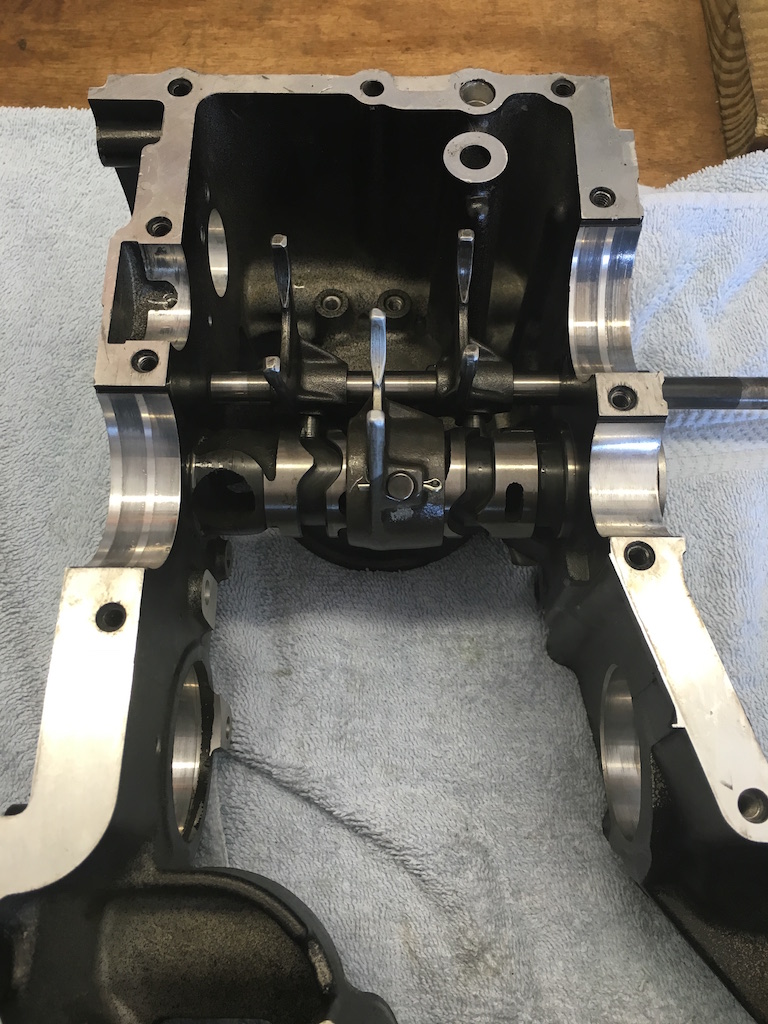

AFAIK this position is correct:

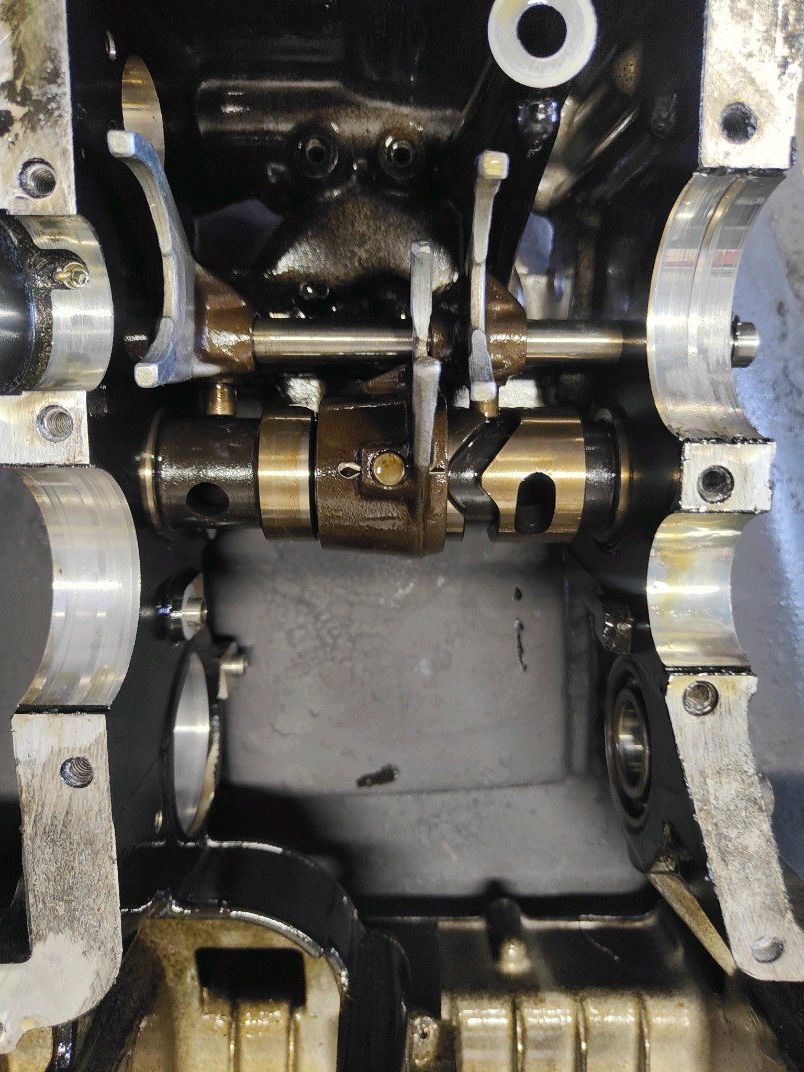

or this FSM position:



Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Scirocco.

KZ750E correct shift fork installation positon on shift drum? 05 Aug 2022 11:54 #871728

  • Warren3200gt
  • Warren3200gt's Avatar
  • Offline
  • User
  • Posts: 912
  • Thank you received: 312

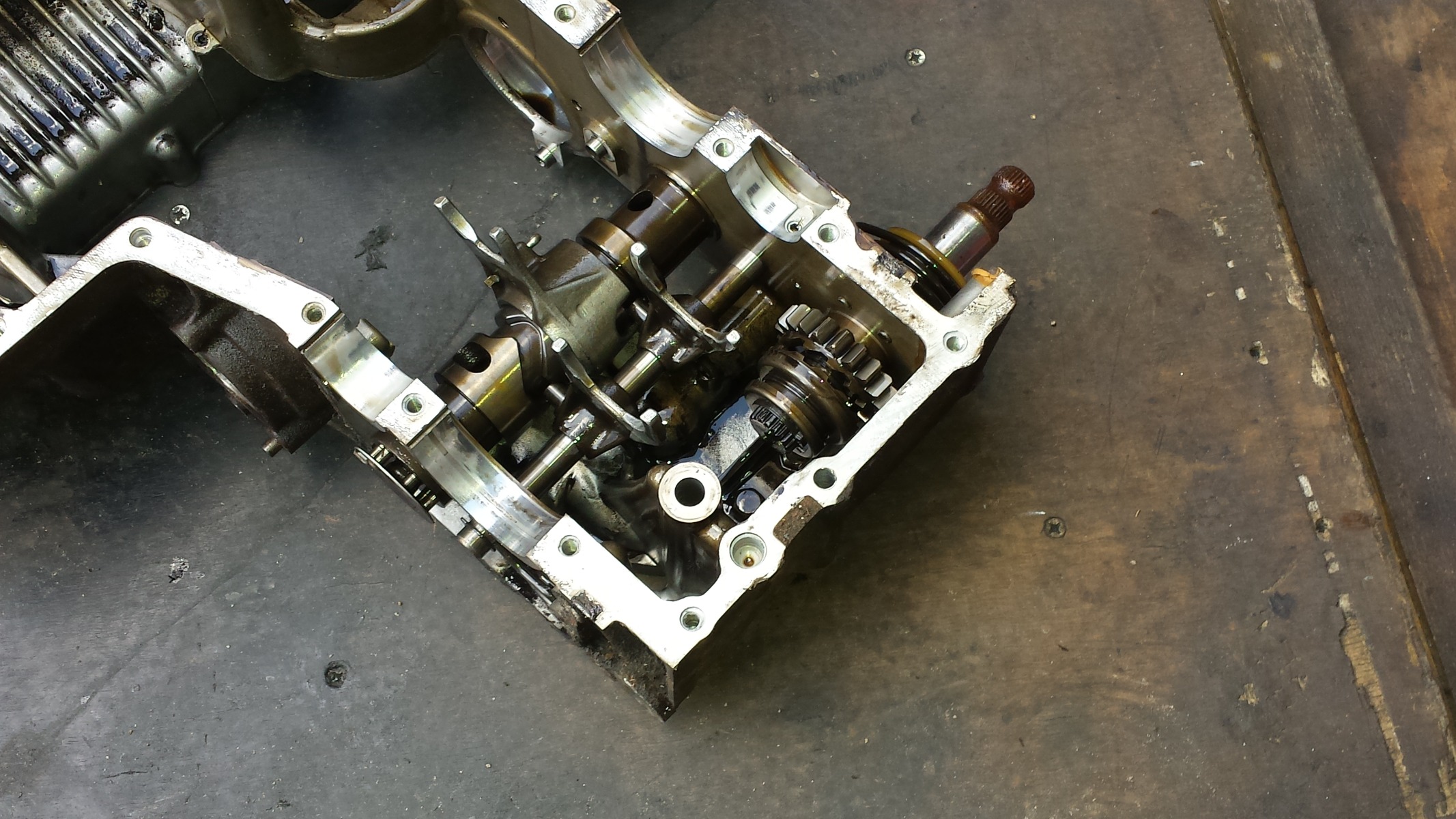

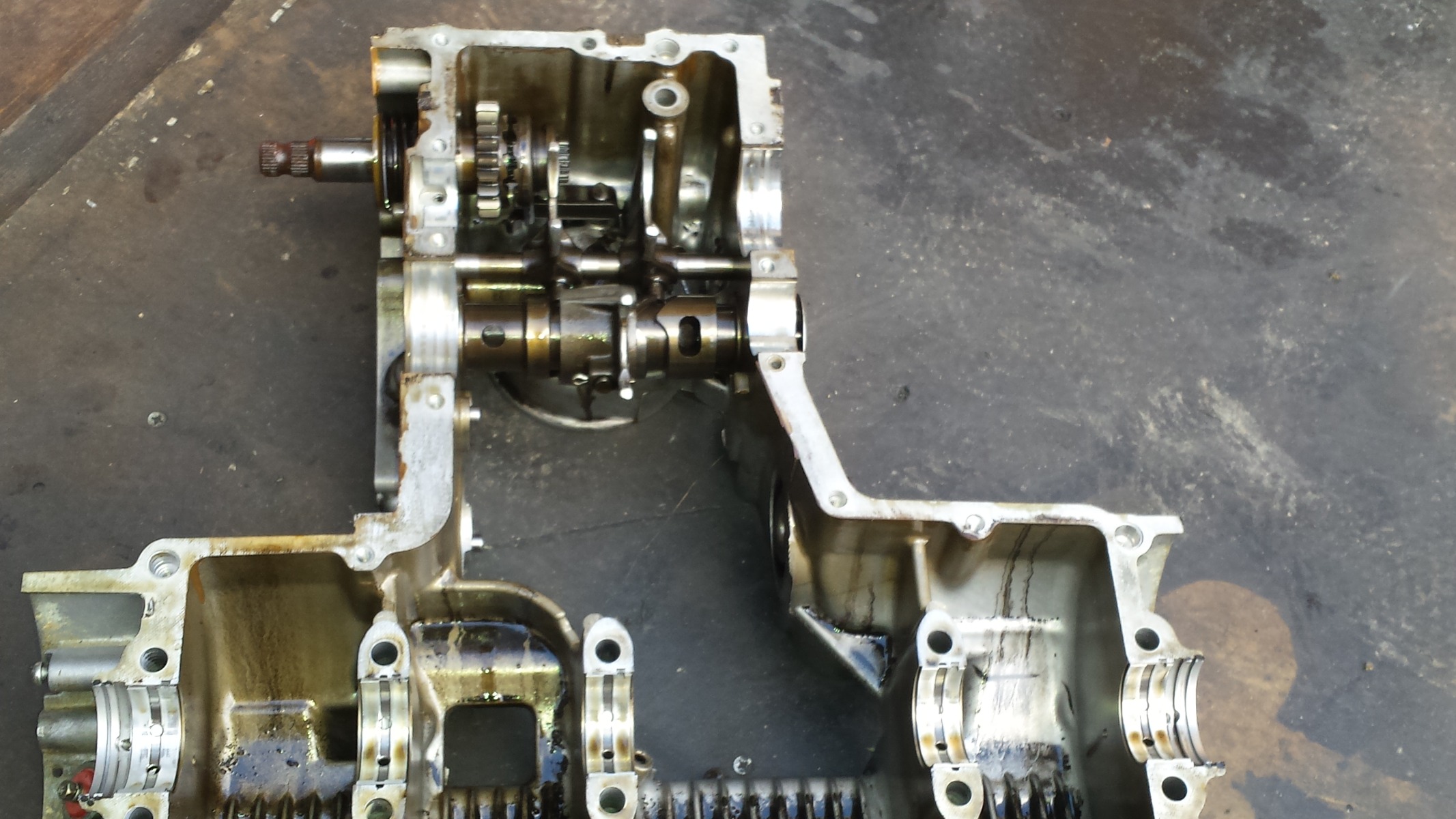

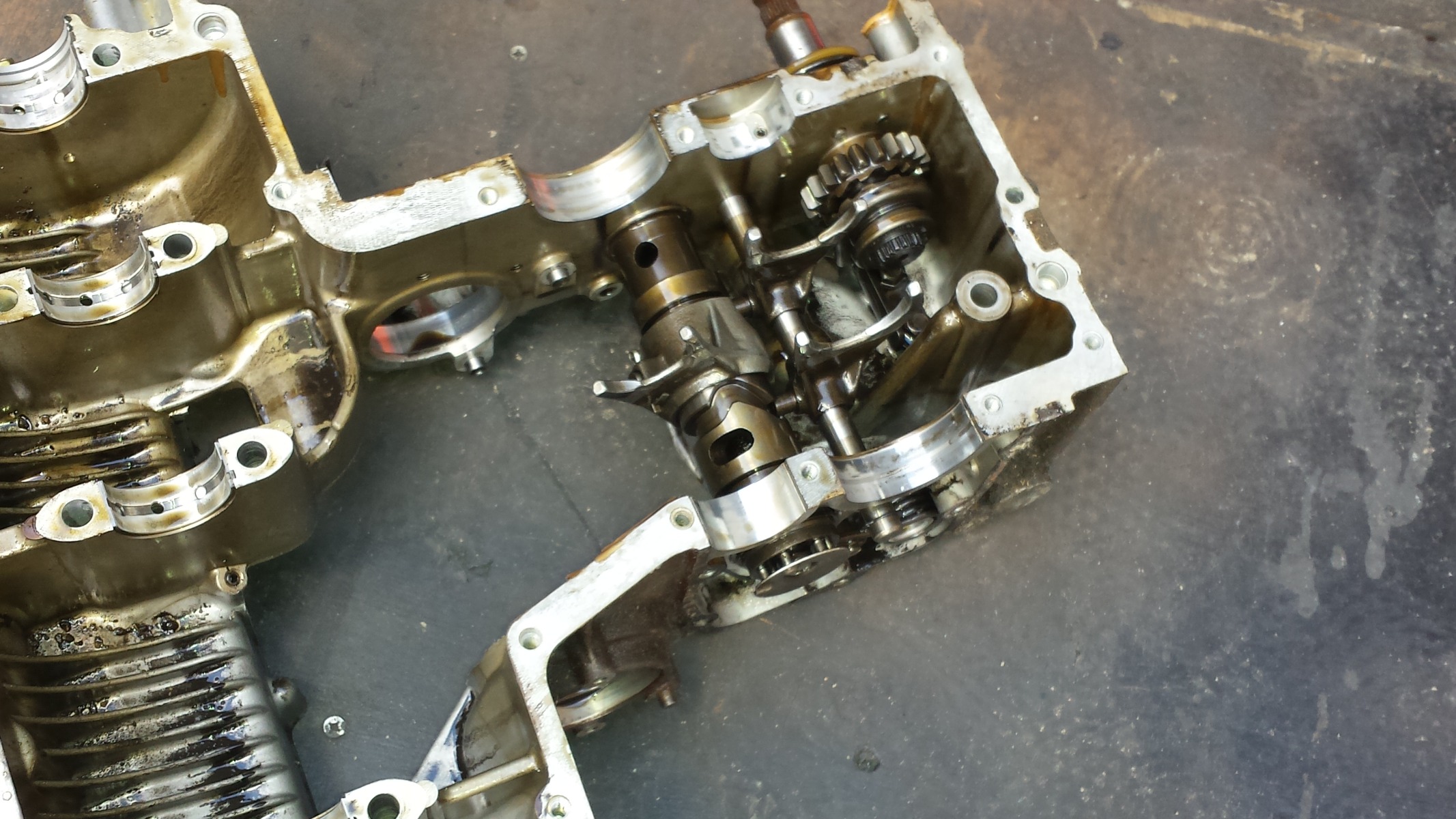

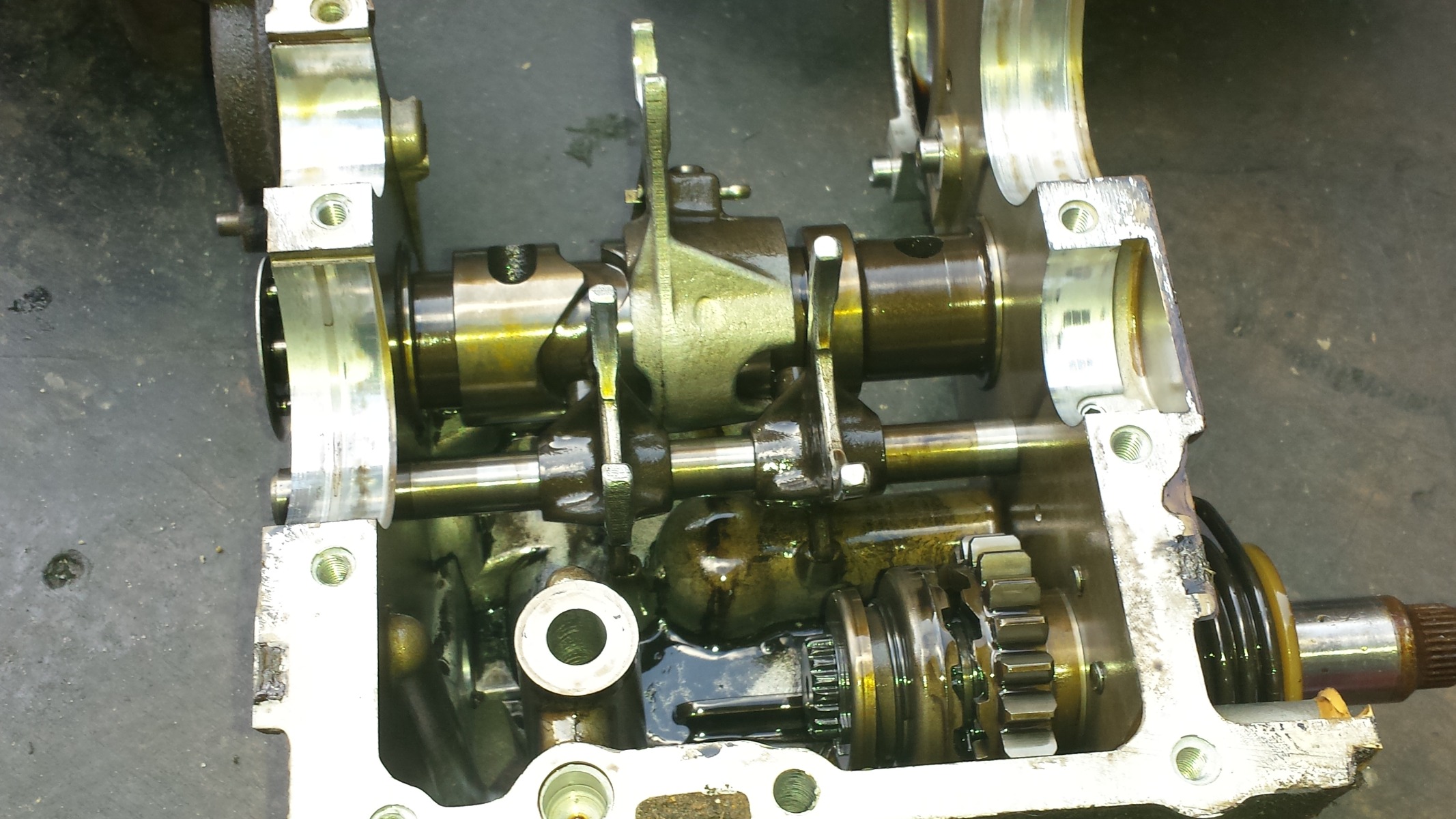

Looks to be the same casings as a 650. So here's pics of the correct position. Looks to be fsm position.
