79 Kz1000 swingarm removal

Deuce
Topic Author
Offline
User

06 Mar 2022 09:27 #863249 by Deuce

79 Kz1000 swingarm removal was created by Deuce

Best way to remove these? Both spin when turned.

www.flickr.com/gp/162005819@N03/J055kUZ1a8

1982 GS1100G
1997 Yamaha Vmax
1979 Kawasaki 1000

Please Log in or Create an account to join the conversation.

kzstreetfighter71
Offline
User
Atlantic West Coast

06 Mar 2022 09:42 #863251 by kzstreetfighter71

Replied by kzstreetfighter71 on topic 79 Kz1000 swingarm removal

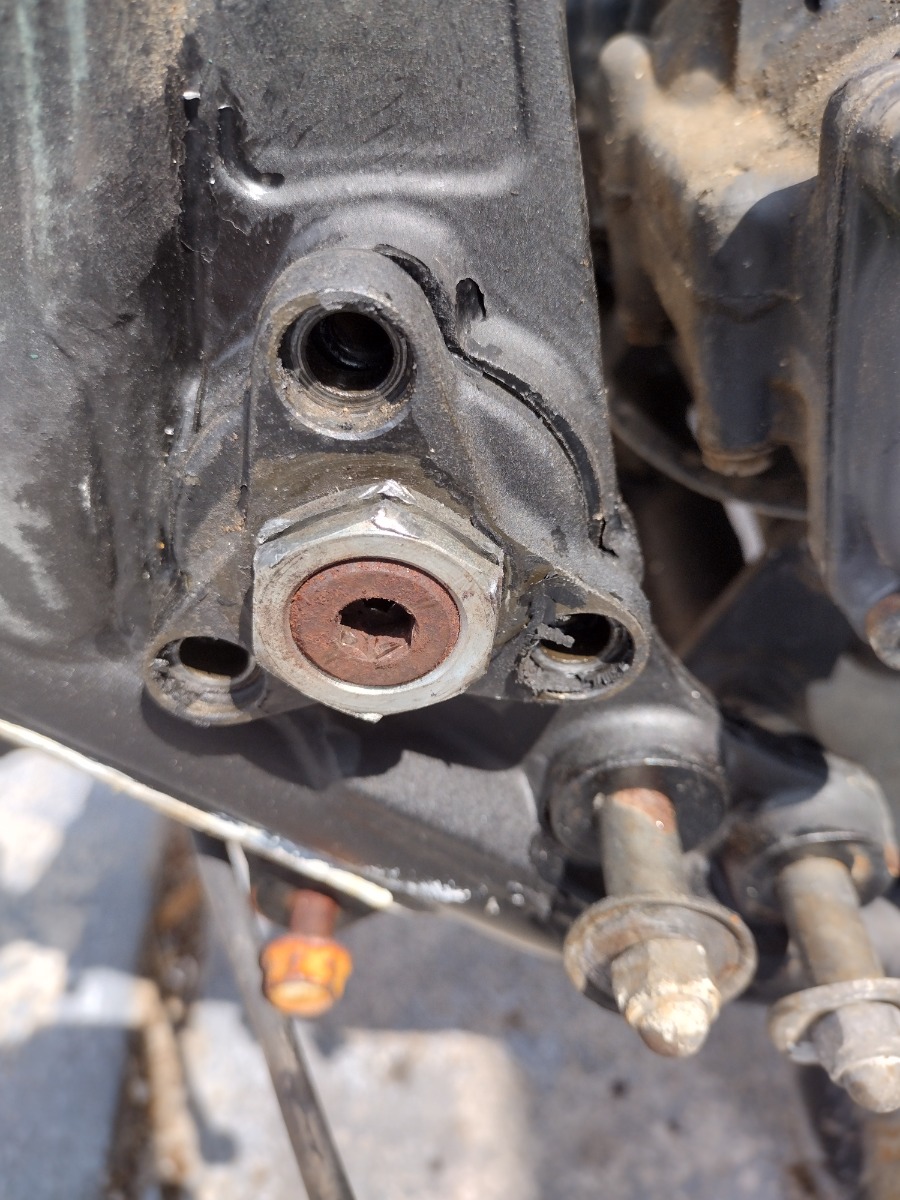

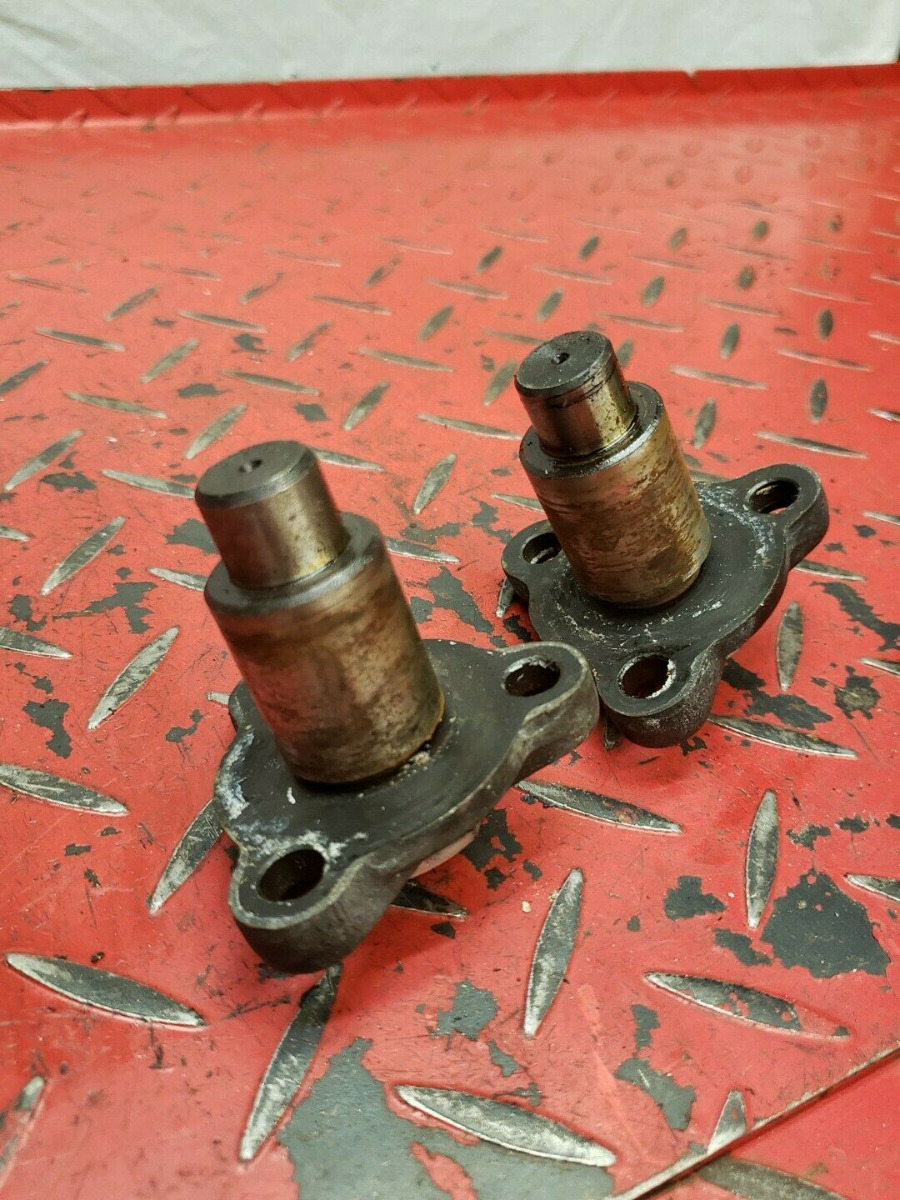

On the ST there isnt a regular Pinion that runs from one side to the other but 2 lugs that support the swing arm like the pic below, once the bolts are gone off then pry nice and easy with a large flat head screwdriver or pry bar.

06 Gsf 1200 bandit, 08 Triumph tiger 1010
05 Yam xv1700 , 02 Hon shadow 1100
1975 Z1 (currently working on)
1977 Z1000 ( running and in storage)
1978 Z1000 (currently working on)
1978 Z1r "skinny tank" (currently working on)
1978 Z1r "fat tank (gathering parts)
1979 z1000st (currently working on)

Please Log in or Create an account to join the conversation.

Deuce
Topic Author
Offline
User

06 Mar 2022 10:23 #863254 by Deuce

Replied by Deuce on topic 79 Kz1000 swingarm removal

That easy? Wow! Thanks a bunch!

www.flickr.com/gp/162005819@N03/J055kUZ1a8

1982 GS1100G
1997 Yamaha Vmax
1979 Kawasaki 1000

Please Log in or Create an account to join the conversation.

Deuce
Topic Author
Offline
User

06 Mar 2022 11:40 - 06 Mar 2022 12:58 #863258 by Deuce

Replied by Deuce on topic 79 Kz1000 swingarm removal

I should have also asked how the drive shaft comes out of the swingarm. Mine pulls a little, then starts binding.

Never mind. I finally got my fat head in a position that I could look into the swingarm, and I see the C clip. Of course, I'm going to have to go buy a special pair of pliers just for that, since mine don't have a long enough reach.

www.flickr.com/gp/162005819@N03/J055kUZ1a8

1982 GS1100G
1997 Yamaha Vmax
1979 Kawasaki 1000

Last edit: 06 Mar 2022 12:58 by Deuce.

Please Log in or Create an account to join the conversation.

Deuce
Topic Author
Offline
User

12 Mar 2022 05:48 - 12 Mar 2022 05:50 #863621 by Deuce

Replied by Deuce on topic 79 Kz1000 swingarm removal

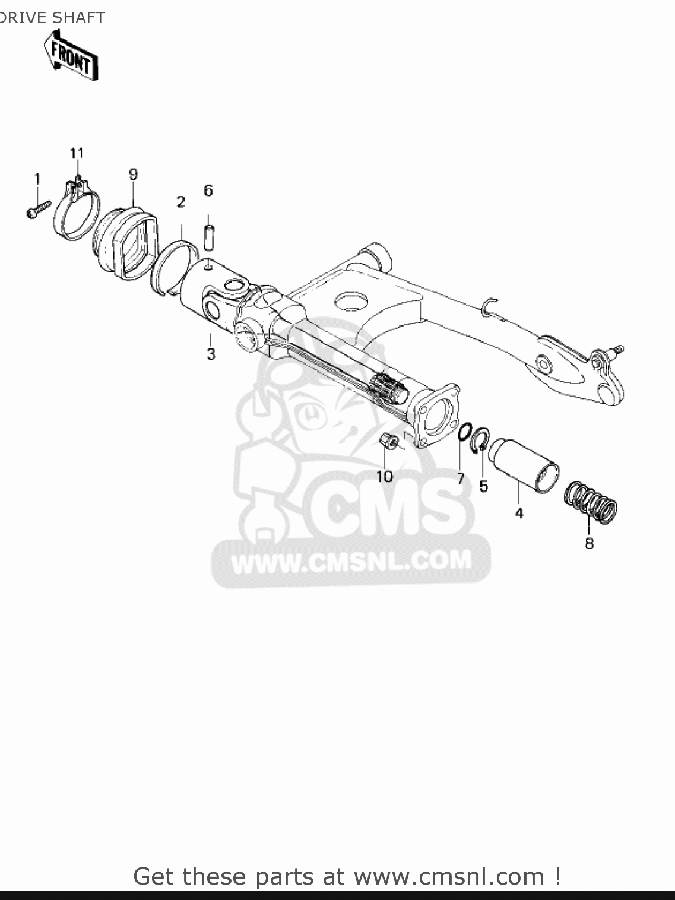

Okay, I'm not as dumb as I'm making myself sound, lol. One more question. Does #5 have to come off before the swingarm will pull away from the shaft? In this illustration, it doesn't look like it should have to, but if I pull the swing arm, it moves about 2 inches, then binds up. That particular snap ring is really hard to get to.


www.flickr.com/gp/162005819@N03/J055kUZ1a8

1982 GS1100G
1997 Yamaha Vmax
1979 Kawasaki 1000

Last edit: 12 Mar 2022 05:50 by Deuce.

Please Log in or Create an account to join the conversation.

TexasKZ
Offline
Platinum Member

16 Mar 2022 07:07 #863863 by TexasKZ

Replied by TexasKZ on topic 79 Kz1000 swingarm removal

I think it would be easier to remove the pin (#6) and then remove the shaft with the swing arm.

1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

Please Log in or Create an account to join the conversation.

Deuce
Topic Author
Offline
User

16 Mar 2022 07:12 #863864 by Deuce

Replied by Deuce on topic 79 Kz1000 swingarm removal

I didn't know about the pin until I was doing some more research and found a thread here that mentioned it. I finally got it all apart and the engine out. This frame was bent, so It's going to the recycle center. Now the REAL fun begins...stripping the good bike for rebuilding!

Thanks for all the help!

www.flickr.com/gp/162005819@N03/J055kUZ1a8

1982 GS1100G
1997 Yamaha Vmax
1979 Kawasaki 1000

Please Log in or Create an account to join the conversation.

TexasKZ
Offline
Platinum Member

16 Mar 2022 07:18 #863865 by TexasKZ

Replied by TexasKZ on topic 79 Kz1000 swingarm removal

Bent frames can be straightened.

1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

Please Log in or Create an account to join the conversation.

Deuce
Topic Author
Offline
User

16 Mar 2022 08:13 #863868 by Deuce

Replied by Deuce on topic 79 Kz1000 swingarm removal

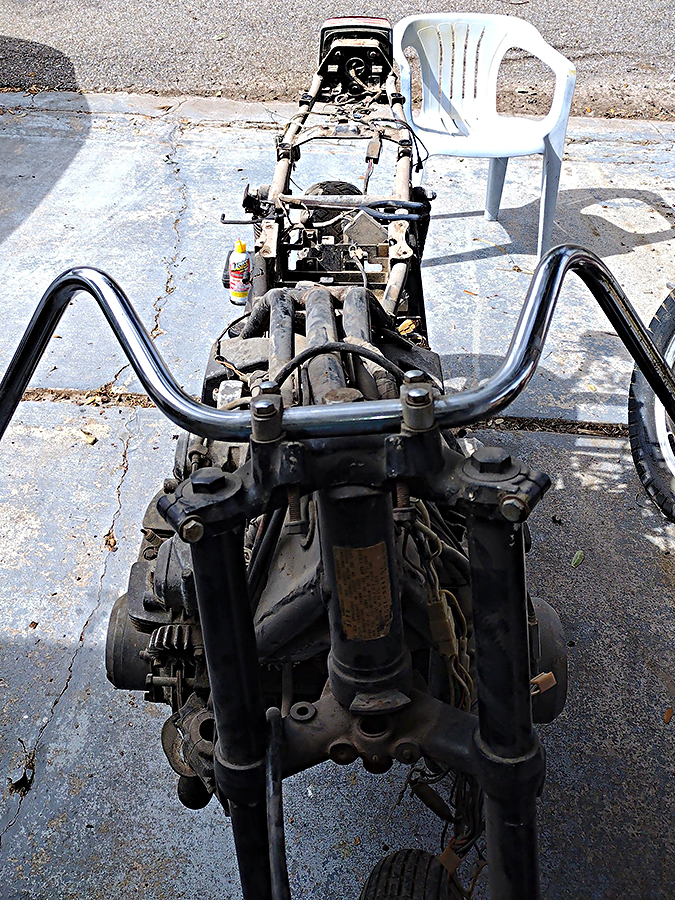

Not worth my time right now. The area I live in is devoid of people able to do stuff like that anyway. It looks like the left down tube got hit pretty hard and it "banana-ed" the spine. You can see it in the picture. I'm happy that I got several good parts off of it, including a motor.
