Sheared Woodruff Key on crankshaft was created by Wheelhop
Just wanted your guys thoughts on how to remedy "minor" damage to end of crankshaft due to a sheared woodruff key.
Zed1015 (thanks Rob!) suggested I use some fine valve grinding compound and carefully lap the rotor to the taper. I spoke to a owner of a local

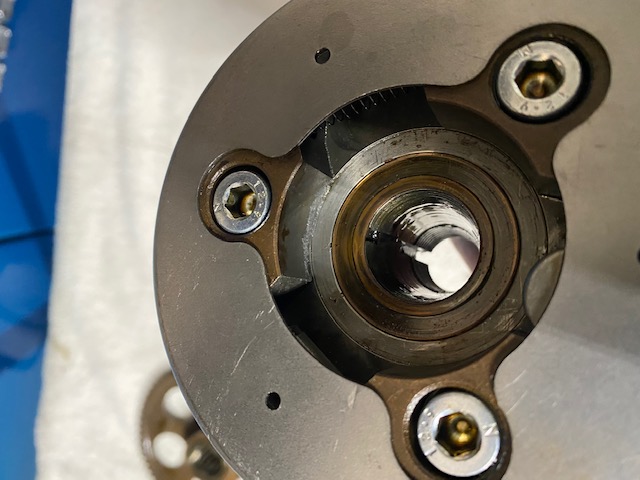

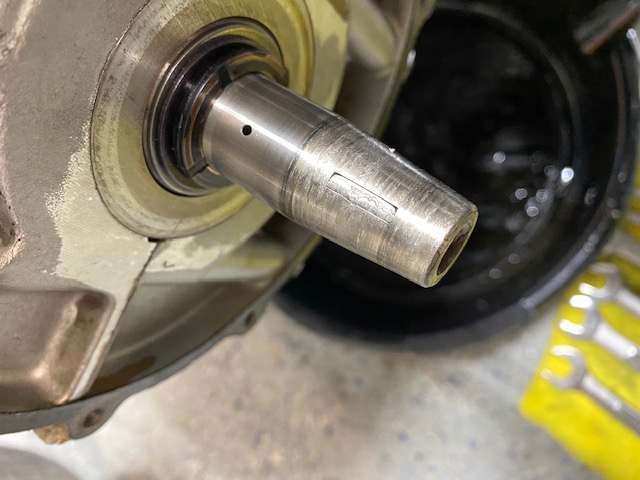

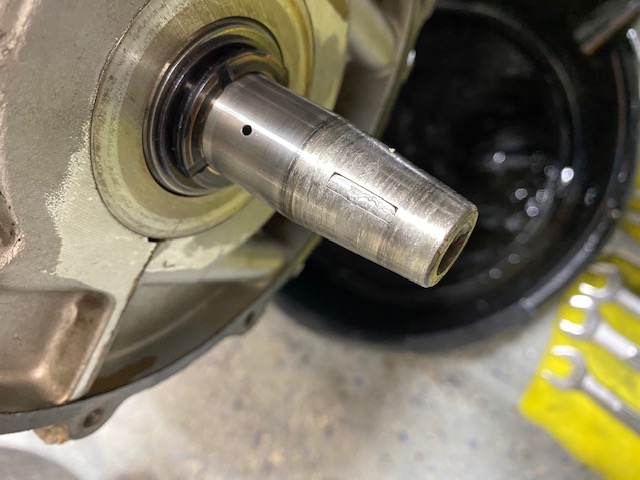

motorcycle repair shop and he agreed with that procedure. I have already bought 2 new woodruff keys online. I am attaching a few pics.
Jim
Zed1015 (thanks Rob!) suggested I use some fine valve grinding compound and carefully lap the rotor to the taper. I spoke to a owner of a local
motorcycle repair shop and he agreed with that procedure. I have already bought 2 new woodruff keys online. I am attaching a few pics.
Jim
1978 KZ 1000B (73 tribute)
1977 KZ1000 project
1976 KZ 900
1976 KV 75
1976 Honda Elsinore MT250
1974 Z1 900 project
1971 Honda CT70
Please Log in or Create an account to join the conversation.
- Wheelhop
- Topic Author
- Offline
- Sustaining Member
Less
More
- Posts: 520
- Thank you received: 304
22 Feb 2022 04:34 #862735
by Wheelhop
1978 KZ 1000B (73 tribute)
1977 KZ1000 project
1976 KZ 900
1976 KV 75
1976 Honda Elsinore MT250
1974 Z1 900 project
1971 Honda CT70
Replied by Wheelhop on topic Sheared Woodruff Key on crankshaft

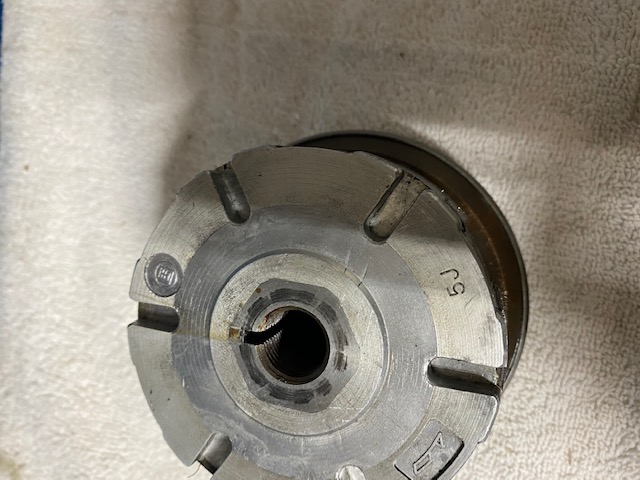

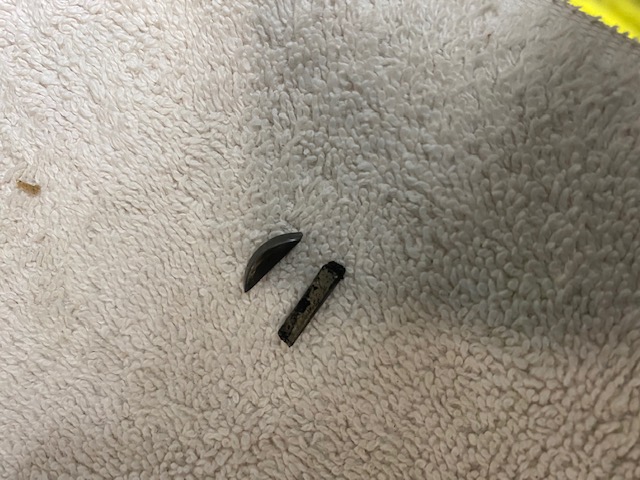

Here is a pic of the other end of the rotor. The Woodruff key came out fairly easily and is shown above in 2 pieces.
1978 KZ 1000B (73 tribute)
1977 KZ1000 project
1976 KZ 900
1976 KV 75
1976 Honda Elsinore MT250
1974 Z1 900 project
1971 Honda CT70
Please Log in or Create an account to join the conversation.
- zed1015
- Away
- User
Less
More
- Posts: 3034
- Thank you received: 1575
22 Feb 2022 06:02 #862740
by zed1015
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-
Replied by zed1015 on topic Sheared Woodruff Key on crankshaft
After seeing the pics i can say that the damage is minimal and some carefull lapping will sort that out.
Just lap the bare minimum to get a smooth surface but don't try to eliminate all annular grooves that may be present .
Over lapping will move the rotor inboard slightly which can cause the starter gear to bind and you will have to lightly face the dished rubber damper that sits behind to regain clearance.
Some fine emery or wet 'n' dry on a flat surface or mirror can be used to reduce the dampers thickness if needed.
Just lap the bare minimum to get a smooth surface but don't try to eliminate all annular grooves that may be present .
Over lapping will move the rotor inboard slightly which can cause the starter gear to bind and you will have to lightly face the dished rubber damper that sits behind to regain clearance.
Some fine emery or wet 'n' dry on a flat surface or mirror can be used to reduce the dampers thickness if needed.
