ARD Magneto removal help 13 Feb 2022 11:29 #862253

  • Wheelhop
  • Wheelhop's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 589
  • Thank you received: 309
I am removing the ARD magneto ignition from my 1976  KZ900 project and wondering if anyone can help me with final steps.

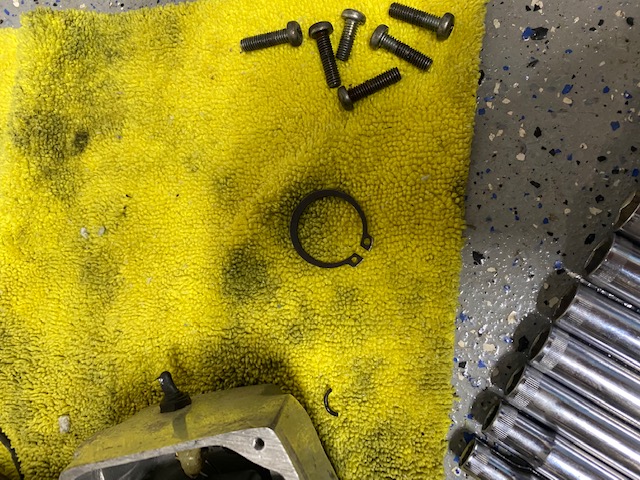

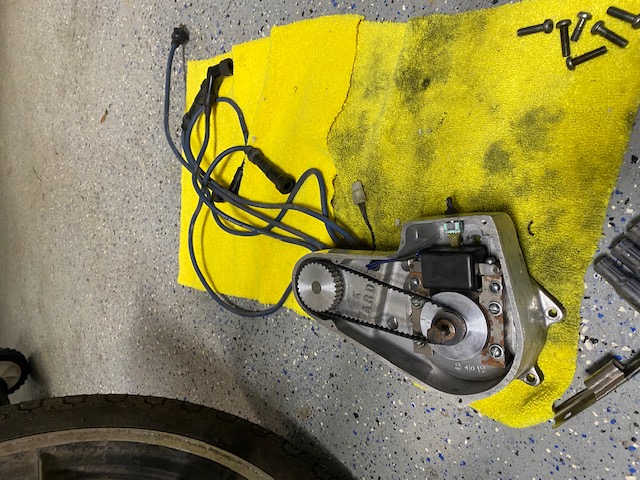

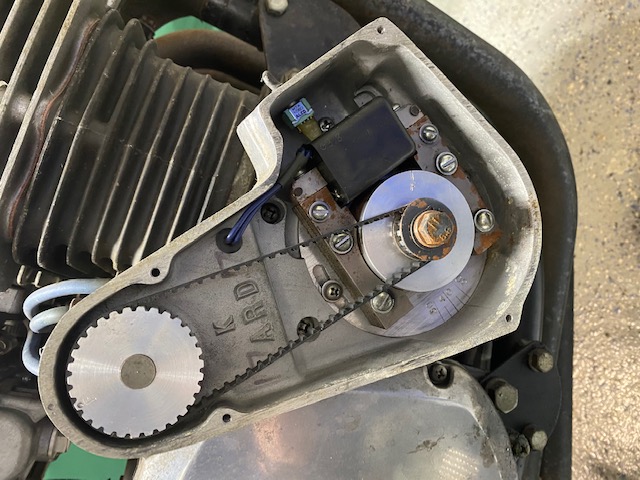

I am attaching some pics:

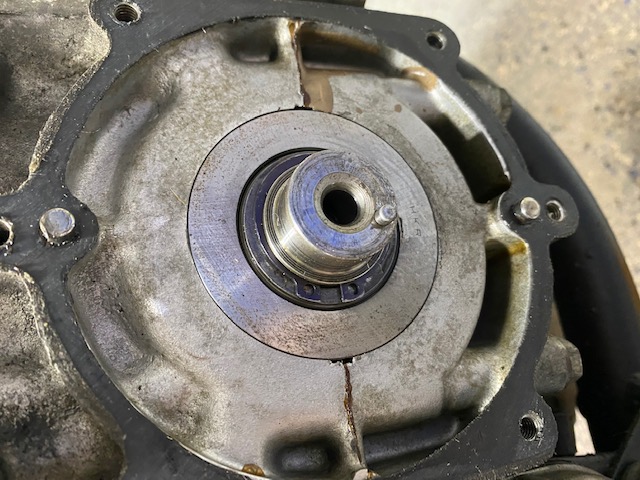

I have removed the spring clip and a washer off of the end of last pictured area and just wondering how to proceed with removing rest?
do I need some kind of "flywheel puller" ?
thanks in advance for your help
1978 KZ 1000B (73 tribute)
1977 KZ1000 project
1976 KZ 900
1976 KV 75
1976 Honda Elsinore MT250
1974 Z1 900 project
1971 Honda CT70
Attachments:

Please Log in or Create an account to join the conversation.

ARD Magneto removal help 13 Feb 2022 11:39 #862255

  • DOHC
  • DOHC's Avatar
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
  • Posts: 1259
  • Thank you received: 528

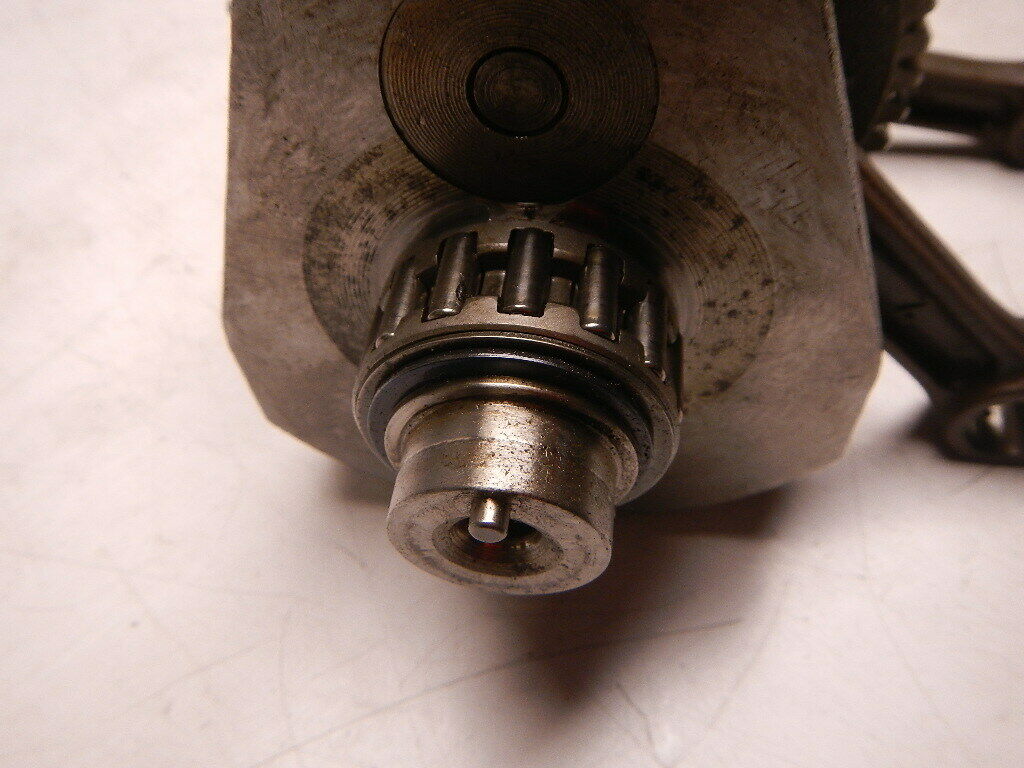

Isn't that just what the end of the crankshaft looks like?  I think you're done removing things...  Here is a random picture from Ebay of a Z1 crank.

ebay.com/itm/363703775721


'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by DOHC.

ARD Magneto removal help 13 Feb 2022 12:05 #862258

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4963
  • Thank you received: 1907
The snap ring holds the bearing cage on the crank. Your as far as you go. From here you can put stock or Dyna S on.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

ARD Magneto removal help 13 Feb 2022 12:10 #862260

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 4065
  • Thank you received: 1996

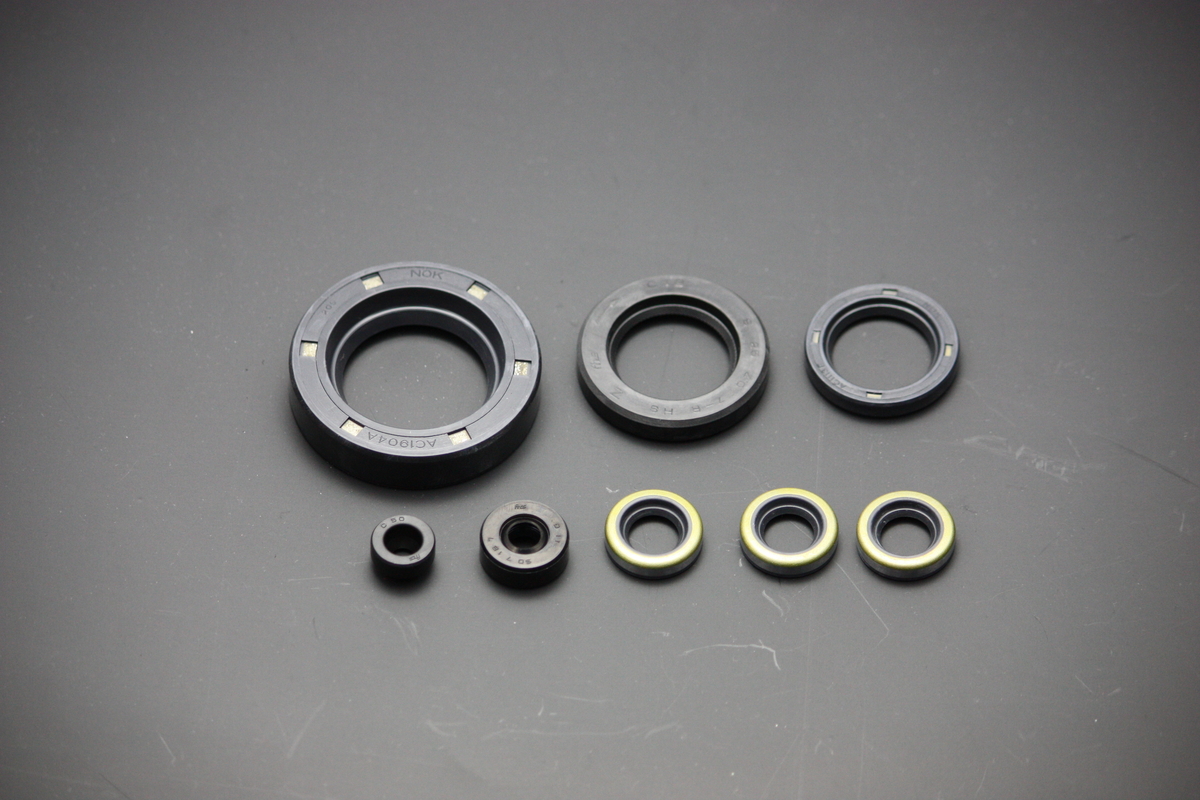

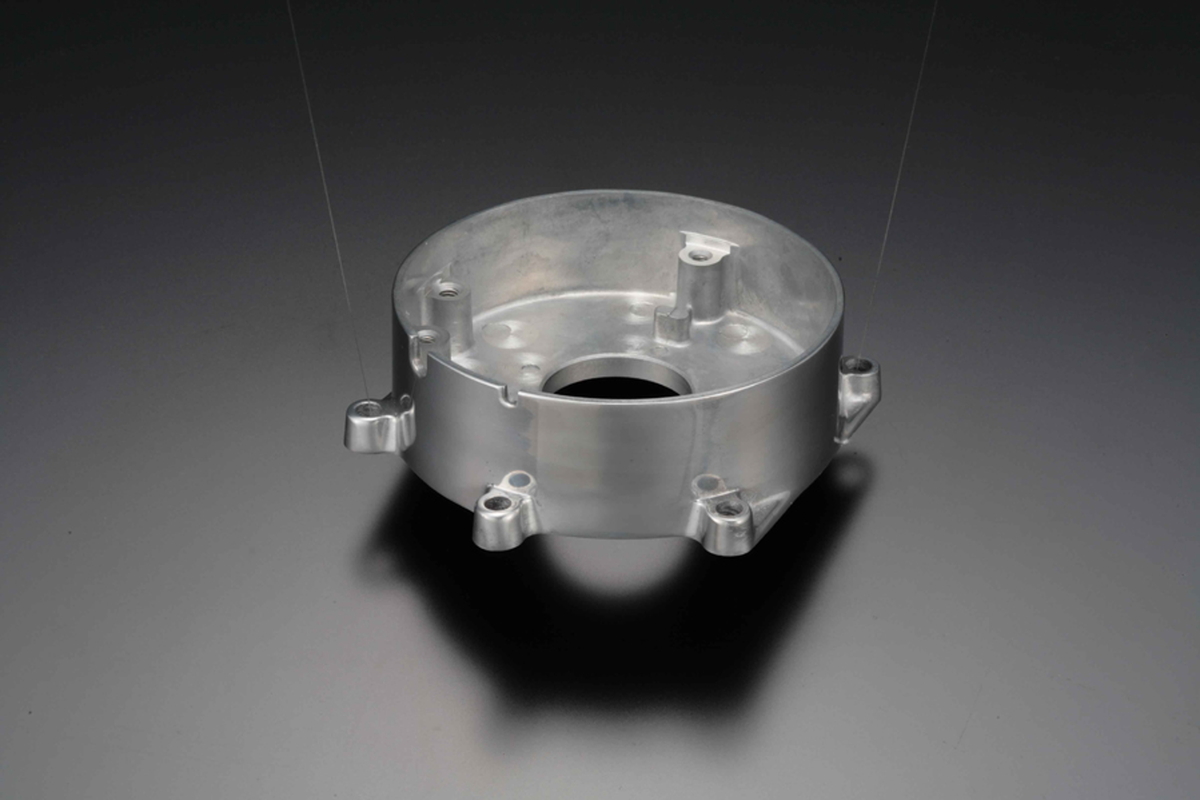

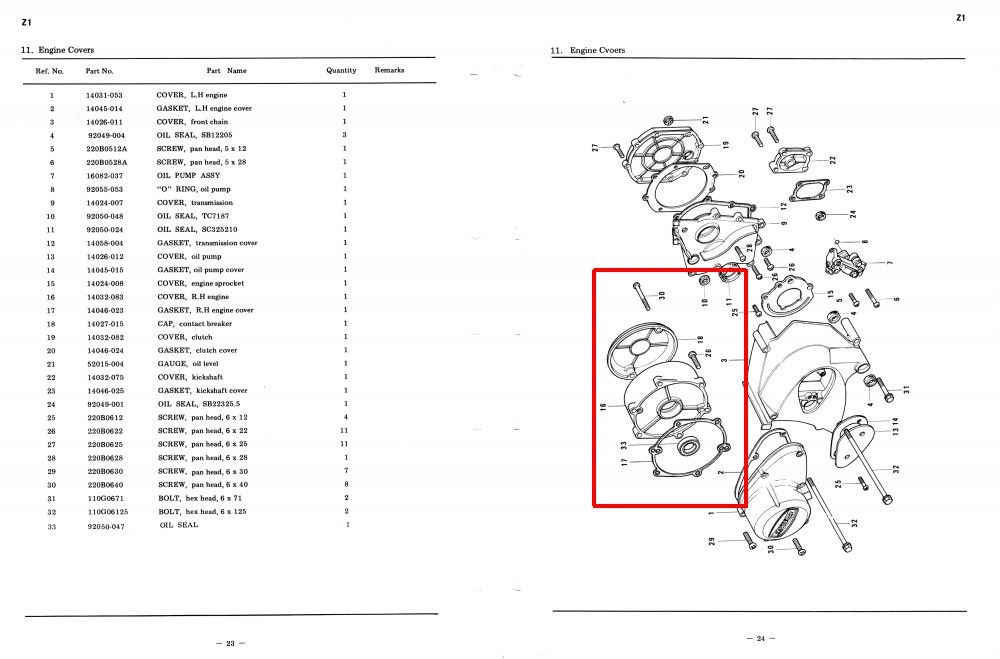

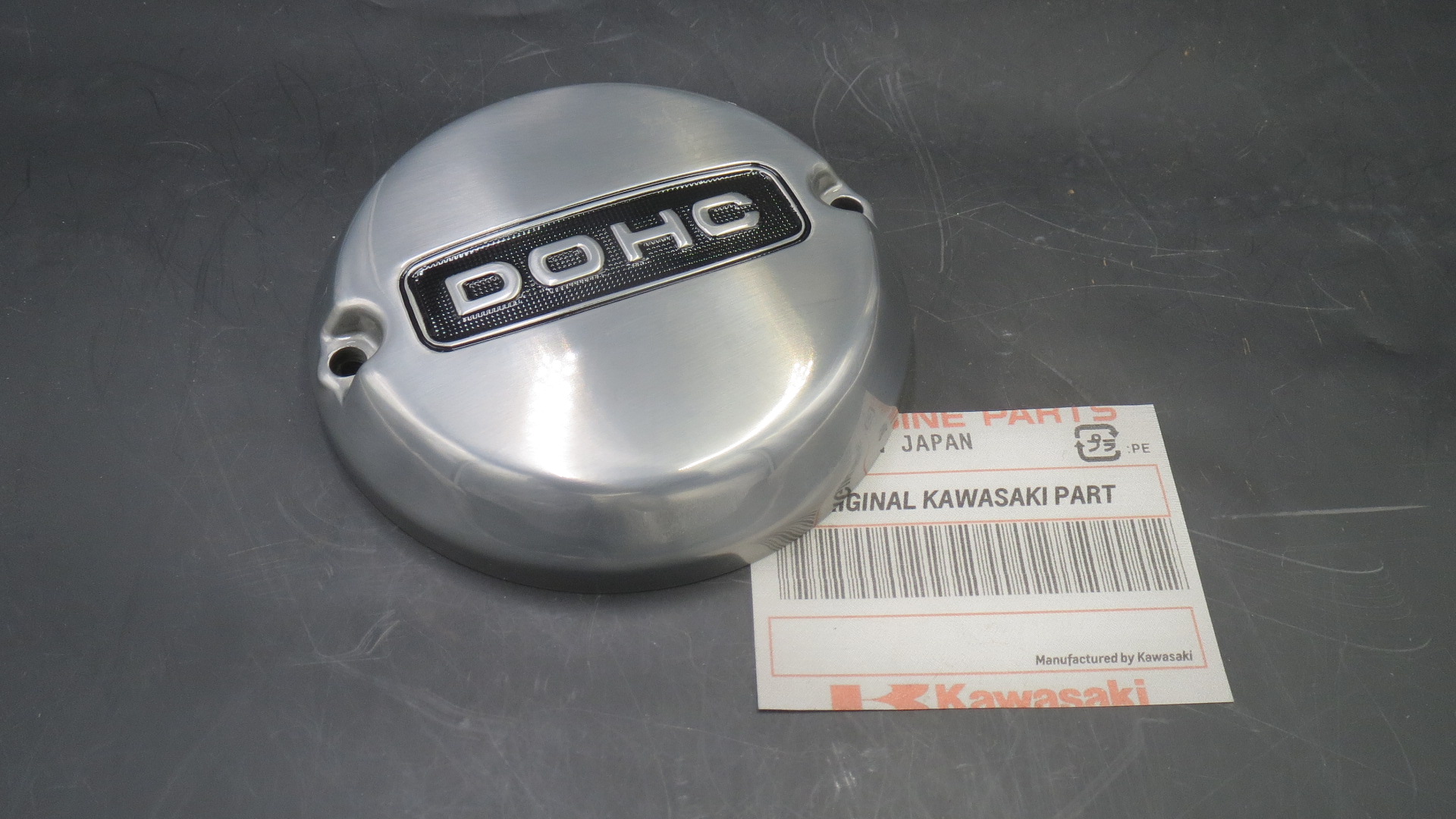

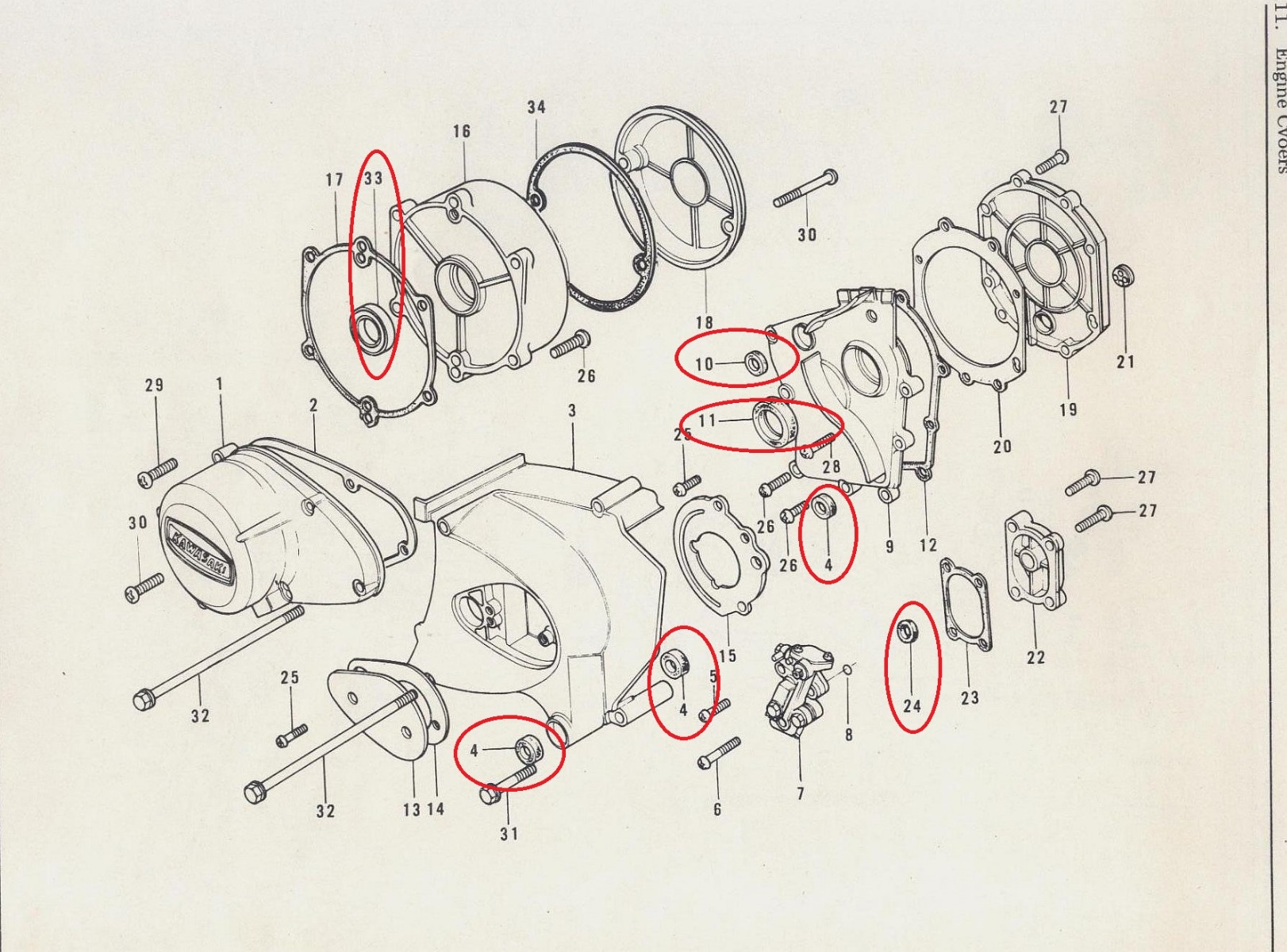

Nothing more to remove on the crank end! You need only the ignition engine case, cover, gasket and oil seal.

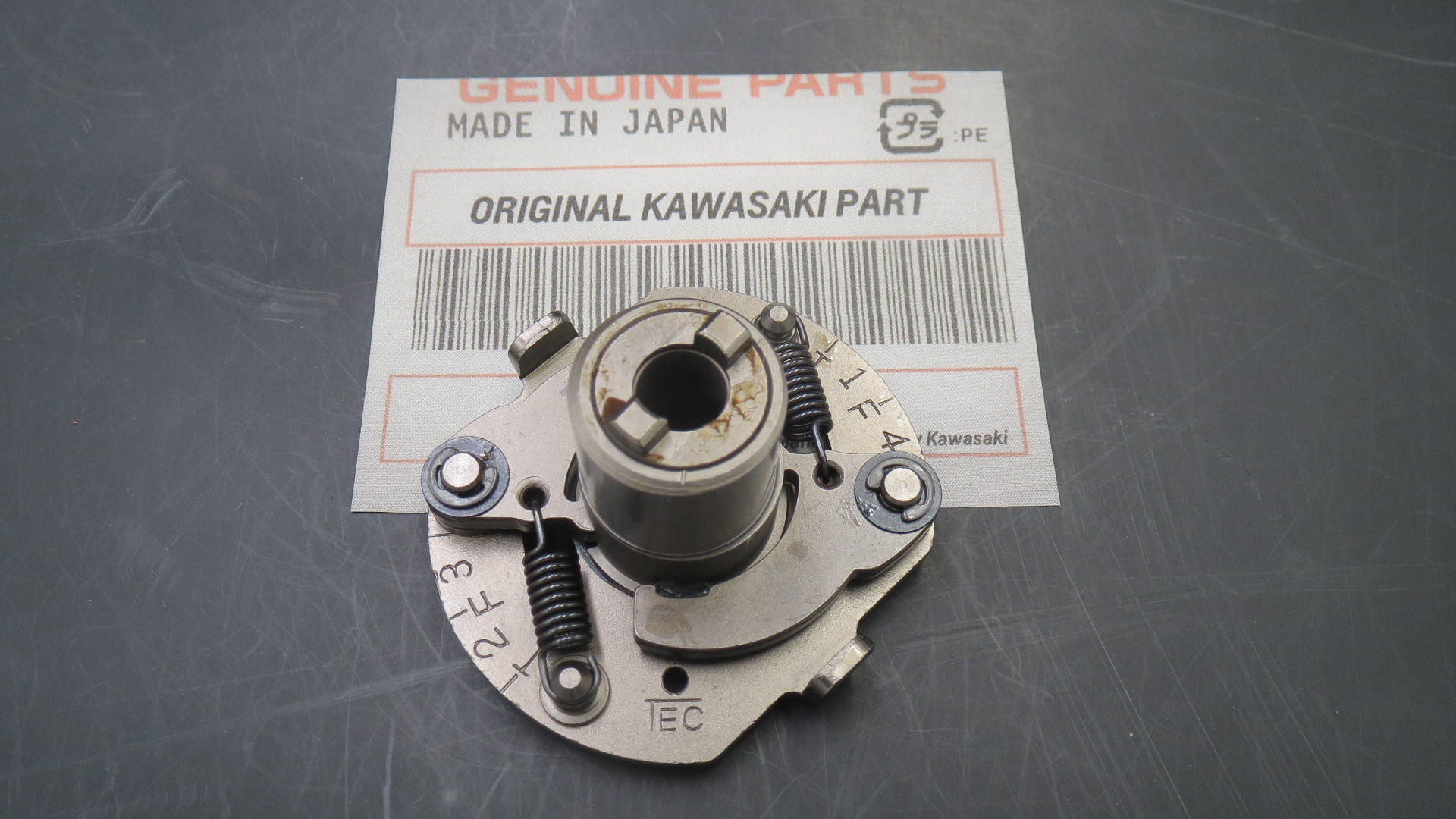

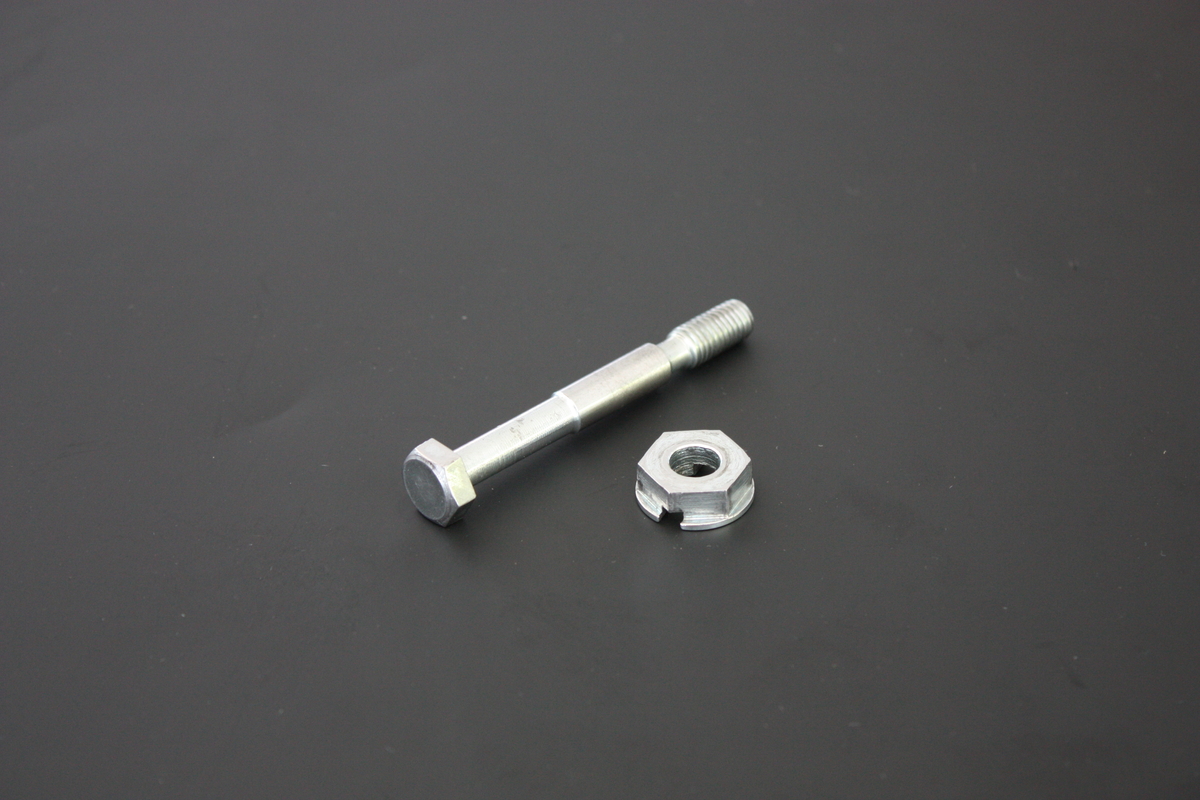

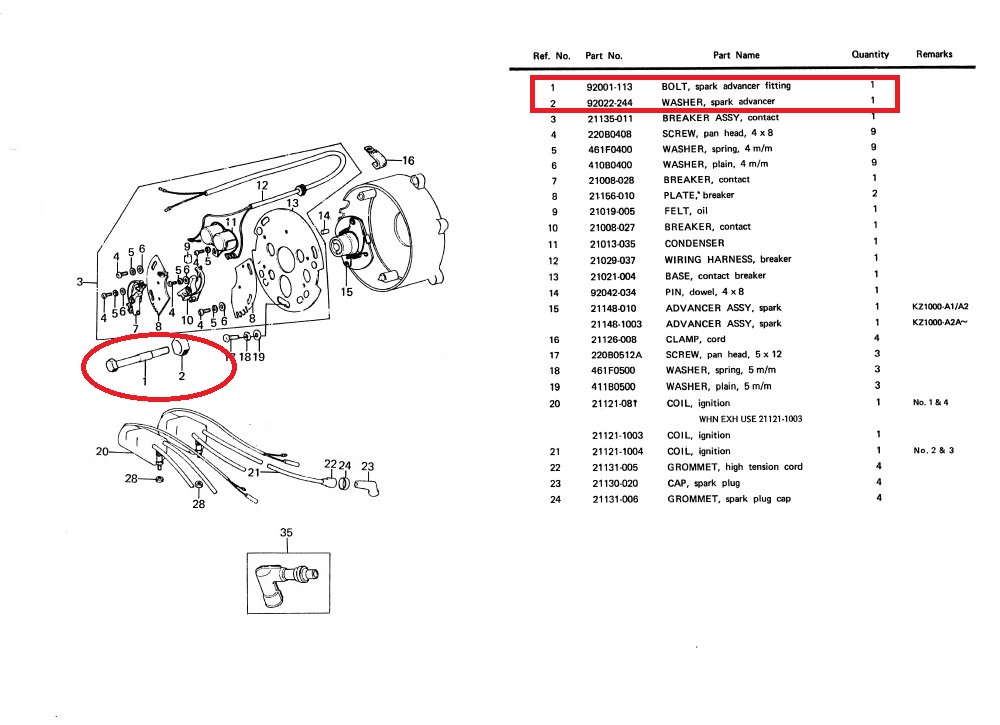

A ignition advancer unit, bolt and nut is also needed for the conversion.

z-fever.de/shop/en/?cat=c519_MOTORDECKEL...MOTORDECKEL-519.html









Attachments:
The following user(s) said Thank You: howardhb

Please Log in or Create an account to join the conversation.

Last edit: by Scirocco.

ARD Magneto removal help 13 Feb 2022 12:14 #862261

  • Wheelhop
  • Wheelhop's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 589
  • Thank you received: 309
Cool, thanks for your help guys!
1978 KZ 1000B (73 tribute)
1977 KZ1000 project
1976 KZ 900
1976 KV 75
1976 Honda Elsinore MT250
1974 Z1 900 project
1971 Honda CT70

Please Log in or Create an account to join the conversation.

ARD Magneto removal help 13 Feb 2022 12:15 #862262

  • z1kzonly
  • z1kzonly's Avatar
  • Offline
  • User
  • Sustaining Member
  • Posts: 2881
  • Thank you received: 530
Great, now that it’s off, you can pack up and ship to me!
Livin in "CheektaVegas, NY
Went thru 25 of these in 40 yrs.
I SOLD OUT! THE KAW BARN IS EMPTY.
More room for The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!

Please Log in or Create an account to join the conversation.

ARD Magneto removal help 13 Feb 2022 12:51 #862264

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4963
  • Thank you received: 1907

Great, now that it’s off, you can pack up and ship to me!
Right! Cool old school stuff!
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

ARD Magneto removal help 29 Jan 2023 20:38 #879436

  • carksz1b
  • carksz1b's Avatar
  • Offline
  • User
  • Posts: 19
  • Thank you received: 0
Hi is the ard for sale


Please Log in or Create an account to join the conversation.

ARD Magneto removal help 30 Jan 2023 11:50 #879477

  • Wheelhop
  • Wheelhop's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 589
  • Thank you received: 309

Hi is the ard for sale



Sold it rather quickly in classifieds here
1978 KZ 1000B (73 tribute)
1977 KZ1000 project
1976 KZ 900
1976 KV 75
1976 Honda Elsinore MT250
1974 Z1 900 project
1971 Honda CT70
