Factory holes in KZ400 block
- Wez
- Topic Author
- Offline
- User
Less
More
09 Sep 2020 11:51 #834665
by Wez
Factory holes in KZ400 block was created by Wez
Please Log in or Create an account to join the conversation.
- M_a_t_t
- Offline
- Sustaining Member
Less
More
- Posts: 254
- Thank you received: 41
09 Sep 2020 12:27 - 09 Sep 2020 12:28 #834669
by M_a_t_t
83 KZ1100A (shaft)
17 Versys X 300 abs
81 kz650h1
81 kz750e2
90 Honda CBR600F (brother's)
Replied by M_a_t_t on topic Factory holes in KZ400 block

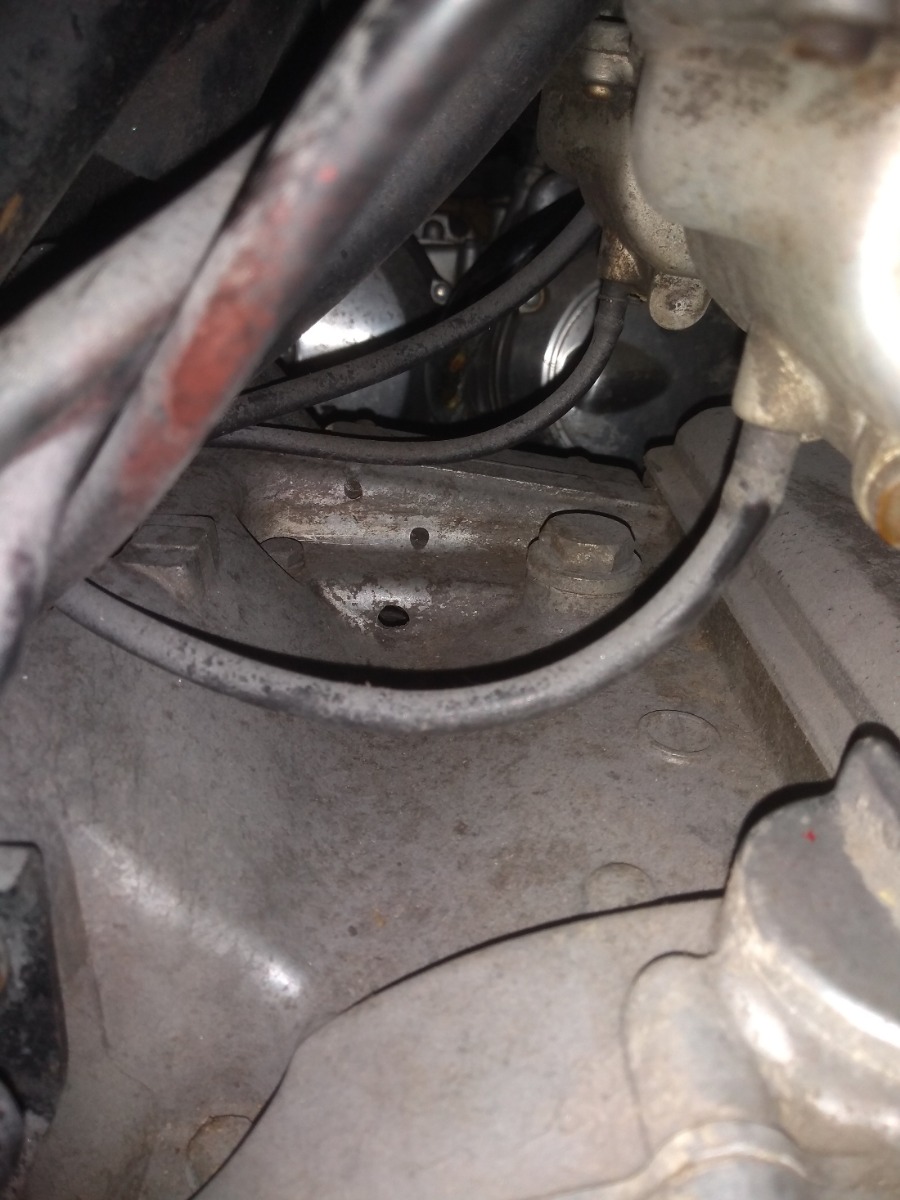

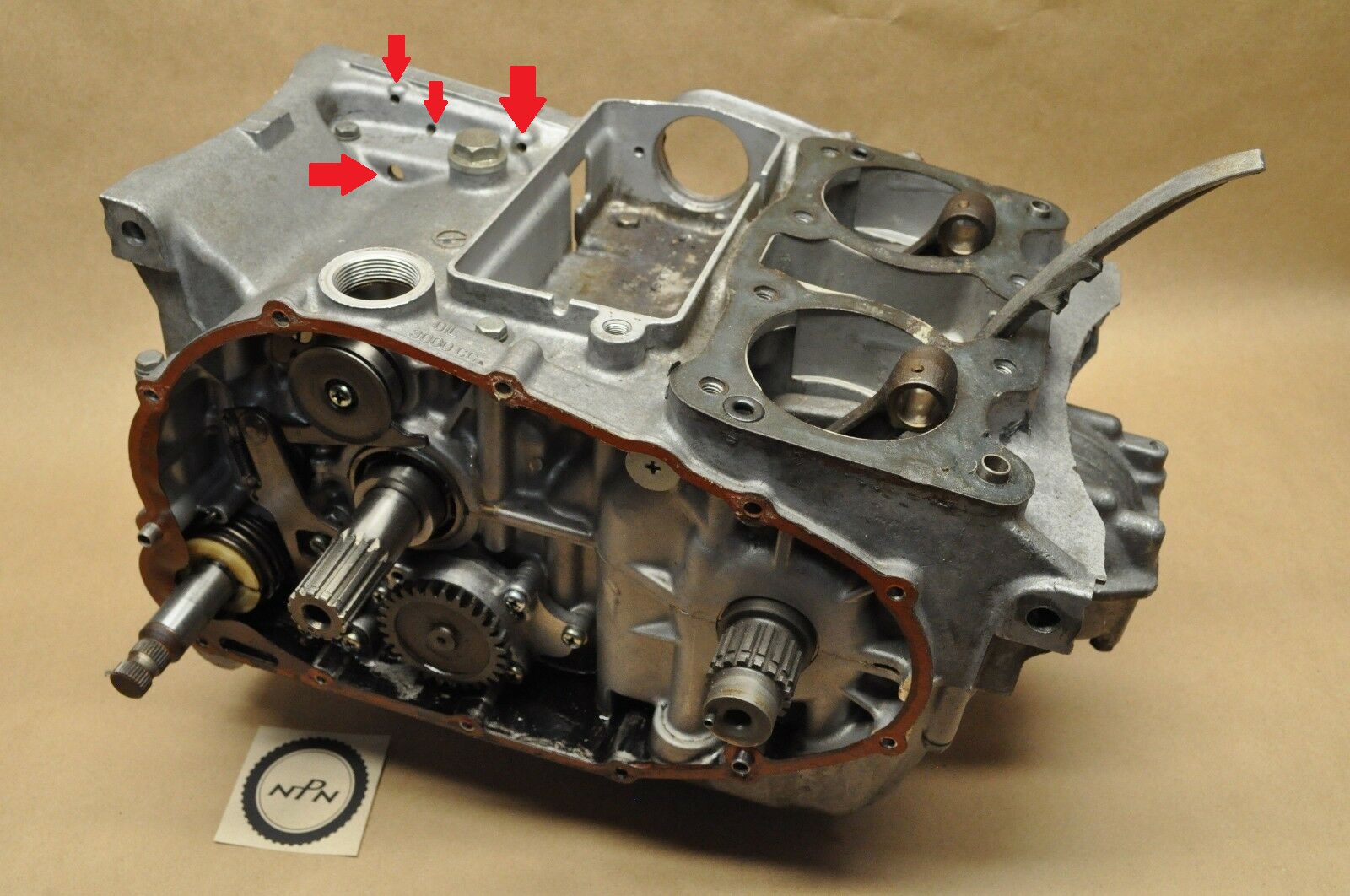

Your first 2 pics aren't showing up.
Do the top 3 holes go through?
If I had to guess it would be locating pins for a machining operation. Just a guess though. I've never messed with the smaller KZ's
Do the top 3 holes go through?
If I had to guess it would be locating pins for a machining operation. Just a guess though. I've never messed with the smaller KZ's
83 KZ1100A (shaft)
17 Versys X 300 abs
81 kz650h1
81 kz750e2
90 Honda CBR600F (brother's)
Last edit: 09 Sep 2020 12:28 by M_a_t_t.
Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
Less
More
- Posts: 4831
- Thank you received: 1847
09 Sep 2020 12:33 #834671
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic Factory holes in KZ400 block
My big fours have the larger hole in a similar location. I’d say it’s to drain off water or fluids the would collect on the top of the transmission case. Not sure about the 3 smaller
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: loudhvx
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
Less
More
- Posts: 10864
- Thank you received: 1615
09 Sep 2020 13:03 - 09 Sep 2020 18:25 #834673
by loudhvx
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Replied by loudhvx on topic Factory holes in KZ400 block
Like Mikaw said, the large one allows water or gas to drain into the chain sprocket area and out onto the ground from there.

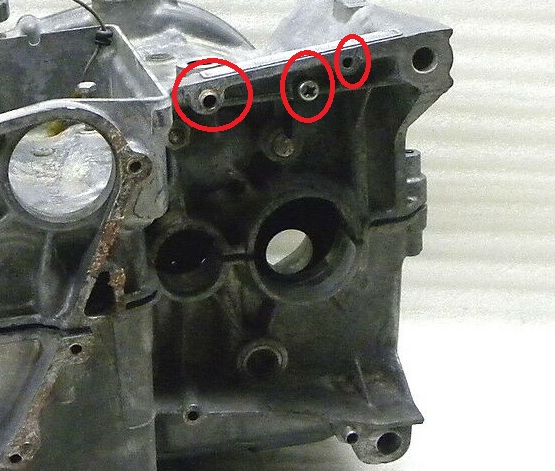

The smaller ones are bores for threaded holes on the other side. They hold bolts inserted from the other side. The one to the far right may also hold a hollow guide dowel on the other side as well (shown here in the left red circle).
The smaller ones are bores for threaded holes on the other side. They hold bolts inserted from the other side. The one to the far right may also hold a hollow guide dowel on the other side as well (shown here in the left red circle).
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Last edit: 09 Sep 2020 18:25 by loudhvx.
The following user(s) said Thank You: Mikaw
Please Log in or Create an account to join the conversation.
- Wez
- Topic Author
- Offline
- User
Less
More
- Posts: 31
- Thank you received: 3
10 Sep 2020 12:07 #834756
by Wez
Replied by Wez on topic Factory holes in KZ400 block
Thank you gentlemen!
