TOPIC: Running with a broken bolt!!

Running with a broken bolt!! 02 Aug 2020 00:28 #832077

  • Sheath
  • Sheath's Avatar Topic Author
  • Away
  • Member
  • Member
  • Posts: 106
  • Thank you received: 12

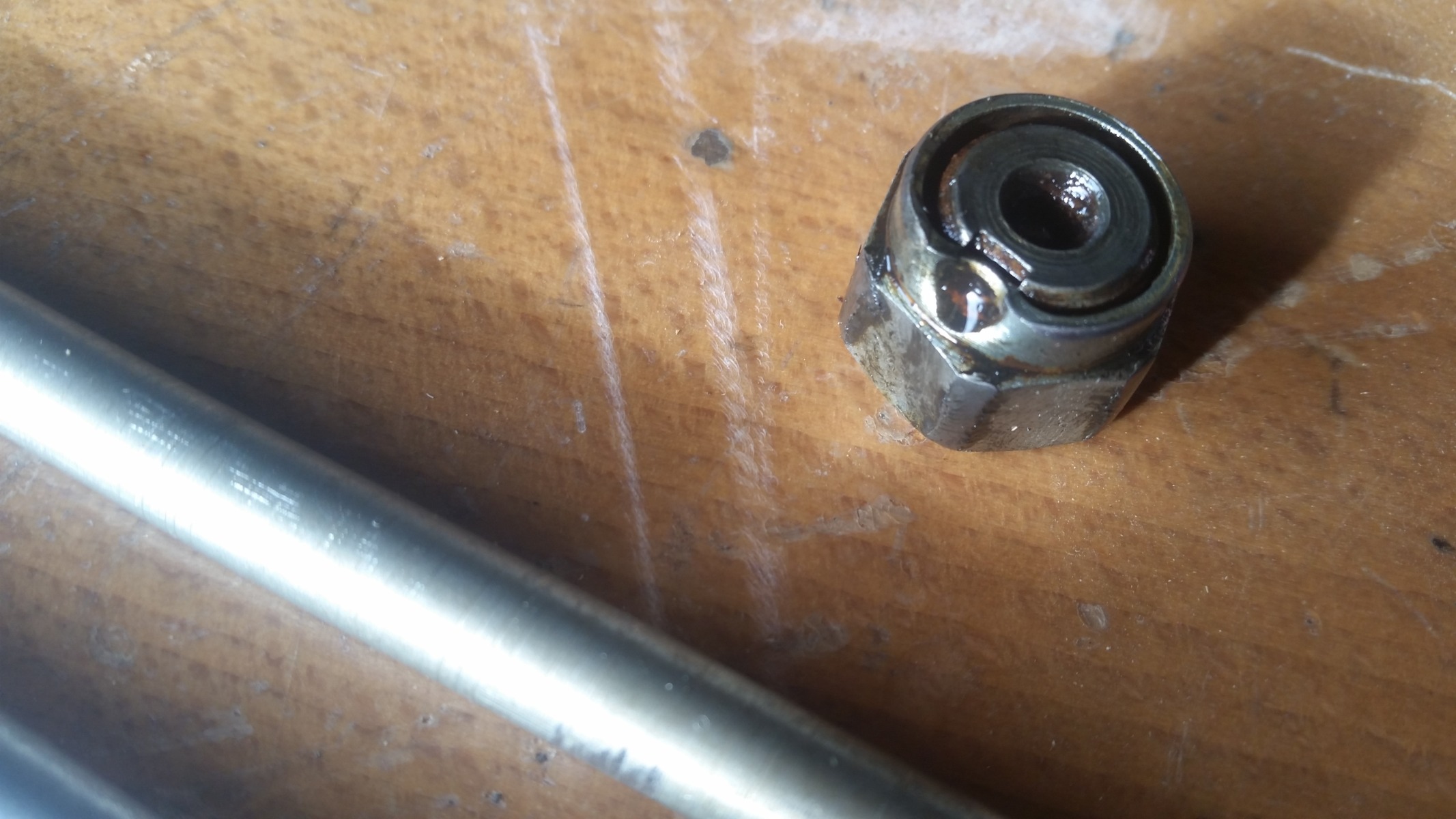

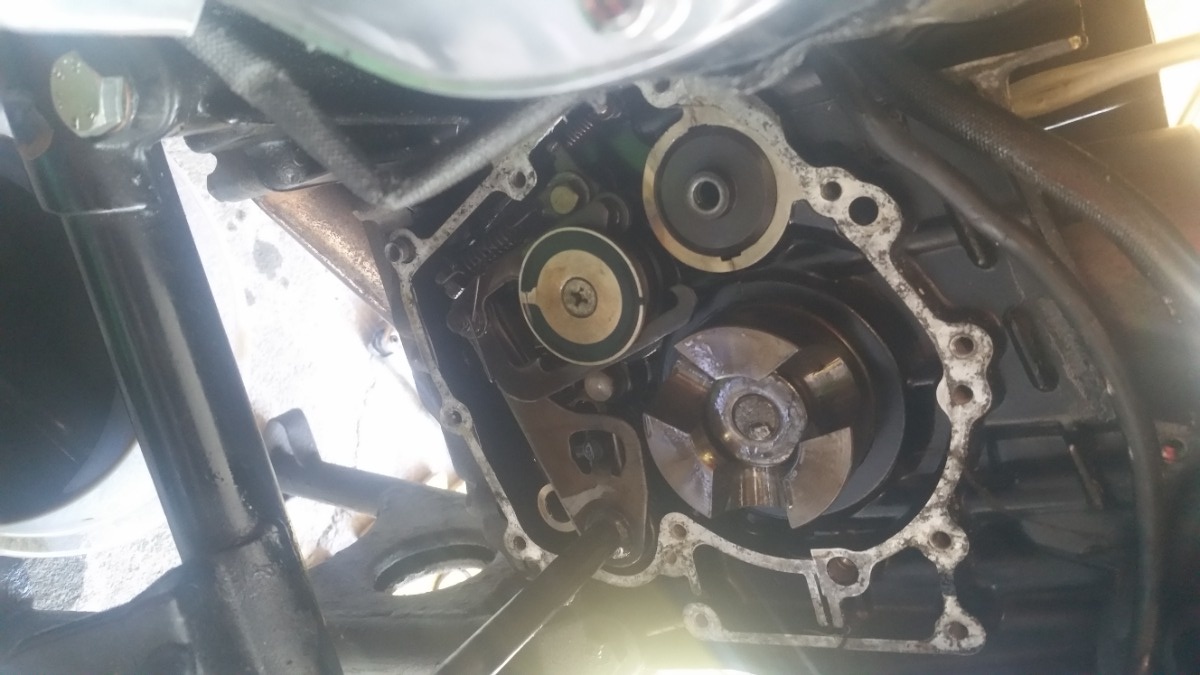

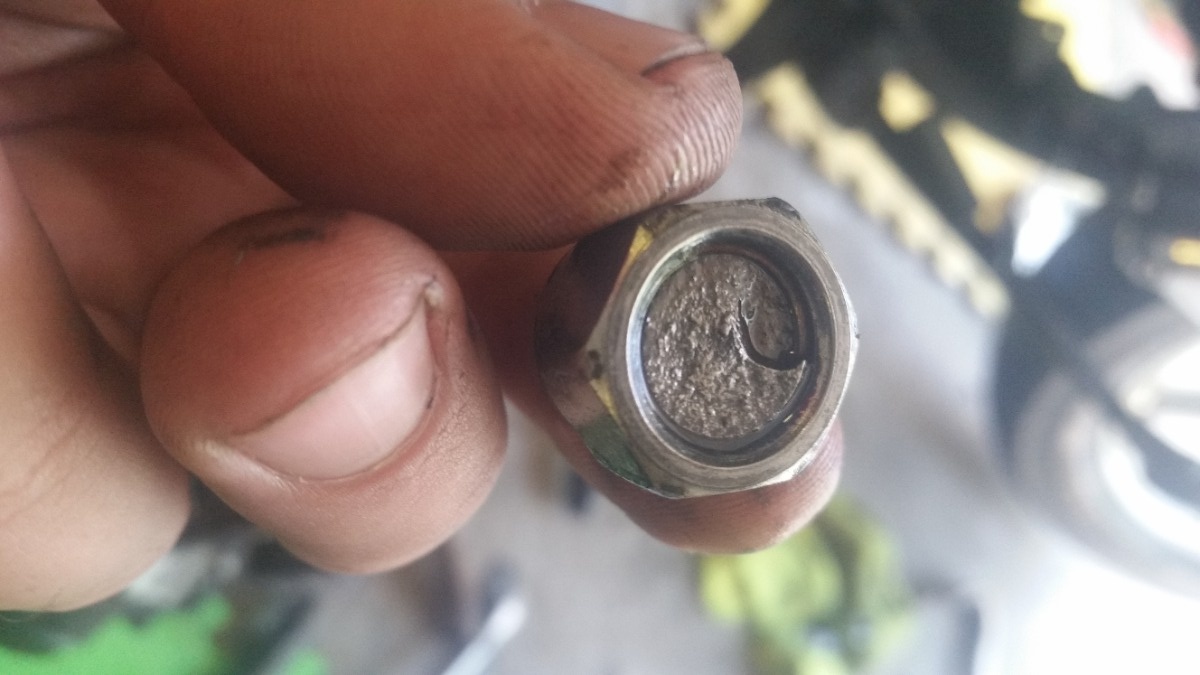

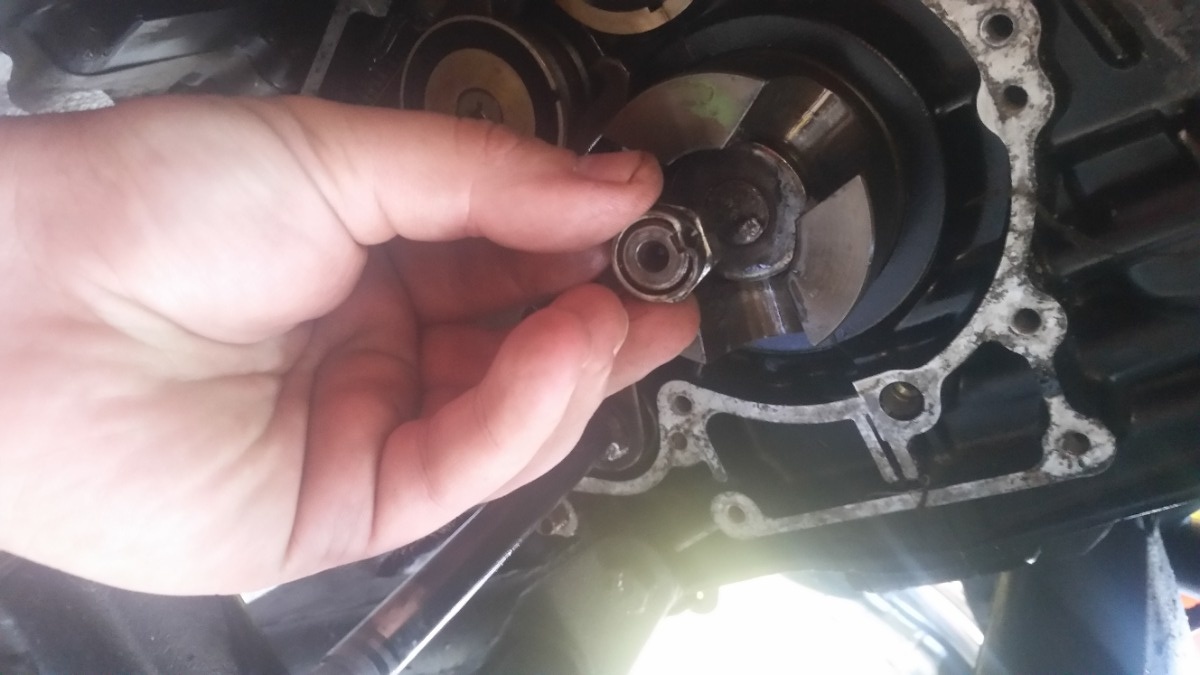

Hey everyone, id like a bit of advice especially from shaft drive experienced people! I'll try and be brief! Basically I had to get the final drive box off and find out how the clutch arm mechanism broke, me and my dad wrestled the thing out and two bits immediately fell into the oil bowl underneath, one bit was the snapped end of the clutch pushrod, so mystery solved there but the other was a big NUT with part of a bolt in it, within a few seconds I realized it would have been on the end of the output shaft, here's the thing, ever since I bought the bike 5 years ago there's always been a strange hollow sounding rattle from that drive area and my dad is of the opinion that the bike has been running with it broken for years...anyway after pulling off the gear with the three bumps and inspecting my dad thinks that there should be no difference without the nut! As in everything spins freely, nothing can move in or out and finally when you fit the outer cover back on another gear with three bumps interlocks and we think the hollow splined shaft in the middle of it all SHOULD ...press on the washer that's left, so the only change is no nut inside the hollow splined part.....
How on earth that thing broke in the first place is a mystery to me though! Anyway everything is all back together now and it's riding great :) but what are your thoughts on leaving the nut broken. ....?? Many thanks :)
Attachments:

Please Log in or Create an account to join the conversation.

Running with a broken bolt!! 02 Aug 2020 02:47 #832079

  • Warren3200gt
  • Warren3200gt's Avatar
  • Away
  • Member
  • Member
  • Posts: 654
  • Thank you received: 197
Firstly I should start with I know NOTHING about shaft drive however, if its showing on the parts diagram Im sure Kawasaki put it there for a reason or they wouldn't have gone to the added cost of designing it in and adding it to the bike.

Please Log in or Create an account to join the conversation.

Running with a broken bolt!! 02 Aug 2020 02:53 #832080

  • zed1015
  • zed1015's Avatar
  • Offline
  • Member
  • Member
  • Posts: 1864
  • Thank you received: 715
That nut has probably been over tightened to cause it to shear.
It really isn't a good idea to continue running the bike like that as the drive dog is only on sliding fit splines and the once tightened the nut also controls float of the output shaft which in turn maintains the correct position of the gears to prevent misalignment and gear change issues.
You should really split the cases and fit a new output shaft.
If you do decide to take a chance and use as is you should at least run a ring of weld round the end of the shaft and drive dog to tie them together in an attempt to limit further damage.
The following user(s) said Thank You: Nessism

Please Log in or Create an account to join the conversation.

Running with a broken bolt!! 02 Aug 2020 03:04 #832081

  • Mc Tavish
  • Mc Tavish's Avatar
  • Offline
  • Member
  • Member
  • Posts: 21
  • Thank you received: 10
Hey Sheath, you are headed for certain catastrophe with that bike. You need to take it off the road now.
Kawasaki didn't put that nut on the end of that output shaft because they had a few left over from previous builds.
Imagine yourself riding down the highway at 70 Mph and then a total lock up or a sudden no drive situation, you now find yourself possibly losing your own life and being responsible for any other road users who die trying to avoid hitting you.
Sorry to sound harsh here mate but what you are doing is not cool, Get it off the road and have it repaired correctly.
1978 z650C
The following user(s) said Thank You: 650ed, Nessism, Sheath

Please Log in or Create an account to join the conversation.

Running with a broken bolt!! 02 Aug 2020 04:58 #832082

  • 650ed
  • 650ed's Avatar
  • Offline
  • Member
  • Member
  • Posts: 15120
  • Thank you received: 2722
The Kawasaki engineers put that nut on there for a reason and it was not simply decoration. Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Please Log in or Create an account to join the conversation.

Running with a broken bolt!! 02 Aug 2020 05:06 #832083

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1152
  • Thank you received: 356
I hate to be piling on but....get it fixed correctly before you hurt yourself, or worse...hurt someone else.
I have a couple of Z1B's restored, an '80 KZ1000LTD restored, a 1981 KZ550 restored and a 2008 KLR 650 for off road fun. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

Running with a broken bolt!! 02 Aug 2020 05:24 #832084

  • Sheath
  • Sheath's Avatar Topic Author
  • Away
  • Member
  • Member
  • Posts: 106
  • Thank you received: 12

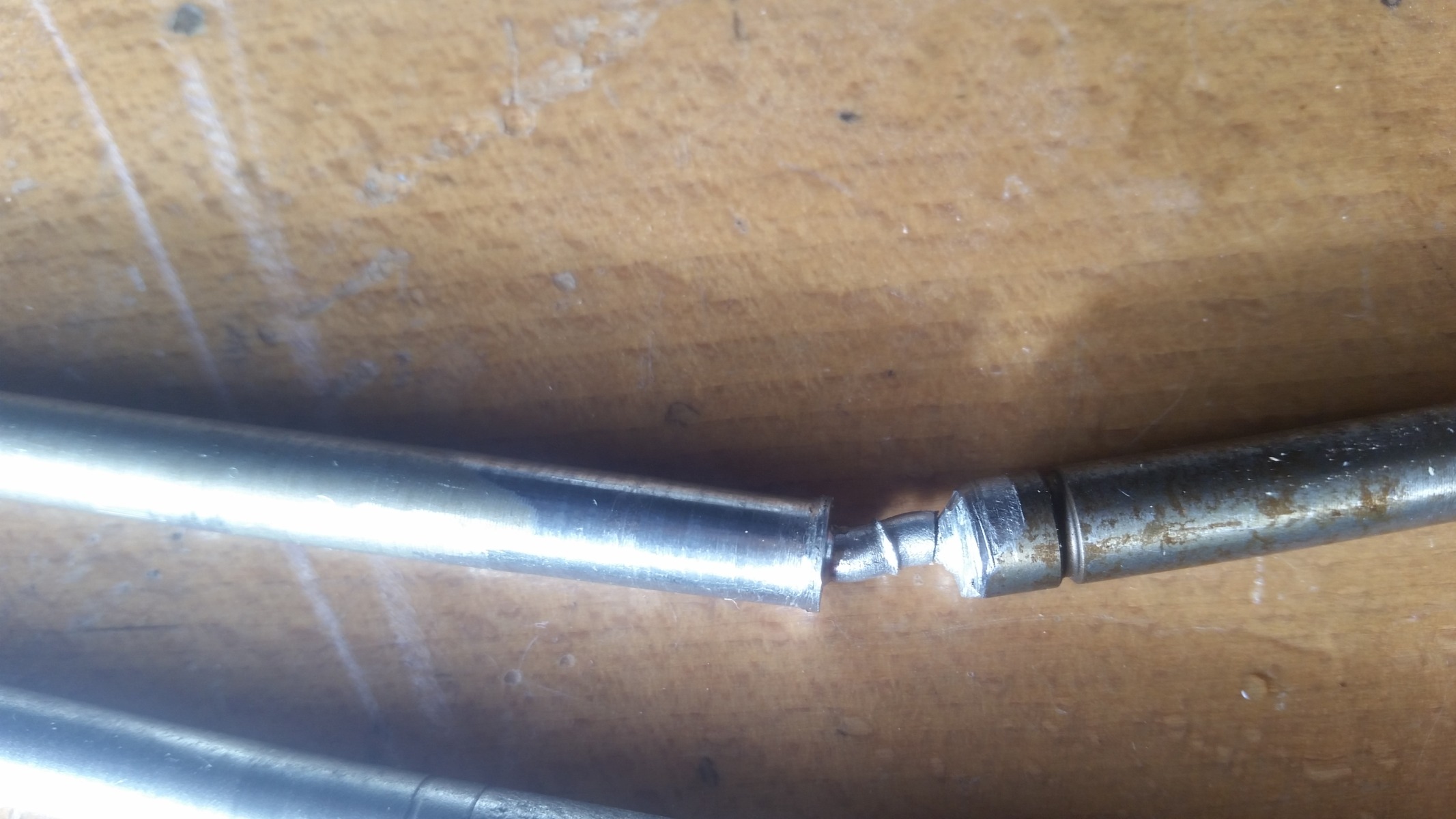

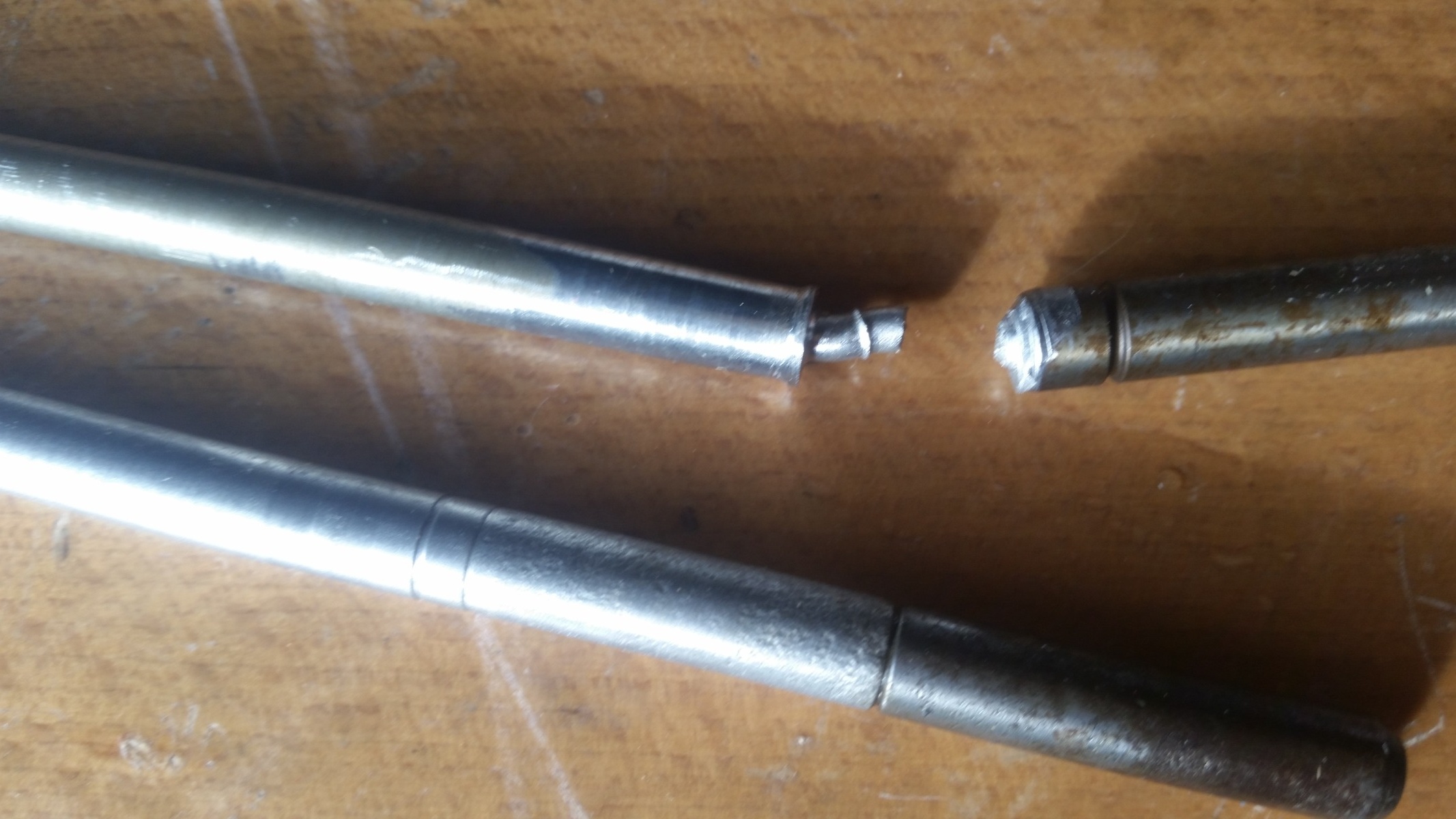

Thanks everyone, yes the reason I put the post on here is because in the back of my mind I knew a nut torqued to 87 pound with a tang to stop it moving had to have a job to do, now I've got two problems, one is ,there are few bike mechanics anywhere near me with the experience to do this job plus they would charge a TON of money and secondly, it took me hours with dad's help to simply get that drive cover off then back on! So I think splitting cases might be beyond our ability. ..... also check out my broken clutch pushrod compared with a normal one, what the hell happened to that Rod too?!!
Attachments:

Please Log in or Create an account to join the conversation.

Running with a broken bolt!! 02 Aug 2020 05:44 #832086

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • Member
  • Member
  • Posts: 7140
  • Thank you received: 1318
Just curious. what particular shaft drive motorcycle is it?

Please Log in or Create an account to join the conversation.

Running with a broken bolt!! 02 Aug 2020 05:57 #832087

  • Sheath
  • Sheath's Avatar Topic Author
  • Away
  • Member
  • Member
  • Posts: 106
  • Thank you received: 12
A 1980 z1000st :)

Please Log in or Create an account to join the conversation.

Running with a broken bolt!! 02 Aug 2020 06:08 #832088

  • zed1015
  • zed1015's Avatar
  • Offline
  • Member
  • Member
  • Posts: 1864
  • Thank you received: 715
There's plenty of people converting ST's to chain drive so the parts should be fairly easy to source.
You don't have to completely strip the engine, just the lower case and leave the top end untouched.
The actual gears are the same so you only need the bare output shaft and nut and then swap all the gears over.
With the correct tools it's a days job.
The following user(s) said Thank You: Sheath

Please Log in or Create an account to join the conversation.

Running with a broken bolt!! 02 Aug 2020 06:43 #832092

  • SWest
  • SWest's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 19747
  • Thank you received: 1968
With the shaft sheared off the output shaft could walk causing damage to the shift forks and gears. I wouldn't ride it until it's fixed.
Steve


Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
The following user(s) said Thank You: Sheath

Please Log in or Create an account to join the conversation.

Running with a broken bolt!! 02 Aug 2020 06:49 #832093

  • Sheath
  • Sheath's Avatar Topic Author
  • Away
  • Member
  • Member
  • Posts: 106
  • Thank you received: 12
Thanks very much for all the info, especially the videos! :) it looks like there's work to be done! Poor old bike, I spend more time working on it than riding it!!;)
