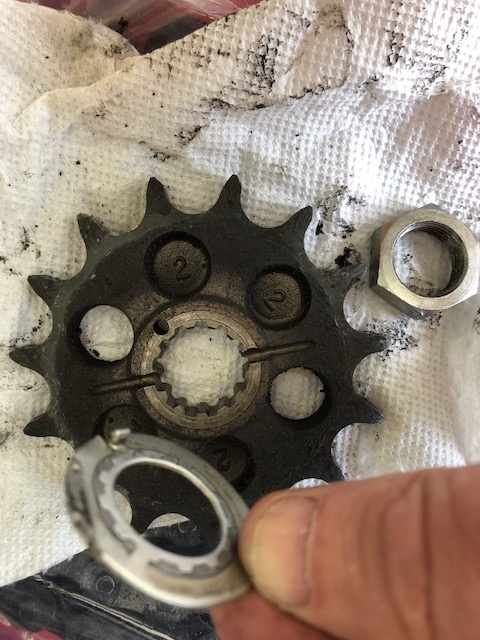

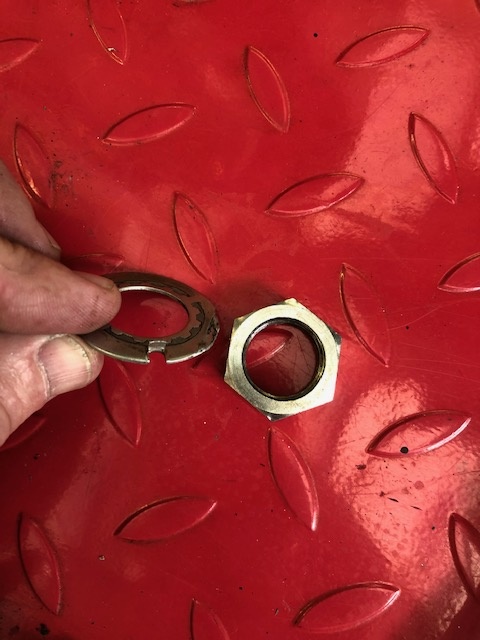

Doing the 630 to 530 chain and sprocket conversion. The original front sprocket has a small hole that captures a tang off of the folding lock washer.

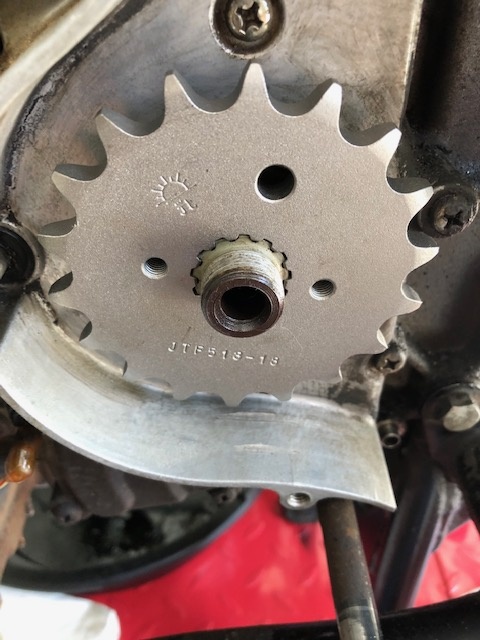

My new JT front sprocket has no hole to capture the tang so if the nut came loose the lock washer would just turn with the bolt . Anyone run into this and what was your solution ? I'm guessing the sprocket is hardened so not sure about drilling a hole. Thought about a Nylock 20 mm nut but not sure I have enough thread.
Thanks
My new JT front sprocket has no hole to capture the tang so if the nut came loose the lock washer would just turn with the bolt . Anyone run into this and what was your solution ? I'm guessing the sprocket is hardened so not sure about drilling a hole. Thought about a Nylock 20 mm nut but not sure I have enough thread.
Thanks
Last edit: 19 May 2020 06:28 by KZQ.
Please Log in or Create an account to join the conversation.
- Nessism
- Offline
- Sustaining Member
Less
More
- Posts: 7501
- Thank you received: 2818
16 May 2020 10:55 #825856
by Nessism
Replied by Nessism on topic 76 KZ 900 -530 Chain conversion
What about fabricating a new washer out of sheet stock that engages with the small threaded holes to hold it in place?
The following user(s) said Thank You: Scirocco
Please Log in or Create an account to join the conversation.
- TexasKZ
- Offline
- Platinum Member
Less
More
- Posts: 7560
- Thank you received: 2234
16 May 2020 11:06 - 16 May 2020 11:11 #825859
by TexasKZ
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
Replied by TexasKZ on topic 76 KZ 900 -530 Chain conversion
Answered my own question.
Carry on.
Carry on.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
Last edit: 16 May 2020 11:11 by TexasKZ.
Please Log in or Create an account to join the conversation.
- mrmach5
- Topic Author
- Offline
- User
Less
More
- Posts: 68
- Thank you received: 7
18 May 2020 06:23 #825994
by mrmach5
Replied by mrmach5 on topic 76 KZ 900 -530 Chain conversion
Ed,
Great idea!! Should be an easy fix,,,,,, thanks for the suggestion.
Great idea!! Should be an easy fix,,,,,, thanks for the suggestion.
Please Log in or Create an account to join the conversation.
- z1kzonly
- Offline
- User
- Sustaining Member
Less
More
- Posts: 2890
- Thank you received: 540
18 May 2020 07:25 #825998
by z1kzonly
Livin in "CheektaVegas, NY
Went thru 25 of these in 40 yrs.
I SOLD OUT! THE KAW BARN IS EMPTY.
More room for The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!
Replied by z1kzonly on topic 76 KZ 900 -530 Chain conversion
You've heard of Loc-tite. Blue, Red. OK,
This is the stuff! I started using it over 30 years ago.
"VIBRA-TITE" Does not harden, Been in major Industrial Factories forever.
But! Real Stuff Costs Real Money! Not Cheap. The small bottle with a brush top is about $25 bucks.
This is the GooG for it.
Vibra-Tite VC-3 Threadmate
Vibra-Tite VC-3 Threadmate is one of the most versatile threadlockers available on the market. An alternative to traditional liquid lockers which cure to form a hard bond, VC-3 is a blend of resins designed to remain flexible and absorb vibration. This unique difference makes VC-3 coated fasteners truly adjustable, removable, and reusable.
This is the stuff! I started using it over 30 years ago.
"VIBRA-TITE" Does not harden, Been in major Industrial Factories forever.
But! Real Stuff Costs Real Money! Not Cheap. The small bottle with a brush top is about $25 bucks.
This is the GooG for it.
Vibra-Tite VC-3 Threadmate
Vibra-Tite VC-3 Threadmate is one of the most versatile threadlockers available on the market. An alternative to traditional liquid lockers which cure to form a hard bond, VC-3 is a blend of resins designed to remain flexible and absorb vibration. This unique difference makes VC-3 coated fasteners truly adjustable, removable, and reusable.
Livin in "CheektaVegas, NY
Went thru 25 of these in 40 yrs.
I SOLD OUT! THE KAW BARN IS EMPTY.
More room for The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!
Please Log in or Create an account to join the conversation.
- Rick H.
- Offline
- User
Less
More
- Posts: 854
- Thank you received: 255
18 May 2020 12:51 #826014
by Rick H.
Rick H.
1977 Kawasaki KZ-1000A1
Replied by Rick H. on topic 76 KZ 900 -530 Chain conversion
A decent machinist should be able to put a lock tab hole in your new sprocket in short order with the proper endmill.
Rick H.
Rick H.
Rick H.
1977 Kawasaki KZ-1000A1
Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
Less
More
- Posts: 5007
- Thank you received: 1918
18 May 2020 13:24 #826016
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic 76 KZ 900 -530 Chain conversion
I think Rick H is on the right track. But even simpler couldn’t you clamp the sprockets together, properly aligned of course and use the old sprocket as a template to drill your our hole?
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
Less
More
- Posts: 4193
- Thank you received: 2063
18 May 2020 15:32 #826027
by Scirocco
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Replied by Scirocco on topic 76 KZ 900 -530 Chain conversion
Normal drilling is not an option, front sprockets are made out of tempered steel. You will need a carbide drill bit!!!
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
Less
More
- Posts: 5007
- Thank you received: 1918
18 May 2020 15:37 #826030
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic 76 KZ 900 -530 Chain conversion
Special bits might be required, but possible. I once had to buy a special bit to drill a missed hole from the factory on a bulletproof door for a gun range. It was $90 but it completeld the project.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Please Log in or Create an account to join the conversation.
- Nessism
- Offline
- Sustaining Member
Less
More
- Posts: 7501
- Thank you received: 2818
18 May 2020 16:48 #826038
by Nessism
Replied by Nessism on topic 76 KZ 900 -530 Chain conversion
Grinding the hole/depression for the tab with a small dremel stone would work.
Please Log in or Create an account to join the conversation.
- Rick H.
- Offline
- User
Less
More
- Posts: 854
- Thank you received: 255
18 May 2020 17:13 - 18 May 2020 17:17 #826041
by Rick H.
Rick H.
1977 Kawasaki KZ-1000A1
Replied by Rick H. on topic 76 KZ 900 -530 Chain conversion
I would probably use a coated plunge cutting endmill, or carbide, of as close a size as I could get to the real hole. Don't overheat the hole and make sure the hole is in the correct relation to the spline. I don't think the new hole size has to match the OEM sprocket exactly. You just need a hole in the right spot to catch the tab. You could check the sprocket for hardness. I don't think I would use a drill bit for this unless I had a very good drill bit specific for the task. Not a hand drill job in my book. There are a couple of rudimentary ways of checking the surface of the sprocket for hardness. If it's hardened in a typical fashion the hardness will be relatively thin. You wouldn't even have to go all the way through the sprocket, just enough to seat the locking tab. If sprockets were super hard they would never wear out.
Rick H.
Rick H.
Rick H.
1977 Kawasaki KZ-1000A1
Last edit: 18 May 2020 17:17 by Rick H..
Please Log in or Create an account to join the conversation.
- Kidkawie
- Offline
- User
- I bleed premix
Less
More
- Posts: 1919
- Thank you received: 245
19 May 2020 04:54 #826070
by Kidkawie
1975 Z1 900
1994 KX250 Supermoto
2004 KX125
Replied by Kidkawie on topic 76 KZ 900 -530 Chain conversion
M20 axle nut.
1975 Z1 900
1994 KX250 Supermoto
2004 KX125
Please Log in or Create an account to join the conversation.
