Awful starter clutch noise still...
- Gdailey2112
- Topic Author
- Offline
- User
- 82 KZ1100D1
Less
More
12 May 2020 15:33 #825559
by Gdailey2112
1982 KZ1100D1
Awful starter clutch noise still... was created by Gdailey2112
82 gPZ 1100
Installed new starter clutch and the smaller needle roller bearing. Still have the same awful noise problem though. It's annoying, and rather embarrassing, too LOL
What am I overlooking on this? Any listings of common mistakes people make doing this?? TY Gary
Installed new starter clutch and the smaller needle roller bearing. Still have the same awful noise problem though. It's annoying, and rather embarrassing, too LOL
What am I overlooking on this? Any listings of common mistakes people make doing this?? TY Gary
1982 KZ1100D1
Please Log in or Create an account to join the conversation.
- CCrosswait
- Offline
- Sustaining Member
Less
More
- Posts: 89
- Thank you received: 22
13 May 2020 04:45 #825614
by CCrosswait
2019 Indian FTR1200S
2018 Triumph Rocket 3
1981 Kawasaki KZ1100A1
1977 Yamaha RD400
1980 Honda Express II
Replied by CCrosswait on topic Awful starter clutch noise still...
Some questions to help better understand.
What was it you replaced for the clutch? The 3 springs, cups, and/or roller bearings of the starter clutch?
Did you double check the large gear could only free spin one direction? The other direction should grip the crankshaft and not free spin.
How'd the teeth on the large gear, idler gear, and starter gear look? Any broken or worn teeth?
What was it you replaced for the clutch? The 3 springs, cups, and/or roller bearings of the starter clutch?
Did you double check the large gear could only free spin one direction? The other direction should grip the crankshaft and not free spin.
How'd the teeth on the large gear, idler gear, and starter gear look? Any broken or worn teeth?
2019 Indian FTR1200S
2018 Triumph Rocket 3
1981 Kawasaki KZ1100A1
1977 Yamaha RD400
1980 Honda Express II
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
Less
More
- Posts: 15344
- Thank you received: 2829
13 May 2020 06:24 #825620
by 650ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Replied by 650ed on topic Awful starter clutch noise still...

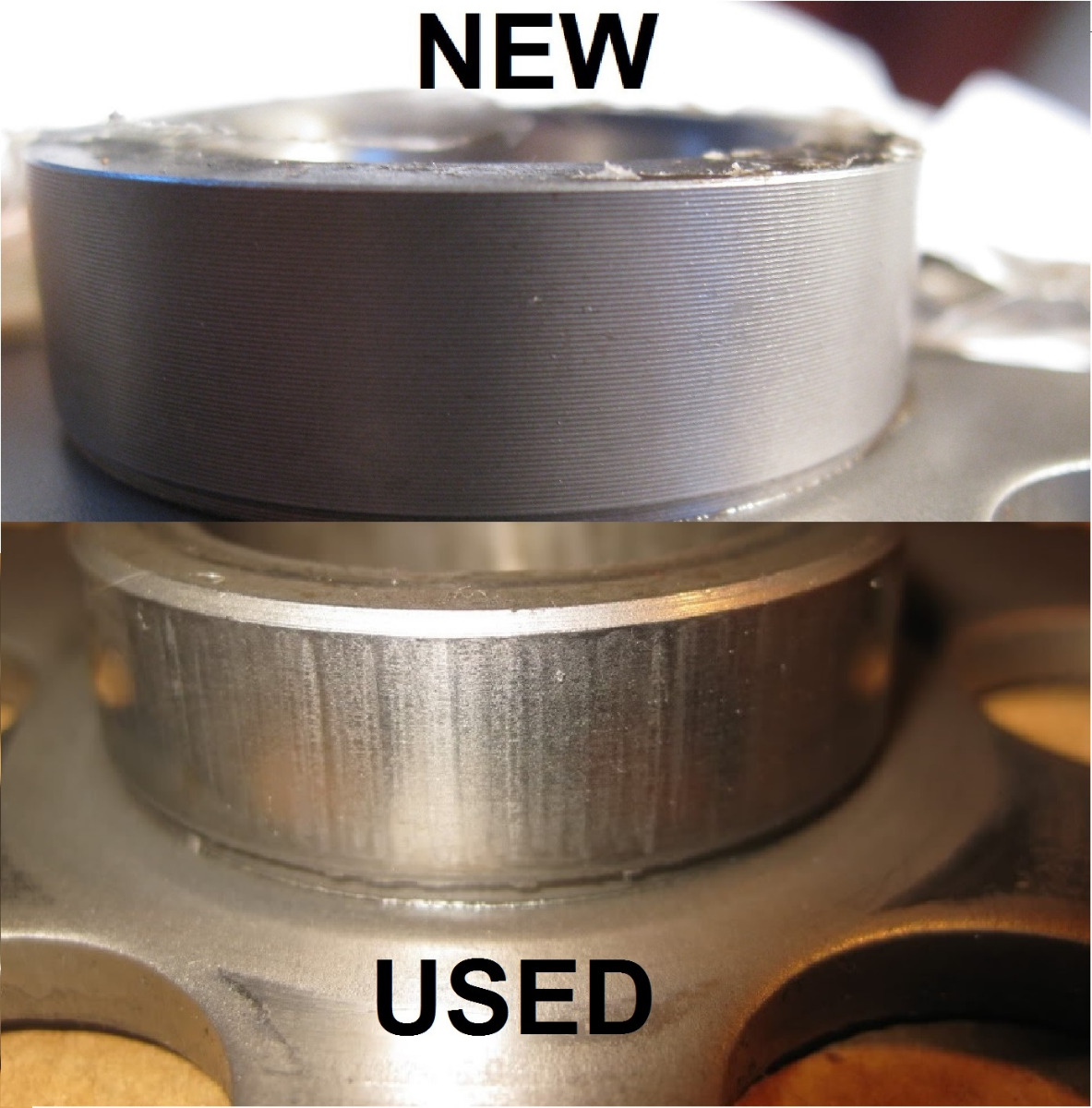

If you did not replace the large gear that may very well be the source of the noise. The image below shows what I mean. Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- Gdailey2112
- Topic Author
- Offline
- User
- 82 KZ1100D1
Less
More
- Posts: 412
- Thank you received: 35
13 May 2020 12:12 #825638
by Gdailey2112
1982 KZ1100D1
Replied by Gdailey2112 on topic Awful starter clutch noise still...
Yes, I'd replaced the starter clutch (round sprag that holds the rollers and spring caps) Also, replaced the needle roller bearing. Did not replace the actual larger gear with teeth.
Sounds like it's coming from the reduction gear area. It'd be nice if I could start with that stator cover off, ..is that possible? Any risk?
Sounds like it's coming from the reduction gear area. It'd be nice if I could start with that stator cover off, ..is that possible? Any risk?
1982 KZ1100D1
Please Log in or Create an account to join the conversation.
- CCrosswait
- Offline
- Sustaining Member
Less
More
- Posts: 89
- Thank you received: 22
13 May 2020 14:29 #825649
by CCrosswait
Without the cover there's nothing keeping the idler gear pin in place. But neither that gear, nor the starter should be spinning while the engine is running.
2019 Indian FTR1200S
2018 Triumph Rocket 3
1981 Kawasaki KZ1100A1
1977 Yamaha RD400
1980 Honda Express II
Replied by CCrosswait on topic Awful starter clutch noise still...
Gdailey2112 wrote: Sounds like it's coming from the reduction gear area. It'd be nice if I could start with that stator cover off, ..is that possible? Any risk?
Without the cover there's nothing keeping the idler gear pin in place. But neither that gear, nor the starter should be spinning while the engine is running.
2019 Indian FTR1200S
2018 Triumph Rocket 3
1981 Kawasaki KZ1100A1
1977 Yamaha RD400
1980 Honda Express II
Please Log in or Create an account to join the conversation.
- Gdailey2112
- Topic Author
- Offline
- User
- 82 KZ1100D1
Less
More
- Posts: 412
- Thank you received: 35
14 May 2020 07:48 #825714
by Gdailey2112
1982 KZ1100D1
Replied by Gdailey2112 on topic Awful starter clutch noise still...
Thank you! Anyone have any shims for the reduction gear they want to part with?
