2 piece head gasket
25 Apr 2020 19:13
Have a heavily modified 80KZ1000. Z1 bottom, 77/78 jugs and head, 2X Andrews Cams, 1075 kit installed some time during its life.
Existing 2 piece head gasket burned thru between 1&2. The gaskets were smaller opening at 71mm measured over the cylinder.
Want to stay with 2 piece gasket and o-ring and looking into a possible swap with a 81-83 1100 2 piece if the openings are 42mm over the cylinder. Without ordering each, 77 to 80 1000 and 81 to 83 100, and measuring I do not know if these will exchange.
Photos of each suggest the gaskets to be very similar 1000 vs 1100 with the bolt pattern, construction. Opening appears larger on the 1100.
11004-1039, 1105, and 1263 are Kawi part numbers for the 1100 gaskets, 11004-076, 1258 for the 1000.
Has anyone successfully done this? Can the 1100 gaskets be swapped into a 1075 build and fit properly?
Existing 2 piece head gasket burned thru between 1&2. The gaskets were smaller opening at 71mm measured over the cylinder.
Want to stay with 2 piece gasket and o-ring and looking into a possible swap with a 81-83 1100 2 piece if the openings are 42mm over the cylinder. Without ordering each, 77 to 80 1000 and 81 to 83 100, and measuring I do not know if these will exchange.
Photos of each suggest the gaskets to be very similar 1000 vs 1100 with the bolt pattern, construction. Opening appears larger on the 1100.
11004-1039, 1105, and 1263 are Kawi part numbers for the 1100 gaskets, 11004-076, 1258 for the 1000.
Has anyone successfully done this? Can the 1100 gaskets be swapped into a 1075 build and fit properly?
Kawasaki. Let the Good Times Roll!
1980 KZ 1000 B4
1980 KZ 1000 B4 MOD
1981 650 CSR
1983 VF 750 Magna
1970 CT70H
1974 Z50
2014 Honda CB1100
1980 KZ 1000 B4
1980 KZ 1000 B4 MOD
1981 650 CSR
1983 VF 750 Magna
1970 CT70H
1974 Z50
2014 Honda CB1100
Please Log in or Create an account to join the conversation.
- davido
-
- Offline
- User
-
Registered
- Posts: 1582
- Thanks: 291
Re: 2 piece head gasket
25 Apr 2020 23:53
www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550 (1978)
CB500/4 (1972)*
KZ1000CSR (1981)
XT 600E (1999)
TDM900 (2003)
CB550 (1978)
CB500/4 (1972)*
KZ1000CSR (1981)
XT 600E (1999)
TDM900 (2003)
The following user(s) said Thank You: loudhvx, bluezbike
Please Log in or Create an account to join the conversation.
- bluezbike
-
- Offline
- Sustaining Member
-
Registered
- Posts: 593
- Thanks: 104
Re: 2 piece head gasket
26 Apr 2020 10:13
The most amazing Allen Millyard and how he makes his crazy wild motors "with minimalistic tools in my small garage".....amazing stuff, thank you Davido for posting this
79 KZ 1000 LTD
77 KZ 1000 B1 LTD (awaiting electrical resurrection)
77 KZ 1000 B1 LTD (awaiting electrical resurrection)
The following user(s) said Thank You: davido
Please Log in or Create an account to join the conversation.
- DFIGPZ
-
- Offline
- User
-
Registered
- Posts: 618
- Thanks: 121
Re: 2 piece head gasket
27 Apr 2020 06:22
when I do these builds I use 1 pc MLS head gaskets & fill grove with sealer . also you need to make sure surfaces are flat & smooth for mls head gaskets along with HD studs.
1984 750 Turbo
Please Log in or Create an account to join the conversation.
- SWest
-
- Offline
- Sustaining Member
-
Registered
- 10 22 2014
- Posts: 23373
- Thanks: 2900
Re: 2 piece head gasket
27 Apr 2020 06:55

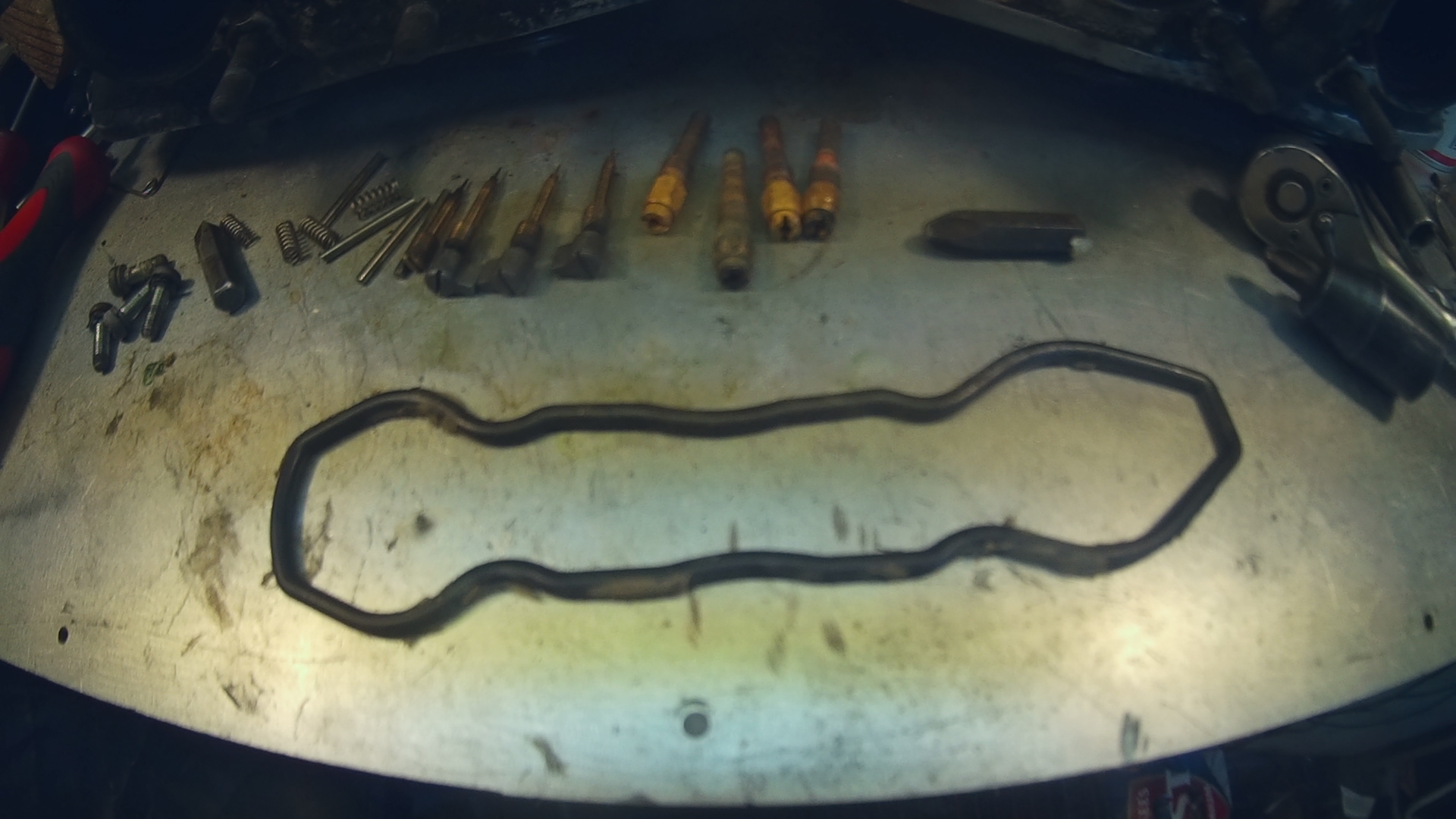

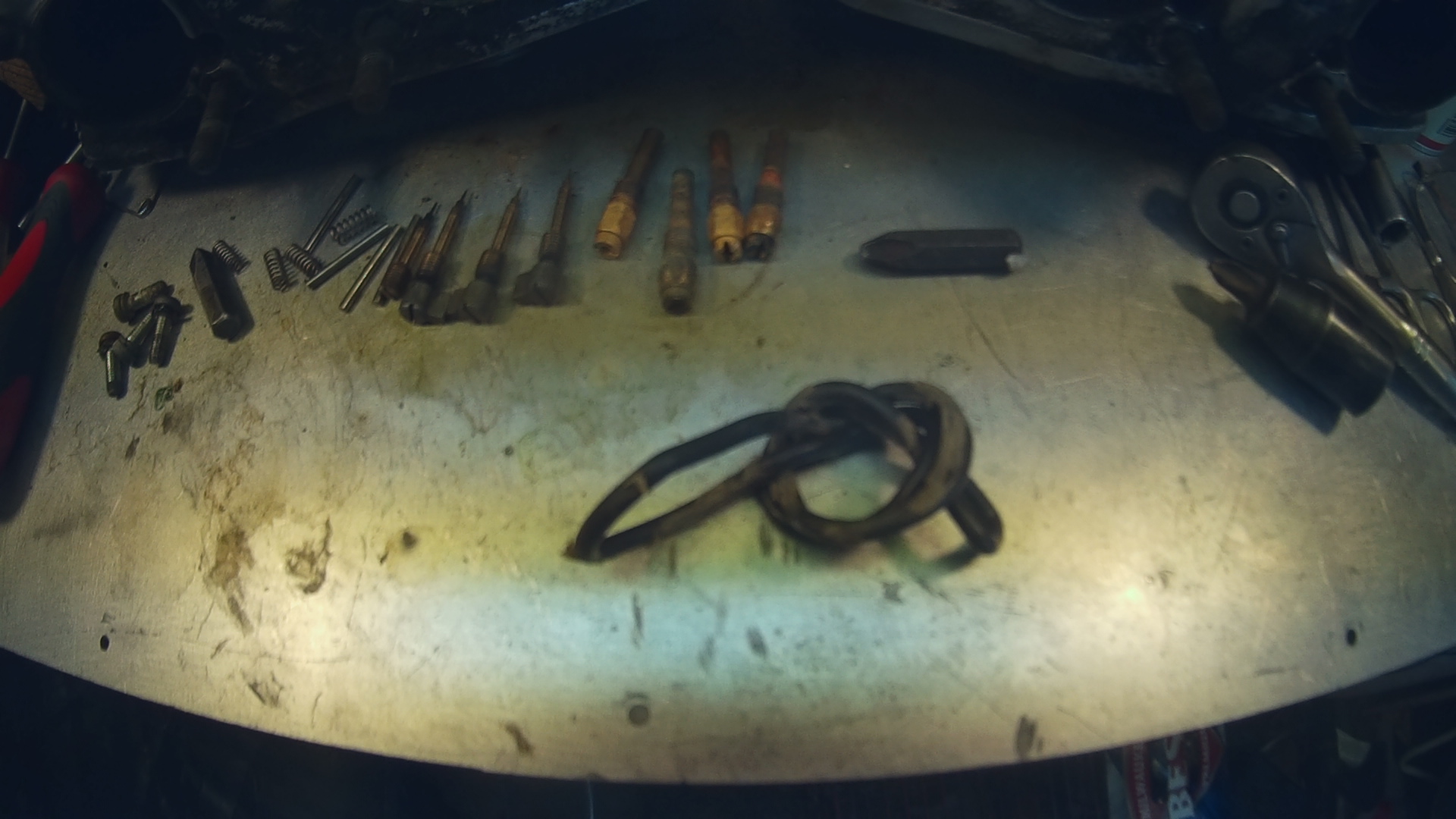

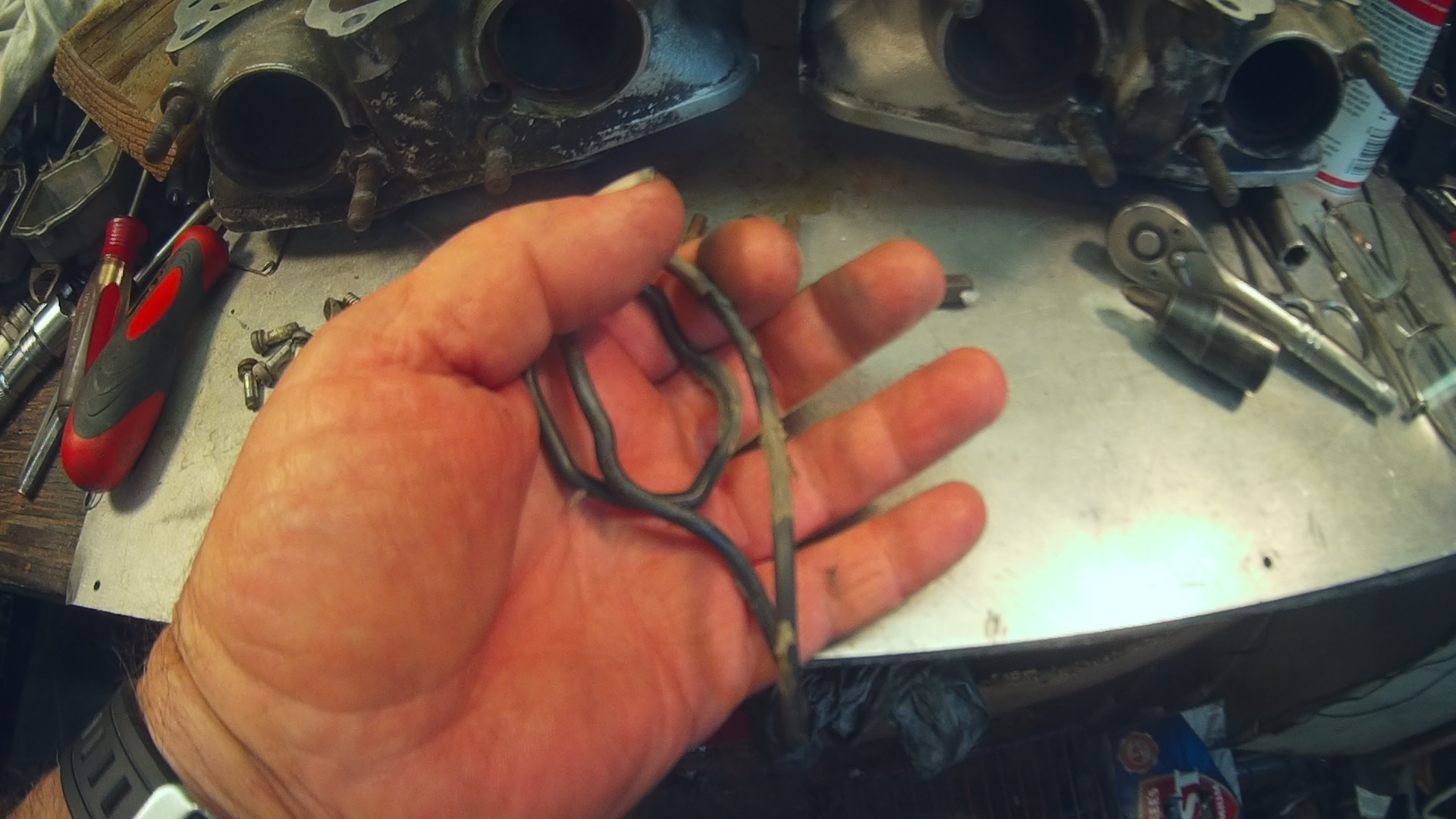

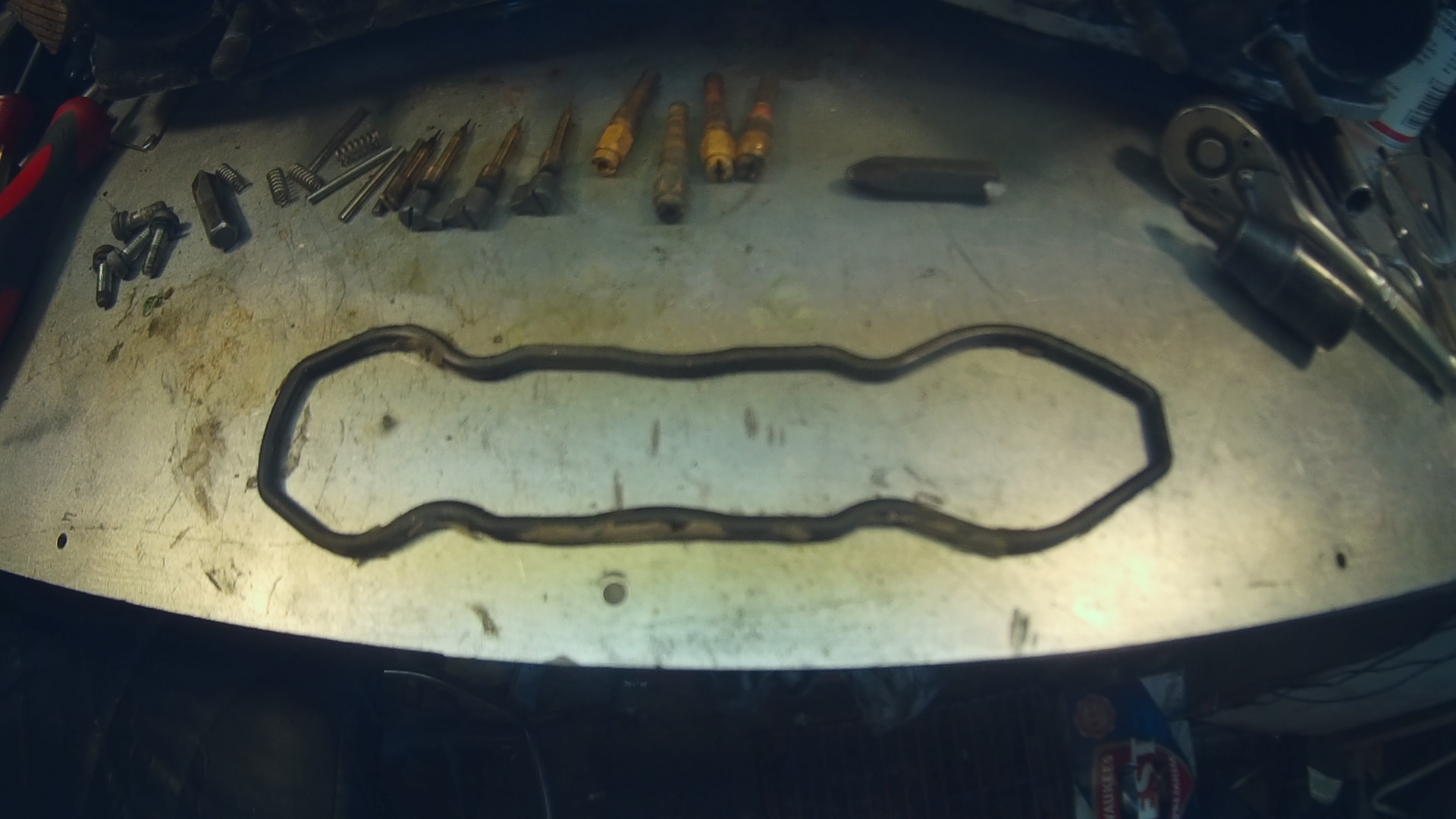

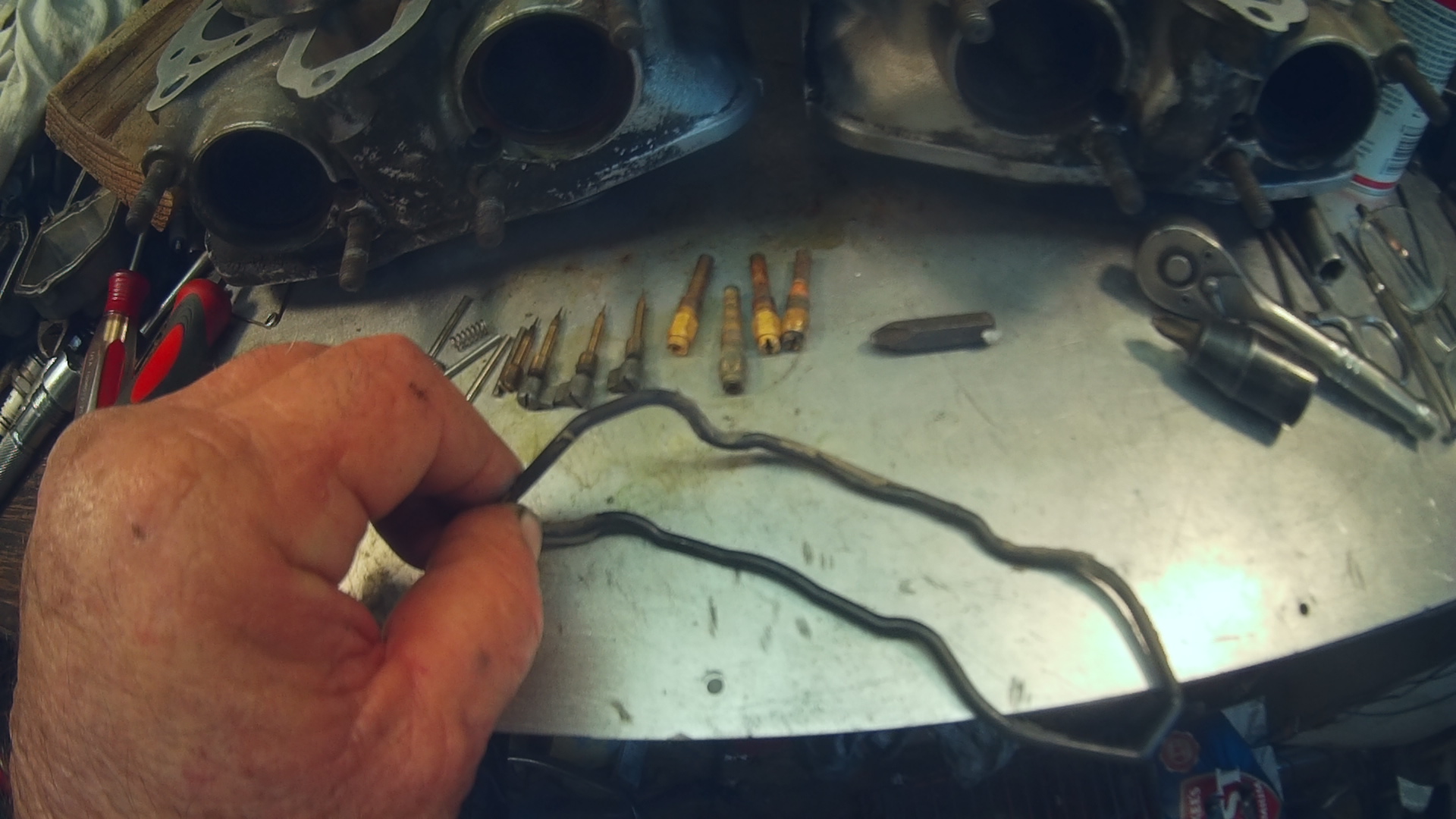

I switched to one piece head gaskets years ago and will never go back. I found a O ring from 87 in the dirt at my old dead shop. It still has silicon on it and is still as soft and pliant as it was new. The ones you buy now get hard in a year and crack. Now I don't have oil gushing all over the bike and on my foot. :sick:
Steve
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
Attachments:
Please Log in or Create an account to join the conversation.
- Greybeard
-
- Offline
- Sustaining Member
-
Registered
- Posts: 113
- Thanks: 26
Re: 2 piece head gasket
29 Apr 2020 06:59
Steve what's your preferred brand for Head Gasket, Base Gasket and Valve Seals?
I'm going to attempt to replace the leaking ones on my 83 kz1100 LTD.
Thanks
I'm going to attempt to replace the leaking ones on my 83 kz1100 LTD.
Thanks
1982 KZ1100 D-1
Please Log in or Create an account to join the conversation.
- SWest
-
- Offline
- Sustaining Member
-
Registered
- 10 22 2014
- Posts: 23373
- Thanks: 2900
Re: 2 piece head gasket
29 Apr 2020 07:46
OEM or Cometic. Going to order APE seals this time. Disappointed in the Viton seals.
Steve
kzzone.com/valves.html
Steve
kzzone.com/valves.html
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
The following user(s) said Thank You: Greybeard
Please Log in or Create an account to join the conversation.
- daveo
-
- Offline
- Premium Member
-
Registered
- Posts: 2920
- Thanks: 745
Re: 2 piece head gasket
29 Apr 2020 10:12 - 29 Apr 2020 10:35
No eBay APP ID and/or Cert ID defined in Kunena configuration

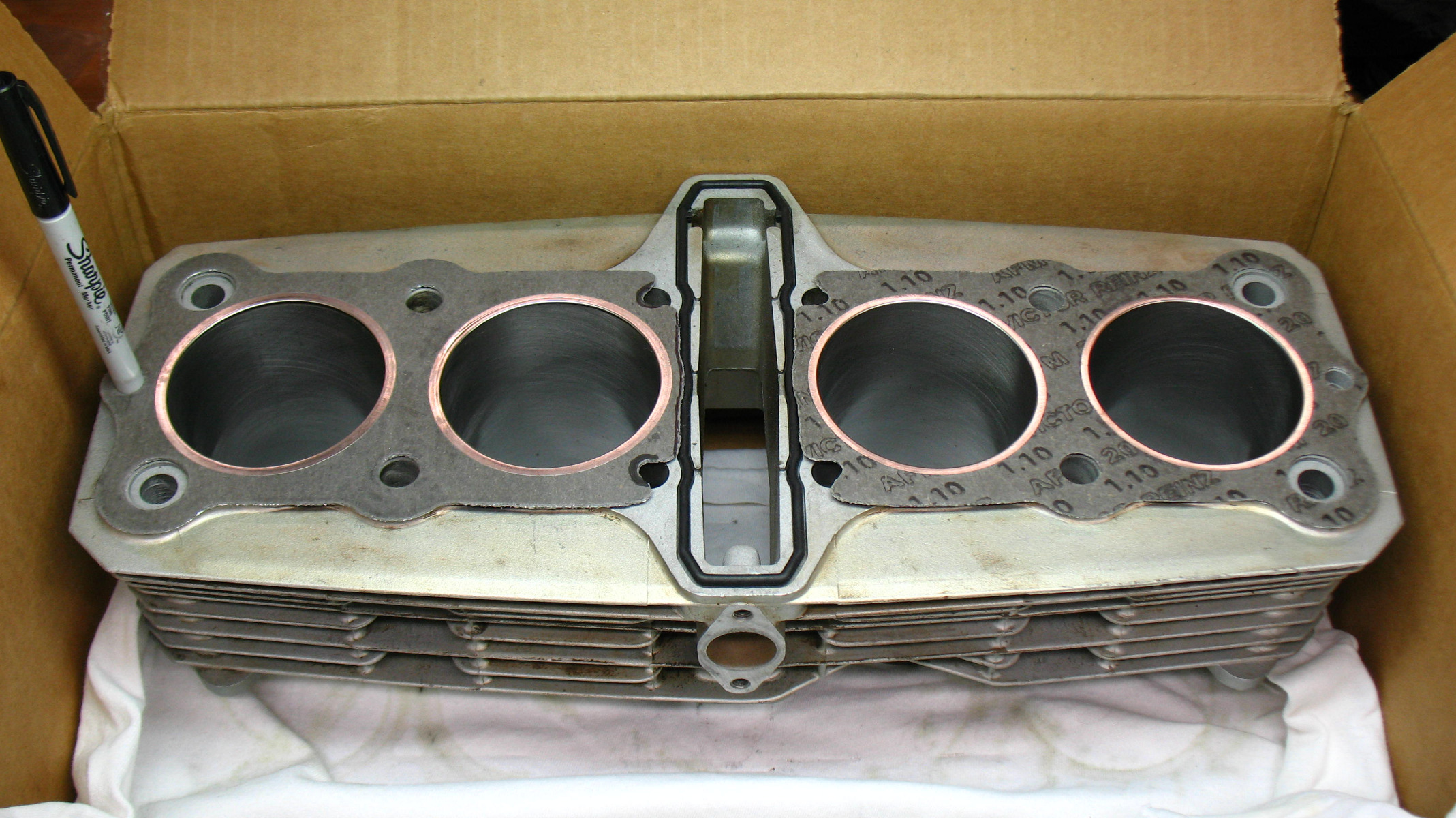

The KZ1100 J-head gaskets have large holes which accommodate o-ring oil passage seals at the four outer cylinder studs.
However, the ZN and ZX engines did away with those o-rings, and use the Kawasaki head gasket per ebay listing below:

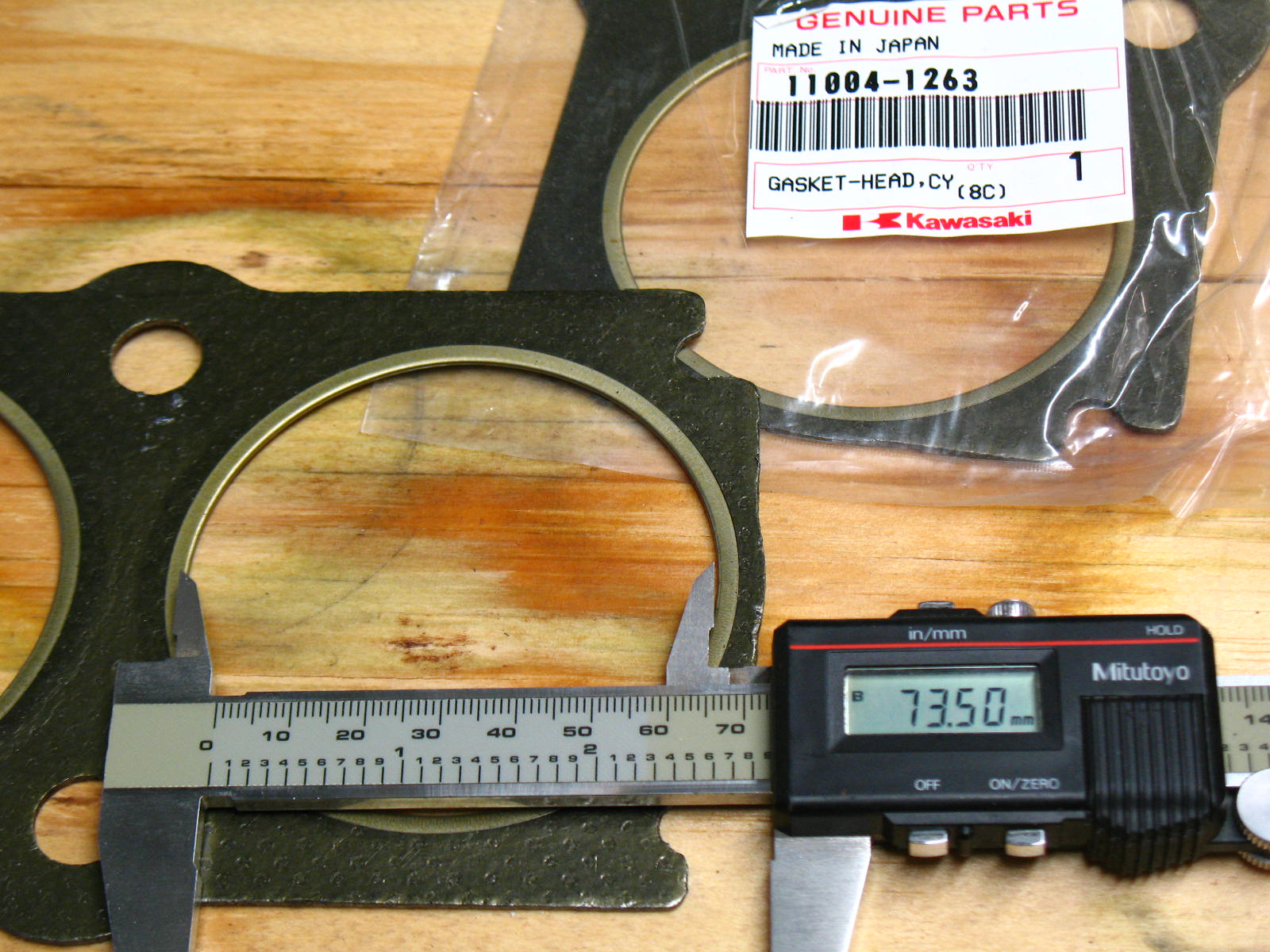

OEM Kawasaki KZ1100 head gasket opening measurement:
FoamyTops wrote: Have a heavily modified 80KZ1000. Z1 bottom, 77/78 jugs and head, 2X Andrews Cams, 1075 kit installed some time during its life.
Existing 2 piece head gasket burned thru between 1&2. The gaskets were smaller opening at 71mm measured over the cylinder.
Want to stay with 2 piece gasket and o-ring and looking into a possible swap with a 81-83 1100 2 piece if the openings are 42mm over the cylinder. Without ordering each, 77 to 80 1000 and 81 to 83 100, and measuring I do not know if these will exchange.
Photos of each suggest the gaskets to be very similar 1000 vs 1100 with the bolt pattern, construction. Opening appears larger on the 1100.
11004-1039, 1105, and 1263 are Kawi part numbers for the 1100 gaskets, 11004-076, 1258 for the 1000.
Has anyone successfully done this? Can the 1100 gaskets be swapped into a 1075 build and fit properly?
The KZ1100 J-head gaskets have large holes which accommodate o-ring oil passage seals at the four outer cylinder studs.
However, the ZN and ZX engines did away with those o-rings, and use the Kawasaki head gasket per ebay listing below:
OEM Kawasaki KZ1100 head gasket opening measurement:
1982 KZ1100-A2
Attachments:
Last edit: 29 Apr 2020 10:35 by daveo.
The following user(s) said Thank You: Greybeard
Please Log in or Create an account to join the conversation.
- havakaw
-
- Offline
- User
-
Registered
- Posts: 190
- Thanks: 26
Re: 2 piece head gasket
01 May 2020 07:57
Daveo: What did you use on your bike? I have to do mine as the paper base gasket is spraying oil out of the corners where the screwdriver slots are. I'll never use a paper or fiber gasket again. I want to do this so I'll never have to do it again. I'm thinking copper gaskets top and bottom. What's the deal with the ZX head gaskets? Are those safe to use for a KZ motor ? Will the oil drain back down thru the stud cavities? Thank you.
'80 KZ 750 LTD-H
'82 KZ 1100 A-2 Shafty (ex-bagger)
'82 KZ 1100 A-2 Shafty (ex-bagger)
Please Log in or Create an account to join the conversation.
- daveo
-
- Offline
- Premium Member
-
Registered
- Posts: 2920
- Thanks: 745
Re: 2 piece head gasket
01 May 2020 08:47 - 01 May 2020 08:47havakaw wrote: Daveo: What did you use on your bike? I have to do mine as the paper base gasket is spraying oil out of the corners where the screwdriver slots are. I'll never use a paper or fiber gasket again. I want to do this so I'll never have to do it again. I'm thinking copper gaskets top and bottom. What's the deal with the ZX head gaskets? Are those safe to use for a KZ motor ? Will the oil drain back down thru the stud cavities? Thank you.

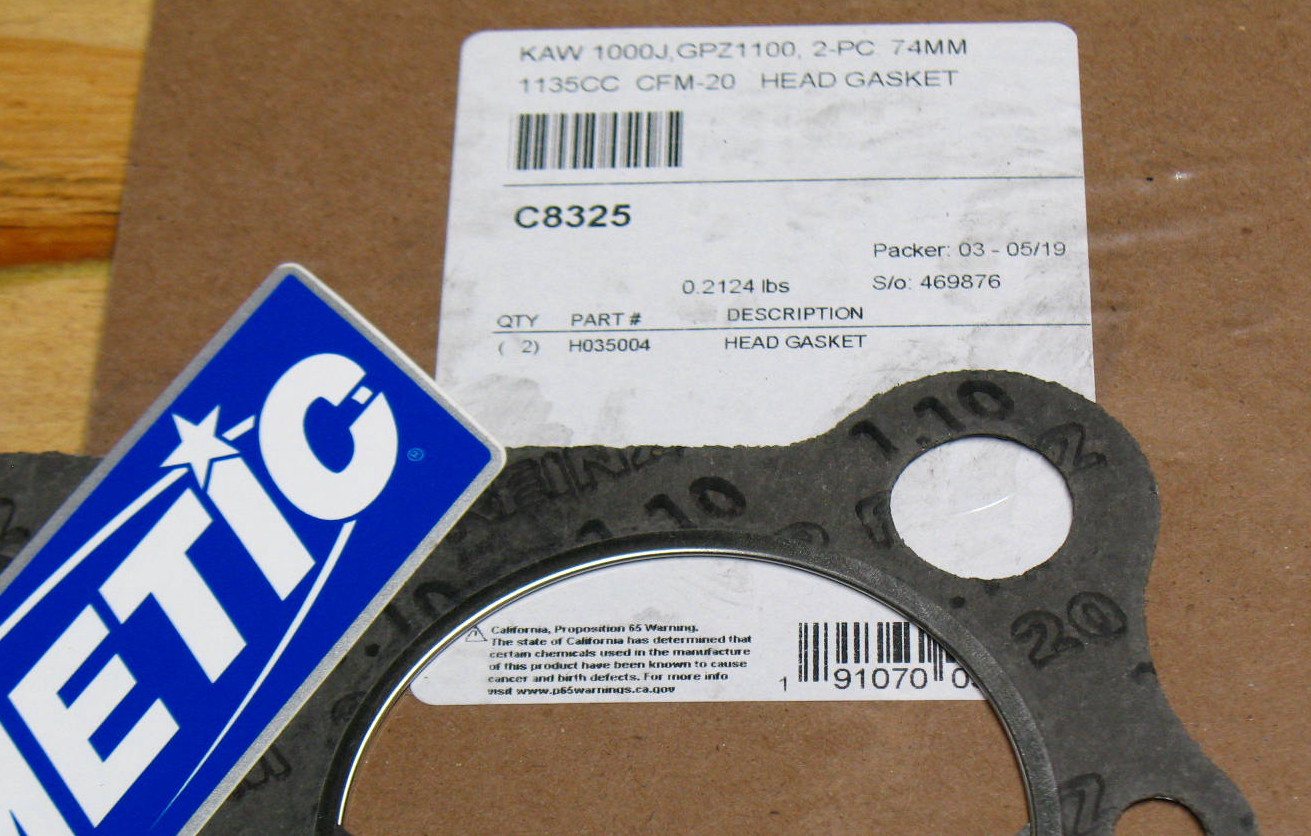

Cometic:
Gasket edges were painstakingly filed and sanded to fit snugly around the center o-ring and adjacent APE studs.

Can't address other issues from past experience, except to suggest installing APE HD cylinder studs.
1982 KZ1100-A2
Attachments:
Last edit: 01 May 2020 08:47 by daveo.
Please Log in or Create an account to join the conversation.
- SWest
-
- Offline
- Sustaining Member
-
Registered
- 10 22 2014
- Posts: 23373
- Thanks: 2900
Re: 2 piece head gasket
01 May 2020 09:10
The new 1075 kit comes with one piece head gasket and base gasket. Copper will weep even if sealer is used. The ones from Z1e seem rather thin but I won't know for sure until I get them.
Steve
www.z1enterprises.com/piston-kit-720mm-z...o-sleeves-10251.html
Steve
www.z1enterprises.com/piston-kit-720mm-z...o-sleeves-10251.html
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
