Z500-B3 cylinder head studs

  • tromos
  • tromos's Avatar Topic Author
  • Offline
  • User
  • Posts: 3
  • Thanks: 0

Z500-B3 cylinder head studs

09 Mar 2020 13:49
#820617
Hello!
Long time lurker, first time poster here.

So I decided to replace my head gasket a couple of days ago because there was a bit of oil leakage, and accidentaly snapped 2 of the studs.
I've been searching online for new studs but I cant find anything for this modell? are the studs from the kz550 interchangeable? Or is there a website ive missed?

thanks

Please Log in or Create an account to join the conversation.

  • gordone
  • gordone's Avatar
  • Offline
  • Sustaining Member
  • Posts: 1472
  • Thanks: 83

Re: Z500-B3 cylinder head studs

09 Mar 2020 15:02
#820625

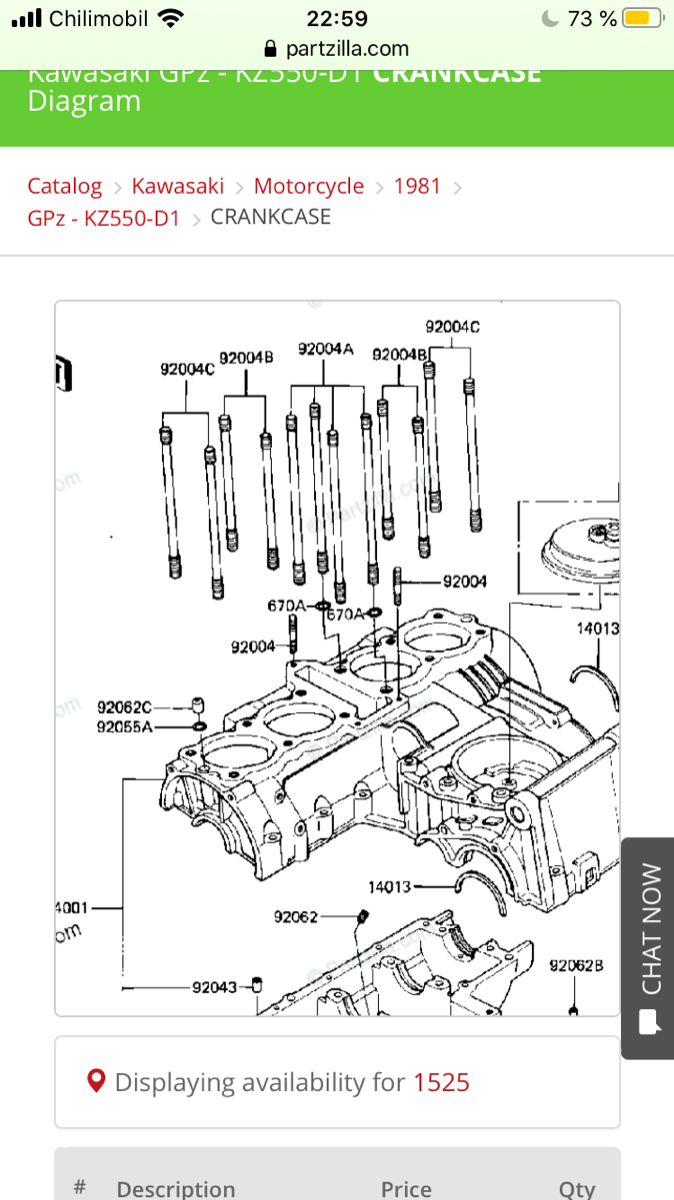

Have you checkef partzilla.com ?
I took a quick search, looks to be part number 92004?

www.partzilla.com/catalog/kawasaki/motor...z-kz550-d1/crankcase

1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).

Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine

Attachments:

Please Log in or Create an account to join the conversation.

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 8019
  • Thanks: 1645

Re: Z500-B3 cylinder head studs

10 Mar 2020 07:52 - 10 Mar 2020 07:53
#820660
The Z500 won't be listed at most places as that model line wasn't sold in the USA & most diagrams are for the USA/CAN models. cmsnl.com is the only site I know of that has some non-USA models, but I didn't see a Z500. cmsnl has some supersession info which can be handy.

Probably the closest match to a 500 is the KZ550 & the studs are probably the same. You could measure yours to verify what you have.
1981 KZ650 Competition Sports and Road
Last edit: 10 Mar 2020 07:53 by martin_csr.

Please Log in or Create an account to join the conversation.

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7861
  • Thanks: 2446

Re: Z500-B3 cylinder head studs

10 Mar 2020 09:09 - 10 Mar 2020 09:19
#820669
I looked at the cross feference software page at Zedder.com, and no mention of a KZ500 or Z500.
I did see a few 500cc models-
H1 triple two stroke
EN Vulcan twin
EX Ninja twin
KX motocross two stroke thumper

I wonder which market it was sold in?
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
Last edit: 10 Mar 2020 09:19 by TexasKZ.

Please Log in or Create an account to join the conversation.

  • tromos
  • tromos's Avatar Topic Author
  • Offline
  • User
  • Posts: 3
  • Thanks: 0

Re: Z500-B3 cylinder head studs

10 Mar 2020 09:12
#820670
Yeah I measured them today and they're a bit long ~165, 150, and 130mm so I think it's a no go

Please Log in or Create an account to join the conversation.

  • tromos
  • tromos's Avatar Topic Author
  • Offline
  • User
  • Posts: 3
  • Thanks: 0

Re: Z500-B3 cylinder head studs

10 Mar 2020 09:19
#820671
The VIN number says KZ500AE but can't find anything about that one either

Please Log in or Create an account to join the conversation.

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 8019
  • Thanks: 1645

Re: Z500-B3 cylinder head studs

10 Mar 2020 09:34 - 10 Mar 2020 12:16
#820673
The Z500 was probably sold in Japan/Asia, Australia, Europe & a few other places. I haven't found much info on the 500.
motorcyclespecs.co.za has one Z500 listed. In addition to the 550, the Z400 4-cylinder is similar.
Japan Webike lists an exhaust system that supposed to fit the Z400/500/550 models (400FX & 400J, not the Twins).

Zedder probably only covers the North American models.
1981 KZ650 Competition Sports and Road
Last edit: 10 Mar 2020 12:16 by martin_csr.

Please Log in or Create an account to join the conversation.

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7861
  • Thanks: 2446

Re: Z500-B3 cylinder head studs

10 Mar 2020 09:41
#820674
At any rate, I am really surprised that a cylinder stud broke while tightening the nut. I wonder what happened?
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24

Please Log in or Create an account to join the conversation.

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 8019
  • Thanks: 1645

Re: Z500-B3 cylinder head studs

10 Mar 2020 12:29 - 11 Mar 2020 05:24
#820687
No eBay APP ID and/or Cert ID defined in Kunena configurationBy tromos: The VIN number says KZ500AE but can't find anything about that one either.

Is that the VIN or engine number? I would get the Kawasaki factory service manual that covers the 400/500/550 models (400 4-cyl, not the Twins).

... EB search = KZ550 manual. others are listed. this one shows the model application chart on the back cover.
1981 KZ650 Competition Sports and Road
Last edit: 11 Mar 2020 05:24 by martin_csr.

Please Log in or Create an account to join the conversation.

  • gazzz
  • gazzz's Avatar
  • Offline
  • Sustaining Member
  • Posts: 563
  • Thanks: 318

Re: Z500-B3 cylinder head studs

10 Mar 2020 14:02
#820698

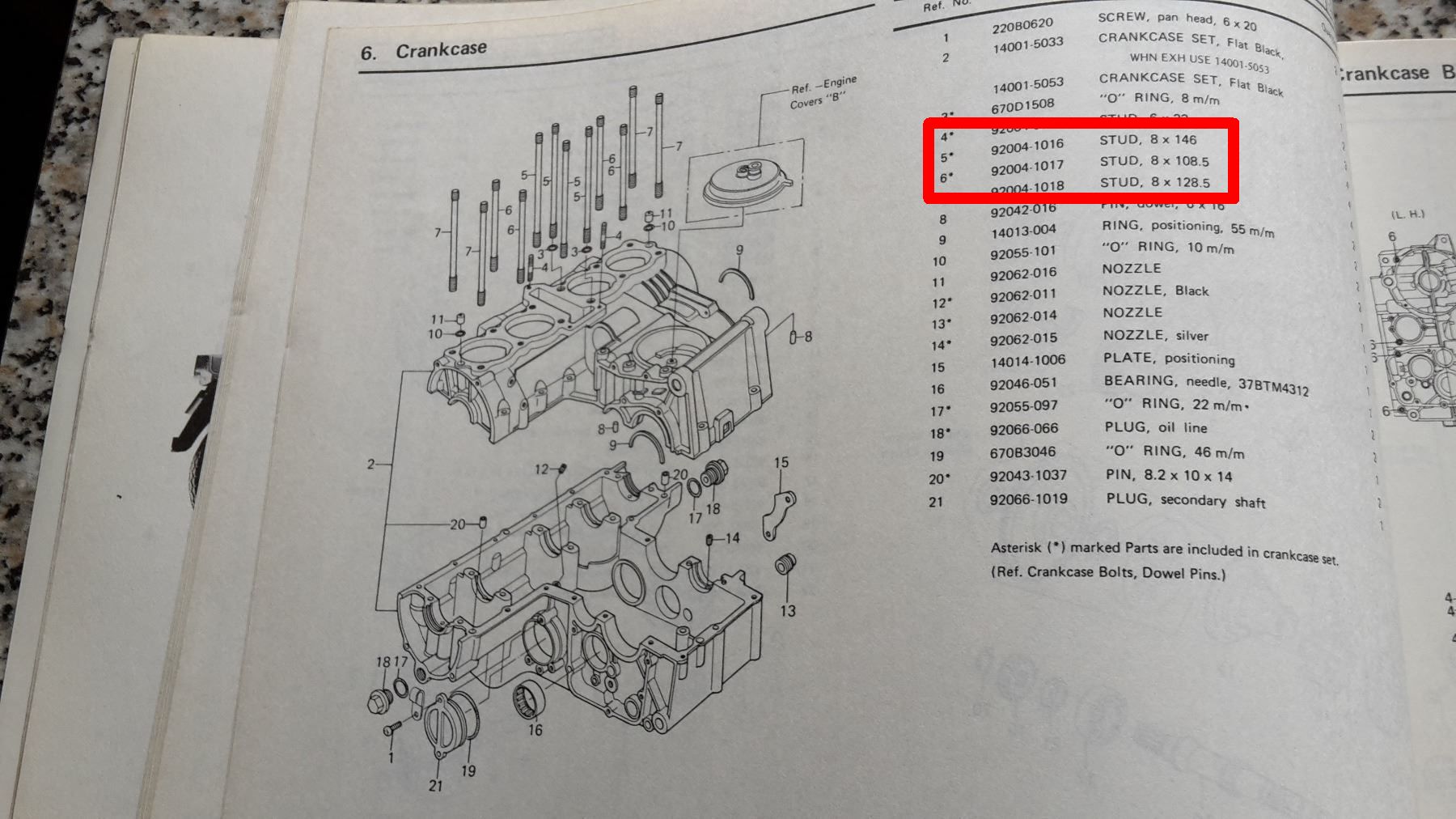

Z500 was for European market and as far as I know there is no online parts list for it. However some paper versions of parts lists could be found in Europe. Like this one:

www.ricardo.ch/de/a/kawasaki-z-500-ersat....katalog-1067396840/

According to sample images from that book Z500 has cylinder studs identical to Z550.
Kawasaki KZ650 cafe-racer: in progress

Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer

www.gazzz-garage.com

Attachments:

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 4420
  • Thanks: 2268

Re: Z500-B3 cylinder head studs

10 Mar 2020 14:43
#820700
His over all messurments of the studs are +20 mm longer (OEM110/130/145 mm) against his messurments 130/150/165 of the studs.

My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode

Attachments:

Please Log in or Create an account to join the conversation.

  • gazzz
  • gazzz's Avatar
  • Offline
  • Sustaining Member
  • Posts: 563
  • Thanks: 318

Re: Z500-B3 cylinder head studs

10 Mar 2020 15:41 - 10 Mar 2020 15:42
#820708
His over all messurments of the studs are +20 mm longer (OEM110/130/145 mm) against his messurments 130/150/165 of the studs.

We know nothing about studs that actually installed in that engine, however Kawasaki Z500 part list says that 500 studs are similar to 550. And I honestly I see no reasons for using longer studs in engine with capacity decreased for only 50ccm. I may only suggest to remeasure studs.
Kawasaki KZ650 cafe-racer: in progress

Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer

www.gazzz-garage.com
Last edit: 10 Mar 2020 15:42 by gazzz.
The following user(s) said Thank You: 650ed, Nessism

Please Log in or Create an account to join the conversation.
