Shift Drum Positioning Bolt
- calum
- Topic Author
- Offline
- User
Less
More
12 Nov 2019 11:51 #813917
by calum
Current Project:
www.kzrider.com/forum/11-projects/616901...-spare-parts-project
1977 KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Shift Drum Positioning Bolt was created by calum
Does anyone know the tightening torque for the shift drum positioning bolt on a KZ750H (4)? I'm referring to the M14 bolt that houses the spring and piston that holds the shift drum in the selected gear, not the bolt with the lock washer that holds the shift drum in the housing.
Going by the thread size torque would be about 74+ Nm. That seems quite excessive especially as the spring is always loading the threads.
Going by the thread size torque would be about 74+ Nm. That seems quite excessive especially as the spring is always loading the threads.
Current Project:
www.kzrider.com/forum/11-projects/616901...-spare-parts-project
1977 KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
Less
More
- Posts: 4193
- Thank you received: 2063
12 Nov 2019 12:39 #813918
by Scirocco
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode

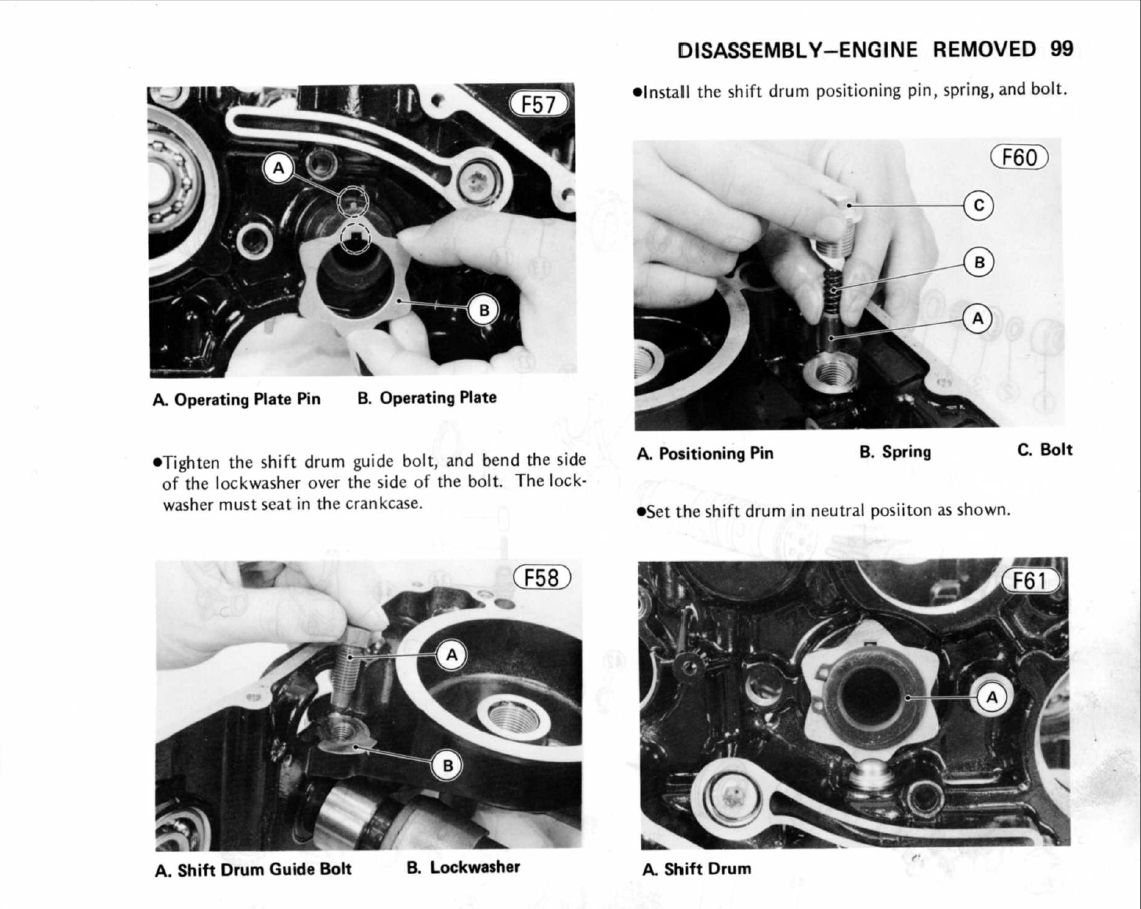

Replied by Scirocco on topic Shift Drum Positioning Bolt
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
The following user(s) said Thank You: calum
Please Log in or Create an account to join the conversation.
- calum
- Topic Author
- Offline
- User
Less
More
- Posts: 1134
- Thank you received: 401
12 Nov 2019 13:28 #813922
by calum
Current Project:
www.kzrider.com/forum/11-projects/616901...-spare-parts-project
1977 KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Replied by calum on topic Shift Drum Positioning Bolt
Thanks, that's what I figured. Just didn't want it backing off into the oil pan.
For the record, the fact that the bolt is hollow shouldn't make any difference unless the walls are paper thin. The inward forces aren't any larger than the clamping load and the threads are a lot thinner than the walls so they will go first.
For the record, the fact that the bolt is hollow shouldn't make any difference unless the walls are paper thin. The inward forces aren't any larger than the clamping load and the threads are a lot thinner than the walls so they will go first.
