J-Model Base Gasket

14 Aug 2019 12:01
#809161
My bike is an 1983 GPZ-1100 and I was wondering if anyone else has trouble with the base gaskets from Cometic interfering with front cam chain guide?
1983 GPZ-1100 completely stock

1983 Gpz-1100 hot rod build in process

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Premium Member
    Registered
  • Never change a running system
  • Posts: 4420
  • Thanks: 2268

Re: J-Model Base Gasket

14 Aug 2019 12:19 - 14 Aug 2019 12:20
#809162
Welcome Richard, can you upoad some pics of your base gasket Trouble?
My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Last edit: 14 Aug 2019 12:20 by Scirocco.

Please Log in or Create an account to join the conversation.

  • richard-GPZ
  • richard-GPZ's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 40
  • Thanks: 9

Re: J-Model Base Gasket

14 Aug 2019 12:55 - 14 Aug 2019 12:58
#809163

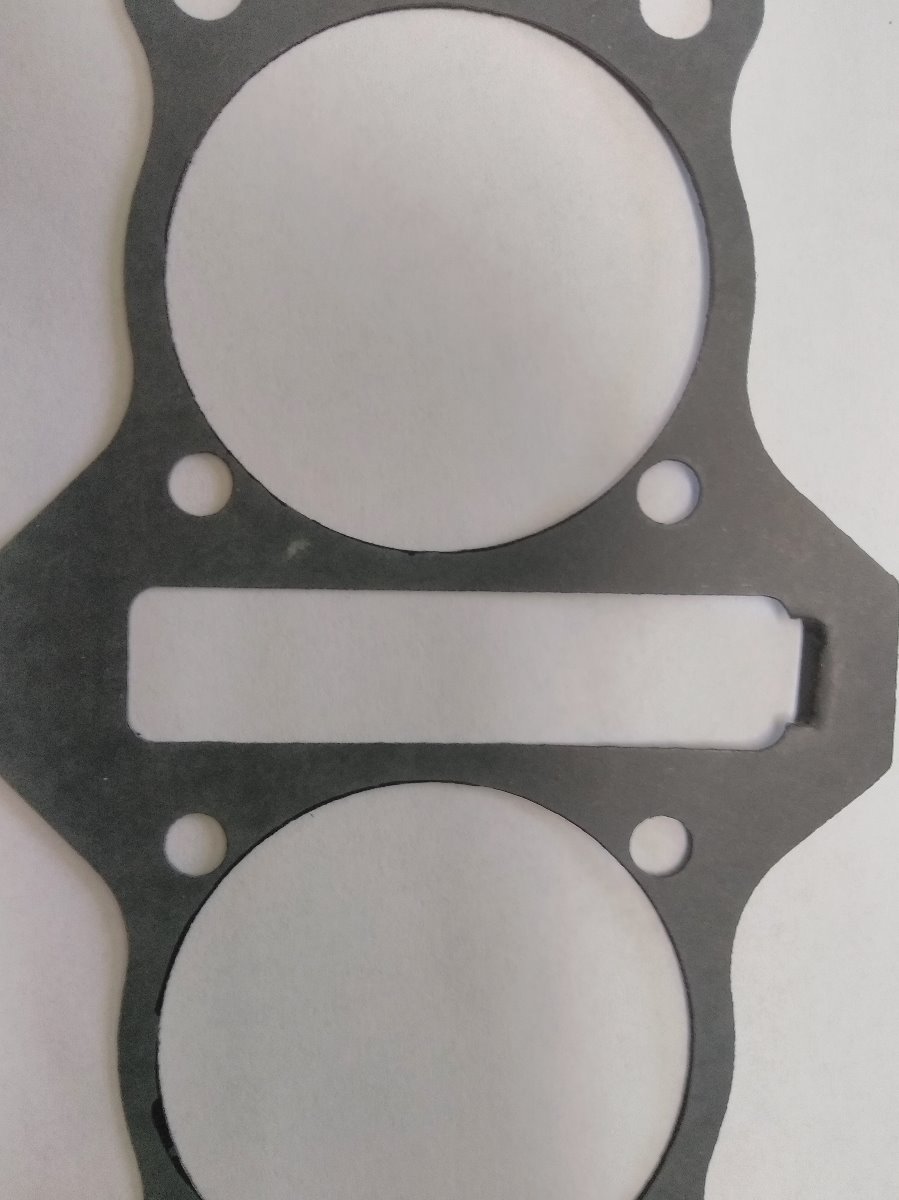

If you look close at this gasket I used in a mock assembly it was bent over by the front cam chain guide.
1983 GPZ-1100 completely stock

1983 Gpz-1100 hot rod build in process

Attachments:

Last edit: 14 Aug 2019 12:58 by richard-GPZ. Reason: picture missing

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • 10 22 2014
  • Posts: 23416
  • Thanks: 2909

Re: J-Model Base Gasket

14 Aug 2019 13:22
#809165
Did you install it backwards?
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Premium Member
    Registered
  • Never change a running system
  • Posts: 4420
  • Thanks: 2268

Re: J-Model Base Gasket

14 Aug 2019 13:25 - 14 Aug 2019 13:31
#809166
In my opinion you have flip over the front to rear aka upside down surface of the gasket. Is any site of the gasket stamp with an up or down Symbol?

edit : add a pic of the bottom rear gasket.

My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode

Attachments:

Last edit: 14 Aug 2019 13:31 by Scirocco.

Please Log in or Create an account to join the conversation.

  • richard-GPZ
  • richard-GPZ's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 40
  • Thanks: 9

Re: J-Model Base Gasket

14 Aug 2019 13:32
#809167
No sir. I used the dowel pins and they won't fit the back holes of the gasket if you put it in backwards.
1983 GPZ-1100 completely stock

1983 Gpz-1100 hot rod build in process

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Premium Member
    Registered
  • Never change a running system
  • Posts: 4420
  • Thanks: 2268

Re: J-Model Base Gasket

14 Aug 2019 13:39 - 14 Aug 2019 13:41
#809170
I am not so skilled with the J-model engines but maybe you have to put in the chain guide first and then on top the base gasket.
My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Last edit: 14 Aug 2019 13:41 by Scirocco.

Please Log in or Create an account to join the conversation.

  • richard-GPZ
  • richard-GPZ's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 40
  • Thanks: 9

Re: J-Model Base Gasket

14 Aug 2019 13:57
#809172
The front cam chain guide is put in after the gasket and block are installed. It fits into the block then the head gasket and head go on top.
1983 GPZ-1100 completely stock

1983 Gpz-1100 hot rod build in process

Please Log in or Create an account to join the conversation.

  • DFIGPZ
  • DFIGPZ's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 618
  • Thanks: 121

Re: J-Model Base Gasket

14 Aug 2019 14:15
#809173
Common trim gasket .
1984 750 Turbo

Please Log in or Create an account to join the conversation.

  • richard-GPZ
  • richard-GPZ's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 40
  • Thanks: 9

Re: J-Model Base Gasket

14 Aug 2019 14:37
#809174
DFIGPZ wrote: Common trim gasket .

I take it you have had the same problem. My issue is I want to use a rubber coated steel gasket. I don't believe I will be able to easily trim it.
1983 GPZ-1100 completely stock

1983 Gpz-1100 hot rod build in process

Please Log in or Create an account to join the conversation.

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 3151
  • Thanks: 1764

Re: J-Model Base Gasket

15 Aug 2019 05:11 - 15 Aug 2019 05:12
#809186
Are you sure that base gasket isn't for the earlier motor.
The slot for the cam tunnel is usually cut wider at the end where the guide sits on the 'J'..
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
www.kzrider.com/23-for-sale/611992-air-c...lide-mikunis?start=0





Last edit: 15 Aug 2019 05:12 by zed1015.
The following user(s) said Thank You: richard-GPZ

Please Log in or Create an account to join the conversation.

  • old_kaw
  • old_kaw's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 929
  • Thanks: 270

Re: J-Model Base Gasket

15 Aug 2019 07:19
#809198
That gasket doesn't look to be the right one for a J motor. This is the OEM paper base gasket for my 81 Kz1000.

Attachment not found

1981 Kawasaki Kz1000K1
Located in the Saint Louis, Missouri Area.
The following user(s) said Thank You: richard-GPZ

Please Log in or Create an account to join the conversation.
