Combustion stroke on non combustion stroke for TDC
02 Apr 2019 03:24
Hi - So the old 82 KZ1100 needed cylinder head O ring seals replacing - and they arrived pretty quickly so I disassembled the top end and took off the head.
2 O rins gone altogether - no wonder I was getting oil leaks !!
Any way as I look at cleaning and putting it all back together it suddenly occurs to me that the position of the cams shaft markings when I took them off - were not the same as the positions shown in the manual for TDC. I did line up the TDC mark on the timing wheel before taking it apart - but now I see the EX and arrows marks are about 30 degs behind where they should be pointing at TDC according to the manual - and I realise if I turn over the engine once more they would have been in the stated position. (probably)
So assuming these engines have overlap between cam revolutions on the valves - there is a good likely hood if one gets the timing out a bit - then the piston could hit the open valve somewhere.
SO - I am assuming (and asking ) - are the marking positions in the manual defined at TDC on the compression stroke or the non compression stroke.?
I did not mark the chain and cam sprockets with nail varnish or whatever as I will simply reinstall the cam shafts according to manual settings (I did draw them relative to their position when I took the off - and that's how I notice now that whilst the TDC mark is aligned on the timing wheel - the camshaft marking positions are not as shown in the manual)
I've read that at TDC on the compression stroke - ALL the valves are shut ?? Is this correct?
So - what now ? Can I turn the engine over one revolutions to TDC on compression stroke and then reassemble? (I have to clean the top of the pistons of carbon anyway - so have to bring the other 2 pistons up to the top to clean them - turn over the engine. )
Am I thinking right here - or talking rubbish and if so - please tell me its rubbish and what to do to A. - clean and B. - reinstall the camshafts.
Thank you Guys
2 O rins gone altogether - no wonder I was getting oil leaks !!
Any way as I look at cleaning and putting it all back together it suddenly occurs to me that the position of the cams shaft markings when I took them off - were not the same as the positions shown in the manual for TDC. I did line up the TDC mark on the timing wheel before taking it apart - but now I see the EX and arrows marks are about 30 degs behind where they should be pointing at TDC according to the manual - and I realise if I turn over the engine once more they would have been in the stated position. (probably)
So assuming these engines have overlap between cam revolutions on the valves - there is a good likely hood if one gets the timing out a bit - then the piston could hit the open valve somewhere.
SO - I am assuming (and asking ) - are the marking positions in the manual defined at TDC on the compression stroke or the non compression stroke.?
I did not mark the chain and cam sprockets with nail varnish or whatever as I will simply reinstall the cam shafts according to manual settings (I did draw them relative to their position when I took the off - and that's how I notice now that whilst the TDC mark is aligned on the timing wheel - the camshaft marking positions are not as shown in the manual)
I've read that at TDC on the compression stroke - ALL the valves are shut ?? Is this correct?
So - what now ? Can I turn the engine over one revolutions to TDC on compression stroke and then reassemble? (I have to clean the top of the pistons of carbon anyway - so have to bring the other 2 pistons up to the top to clean them - turn over the engine. )
Am I thinking right here - or talking rubbish and if so - please tell me its rubbish and what to do to A. - clean and B. - reinstall the camshafts.
Thank you Guys
Please Log in or Create an account to join the conversation.
- jayrodoh
- Offline
- User
- Posts: 128
- Thanks: 27
Re: Combustion stroke on non combustion stroke for TDC
02 Apr 2019 05:09
You're overthinking it. TDC is TDC, there is no stroke in mind when you line that up. The cams turn once for every two revolutions of the crankshaft so if you are turning the motor over with the cams in place, the markings will only line up on every other revolution of the crankshaft. To answer your question, one of the cylinders will be at the top of the compression stroke when you are at TDC but the other three will not.
You can turn the motor over to your hearts content with the head off, just make sure you support the chain so it doesn't fall/bunch up in the crankcase. The manual will have the correct procedure for installing the cams etc. and how to check. While I've never done an 1100, I've done many two and four cylinder bikes over the years and the process is fairly similar.
You can turn the motor over to your hearts content with the head off, just make sure you support the chain so it doesn't fall/bunch up in the crankcase. The manual will have the correct procedure for installing the cams etc. and how to check. While I've never done an 1100, I've done many two and four cylinder bikes over the years and the process is fairly similar.
1982 KZ750-M1 CSR
The following user(s) said Thank You: daveo
Please Log in or Create an account to join the conversation.
- Warren3200gt
- Offline
- User
- Posts: 1516
- Thanks: 721
Re: Combustion stroke on non combustion stroke for TDC
02 Apr 2019 08:54
At TDC TWO of the pistons will be at the top. They run in pairs. One of the two will be on the fire stoke the other will be on the exhaust stroke. All Kawasaki 4 cylinder 4 stoke engines run on the wasted spark principle. Both the cylinders will spark but only the compression stroke cylinder has fuel in it and will fire.
The following user(s) said Thank You: daveo, Scirocco, ErlingW
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
- Posts: 4255
- Thanks: 2114
Re: Combustion stroke on non combustion stroke for TDC
02 Apr 2019 12:07
Very good explained Warren. Two turns of the crank are one turn of the camshaft(s) on all 4 stroke engines.
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
The following user(s) said Thank You: Warren3200gt
Please Log in or Create an account to join the conversation.
- gordone
- Offline
- Sustaining Member
- Posts: 1427
- Thanks: 74
Re: Combustion stroke on non combustion stroke for TDC
02 Apr 2019 14:04Warren3200gt wrote: At TDC TWO of the pistons will be at the top. They run in pairs. One of the two will be on the fire stoke the other will be on the exhaust stroke. All Kawasaki 4 cylinder 4 stoke engines run on the wasted spark principle. Both the cylinders will spark but only the compression stroke cylinder has fuel in it and will fire.
Nice to save some coils also
Since you can use one coil for two pistons.
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thanks: 2099
Re: Combustion stroke on non combustion stroke for TDC
02 Apr 2019 14:23 - 02 Apr 2019 14:24
1973 Z1
KZ900 LTD
KZ900 LTD
Last edit: 02 Apr 2019 14:24 by Patton.
The following user(s) said Thank You: daveo, jlaudiofan
Please Log in or Create an account to join the conversation.
- daveo
- Offline
- Premium Member
- Posts: 2862
- Thanks: 716
Re: Combustion stroke on non combustion stroke for TDC
03 Apr 2019 05:51
Thanks Patton!
Have that straight in your head in the morning, and the rest of your day should run smoothly.
:woohoo:
Have that straight in your head in the morning, and the rest of your day should run smoothly.
:woohoo:
1982 KZ1100-A2
Please Log in or Create an account to join the conversation.
- gregoryzim
- Topic Author
- Offline
- User
- Posts: 29
- Thanks: 2
Re: Combustion stroke on non combustion stroke for TDC
04 Apr 2019 00:40
Well that was rewarding - thank you everyone for your education. I understand all that has been explained but still need to be sure I understand and can act on my original question/concern which was -
No 1 piston is moving to the top of the stroke twice in every full sequence - to the top under compression and to the top again one revolution later on exhaust .

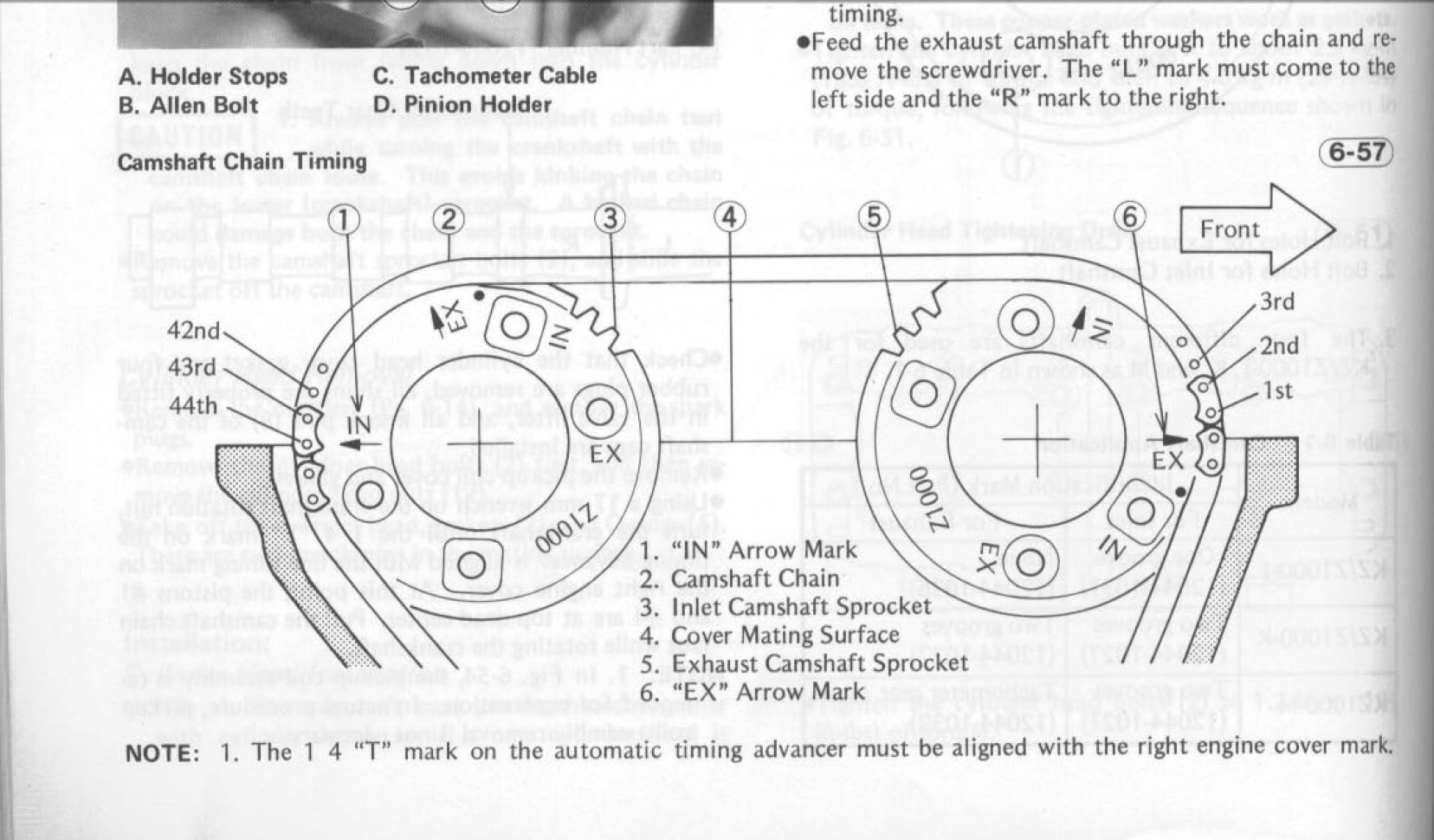

The position of the cams is therefore different relative to all pistons between first stoke and 2nd stroke. So - the manual just says the markings on the camshafts are X when No 1 piston is TDC - BUT at the top of its stoke on which of the 2 strokes?
Now - if you are saying the camshaft/cam positions are the SAME position every time No1 piston reaches the top of its stroke - I can then understand why I am over thinking it. IS THAT THE CASE? (or - are the cam shafts in two different positions for each of the strokes? - common sense says to me they must be as there is different activity happening in each stroke - )

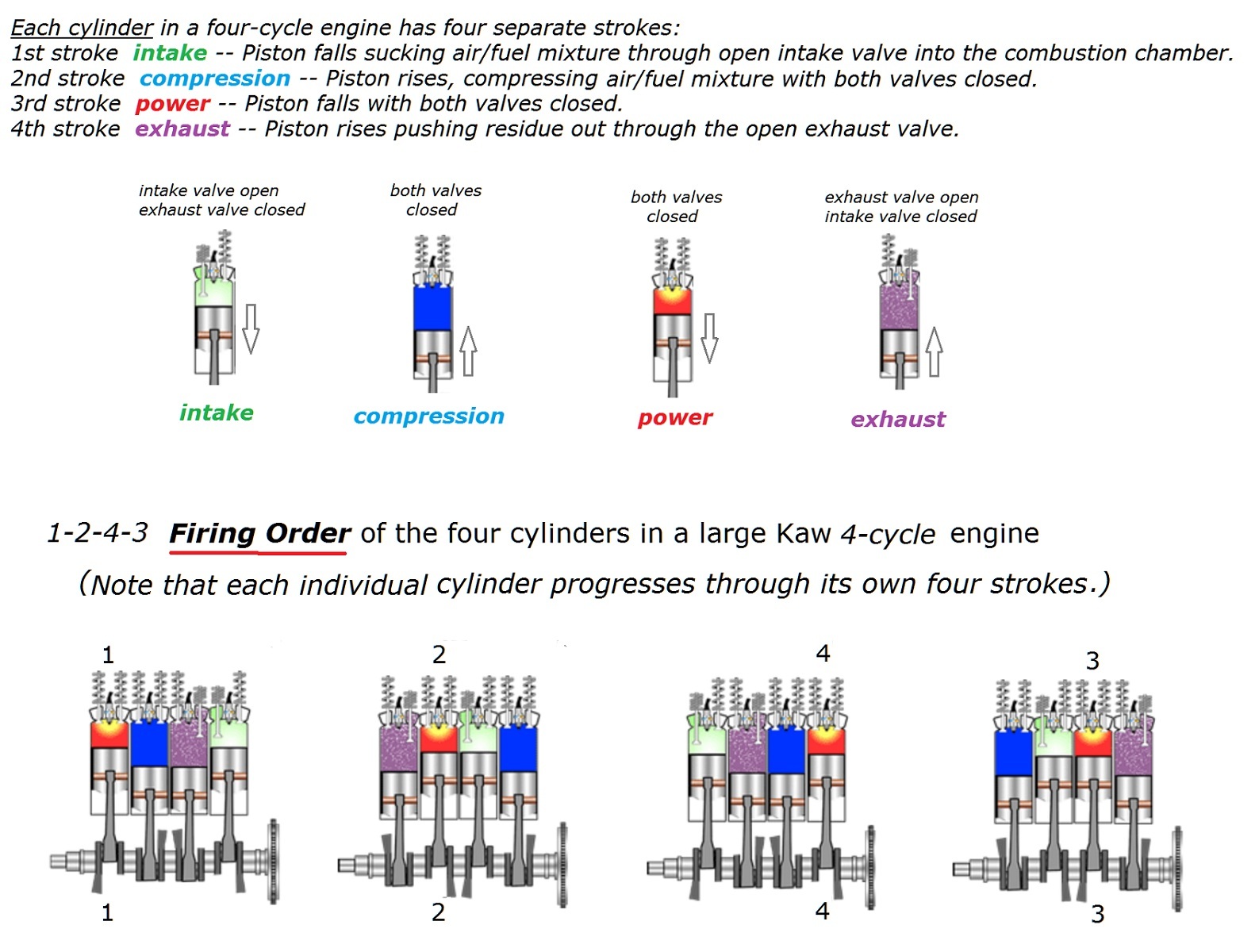

You can see how we never really study cam positions to valves - ignorance mans lack of understanding. The attached stroke pictures shown in the thread certainly show cams are controlling different valves in each of the TDC positions of piston 1 )
