1980 KZ750 LTD ring orientation

28 Dec 2016 11:14
#750824
hello,

i found some new old stock OEM rings but they don't come with any ring orientation diagrams, my manual is pretty useless on this front as well, I have a square and a beveled ring, which goes in the top and bottom and is the bevel up or down?

thanks for the help.

brad

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • 10 22 2014
  • Posts: 23779
  • Thanks: 3045

Re: 1980 KZ750 LTD ring orientation

28 Dec 2016 11:41 - 28 Dec 2016 11:44
#750825

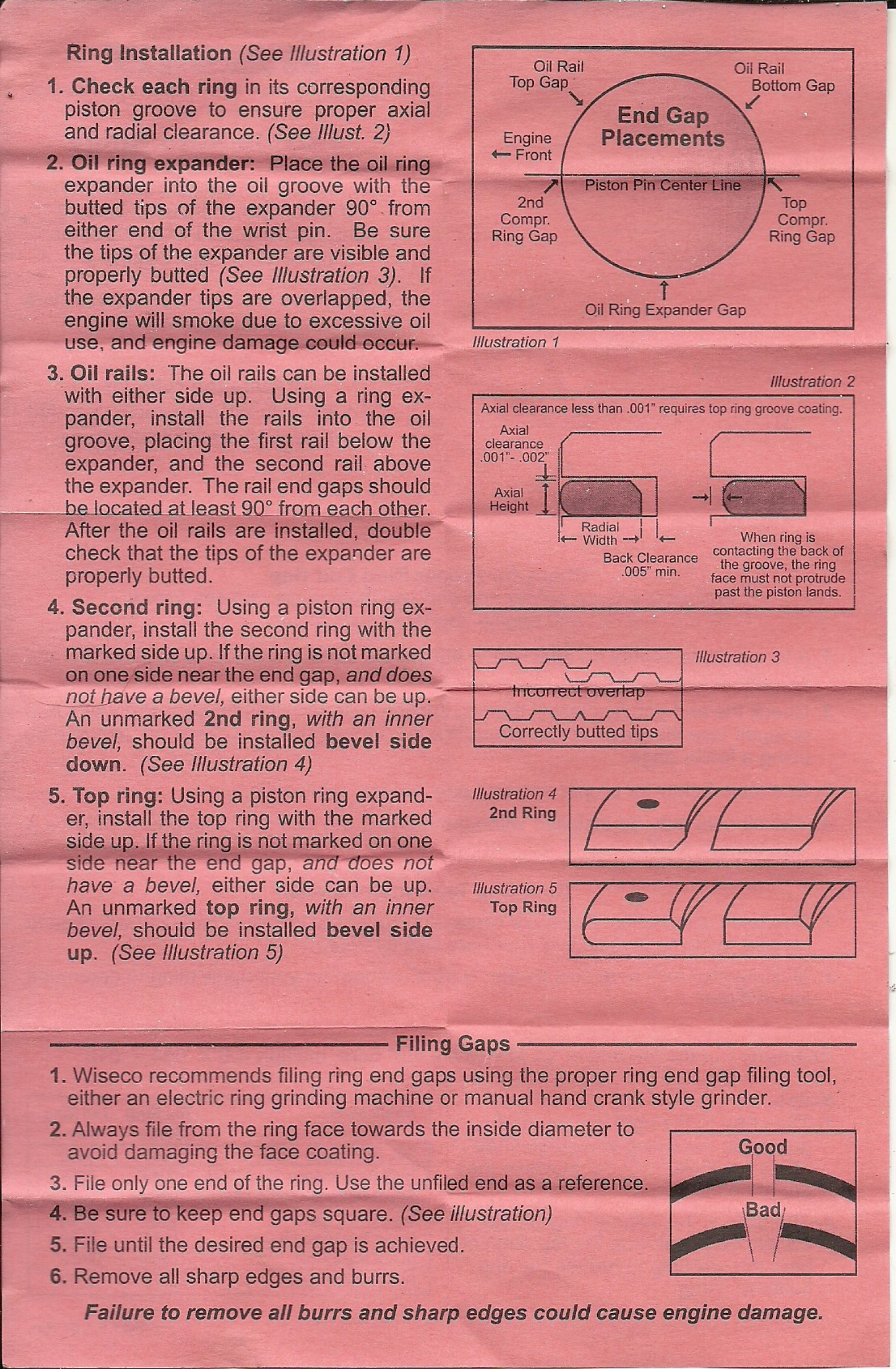

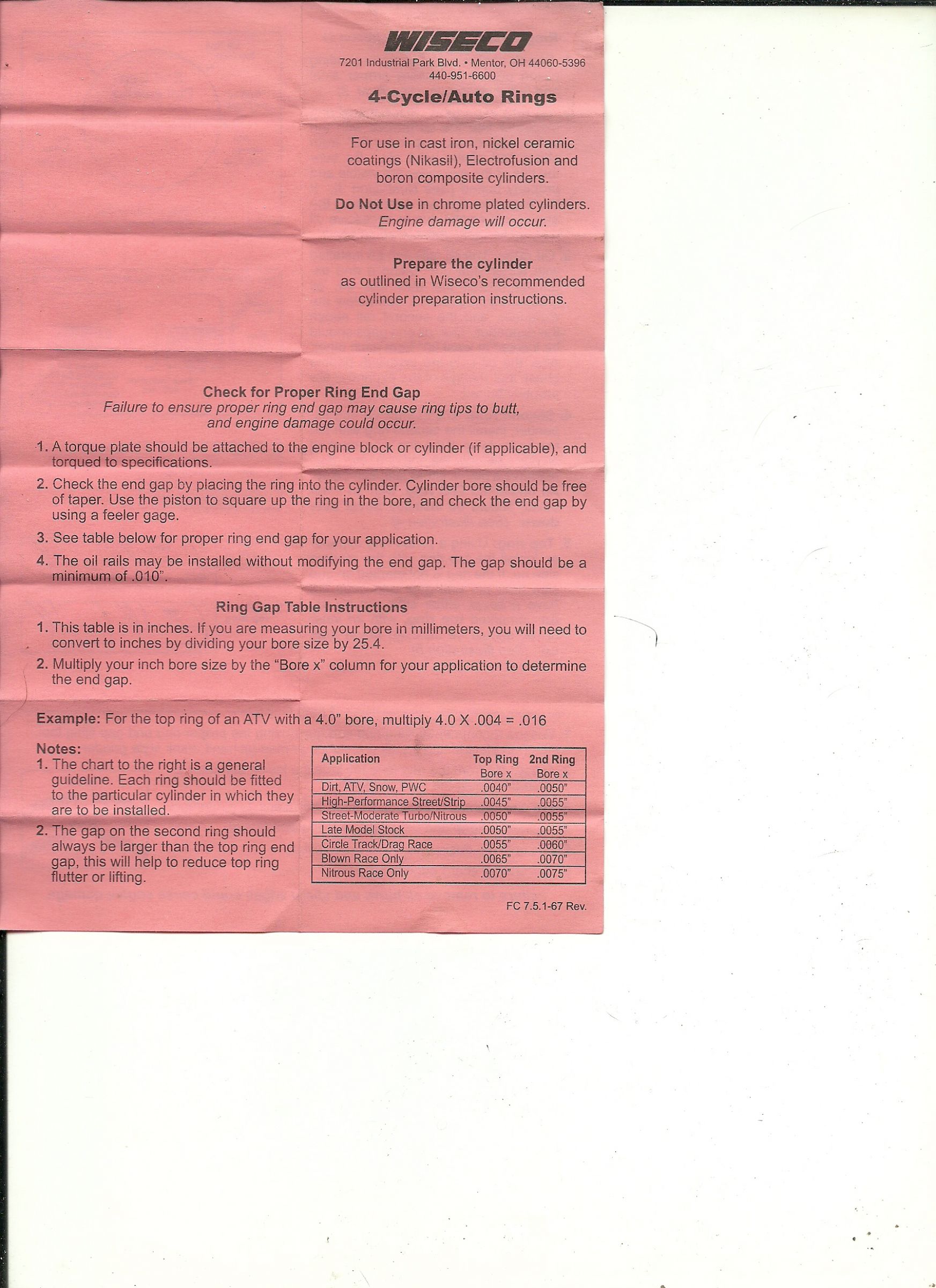

The markings are on top. The cutouts are on the bottom. This may help.
Steve




Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
Last edit: 28 Dec 2016 11:44 by SWest.
The following user(s) said Thank You: braddlesnake

Please Log in or Create an account to join the conversation.

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 7993
  • Thanks: 1648

Re: 1980 KZ750 LTD ring orientation

28 Dec 2016 12:51
#750829
Manual. What manual are you using? Is the bike a 750-4? There's a good pdf available on the 750Turbo site.
1981 KZ650 Competition Sports and Road

Please Log in or Create an account to join the conversation.

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 15334
  • Thanks: 2832

Re: 1980 KZ750 LTD ring orientation

28 Dec 2016 13:02 - 28 Dec 2016 13:03
#750830
braddlesnake wrote: hello,

i found some new old stock OEM rings but they don't come with any ring orientation diagrams, my manual is pretty useless on this front as well, I have a square and a beveled ring, which goes in the top and bottom and is the bevel up or down?

thanks for the help.

brad

I HIGHLY recommend that you buy a Kawasaki Service Manual rather than whatever you currently are using. Ed

[img
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Last edit: 28 Dec 2016 13:03 by 650ed.

Please Log in or Create an account to join the conversation.

  • braddlesnake
  • braddlesnake's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 17
  • Thanks: 0

Re: 1980 KZ750 LTD ring orientation

02 Jan 2017 20:40
#751239
Good tip Ed this Haynes manual seems to be missing a lot of vital info.


Thanks for the scans.

Brad

Please Log in or Create an account to join the conversation.

  • braddlesnake
  • braddlesnake's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 17
  • Thanks: 0

Re: 1980 KZ750 LTD ring orientation

02 Jan 2017 20:41
#751240
It is a 750 4, I'm using the Haynes manual. Not too helpful.

Please Log in or Create an account to join the conversation.

  • braddlesnake
  • braddlesnake's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 17
  • Thanks: 0

Re: 1980 KZ750 LTD ring orientation

03 Jan 2017 08:42
#751277
thanks for the tip, any chance you could post the link to the PDF? can't seem to find it.

Brad

Please Log in or Create an account to join the conversation.

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 7993
  • Thanks: 1648

Re: 1980 KZ750 LTD ring orientation

03 Jan 2017 09:07
#751282
Manual. 1980-84 KZ750-4. KZ700. 1983-85 ZX750. 750turbo.com --- Index .
The pdf manual link is near the bottom of the list. good pdf scans.

Wiring diagrams. mbsween. bike-night. KZ750L3 . Scroll down & click "The Bible" link.
the site has wiring diagrams & a manual that isn't scanned as good as the one on the Turbo site.
Note: some of the wiring diagrams are mislabeled in the links: the 1981 Ltd is an H2, the 82 is an H3, & the 83 is an H4.
