01 Oct 2016 19:01 - 01 Oct 2016 19:04 #744202
by LarryC
Larry C.
Flow Chart was created by LarryC

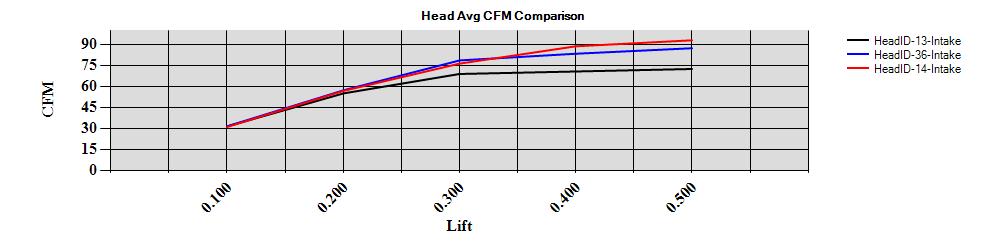

I added some new charting features to my flow bench software. Here's a sample chart.
All ported heads have 89% throats
Stock Kz [36mm Intake]
Street Ported KZ [36mm Intake]
Street Ported KZ [37M J model Intake]
Street Ported GPz11 Bathtub Chamber [ 38.6m Intake]
All ported heads have 89% throats
Stock Kz [36mm Intake]
Street Ported KZ [36mm Intake]
Street Ported KZ [37M J model Intake]
Street Ported GPz11 Bathtub Chamber [ 38.6m Intake]
Larry C.
Last edit: 01 Oct 2016 19:04 by LarryC.
