Tensioner workaround for valve clearance check
- martin_csr
-
Topic Author
- Offline
- User
-

Registered
- Posts: 7993
- Thanks: 1648
Tensioner workaround for valve clearance check
17 Sep 2016 12:46 - 17 Sep 2016 13:23
1981 KZ650-CSR w HyVo cam chain & slipper cam chain guides.
As most of you know with a HyVo cam chain, the auto tensioner can take up some slack when you remove the valve cover & turn the crankshaft. then you have to fiddle with the tensioner. What I'm planning on doing is to temporarily install an upper slipper guide w bracket from a ZR750 ZR7/ZR7S, then do the check. then remove the bracket & re-install the valve cover. From eebbaayy photos the csr cylinder head has the same cam roller bracket holes as the earlier 650s & they are threaded; and the ZR bracket looks the same where it bolts to the cylinder head. I've never heard of anyone doing this. I'll find out soon enough this fall, but does anyone know any reason why this won't work.
Edit: valve clearance check & assuming the valves won't need adjustment.
As most of you know with a HyVo cam chain, the auto tensioner can take up some slack when you remove the valve cover & turn the crankshaft. then you have to fiddle with the tensioner. What I'm planning on doing is to temporarily install an upper slipper guide w bracket from a ZR750 ZR7/ZR7S, then do the check. then remove the bracket & re-install the valve cover. From eebbaayy photos the csr cylinder head has the same cam roller bracket holes as the earlier 650s & they are threaded; and the ZR bracket looks the same where it bolts to the cylinder head. I've never heard of anyone doing this. I'll find out soon enough this fall, but does anyone know any reason why this won't work.
Edit: valve clearance check & assuming the valves won't need adjustment.
Last edit: 17 Sep 2016 13:23 by martin_csr.
Please Log in or Create an account to join the conversation.
- Nessism
-
- Offline
- Sustaining Member
-

Registered
- Posts: 8206
- Thanks: 3577
Re: Tensioner workaround for valve clearance check
17 Sep 2016 13:36
All you have to do with the tensioner is remove the cap and spring before installing the valve cover. It only takes about 20 seconds. Please be sure the cure isn't worse than the disease.
Ed
Carb O-ring Kits : www.kzrider.com/forum/14-vendor-forum/62...rburetor-o-ring-kits
www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know
1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Carb O-ring Kits : www.kzrider.com/forum/14-vendor-forum/62...rburetor-o-ring-kits
www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know
1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Please Log in or Create an account to join the conversation.
- Daftrusty
-
- Offline
- User
-

Registered
- Posts: 379
- Thanks: 212
Re: Tensioner workaround for valve clearance check
17 Sep 2016 14:08

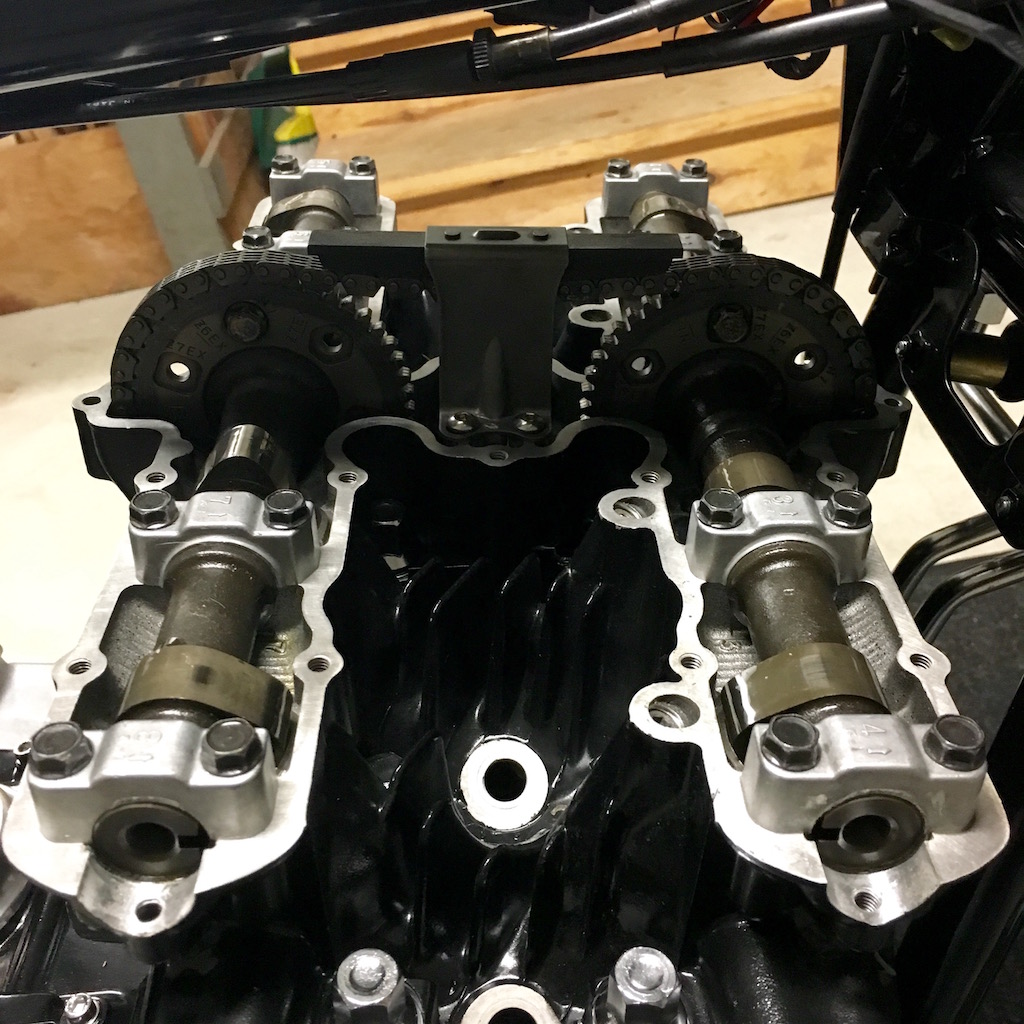

I did just exactly as you described by using a zr-7 upper cam guide when I was installing and indexing my zx750 cams on my kz750e.
