KZ400 removing clutch cover/shifter return spring
- de Courcy
- Topic Author
- Offline
- User
Took it to a dealer and they said it was probably the return spring, apparently they had almost an identical bike with the same problem a few weeks ago.
I'm having trouble getting the clutch plate off, the manual is a bit unclear, also i am new to motorcycles. Looks like the timing assembly needs to come off too, but the nut turns with the crankshaft and even with the bike in gear I can't get it off. How do I remove this nut? Or do i need to disassemble the timing advancer completely?
I'd just like to take the plate off to see if it is the return or the pawl spring, but I am scratching my head on how to get it off.
Hope someone can help, and thanks in advance!
William
1978 KZ400
Please Log in or Create an account to join the conversation.
- de Courcy
- Topic Author
- Offline
- User
- Posts: 23
- Thank you received: 0
There is a great video, but no info on the crankshaft nut.
1978 KZ400
Please Log in or Create an account to join the conversation.
- TexasKZ
- Offline
- Platinum Member
- Posts: 7564
- Thank you received: 2234
Have you tried properly adjusting the clutch cable? There is a specific procedure.
Do you have a factory service manual? You really should have one before you start disassembling things. A Clymer manual is better than nothing, but the factory manual is more specific.
Have you checked the oil level? Do you know if it is the correct oil? It needs to meet JASO MA specifications.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
Please Log in or Create an account to join the conversation.
- diggerdanh
- Offline
- User
- Posts: 242
- Thank you received: 89
There are two pieces at the end of the crankshaft - a larger 17mm nut that you can use to rotate the engine and a smaller bolt (14mm IIRC) that holds the 17mm nut on. Loosen the 14mm bolt and the whole assembly will come off and then you can remove the timing plate, etc. You may need to hold the 17mm nut with one wrench while turning the 14mm bolt with another (or a socket).
Ha. It's been awhile but now I remember that I ran into this issue with my first KZ400 where the bolt was in really tight. The issue is that the flat of the 17mm nut is not very wide so it is difficult to get a wrench on it and another wrench on the head of the 14mm bolt and not enough clearance to use a socket on the 14mm bolt. This is where a thin 17mm wrench or a thin-walled socket would be a blessing. I ended up getting lucky by finding a crescent wrench that was thin enough to use to hold the 17mm nut so I could get another wrench solidly on the bolt.
Best of luck to you.
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
de Courcy wrote: Hello! I just bought a 1978 KZ400 yesterday, my first motorcycle (only has 11,000k!!) :laugh: and rode it for about 5 or 6 hours. Today it wouldn't shift properly, seemed like something happened overnight, literally....
Perhaps nothing's wrong.

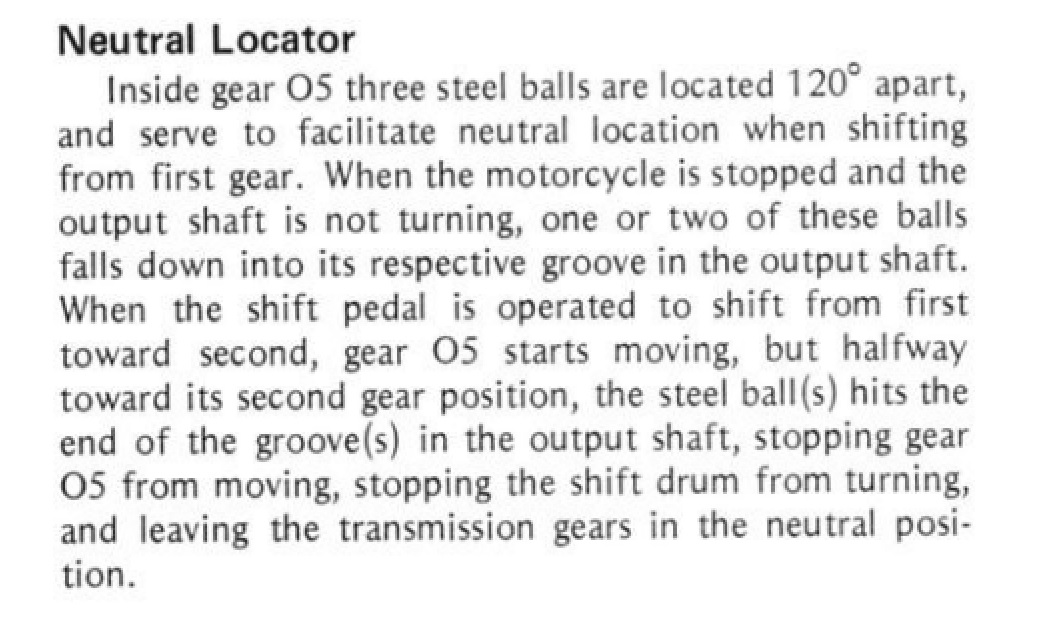

The transmission is designed to NOT shift above neutral unless the rear wheel is rolling forward at sufficient speed.
