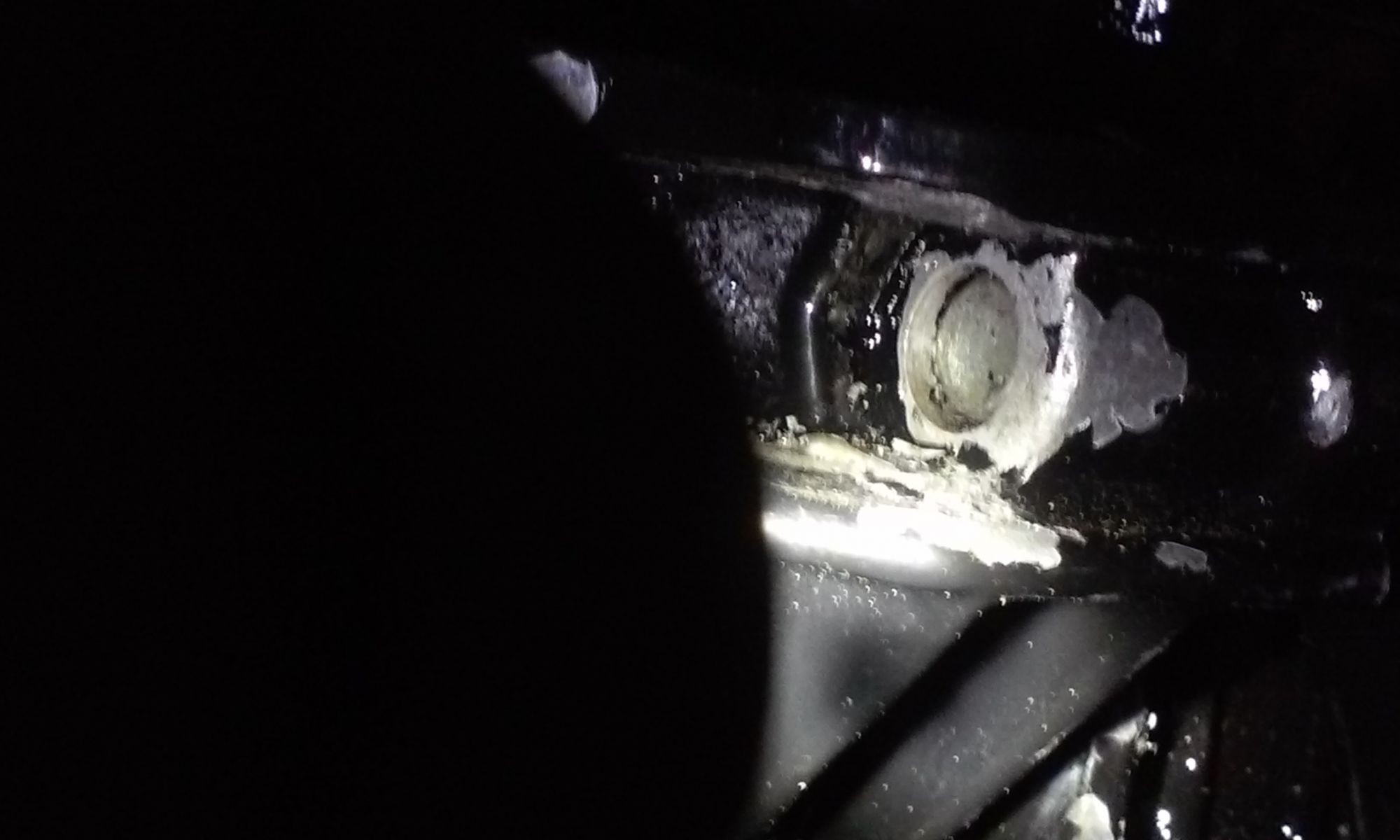

engine mount nut won't go in nut shaped groove
- blink543
- Topic Author
- Offline
- User
Adam james
Please Log in or Create an account to join the conversation.
- blink543
- Topic Author
- Offline
- User
- Posts: 285
- Thank you received: 2
- Nessism
- Offline
- Sustaining Member
- Posts: 7507
- Thank you received: 2823
Please Log in or Create an account to join the conversation.
- rstnick
- Offline
- User
- Posts: 4373
- Thank you received: 377
The head of the bolt fits into the engine casting, coming from the center out, so you can install a nut from the outside.
Sounds like this is where you are having trouble, that the head of the bolt is not fitting the casting in the engine?
Maybe you are installing the bolts backwards, from the outside, and trying to put the nuts in the center/inside?
Install the bolts so the nuts are on the outside/left and right side of the engine.
2 short bolts on the front top mounting??? Isn't that supposed to be 1 long bolt?
The B1 has 1 long bolt; the C1 has 2 shorter bolts. Strange but true. LOL Ed
Both my B and D have two bolts at the upper front,(triangle plate). The heads on them index into a recess in the case. They run from the inside out with the nut on the outside. They're 10mm x 1.25mm pitch, to fit with case savers one is 65mm, the other is 95mm long.
Rob
CANADA
Need a key for your Kawasaki? PM me
1978 KZ650 C2, 130K kms, Delkevic ex, EI, CVK32, PMC easy clutch, ATK fork brace, steering damper, braced swingarm, 18" Z1R front wheel.
2000 ZRX1100
2011 Ninja 250R
2005 z750s
Please Log in or Create an account to join the conversation.
- KZB2 650
- Offline
- User
- Posts: 1475
- Thank you received: 265
rstnick wrote: Some 650s use a single long threaded rod for the front mounts, and some use the two separate bolts (approx. 4" long) and nuts.
The head of the bolt fits into the engine casting, coming from the center out, so you can install a nut from the outside.
Sounds like this is where you are having trouble, that the head of the bolt is not fitting the casting in the engine?
Maybe you are installing the bolts backwards, from the outside, and trying to put the nuts in the center/inside?
Install the bolts so the nuts are on the outside/left and right side of the engine.
This what my parts break down catalog says for a KZ650B.
Front .......Upper left bolt #1 cyl....72mm long .............. Upper right #4 cyl.....46mm long
Lower left...... 84mm long ........ lower right same 84mm long
rear left 219mm long ....... rear right 250mm long. The other 4 rear bolts that hold the brackets on in the rear are 40mm long ..... Maybe your trying to fit one of these in the upper right front when you need the 46mm long one.
(Your picture Rstnick shows what I have on my bike).
1978 KZ650 b-2
700cc Wiseco kit 10 to 1.
1980 KZ750 cam, ape springs, stock clutch/ Barnett springs.
Vance and Hines Header w/ comp baffle and Ape pods, Dyna S and green coils, copper wires.
29MM smooth bores W/ 17.5 pilots, 0-6s and 117.5 main
16/42 gearing X ring chain and alum rear JT sprocket.
