Zed 1015's comments were well taken. While watching and commenting on the other cooler thread, I've been quietly playing with mine.
The cooler was meant for a high pressure system. The hoses were 3/8. The fitting size was much smaller.

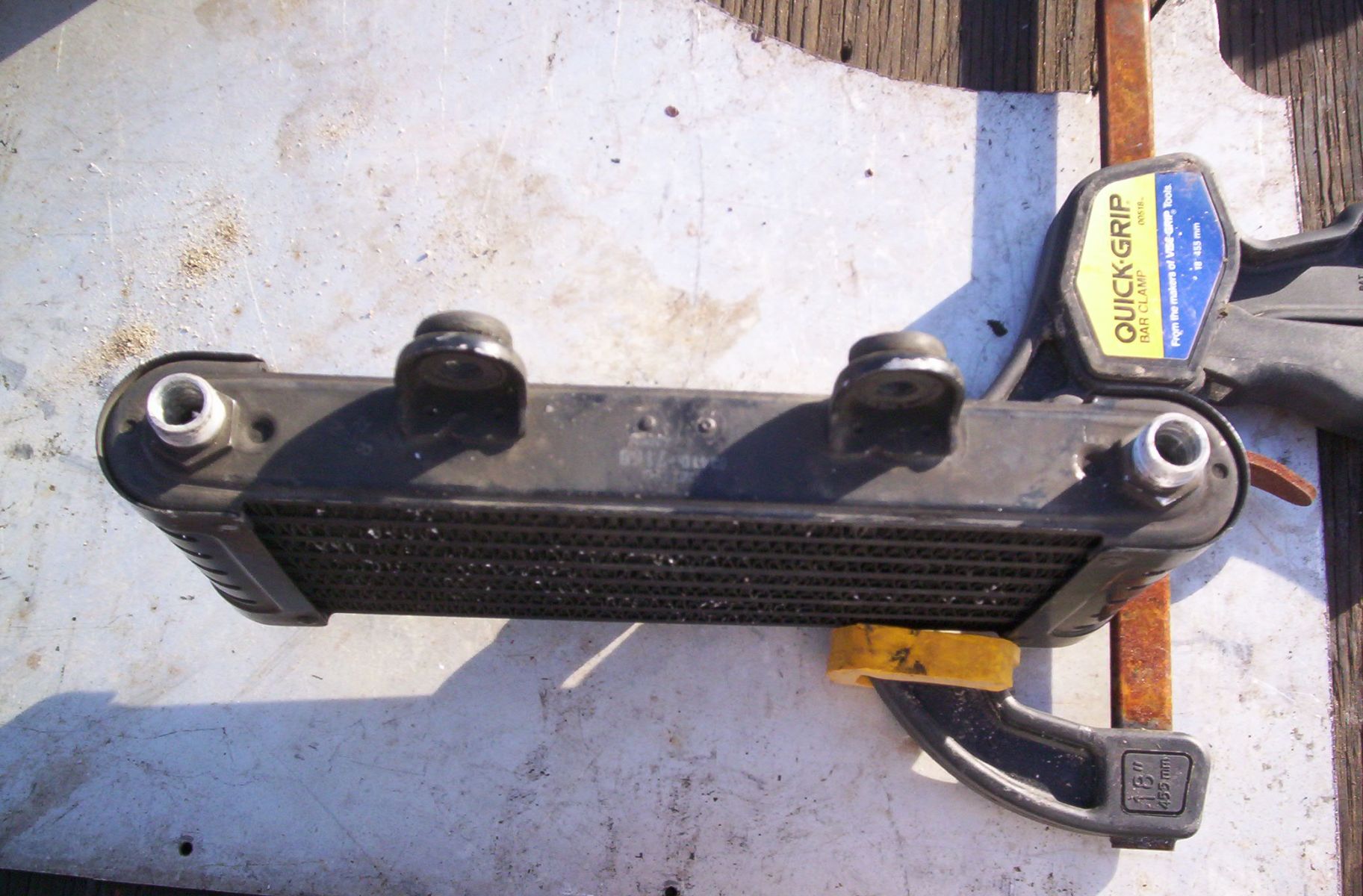

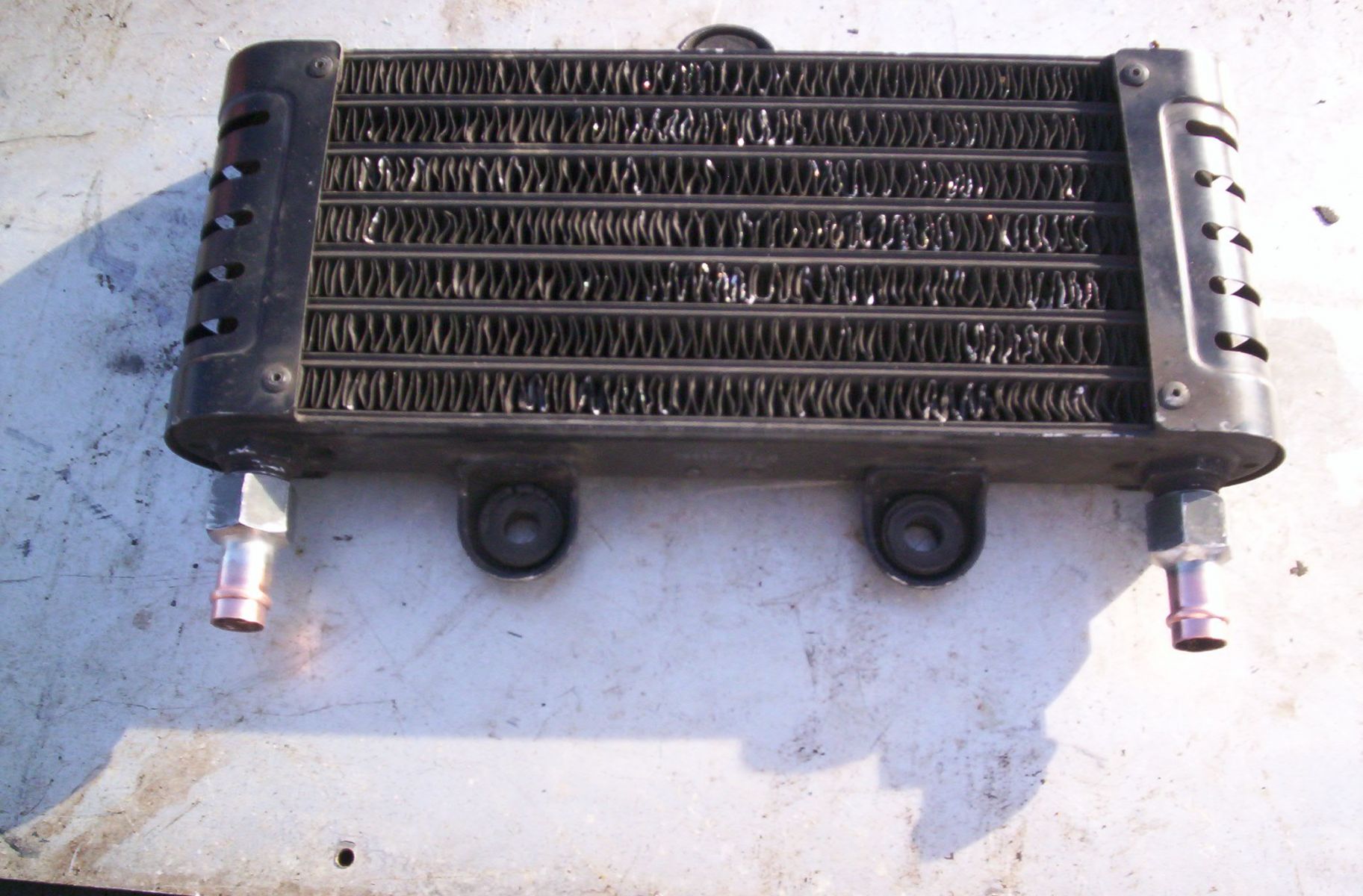

I cut the nipples off my old cooler, drilled and sweat soldered them to the couplings that came with it. The solder has a high tin content (no lead), so heat shouldn't be a problem. Just in case I flared the inside a little.
Being the lines were small with a O ring, the next step was to open the intakes more. .435"/ 11.08mm. The nipple ID is .434"/ 11.03mm.
There was a lot of meat there. Should work out pretty well.
Now to run the lines. I'll prime the cooler before I put it into service.
More to come.
Steve
The cooler was meant for a high pressure system. The hoses were 3/8. The fitting size was much smaller.
I cut the nipples off my old cooler, drilled and sweat soldered them to the couplings that came with it. The solder has a high tin content (no lead), so heat shouldn't be a problem. Just in case I flared the inside a little.
Being the lines were small with a O ring, the next step was to open the intakes more. .435"/ 11.08mm. The nipple ID is .434"/ 11.03mm.
There was a lot of meat there. Should work out pretty well.
Attachment 014-2.jpg not found
Now to run the lines. I'll prime the cooler before I put it into service.
More to come.
Steve
Last edit: 02 Dec 2015 14:00 by SWest.
Please Log in or Create an account to join the conversation.
- undiablo
- Offline
- User
Less
More
- Posts: 436
- Thank you received: 64
02 Dec 2015 13:22 #701601
by undiablo
Kawasaki KZ 750/4 LTD 1981
Kawasaki KLR 650 2011
Argentina - Buenos Aires
Replied by undiablo on topic ZX7/Z1 Oil Cooler
just use a harley old thermostat. I have one since 2013... no problems.
Plenty on ebay and pretty cheap.
Plenty on ebay and pretty cheap.
Kawasaki KZ 750/4 LTD 1981
Kawasaki KLR 650 2011
Argentina - Buenos Aires
Please Log in or Create an account to join the conversation.
- SWest
- Topic Author
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 22992
- Thank you received: 2752
02 Dec 2015 13:24 #701603
by SWest
Replied by SWest on topic ZX7/Z1 Oil Cooler
Got a link?
Steve
Steve
Please Log in or Create an account to join the conversation.
- redhawk4
- Offline
- User
Less
More
- Posts: 640
- Thank you received: 64
02 Dec 2015 14:17 #701615
by redhawk4
1978 KZ1000A2 Wiseco 1075 kit
1977 KZ650B1
1973 Triumph Tiger TR7V
1968 BSA Victor Special 441
2015 Triumph Thunderbird LT
1980 Suzuki SP400
Old enough to know better, still too young to care
Replied by redhawk4 on topic ZX7/Z1 Oil Cooler

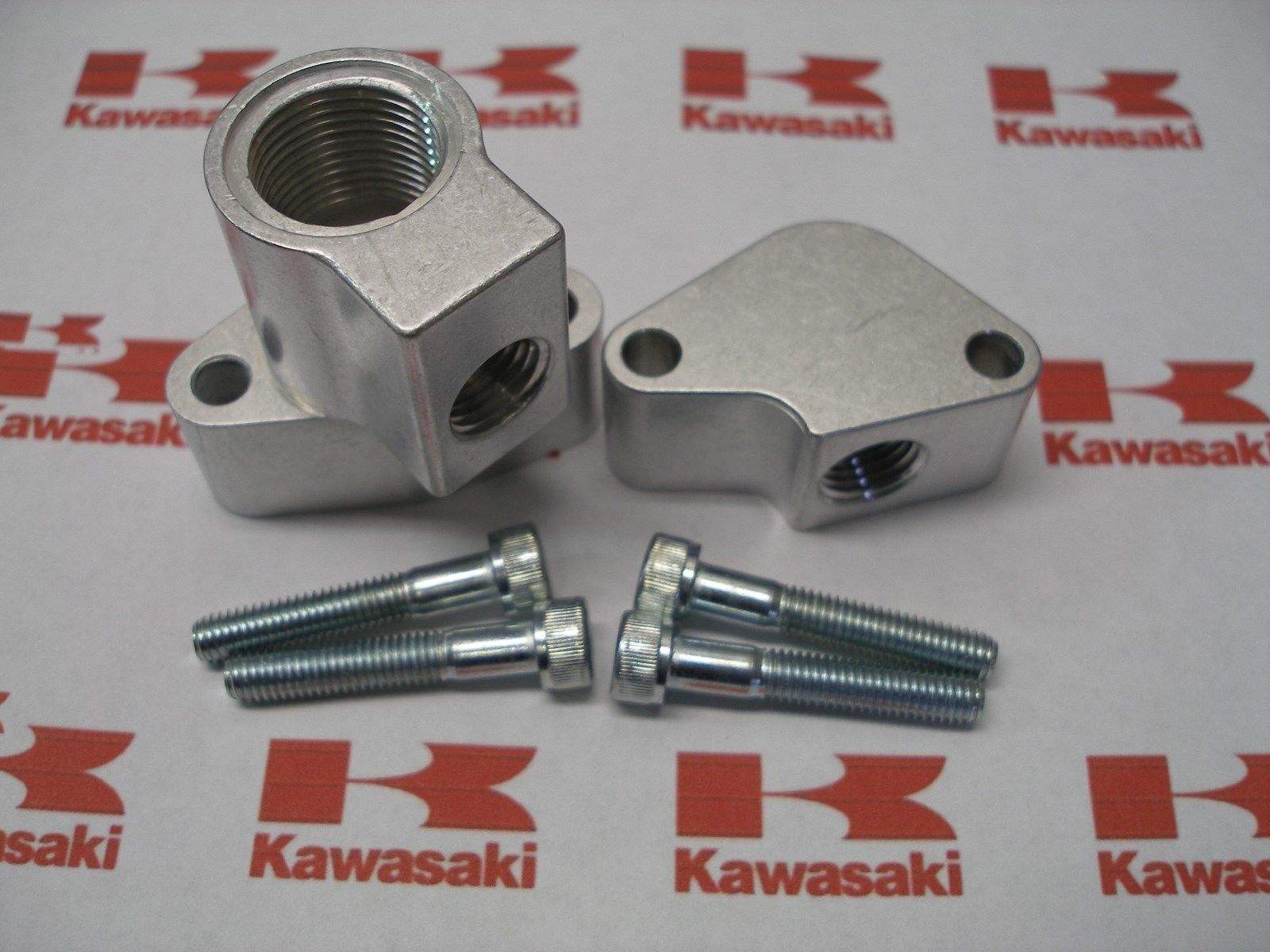

No eBay APP ID and/or Cert ID defined in Kunena configurationI've been watching this one on Ebay if it helps, kind of a name brand.
1978 KZ1000A2 Wiseco 1075 kit
1977 KZ650B1
1973 Triumph Tiger TR7V
1968 BSA Victor Special 441
2015 Triumph Thunderbird LT
1980 Suzuki SP400
Old enough to know better, still too young to care
Please Log in or Create an account to join the conversation.
- SWest
- Topic Author
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 22992
- Thank you received: 2752
03 Dec 2015 05:47 - 03 Dec 2015 05:48 #701692
by SWest
Replied by SWest on topic ZX7/Z1 Oil Cooler
Looks good. Squirted a little paint on it. It's purdy. I may have to get some 90* barb fittings for it so the lines won't be hanging out and I can tuck them under the cooler, along the back bone, then down to the fittings.
Steve
Steve
Last edit: 03 Dec 2015 05:48 by SWest.
Please Log in or Create an account to join the conversation.
- SWest
- Topic Author
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 22992
- Thank you received: 2752
10 Dec 2015 15:07 #702663
by SWest
Replied by SWest on topic ZX7/Z1 Oil Cooler

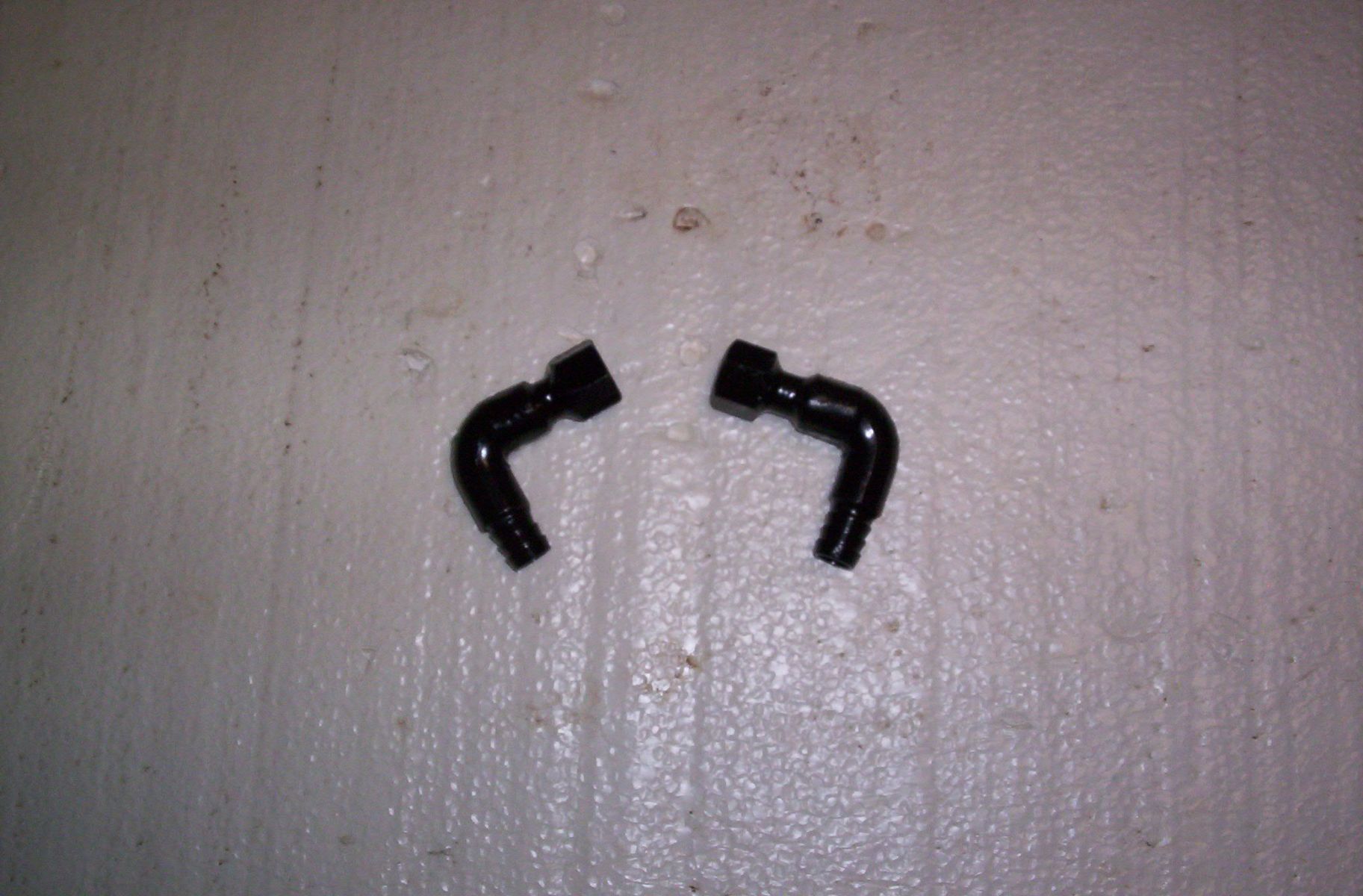

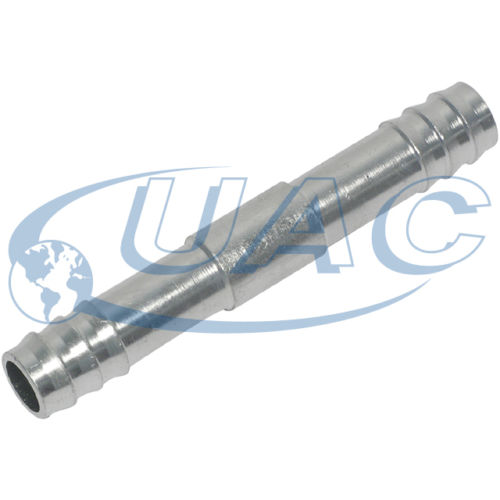

Being the fittings on the cooler are 3/8" compression and I was able to open up the inlets to 1/2" 3/8" compression/ 1/2" barb don't exist not to mention 90*. So I had to make my own. Used a copper 90* street elbow, crimped the slip side with my flaring tool in a vice, cut a double barb fitting in half and soldered them together. Had to drill out the slag inside and they should work for now.
May look a little funky but they'll work.
Steve
May look a little funky but they'll work.
Steve
Please Log in or Create an account to join the conversation.
- SWest
- Topic Author
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 22992
- Thank you received: 2752
11 Dec 2015 15:04 #702758
by SWest
Replied by SWest on topic ZX7/Z1 Oil Cooler
Well got them on. Had to make spacers to get the cooler away from the crash bar and let the clutch cable run where it needs to be. Used 3/8 fuel line and longer bolts. Nice and solid. Put some clear tubing on the inlets to keep dirt out while I get the rest of what I need.
Steve
Got some rain. Just enough to dirty up cars. Snow on the mountain though.
Steve
Got some rain. Just enough to dirty up cars. Snow on the mountain though.
Please Log in or Create an account to join the conversation.
- TexasKZ
- Offline
- Platinum Member
Less
More
- Posts: 7572
- Thank you received: 2236
11 Dec 2015 17:59 #702781
by TexasKZ
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
Replied by TexasKZ on topic ZX7/Z1 Oil Cooler
Are you planning to run the lines between headers 2&3, then under the engine?
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
Please Log in or Create an account to join the conversation.
- SWest
- Topic Author
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 22992
- Thank you received: 2752
11 Dec 2015 18:23 #702784
by SWest
Replied by SWest on topic ZX7/Z1 Oil Cooler

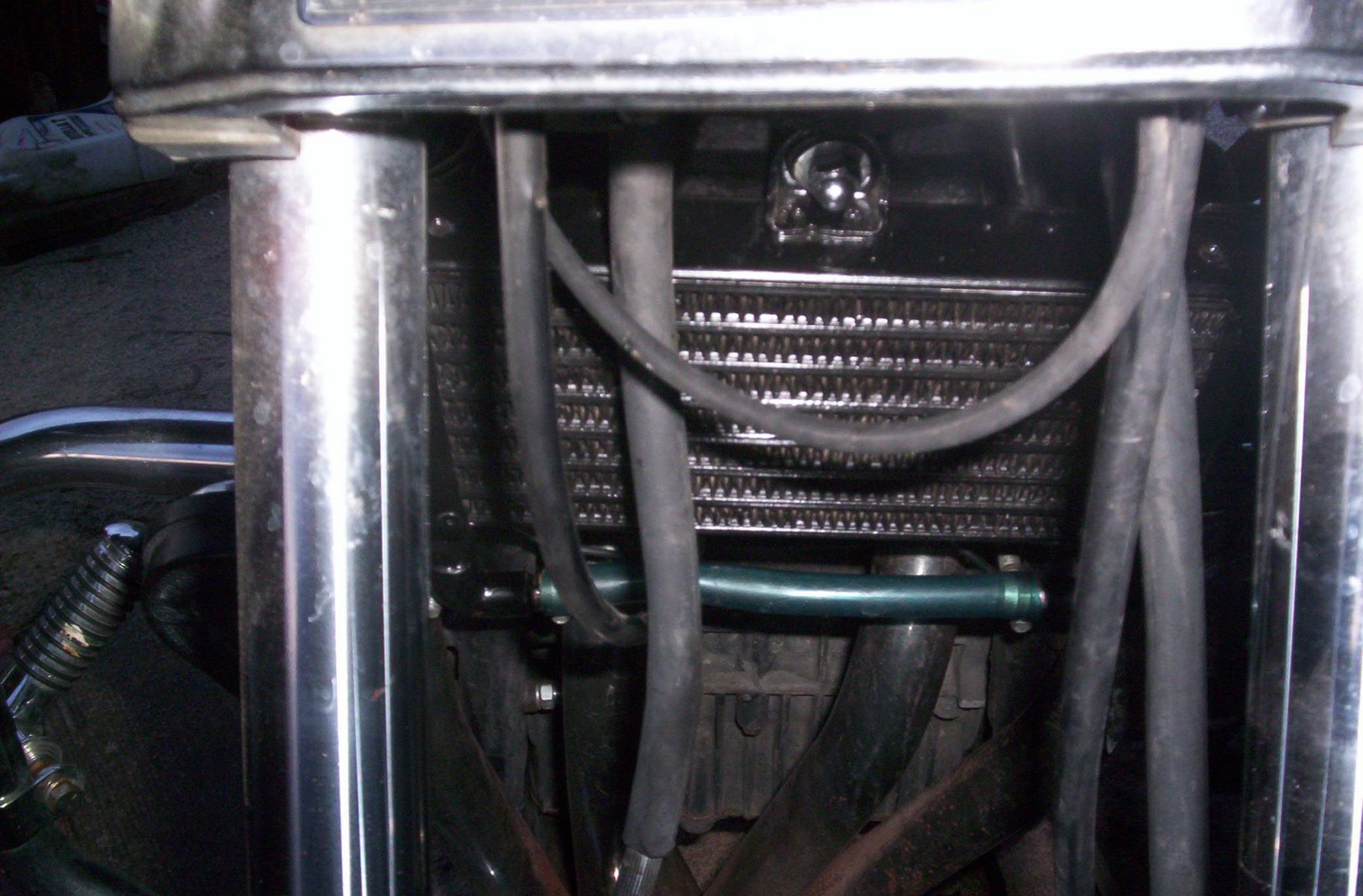

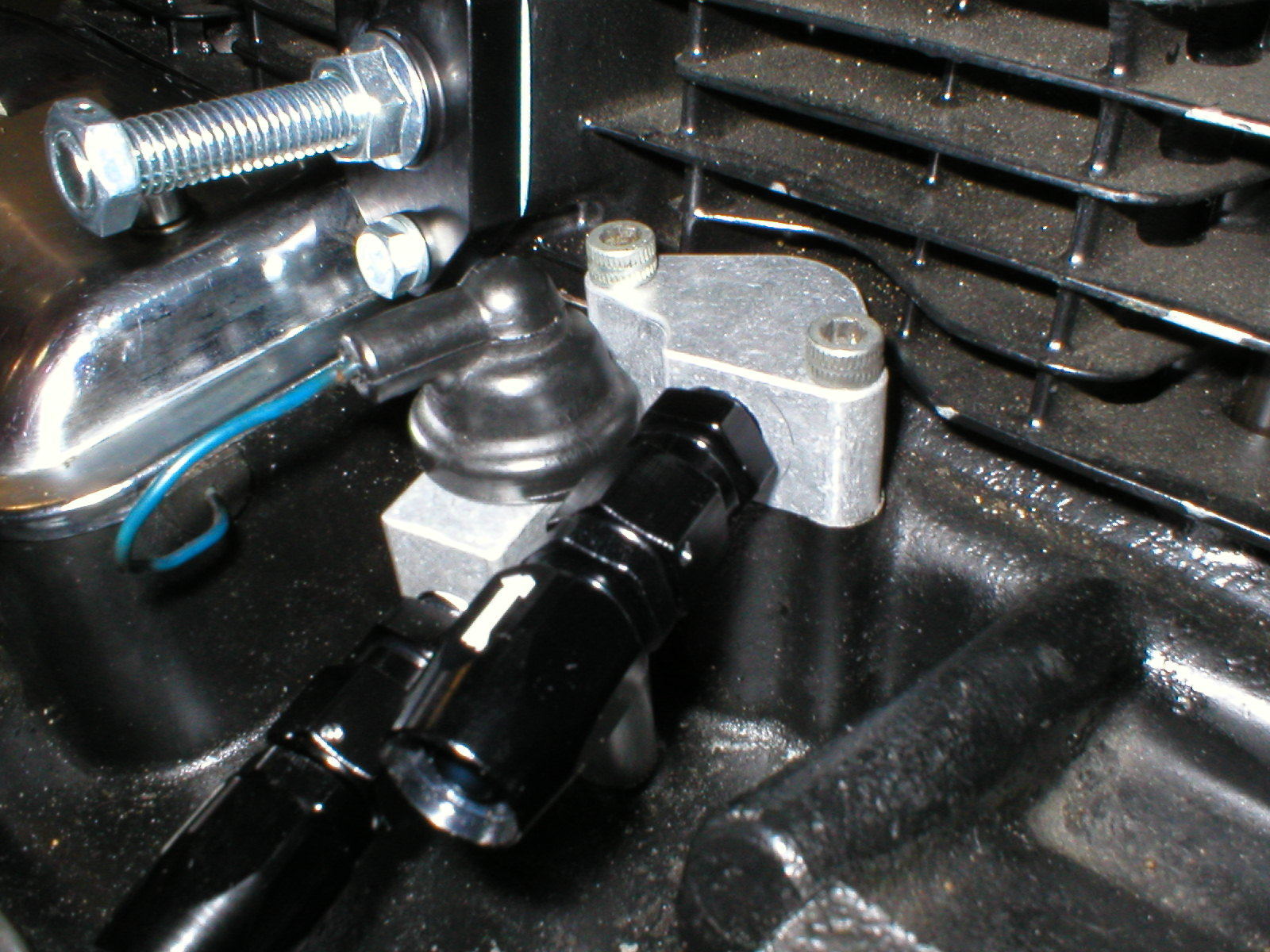

No up and over the top along the back bones, then down between 2&3 carbs. The idea is for the oil to stay in the cooler.
