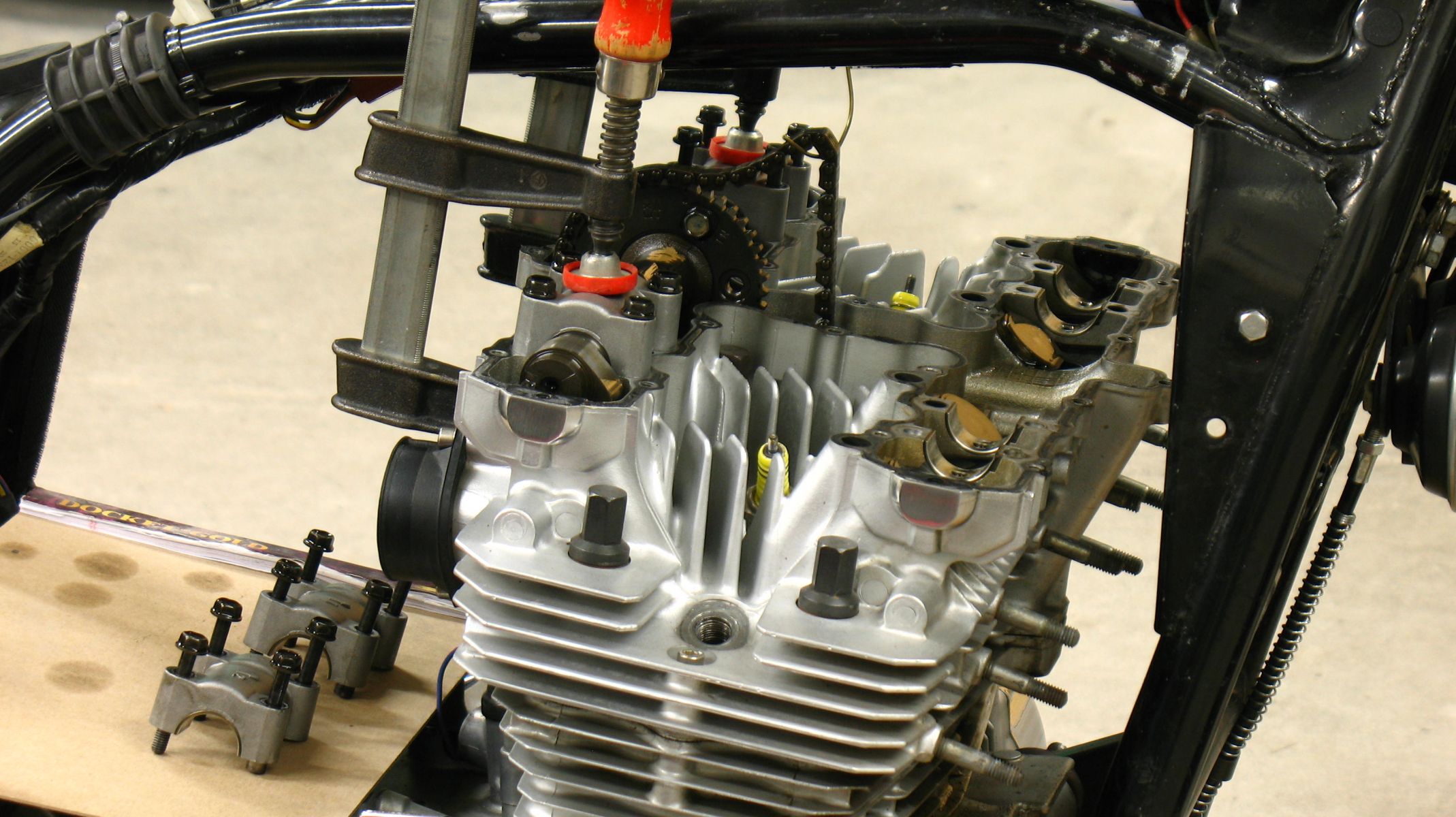

Bearing cap bolt thread repair
- diego092409
- Topic Author
- Offline
- User
1982 KZ1100 B2 - 'Old Red' kzrider.com/forum/11-projects/601185-gpz-1100-resto-mod-old-red
2015 BMW K1600GT
2017 KTM 690 Enduro R
2018 Kymco Spade (wife's)
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
- Posts: 15344
- Thank you received: 2829
I have two recommendations -
Replace the helicoils with Timeserts. They provide a true, permanent fix. See www.timesert.com
Use a torque wrench calibrated in INCH pounds and set it to the inch pound spec for the bolts. The problem using one calibrated in foot pounds is that those normally have a higher torque range. Even the world's best torque wrenches are not accurate below 20% of their maximum range. So, for example, if a torque wrench has 100 foot pounds as the highest number on its scale it will not be accurate below 20 foot pounds.
Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- Mcdroid
- Offline
- User
- Gone Kwackers
- Posts: 6633
- Thank you received: 317
650ed wrote: I believe there may be an error in the manual. 12 foot pounds seems very high for those 6mm bolts. The spec for the KZ650 6mm cam cap bolts is 95-113 INCH pounds which is about 8 - 9.4 FOOT pounds. I never torque mine above 100 INCH pounds. Perhaps someone on this site has an updated manual for the KZ1100 that shows a revised torque figure for your bike.
I have two recommendations -
Replace the helicoils with Timeserts. They provide a true, permanent fix. See www.timesert.com
Use a torque wrench calibrated in INCH pounds and set it to the inch pound spec for the bolts. The problem using one calibrated in foot pounds is that those normally have a higher torque range. Even the world's best torque wrenches are not accurate below 20% of their maximum range. So, for example, if a torque wrench has 100 foot pounds as the highest number on its scale it will not be accurate below 20 foot pounds.
Ed
Ed is 100% spot on...8-9 ft lbs...use a torque wrench calibrated in inch lbs to be more correct (e.g. 100 in ch lbs or so). If the caps cannot be torqued, then the helicoils may already be stripped and do need to be replaced...Timeserts can be a bit pricey but with a bit of practice, provide a surefire solution (this is what I had to do on my GPz1100).
Michael
Victoria, Texas
1982 GPz750
1977 KZ1000A
1978 KZ1000A
1982 GPz1100
1975 Z2A
Please Log in or Create an account to join the conversation.
- diego092409
- Topic Author
- Offline
- User
- Posts: 110
- Thank you received: 4
Ok. I will get the timeserts. My wife keeps admonishing me that when I work on something, something else breaks. I just glare at her. I can probably get them to click at the lower torque.Mcdroid wrote:
650ed wrote: I believe there may be an error in the manual. 12 foot pounds seems very high for those 6mm bolts. The spec for the KZ650 6mm cam cap bolts is 95-113 INCH pounds which is about 8 - 9.4 FOOT pounds. I never torque mine above 100 INCH pounds. Perhaps someone on this site has an updated manual for the KZ1100 that shows a revised torque figure for your bike.
I have two recommendations -
Replace the helicoils with Timeserts. They provide a true, permanent fix. See www.timesert.com
Use a torque wrench calibrated in INCH pounds and set it to the inch pound spec for the bolts. The problem using one calibrated in foot pounds is that those normally have a higher torque range. Even the world's best torque wrenches are not accurate below 20% of their maximum range. So, for example, if a torque wrench has 100 foot pounds as the highest number on its scale it will not be accurate below 20 foot pounds.
Ed
Ed is 100% spot on...8-9 ft lbs...use a torque wrench calibrated in inch lbs to be more correct (e.g. 100 in ch lbs or so). If the caps cannot be torqued, then the helicoils may already be stripped and do need to be replaced...Timeserts can be a bit pricey but with a bit of practice, provide a surefire solution (this is what I had to do on my GPz1100).
1982 KZ1100 B2 - 'Old Red' kzrider.com/forum/11-projects/601185-gpz-1100-resto-mod-old-red
2015 BMW K1600GT
2017 KTM 690 Enduro R
2018 Kymco Spade (wife's)
Please Log in or Create an account to join the conversation.
- daveo
- Offline
- Premium Member
- Posts: 2803
- Thank you received: 655
I think the problem either starts with poor aluminum casting quality, or PO's using less care when installing cams. IMO, you just can't rely on 6mm aluminum female threads to stand up to repeated stress exerted on them when drawing cams/caps down with the bolts.
1982 KZ1100-A2
Please Log in or Create an account to join the conversation.
- KZB2 650
- Offline
- User
- Posts: 1475
- Thank you received: 265
I always stop at 80 inch lbs too........ Doing them by hand (before buying the wrench) I would of stopped at 60 to 65 inch Lbs so I guess that's why I never stripped one before including the valve cover.
