'77 Kz650c Potential Valve Issues

18 Jan 2015 19:56
#659040
Hey, this is my first post. This is a rad community and I'm stoked to be a part of it!


Attachment CAM00118.jpg not found




I've got a 1977 KZ650C chop. It ran fast and loud before I started having some issues a few weeks ago. One day I started it up and after a brief warm up and ride it felt like it was running poorly and wouldn't stay running at an idle. I parked it at home and let it sit. It was just after dark and while trying to get it to run again I realized it wasn't firing correctly on the number 3 cylinder. The exhaust tube coming from number 3 wasn't cold, however, it was searing hot. If I gave it some throttle (while running) it would smell like hot and the pipe itself started glowing a dull orange. I immediately turned the bike off. I cleaned the carbs, jets, float needles, made sure floats were adjusted correctly, etc. The problem has persisted though and I won't let the bike run for more than needed to try out little fixes.

Does this sound like a stuck valve on the exhaust side of cylinder 3? If not, what should I look at next? If it is, should I remove the cylinder heads and start there? I have the Clymer manual and have taken the bike apart a few times, but I don't want to get into the block before I get a second opinion.

I appreciate any help.

Attachments:

Please Log in or Create an account to join the conversation.

  • !Seymore
  • !Seymore's Avatar
  • Offline
  • User
  • User
    Registered
  • Ride on...
  • Posts: 489
  • Thanks: 87

Re: '77 Kz650c Potential Valve Issues

18 Jan 2015 20:00 - 18 Jan 2015 20:01
#659041
Welcome. If you have a stuck/bad valve,... have you run a compression check?
C.
79' KZ650-D2 [fsm] (Max)
83' KZ750-F1 LTD [clymers] (Kay)
82' KZ1100-D1 Specter (another project)
78' KZ650-B2a (J&H, A Project)
91' KZ1000-P (P = parts)
Last edit: 18 Jan 2015 20:01 by !Seymore.

Please Log in or Create an account to join the conversation.

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • Posts: 7748
  • Thanks: 3138

Re: '77 Kz650c Potential Valve Issues

18 Jan 2015 20:02 - 18 Jan 2015 20:03
#659043
Glowing red exhaust pipes are NOT good. Not sure what to suggest other than the basics like making sure the carbs are clean, no intake boot leaks, the choke isn't sticking open, and adjust the valves. Valves rarely stick, but a lot of people don't adjust them which causes them to burn.
Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0

www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Last edit: 18 Jan 2015 20:03 by Nessism.
The following user(s) said Thank You: PLUMMEN

Please Log in or Create an account to join the conversation.

  • rage_rides
  • rage_rides's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 3
  • Thanks: 0

Re: '77 Kz650c Potential Valve Issues

18 Jan 2015 20:06 - 18 Jan 2015 20:07
#659044
I haven't run a compression check. Should I? And what would poor compression indicate for the situation? And I haven't done a valve adjustment since I've owned the bike, I should probably take a look at that.
Last edit: 18 Jan 2015 20:07 by rage_rides. Reason: Replies

Please Log in or Create an account to join the conversation.

  • Patton
  • Patton's Avatar
  • Offline
  • KZr Legend
  • KZr Legend
    Registered
  • Posts: 18568
  • Thanks: 2101

Re: '77 Kz650c Potential Valve Issues

18 Jan 2015 20:28 - 18 Jan 2015 20:32
#659045

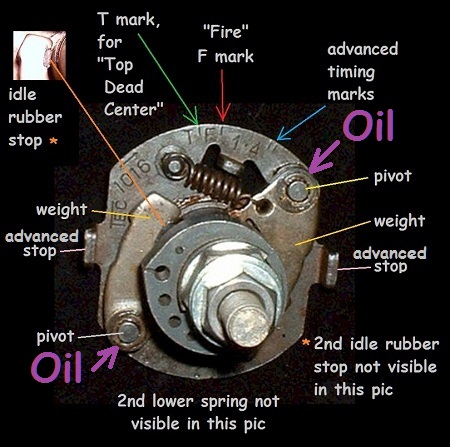

If not already done, would also inspect and assure serviceable condition and proper functioning of the ignition timer advancer unit, especially that the weight arms move freely on their pivots.

The advancer might be rusted and stuck in position, or the pivots might simply need lubing.

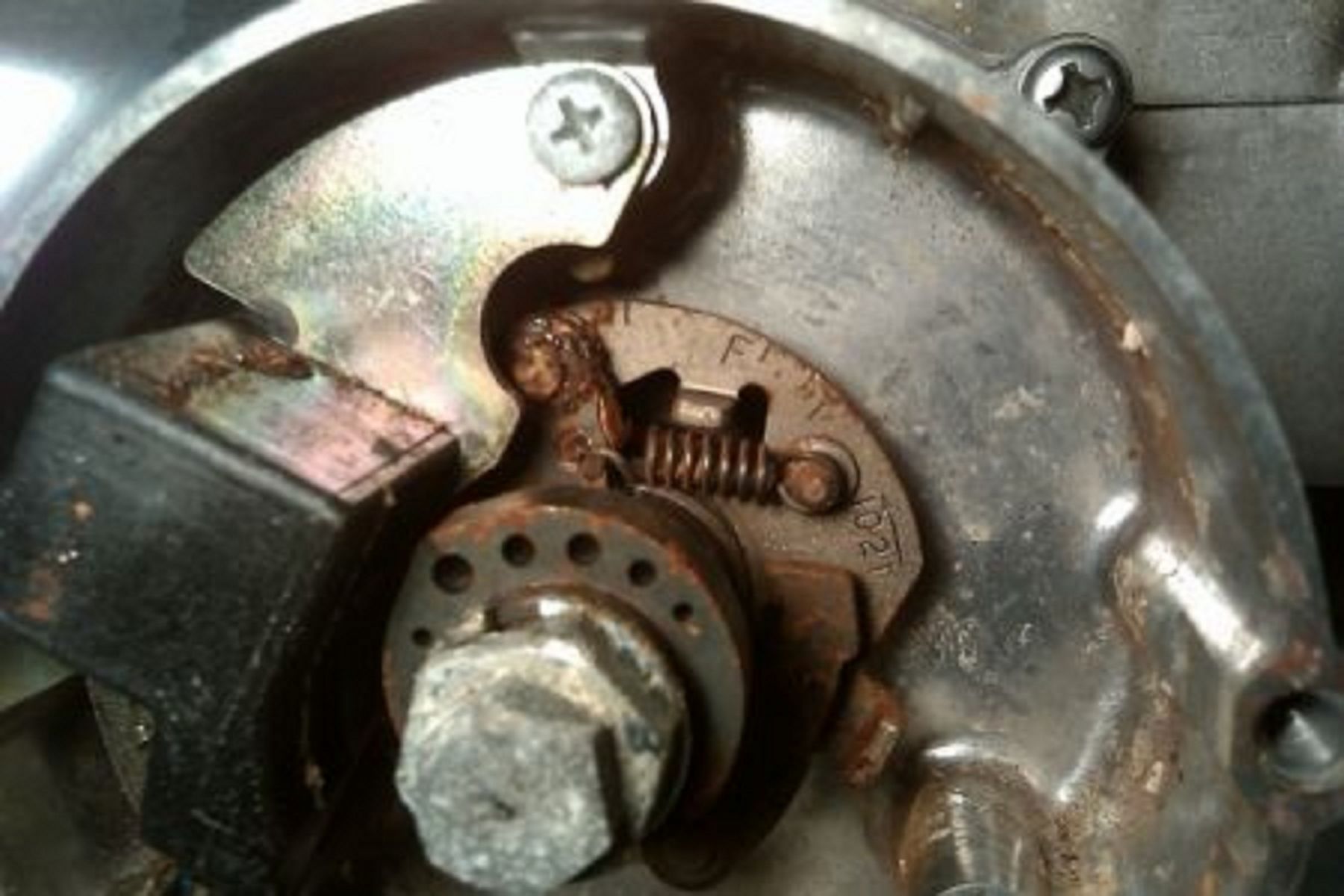

The advancer isn't supposed to look like this:




Where lubing is desired, may sometimes reach the pivots through the timing inspection window (without needing to remove the points plate in order to gain full access to the entire advancer).





Good Fortune! :)
1973 Z1
KZ900 LTD

Attachments:

Last edit: 18 Jan 2015 20:32 by Patton.
The following user(s) said Thank You: rage_rides

Please Log in or Create an account to join the conversation.

  • !Seymore
  • !Seymore's Avatar
  • Offline
  • User
  • User
    Registered
  • Ride on...
  • Posts: 489
  • Thanks: 87

Re: '77 Kz650c Potential Valve Issues

18 Jan 2015 21:23 - 18 Jan 2015 21:24
#659048
rage_rides wrote: I haven't run a compression check. Should I? And what would poor compression indicate for the situation? And I haven't done a valve adjustment since I've owned the bike, I should probably take a look at that.

Could mean a valve adjustment or other compression leak problems... let us know what you have here, before tearing into the engine. Helps to diag the problem before tearing in and not knowing some baseline.
C.
79' KZ650-D2 [fsm] (Max)
83' KZ750-F1 LTD [clymers] (Kay)
82' KZ1100-D1 Specter (another project)
78' KZ650-B2a (J&H, A Project)
91' KZ1000-P (P = parts)
Last edit: 18 Jan 2015 21:24 by !Seymore.
The following user(s) said Thank You: PLUMMEN

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • 10 22 2014
  • Posts: 23383
  • Thanks: 2902

Re: '77 Kz650c Potential Valve Issues

18 Jan 2015 22:01
#659055
rage_rides wrote: Hey, this is my first post. This is a rad community and I'm stoked to be a part of it!


Attachment CAM00118.jpg not found




I've got a 1977 KZ650C chop. It ran fast and loud before I started having some issues a few weeks ago. One day I started it up and after a brief warm up and ride it felt like it was running poorly and wouldn't stay running at an idle. I parked it at home and let it sit. It was just after dark and while trying to get it to run again I realized it wasn't firing correctly on the number 3 cylinder. The exhaust tube coming from number 3 wasn't cold, however, it was searing hot. If I gave it some throttle (while running) it would smell like hot and the pipe itself started glowing a dull orange. I immediately turned the bike off. I cleaned the carbs, jets, float needles, made sure floats were adjusted correctly, etc. The problem has persisted though and I won't let the bike run for more than needed to try out little fixes.

Does this sound like a stuck valve on the exhaust side of cylinder 3? If not, what should I look at next? If it is, should I remove the cylinder heads and start there? I have the Clymer manual and have taken the bike apart a few times, but I don't want to get into the block before I get a second opinion.

I appreciate any help.

WTF is that?
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

  • PLUMMEN
  • PLUMMEN's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 7986
  • Thanks: 104

Re: '77 Kz650c Potential Valve Issues

18 Jan 2015 22:05
#659056
Id tear back into the carbs again if it just started getting hot all the sudden on one cylinder,maybe try swapping a different set of carbs on there just to see if it makes a difference. ;)
Still recovering,some days are better than others.

Please Log in or Create an account to join the conversation.

  • Patton
  • Patton's Avatar
  • Offline
  • KZr Legend
  • KZr Legend
    Registered
  • Posts: 18568
  • Thanks: 2101

Re: '77 Kz650c Potential Valve Issues

19 Jan 2015 06:15
#659068
Could perform a quickie clear-tube test on #3 carb to rule out possible fuel starvation due to a too low fuel level being caused by whatever reason.

Good Fortune! :)
1973 Z1
KZ900 LTD

Please Log in or Create an account to join the conversation.

  • bountyhunter
  • bountyhunter's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 7245
  • Thanks: 338

Re: '77 Kz650c Potential Valve Issues

19 Jan 2015 12:48
#659109
rage_rides wrote: I haven't run a compression check. Should I? And what would poor compression indicate for the situation?.
That the valve is not fully closing or is not seating well.
1979 KZ-750 Twin
The following user(s) said Thank You: rage_rides

Please Log in or Create an account to join the conversation.

  • rage_rides
  • rage_rides's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 3
  • Thanks: 0

Re: '77 Kz650c Potential Valve Issues

19 Jan 2015 15:21
#659127
Thanks for the help guys, I've got some good places to start. I'll hit it this week and let you guys know how it turns out.

Please Log in or Create an account to join the conversation.

  • !Seymore
  • !Seymore's Avatar
  • Offline
  • User
  • User
    Registered
  • Ride on...
  • Posts: 489
  • Thanks: 87

Re: '77 Kz650c Potential Valve Issues

19 Jan 2015 15:31
#659129
bountyhunter wrote:
rage_rides wrote: I haven't run a compression check. Should I? And what would poor compression indicate for the situation?.
That the valve is not fully closing or is not seating well.

...or rings that are no longer sealing. But a leakdown test helps, in this regard.


Yes RR, please do keep us posted with what you discover.
