De-smogging

07 Dec 2014 22:01
#655615
85 GPZ750

I have a non Comifornia bike and it has the little little filter between the cylinders where the tubes from the top of the cylinder head vent to; and then from there the filter thingy goes into the airbox. I'm ripping that filter off. I plan on plugging the spigot on the airbox where it would run. And then I'll block off the spigots coming out of the top of the cylinder head vents (SAS?).

Is there anything else I should be aware of?
1985 GPZ750 (non-turbo)

Please Log in or Create an account to join the conversation.

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Platinum Member
    Registered
  • Posts: 7928
  • Thanks: 2505

Re: De-smogging

07 Dec 2014 22:52
#655620
Some billet block off plates would be nice.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24

Please Log in or Create an account to join the conversation.

  • Patton
  • Patton's Avatar
  • Offline
  • KZr Legend
  • KZr Legend
    Registered
  • Posts: 18568
  • Thanks: 2101

Re: De-smogging

08 Dec 2014 06:46 - 08 Dec 2014 06:48
#655632
taylee wrote: 85 GPZ750

I have a non Comifornia bike and it has the little little filter between the cylinders where the tubes from the top of the cylinder head vent to; and then from there the filter thingy goes into the airbox. I'm ripping that filter off. I plan on plugging the spigot on the airbox where it would run. And then I'll block off the spigots coming out of the top of the cylinder head vents (SAS?).

Is there anything else I should be aware of?

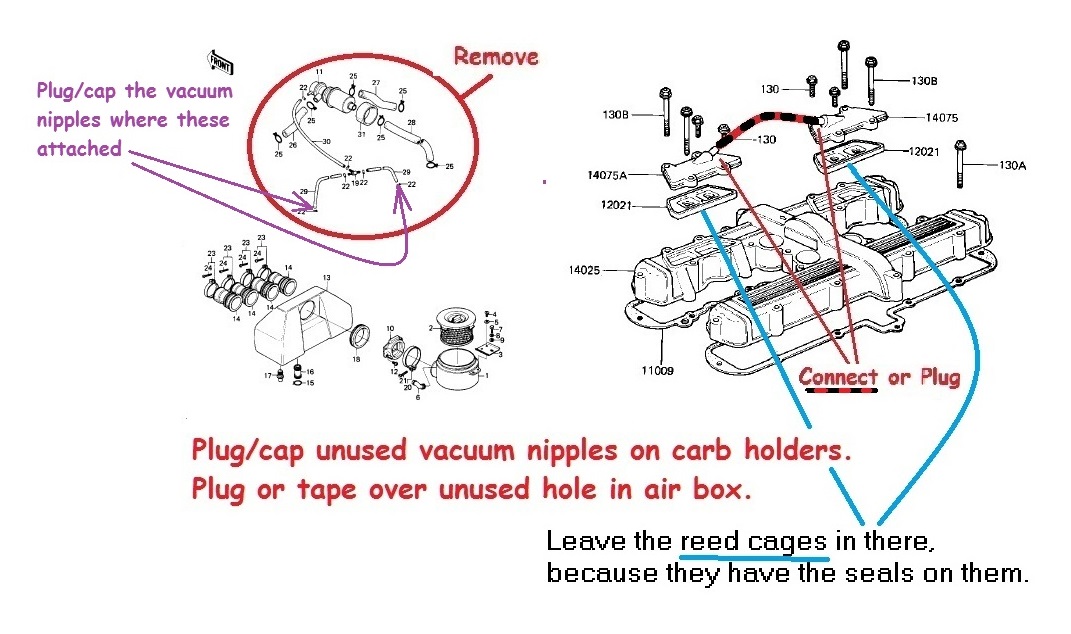

Important to cap/plug the carb holder vac nipples left open after the clean air paraphernalia is removed.

Good Fortune! :)
1973 Z1
KZ900 LTD

Attachments:

Last edit: 08 Dec 2014 06:48 by Patton.

Please Log in or Create an account to join the conversation.

  • taylee
  • taylee's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 51
  • Thanks: 1

Re: De-smogging

08 Dec 2014 07:30
#655636
Thanks for that pic. Glad I checked as I had forgotten all about the little tubes going to the carbs. I thought it was a vent line and was going to leave them un-capped.
1985 GPZ750 (non-turbo)
