Tach seal leak won't stop
- SeattleKZ
- Topic Author
- Offline
- User
Less
More
11 Oct 2014 07:51 #650331
by SeattleKZ
Tach seal leak won't stop was created by SeattleKZ
I put in a new tach drive seal and it seems to leak even more. Is there a fix for this?
This is in regards to a 1976 KZ900
This is in regards to a 1976 KZ900
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
Less
More
- Posts: 15344
- Thank you received: 2829
11 Oct 2014 09:00 - 12 Oct 2014 07:30 #650349
by 650ed
Rendering Error in layout Message/Item: Kunena\Forum\Libraries\BBCode\KunenaBBCodeLibrary::renderEbayLayout(): Argument #1 ($ItemID) must be of type int, string given, called in /home/kzride5/public_html/libraries/kunena/src/BBCode/KunenaBBCode.php on line 314. Please enable debug mode for more information.
Replied by 650ed on topic Tach seal leak won't stop
Rendering Error in layout Message/Item: Kunena\Forum\Libraries\BBCode\KunenaBBCodeLibrary::renderEbayLayout(): Argument #1 ($ItemID) must be of type int, string given, called in /home/kzride5/public_html/libraries/kunena/src/BBCode/KunenaBBCode.php on line 314. Please enable debug mode for more information.
Please Log in or Create an account to join the conversation.
- SeattleKZ
- Topic Author
- Offline
- User
Less
More
- Posts: 148
- Thank you received: 3
11 Oct 2014 09:17 #650352
by SeattleKZ
Replied by SeattleKZ on topic Tach seal leak won't stop
Thanks
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
11 Oct 2014 09:38 - 11 Oct 2014 09:42 #650354
by Patton
1973 Z1
KZ900 LTD
Replied by Patton on topic Tach seal leak won't stop

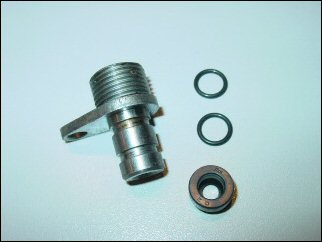

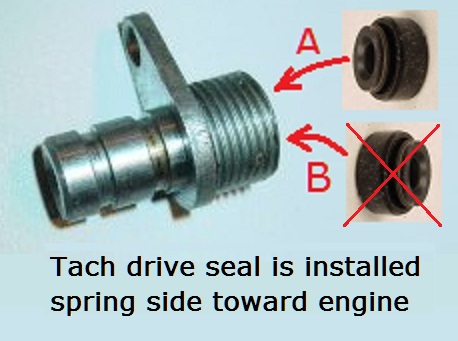

Both the shaft seal and o'ring(s) serve to prevent oil from escaping through or around the tach drive.
The tach shaft seal prevents oil from escaping around the shaft.
The o'ring around the tach drive case prevents oil from escaping past the case.
Am thinking that some models may have 2 o'rings around the tach drive case.
Even without the tach cable installed, there should be no leakage whatsoever from the tach drive. For example, after a cross-country ride without a tach cable, the exposed end of the tach drive shaft should be perfectly dry and oil-free.
Without the tach cable attached, should be able to see the end of the tach drive shaft, and watch it spinning when the engine is running.
Using an oil-tight connection between the cable and a leaking drive simply allows the escaping oil to accumulate inside the cable. And is a band-aid effort in lieu of a correct repair.

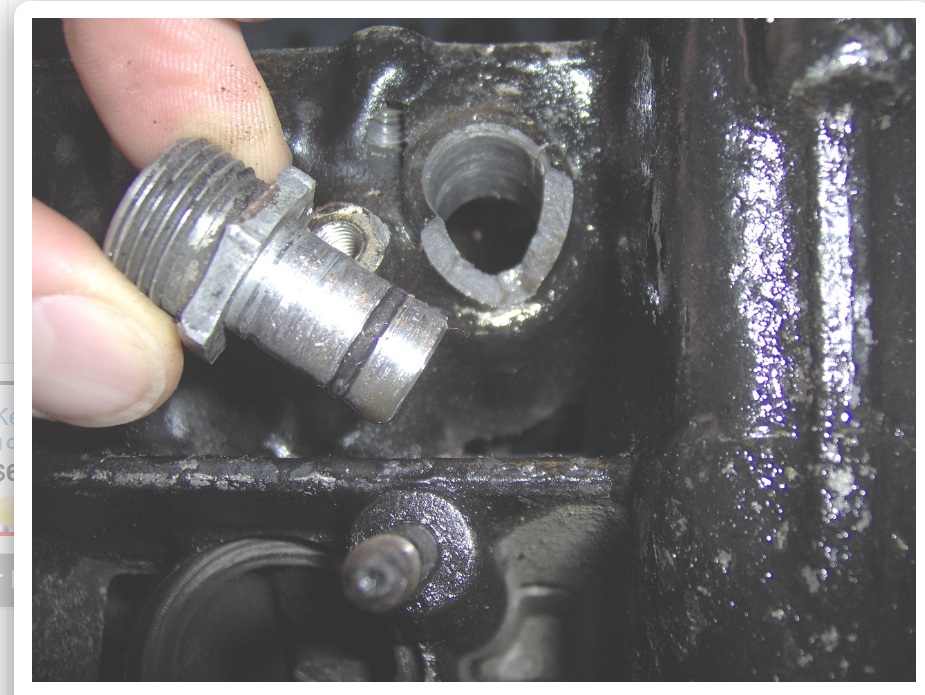

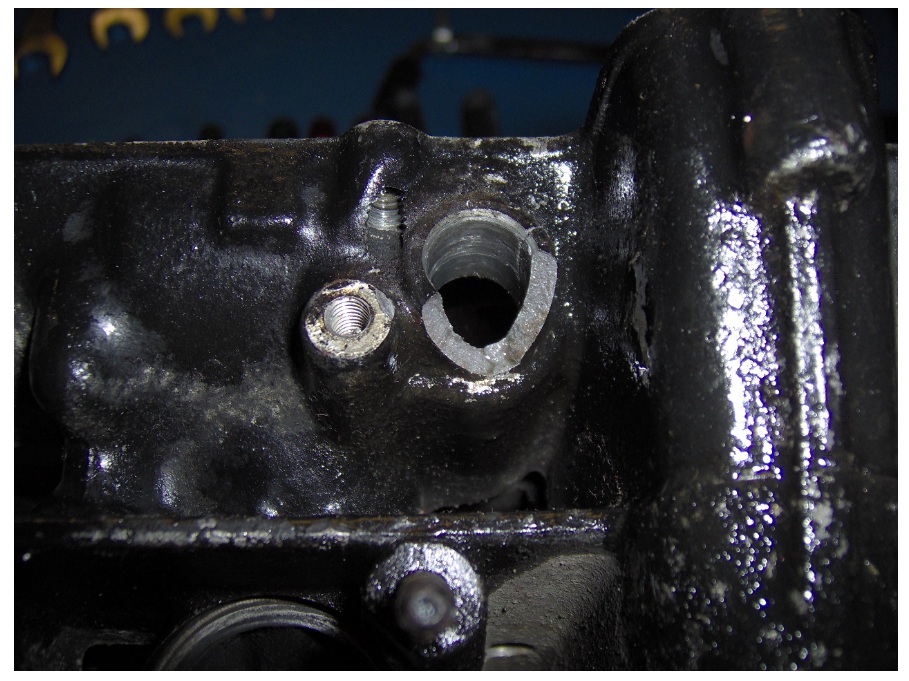

Hopefully, there 's no damage to the engine where the tach drive fits.

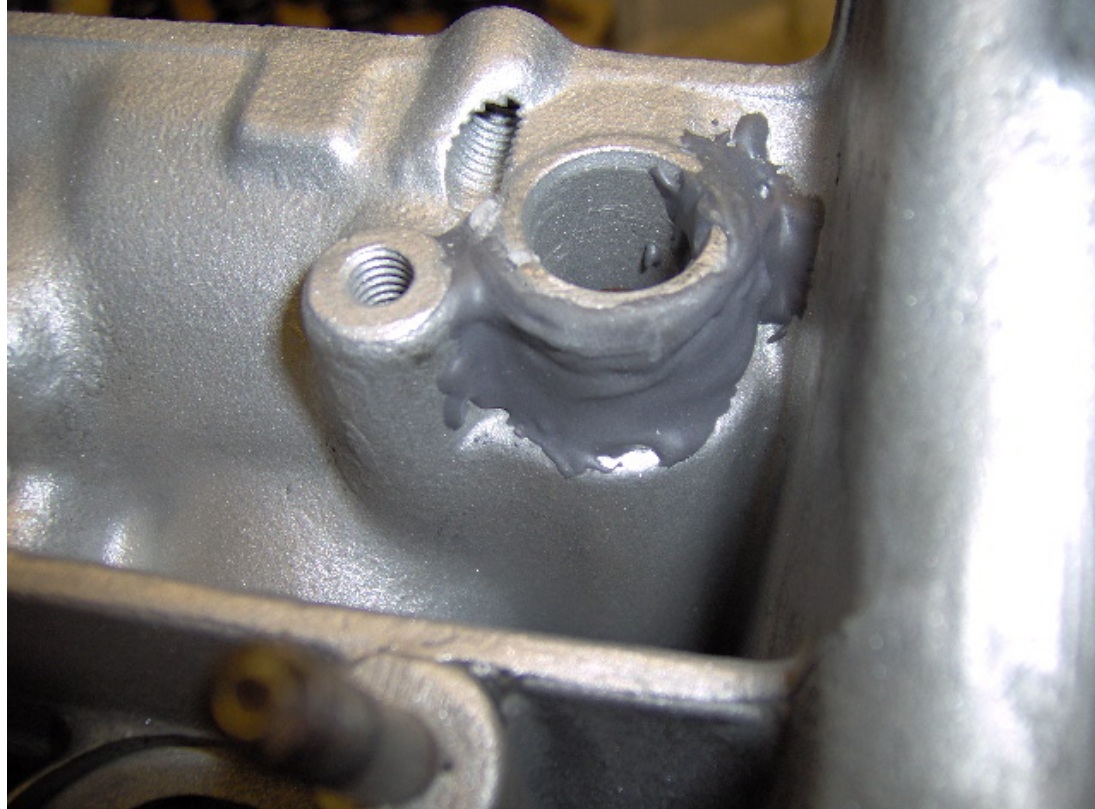

But sometimes JBWeld might serve as a feasible repair.
Good Fortune!
The tach shaft seal prevents oil from escaping around the shaft.
The o'ring around the tach drive case prevents oil from escaping past the case.
Am thinking that some models may have 2 o'rings around the tach drive case.
Even without the tach cable installed, there should be no leakage whatsoever from the tach drive. For example, after a cross-country ride without a tach cable, the exposed end of the tach drive shaft should be perfectly dry and oil-free.
Without the tach cable attached, should be able to see the end of the tach drive shaft, and watch it spinning when the engine is running.
Using an oil-tight connection between the cable and a leaking drive simply allows the escaping oil to accumulate inside the cable. And is a band-aid effort in lieu of a correct repair.
Hopefully, there 's no damage to the engine where the tach drive fits.
But sometimes JBWeld might serve as a feasible repair.
Good Fortune!
1973 Z1
KZ900 LTD
Last edit: 11 Oct 2014 09:42 by Patton.
