cam chain timing - any difference b/w #1 & #4 TDC?
- Zaddict
- Topic Author
- Offline
- User
- Enjoying my Zaddiction!
Less
More
15 Aug 2014 09:48 - 15 Aug 2014 13:55 #644049
by Zaddict
1990 Zephyr zr550 B1
Wiseco 615cc kit
zx550 cams
SPII ignition system
Kerker stainless steel race exhaust with 1.5" competition baffle
K&N Air Filter...
cam chain timing - any difference b/w #1 & #4 TDC? was created by Zaddict
help me out please, I'm trying to fix my cam chain timing right now (mixed it up during valve adjustment). The FSM says #1 cylinder should be at TDC with both lobes facing out. Question is - if #1 is TDC, #4 should be too, correct? I don't need to make sure that it is specifically #1 that is at TDC? Peaking through the spark plug hole it looks like that's the case but want to confirm before buttoning everything back up.
1990 Zephyr zr550 B1
Wiseco 615cc kit
zx550 cams
SPII ignition system
Kerker stainless steel race exhaust with 1.5" competition baffle
K&N Air Filter...
Last edit: 15 Aug 2014 13:55 by Zaddict.
Please Log in or Create an account to join the conversation.
- Zaddict
- Topic Author
- Offline
- User
- Enjoying my Zaddiction!
Less
More
- Posts: 333
- Thank you received: 58
15 Aug 2014 11:00 - 15 Aug 2014 11:10 #644062
by Zaddict
1990 Zephyr zr550 B1
Wiseco 615cc kit
zx550 cams
SPII ignition system
Kerker stainless steel race exhaust with 1.5" competition baffle
K&N Air Filter...
Replied by Zaddict on topic cam chain timing - any difference b/w #1 & #4 TDC?
Follow up question. I went ahead and reinstalled the camshafts assuming no difference b/w #1 & 4 TDC. Everything looks OK and I'm able to turn the engine over by hand with no clanking but it looks like the timing is a few degrees off - the z/5 and EX marks are not in line with the horizontal edge of the head. This is at exactly TDC for 1/4. Will this work? If not, how can I adjust? Would it better to readjust the crankshafts so they are a few degrees off in the opposite direction? Maybe I have to loosen the cam chain and readjust where it sits on the crankshaft?
Thanks!
Thanks!
Attachment photo.jpg not found
Attachment photo_2014-08-15.jpg not found
1990 Zephyr zr550 B1
Wiseco 615cc kit
zx550 cams
SPII ignition system
Kerker stainless steel race exhaust with 1.5" competition baffle
K&N Air Filter...
Attachments:
Last edit: 15 Aug 2014 11:10 by Zaddict.
Please Log in or Create an account to join the conversation.
- steell
- Offline
- User
15 Aug 2014 22:09 #644158
by steell
KD9JUR
Replied by steell on topic cam chain timing - any difference b/w #1 & #4 TDC?
Yes, one and four are at TDC at the same time.
Other than that, I don't have much of a clue.
Loudhvx and a couple of others are the 550 guys.
Other than that, I don't have much of a clue.
Loudhvx and a couple of others are the 550 guys.
KD9JUR
Please Log in or Create an account to join the conversation.
- bountyhunter
- Offline
- User
Less
More
- Posts: 7246
- Thank you received: 337
15 Aug 2014 23:47 - 15 Aug 2014 23:54 #644167
by bountyhunter
1979 KZ-750 Twin
Replied by bountyhunter on topic cam chain timing - any difference b/w #1 & #4 TDC?

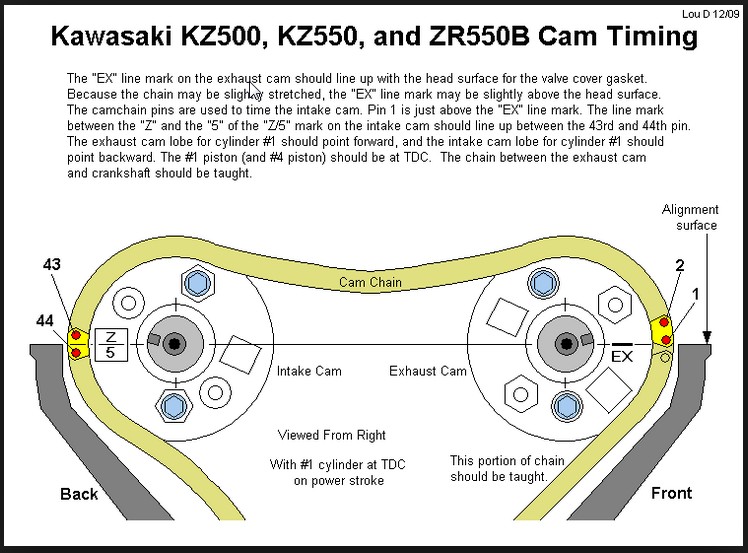

Assuming the camshaft alignment is as shown in the drawing I found (and the crank is at TDC).... it looks like the top picture (intake) you posted camshaft is one tooth too far counterclockwise.
