KZ650 valve clearance wierdness
- bountyhunter
- Offline
- User
I was kind of surprised too but there is a fair amount of play.bluezbike wrote: Bountyhunter wrote: I have a couple of valves that will change clearance based on cam chain tension. There is up/down play of the camshafts in the journals and if I revers direction on the crankshaft nut while checking (and release cam chain tension) the clearance would change about .002" on a couple of valves.
I am a bit surprised that there is up/down play in the camshafts......I didn't think there should be any play at all, am I missing something here?
1979 KZ-750 Twin
Please Log in or Create an account to join the conversation.
- bountyhunter
- Offline
- User
- Posts: 7246
- Thank you received: 337

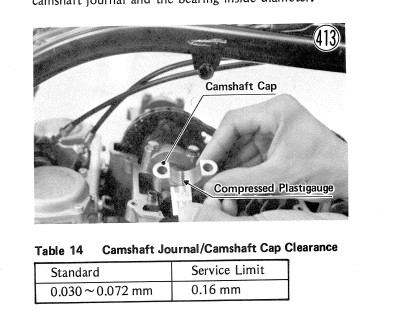

1979 KZ-750 Twin
Please Log in or Create an account to join the conversation.
- Tyler
- Offline
- User
- Posts: 845
- Thank you received: 92
If I knew what I was doing all the time life wouldn't be any fun.
'80 KZ650 E 700cc, dyna ignition and coils, frame up restoration, daily driver
'81 KZ1300 A3 full restoration, custom big bore pistons, 1400cc 6 cylinder super bike
"77 KZ650 B1 - Barn Find, work in progeress
"74 Yamaha DT 400 Enduro
Please Log in or Create an account to join the conversation.
- bluezbike
- Offline
- Sustaining Member
- Posts: 598
- Thank you received: 104
Thanks all......I guess the movement has to be there to allow for cams heating up and expanding when at operating temperature
79 KZ 1000 LTD
77 KZ 1000 B1 LTD (awaiting electrical resurrection)
Please Log in or Create an account to join the conversation.
- RonKZ650
- Offline
- User
- Posts: 3702
- Thank you received: 240
Shims are in .05mm or .002" increments, so only need to measure using those baseline sizes, so you need a .05mm, .10mm, .15mm, .20mm feeler set.
Decide what clearance you are shooting for, usually .10 or .15mm
Lets say you are going for .10mm. Start on a valve, turn the engine over slowly clockwise with the 17mm end of your crankshaft while constantly trying to insert a .10mm feeler. If it slides in anywhere in the entire rotation of the cam, try a .15mm. If it does *not* slide in anywhere in the entire rotation, call your clearance OK at .10mm because shims only come in .05mm increments and trying to measure to .001" is fruitless and a waste of time.
If the .15mm goes in, but a .20mm doesn't, then call your clearance .15 and add 1 shim size to bring to spec most likely. Same idea, if a .05mm goes, but a .10mm doesn't then you would subtract one shim size and recheck.
The problem most run into is for whatever reason, the clearances can vary by as much as 2 sizes depending on where the cam is in it's rotation sometimes, and just checking in one place can send you in circles if you do it that way.
321,000 miles on KZ's that I can remember. Not going to see any more.
Please Log in or Create an account to join the conversation.
- DoctoRot
- Topic Author
- Offline
- Sustaining Member
- Oh, the usual... I bowl, I drive around...
- Posts: 2559
- Thank you received: 676
Please Log in or Create an account to join the conversation.
- CoreyClough
- Offline
- User
- GPz550 Addiction
- Posts: 1094
- Thank you received: 80
The go, no-go valve clearance check works great.
I print out one of these every time I do a valve clearance check, because i ride my commuter 300 miles a week.
