1979 KZ650 wont start - UPDATE***
- dexxx
- Topic Author
- Offline
- User
Without getting too deep in the details - after putting her back together, she doesn't want to start. All cylinders getting a nice blue spark, all carbs getting fuel, and compression feels good. Timing looked good, atleast it lined up with the F marks. Is there a way to check if its 180 out? I put fresh gas too.
Some questions:
1)I put these filters on ( 4into1.com/black-foam-chrome-air-filter-pod-39mm-cb750/ ) - I know theres a chance that I'd need to fatten up the jets, but I would think it would atleast start with them. I've tried placing a rag over the filters to restrict flow and still no go.
2) My plug wires are routed as cylinders 1 and 4 from the right coil, and 2 and 3 from the left. I've read this is the correct config somewhere but would like confimation for peace of mind. Also it doesnt matter which wire right? They're wasted spark system?
3) From one of the coils there is a black wire. I know this goes to the poiints - however, the wire into the coil has a connector for two wires. What is the other connection for?
I feel like I'm missing something really simple here and hopefully you guys can point me in the right direction.
Thank you so much!
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
- Posts: 15344
- Thank you received: 2829
Attachment AdvancerCloseupwCircles.jpg not found
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- JR
- Offline
- Sustaining Member
- Posts: 2938
- Thank you received: 448
dexxx wrote: Some questions:
...........................................................................
3) From one of the coils there is a black wire. I know this goes to the poiints - however, the wire into the coil has a connector for two wires. What is the other connection for?
........................................................................
!
The other connector is probably for the red wire...... If I am understanding your question correctly
See wiring diagram diagrams.kz650.info/wiring/images/KZ650-H2.jpg
One coil will have a green wire and a red wire and the other a black and a red wire. The red wire is for power. Offhand I cant remember which coil gets the green and which gets the black
1980 kz750E1, Delkevic exhaust
Please Log in or Create an account to join the conversation.
- dexxx
- Topic Author
- Offline
- User
- Posts: 5
- Thank you received: 0
Imma check the backing plate tomorrow morning.
I rewired the bike with a simpler hardness so the colors wont match before. From what I recall, I have red yellow to power, green to left coil and black to right coil... Which should be correct. But still stumped on that extra black female connector to the right coil
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
- Posts: 15344
- Thank you received: 2829
The green and black wires control when the coils fire the spark plugs. The coil that is connected to the left hand set of points via the black wire fires plugs 1 & 4; either wire on either plug; whichever length fits best. The coil that is connected to the right hand set of points via the green wire fires plugs 2 & 3; again it doesn't matter which of those wires goes to 2 or 3, which ever length fits best. Ed
Attachment 00008_2014-05-17.jpg not found
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- dexxx
- Topic Author
- Offline
- User
- Posts: 5
- Thank you received: 0
As for the red/yellow wire, that is correct on my harness. however the black wire from the points to the 1-4 coil on the right side of the diagram is a little different. From the coil there is the same black wire, but mine has a double female, as opposed to a single. I connected the black wire from the points to one of them, but can't seem to find what used to plug into the other one.
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- dexxx
- Topic Author
- Offline
- User
- Posts: 5
- Thank you received: 0
Gonna try and start it again later tonight. Hopefully can get her going
Thanks all
Please Log in or Create an account to join the conversation.
- dexxx
- Topic Author
- Offline
- User
- Posts: 5
- Thank you received: 0
Thanks so much for the help guys...
Turns out its fuel delivery. Sprayed some starter fluid (something I should of done last week but was too lazy to go to the auto store to get some fluid) into the carbs and it started first kick. Only problem now is it wont rev, just idle. Smokes white as well. Obvious answer I'm guessing is running lean. So, gonna jet up. Any reccomendations? Whats stock size? Do I increase both jets for each carb?
THank you all
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
Here's one method:

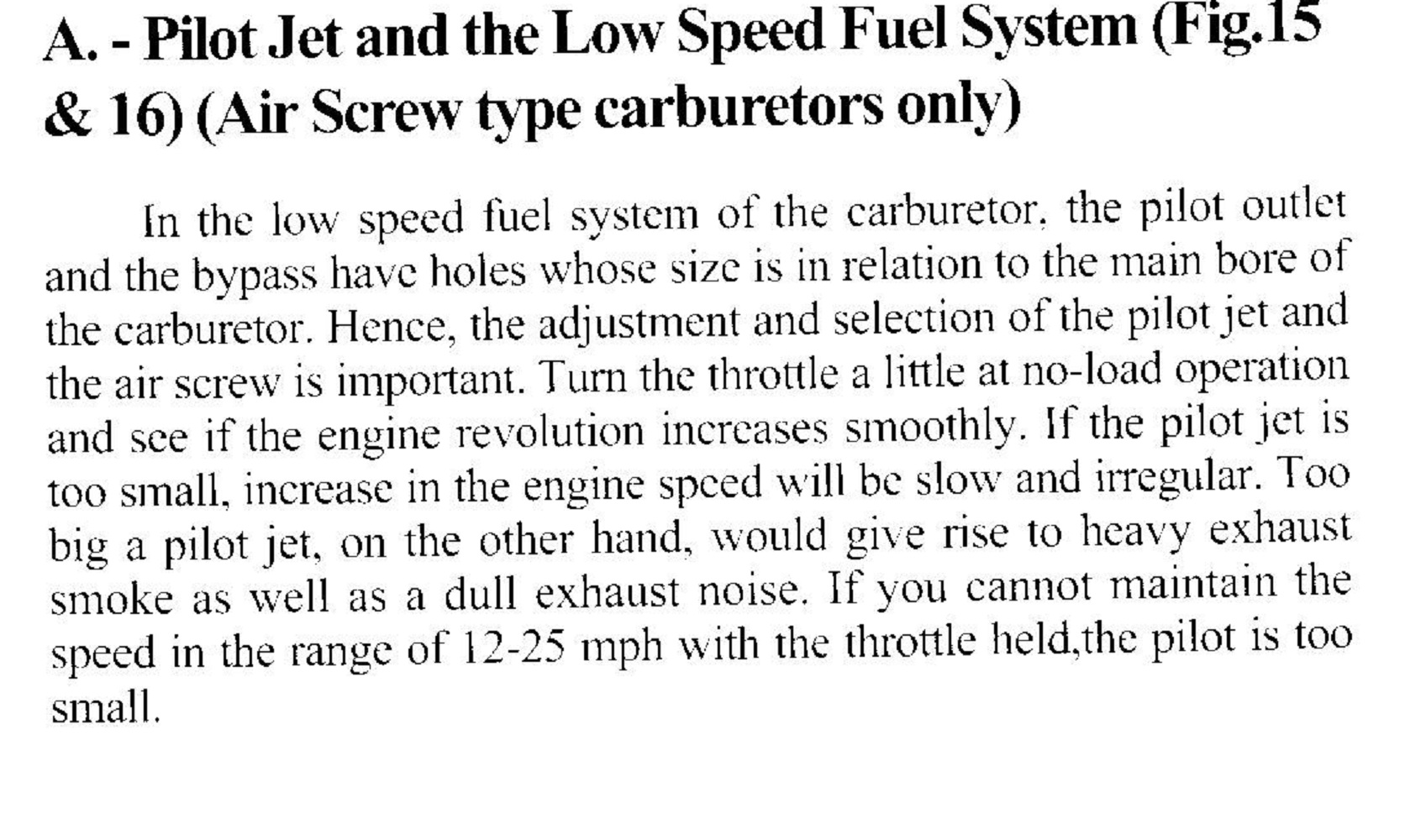

With regard to pilot jet sizing:
Good Fortune!
1973 Z1
KZ900 LTD
