Separating engine cases

23 Nov 2013 00:47
#613854
Are there locations for running jack bolts in to separate the cases or how do you go about splitting them ?
1978 KZ 1000


I go by Jason

Please Log in or Create an account to join the conversation.

  • guitargeek
  • guitargeek's Avatar
  • Offline
  • User
  • User
    Registered
  • Elitist, arrogant, intolerant, self absorbed.
  • Posts: 1183
  • Thanks: 50

Re: Separating engine cases

23 Nov 2013 01:07
#613855
If you're asking questions like this, you really need to get a factory service manual.
1980 KZ750-H1 (slightly altered)
1987 KZ1000-P6 "Ponch"
1979 GS1000 "Dadzuki"

Please Log in or Create an account to join the conversation.

  • geerbangr
  • geerbangr's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 298
  • Thanks: 4

Re: Separating engine cases

23 Nov 2013 01:32
#613856
I have a factory service manual. However I'm out of town working and don't carry my factory manual around with me. I was running some thought through my think tank and wanted to get a question answered. I'll wait to get home and go through my factory manual so I don't disturb anyone else at 0430.
1978 KZ 1000


I go by Jason

Please Log in or Create an account to join the conversation.

  • guitargeek
  • guitargeek's Avatar
  • Offline
  • User
  • User
    Registered
  • Elitist, arrogant, intolerant, self absorbed.
  • Posts: 1183
  • Thanks: 50

Re: Separating engine cases

23 Nov 2013 02:10
#613857
:laugh:

I don't know about the older models, but on the 650/750 and J-model engines there are pry points. Use a great big flat screwdriver and lots of care...
1980 KZ750-H1 (slightly altered)
1987 KZ1000-P6 "Ponch"
1979 GS1000 "Dadzuki"

Please Log in or Create an account to join the conversation.

  • Street Fighter LTD
  • Street Fighter LTD's Avatar
  • Offline
  • Moderator
  • Moderator
    Registered
  • TURBO, Its Better to be Blown than Injected
  • Posts: 4991
  • Thanks: 2165

Re: Separating engine cases

23 Nov 2013 03:55
#613858
KZ 1000 s have jack bolt holes

Original owner 78 1000 LTD
Mr Turbo Race Kit, MTC 1075 Turbo pistons by PitStop Performance , Falicon Ultra Lite Super Crank, APE everything. Les Holt @ PDM's Billet Goodies . Frame by Chuck Kurzawa @ Logghe Chassis . Deep sump 5qt oil pan. RIP Bill Hahn
The following user(s) said Thank You: geerbangr

Please Log in or Create an account to join the conversation.

  • Powerstroke_fan
  • Powerstroke_fan's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 1017
  • Thanks: 83

Re: Separating engine cases

23 Nov 2013 04:21 - 23 Nov 2013 04:23
#613859
There in the front of the motor. right in line with the rest of the bolts. They should be the only two that didnt have bolts in them. And on the other side of them there will be a little lip type deal you will see. There are two of them. Just make sure you have all the bolts removed.
1980 kz1000B4 LTD- 1327cc 9-1 comp
Ported J model head
Psp-3x cams
RS 36s
Welded MK11 crank
Back-cut MK11 trans
MTC 2 stage lock up
Stretched 4-6 over running Hayabusa rear rim with 190 rear tire
Complete frame brace kit installed
And Much Much more- SOLD

2014- ZX14R all stock for now
Last edit: 23 Nov 2013 04:23 by Powerstroke_fan.
The following user(s) said Thank You: geerbangr

Please Log in or Create an account to join the conversation.

  • floivanus
  • floivanus's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 1055
  • Thanks: 116

Re: Separating engine cases

23 Nov 2013 07:21
#613867
Dont forget the five bolts on the top side around the starter motor
my bikes; 80kz1000(project), 77 gl1000, 74 h2 (project)
Past; 78 kz1000, 83 kz550
Andrew

Please Log in or Create an account to join the conversation.

  • Patton
  • Patton's Avatar
  • Offline
  • KZr Legend
  • KZr Legend
    Registered
  • Posts: 18568
  • Thanks: 2101

Re: Separating engine cases

23 Nov 2013 07:39
#613868


Good Fortune! :)
1973 Z1
KZ900 LTD

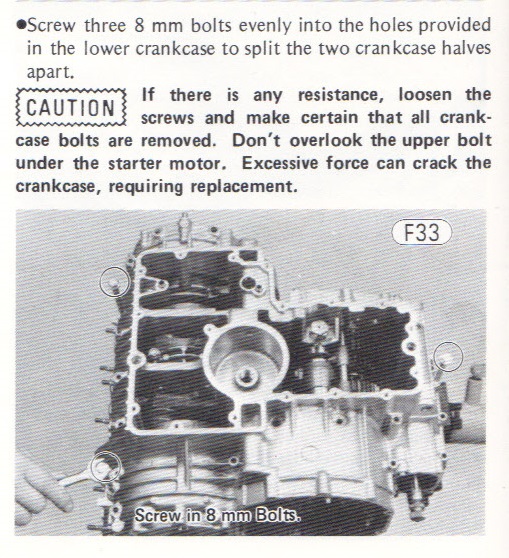

Attachments:

The following user(s) said Thank You: geerbangr

Please Log in or Create an account to join the conversation.

  • geerbangr
  • geerbangr's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 298
  • Thanks: 4

Re: Separating engine cases

23 Nov 2013 20:47
#613957
Awesome guys thanks !!
1978 KZ 1000


I go by Jason

Please Log in or Create an account to join the conversation.

  • guitargeek
  • guitargeek's Avatar
  • Offline
  • User
  • User
    Registered
  • Elitist, arrogant, intolerant, self absorbed.
  • Posts: 1183
  • Thanks: 50

Re: Separating engine cases

23 Nov 2013 21:34 - 23 Nov 2013 21:35
#613958
I bet there's a pdf file of that manual somewhere... Back before my phone went tits up, I carried around a copy of my manual in my pocket.
1980 KZ750-H1 (slightly altered)
1987 KZ1000-P6 "Ponch"
1979 GS1000 "Dadzuki"
Last edit: 23 Nov 2013 21:35 by guitargeek.

Please Log in or Create an account to join the conversation.

  • Patton
  • Patton's Avatar
  • Offline
  • KZr Legend
  • KZr Legend
    Registered
  • Posts: 18568
  • Thanks: 2101

Re: Separating engine cases

24 Nov 2013 06:35
#613970
Here's a link to download the FSM covering the J model:

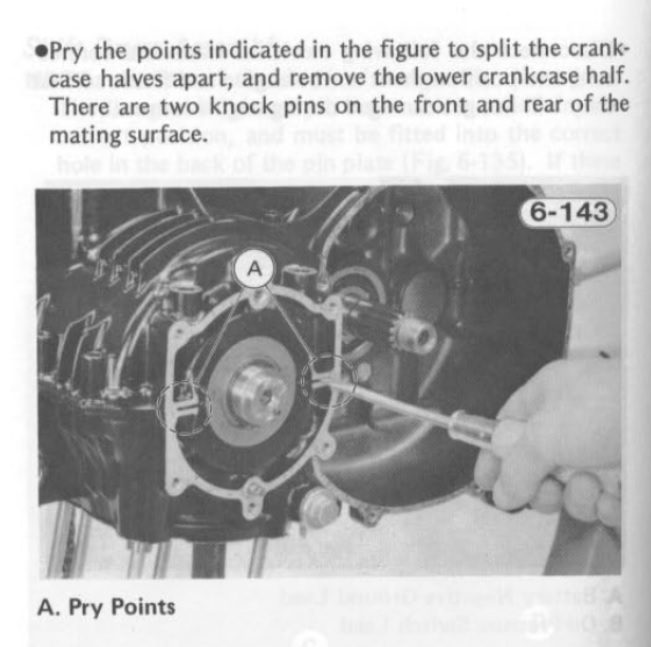

"Pry points" are noted.
"Jack bolts" aren't mentioned.

www.kawiworld.com/images/stories/KZ1100man.pdf

Excerpt from page 44:

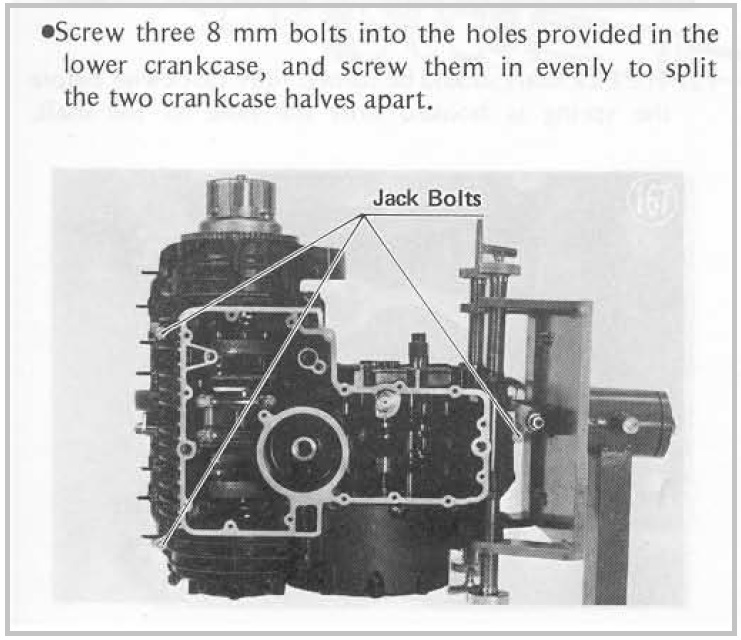

Z1 - KZ900 models also provide for jack bolts.



Good Fortune! :)
1973 Z1
KZ900 LTD

Attachments:

The following user(s) said Thank You: geerbangr

Please Log in or Create an account to join the conversation.
