Mistake in KZ750 B4 manual? Help please.

Part# 1 = 92043-1266 pin,11x14x12.3
Part# 2 = 92055-093 "O" RING

I'm 90% sure the pin should be a simple knock/dowel pin that goes around the base of the front two studs just like my red arrows show. It should NOT be used in this particular oil passage. The o-ring as shown should be correct.

Is this right???

There is an oil passage pin, but that is used on the top side of the cylinder barrel...

Thanks!!

It is hollow, just a small diameter piece of tubing to locate the part in the proper location.


.

pbmax wrote:

Part# 1 = 92043-1266 pin,11x14x12.3
Part# 2 = 92055-093 "O" RING

I'm 90% sure the pin should be a simple knock/dowel pin that goes around the base of the front two studs just like my red arrows show. It should NOT be used in this particular oil passage. The o-ring as shown should be correct.

Is this right???

There is an oil passage pin, but that is used on the top side of the cylinder barrel...

Thanks!!

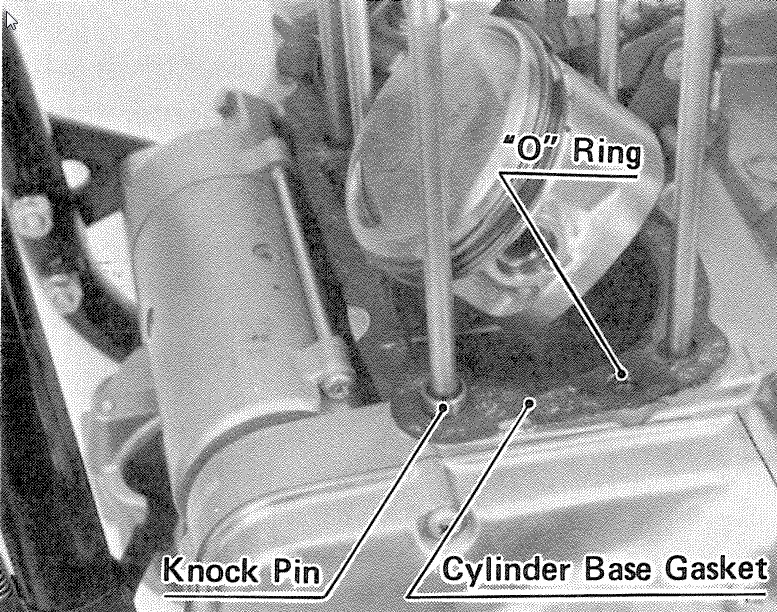

I made a picture from the Kawi manual showing the location of the pin and the O ring. They are not the same place.

Bingo! Thanks!
